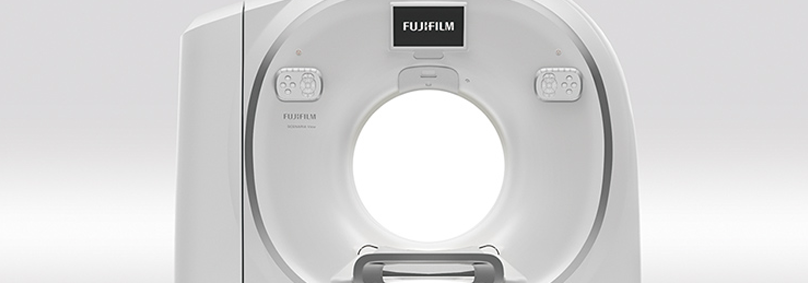

The bore of a CT scanner — the circular opening the patient enters — is one of those specifications that looks straightforward on a spec sheet but has substantial clinical implications that are not immediately obvious. The Fujifilm SCENARIA View CT features an 80 cm wide bore, and understanding why that number matters helps explain both what this scanner can do and what wide-bore CT in general means for a facility's patient population and operational workflow.
Why 80 cm Makes a Difference
Standard CT bores measure 70 cm in diameter. An 80 cm bore is 10 cm wider — which sounds modest until you consider that the 10 cm distributes around the circumference of the opening. A patient at the center of an 80 cm bore has 5 cm more clearance on each side. For a claustrophobic patient, that additional space significantly reduces the sense of enclosure. For a larger patient who technically fits in a 70 cm bore but experiences significant anxiety due to proximity to the walls, the difference in subjective experience is meaningful.
The clinical impact is more significant than patient comfort alone. The wide bore allows arm positioning options that a standard bore cannot accommodate. For radiation therapy simulation CT — where accurate, reproducible patient positioning with arms in treatment position is essential — the 80 cm bore accommodates arm-up positioning for thoracic and abdominal treatment plans that would require arms down (and potentially degraded dose distribution modeling) in a narrower bore. Obese patients who marginally fit in a 70 cm bore can be imaged with less table-centering compromise in the SCENARIA View.
Intelli IPV: Up to 83% Dose Reduction
The SCENARIA View includes Fujifilm's Intelli IPV iterative reconstruction — the most advanced implementation in Fujifilm's CT line. Intelli IPV is a vision-model-based iterative reconstruction that applies the system's knowledge of the imaging chain — detector characteristics, focal spot behavior, scatter profiles — to construct an optimized image from the acquired projection data.
Dose reductions of up to 83 percent compared to filtered back projection at equivalent image quality represent the upper end of what current CT reconstruction technology delivers. For pediatric patients, oncology follow-up studies requiring frequent imaging, and any patient population where cumulative dose is a concern, Intelli IPV's dose reduction capability changes the risk-benefit calculation for CT examinations. Fujifilm's complementary AEC system, Intelli EC, provides 3D automatic exposure control across the scan length, ensuring dose reduction is realized consistently across the patient population rather than only in optimized protocol demonstrations.
The HiVision Detector and HiMAR Plus
The HiVision Detector is the SCENARIA View's detector system, featuring 25 percent electronic noise reduction compared to prior Fujifilm detector generations. Electronic noise — the baseline noise floor inherent in detector electronics — limits the dose reduction achievable with iterative reconstruction, because at some point the residual image noise comes from the detector electronics rather than the statistical noise of X-ray photons. Reducing electronic noise at the hardware level allows further dose reduction before hitting the noise floor, extending the range over which Intelli IPV can operate effectively.
HiMAR Plus (High-tech Metal Artifact Reduction) addresses one of the persistent challenges in CT imaging: the beam-hardening and scatter artifacts from metallic implants that can obscure adjacent anatomy. With the aging of the population and the increasing prevalence of joint replacements, hardware implants, and surgical clips, metal artifact reduction is a routine clinical need rather than a specialized capability. HiMAR Plus provides artifact correction as a standard reconstruction option rather than a manual post-processing step.
Lateral Shift Table and Workflow Features
The SCENARIA View's lateral shift table moves the patient table laterally by up to 10 cm from the isocenter. This capability serves two purposes: it allows isocenter positioning that reduces beam-hardening artifacts from asymmetric anatomy (positioning a shoulder closer to the isocenter for shoulder CT angiography, for example), and it enables dose reduction by shifting the patient to reduce exposure of radiosensitive anatomy in the beam path.
The AutoPose intelligent positioning system and SynergyDrive workflow software streamline exam setup from patient registration through protocol selection, reducing technologist time per exam. The 84 kW generator supports continuous high-output scanning without throttling, and the 550-pound table accommodates the full range of patient body habitus. At 285 square feet minimum room requirement, the SCENARIA View fits in scan rooms designed for standard CT equipment.
Bottom Line: The SCENARIA View's 80 cm bore, Intelli IPV iterative reconstruction, HiVision Detector, and HiMAR Plus make a credible case as a high-capability CT platform for facilities that serve a diverse patient population. The wide bore benefits claustrophobic, obese, and radiation therapy simulation patients directly. The dose reduction capability benefits everyone else.
Looking for a wide bore CT? We would love to hear from you. Our team can help you out with your CT needs from the planning to the purchase, install and applications training. For more information please CONTACT US.
