C-arms come in two sizes (yes technically 3 sizes if you include compact full-size systems, but for the purpose of this article we are going to combine those with the full-size systems) that serve fundamentally different purposes. Mixing them up leads to either under-equipped procedure rooms or full-size systems in spaces too small to maneuver them safely. The distinction is simpler than it sometimes appears: mini C-arms image extremities, full-size C-arms image everything else. Here is the longer answer.
Mini C-Arms: Built for Extremity Work

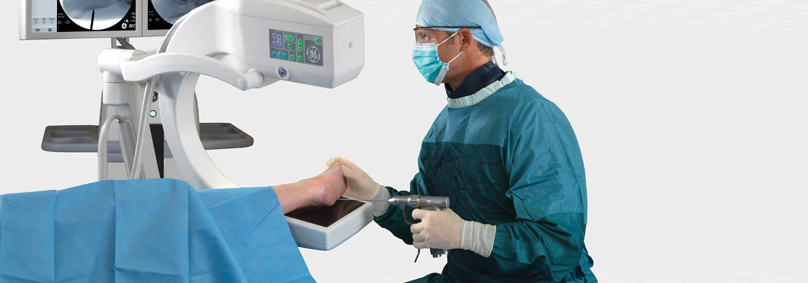

Mini C-arms — also called extremity C-arms or small C-arms — are compact fluoroscopy systems designed specifically for imaging hands, wrists, forearms, elbows, feet, ankles, and lower legs. The detector and tube assembly are sized for extremity imaging fields, typically in the range of 9 to 20 cm effective field size. The generator output is lower than full-size systems — typically 0.5 to 1.5 kW — because extremity anatomy requires far less X-ray penetration than trunk or spine imaging.
The physical footprint is dramatically smaller than a full-size C-arm. Mini C-arms weigh 100 to 200 pounds rather than 800 to 1,000 pounds, and fit in procedure rooms that could not accommodate a full-size system. Many orthopedic hand surgery offices and podiatry clinics operate mini C-arms in standard exam rooms.
Clinical applications for mini C-arms include fracture reduction and fixation of hand, wrist, and forearm injuries, carpal tunnel surgery guidance, trigger finger release, foot and ankle fracture fixation, removal of foreign bodies in extremities, and evaluation of reduction adequacy in distal radius fractures. These are bread-and-butter orthopedic and podiatric procedures that benefit from real-time fluoroscopic feedback without requiring the setup overhead of a full-size system and even veterinary use on small animimal.
Full-Size C-Arms: The General-Purpose Workhorse
Full-size C-arms handle the applications that mini systems cannot: spine surgery, hip and knee arthroplasty, cardiac catheterization, gastrointestinal procedures, urology, pain management, vascular intervention, and any procedure requiring imaging of the trunk, pelvis, or proximal extremities. Generator outputs range from 2.5 kW on compact systems to 15 kW on high-performance vascular units. Flat panel detector sizes range from 21 cm to 31 cm, providing imaging fields large enough for spine, pelvis, and abdomen procedures.
The OEC One CFD is a good example of the compact full-size C-arm category: an all-in-one design with a 21 cm CMOS flat panel detector, 2.5 kW generator, 4K 27-inch display, and a footprint small enough for tight ORs while still covering the full procedural range from orthopedic to vascular. Three configurations — Vas 25, PM Care, and Standard — tailor the software to specific procedural specialties.
When the Distinction Gets Complicated
Some procedures technically could be performed with either system but are better served by one. An ankle ORIF in a patient with significant soft tissue swelling or hardware from prior surgeries will image better on a full-size C-arm with higher generator output and a larger detector than on a mini. A simple distal radius pinning in an otherwise healthy adult can easily be managed with a mini C-arm in an appropriately equipped procedure room.
Facilities that do a mix of extremity-only cases and larger procedures sometimes maintain both systems — a mini C-arm for the dedicated hand surgery room and a full-size C-arm shared across general and ortho ORs. The economics favor this approach when mini C-arm case volume is high enough to justify the capital and when room space precludes moving a full-size system between rooms efficiently.
Bottom Line: Mini C-arms are extremity-specific, compact, and lower-cost. Full-size C-arms cover the entire procedural range. If you are imaging below the elbow or below the knee with no trunk involvement, a mini C-arm may be the right dedicated tool. If you are doing anything else, you need a full-size system.
