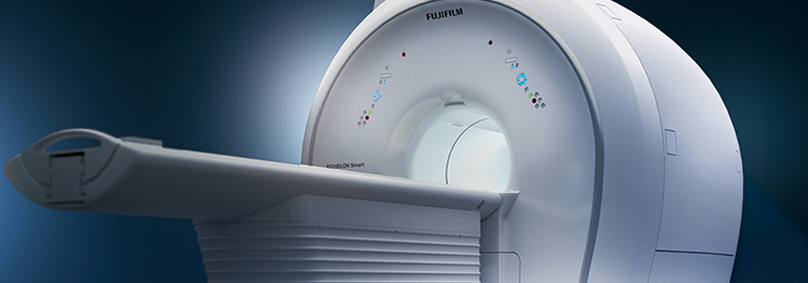

Community hospitals occupy a specific and important place in MRI purchasing. They need a 1.5T system capable of covering the full range of clinical applications — neuro, cardiac, oncology, MSK, body — without the staffing overhead or budget of an academic medical center. The Fujifilm ECHELON Synergy was built for exactly this environment. What makes it worth attention is not just the spec sheet; it is what the technology actually delivers at the bedside.
The Bore: 85cm, the Widest in the Industry at 1.5T
Standard 1.5T MRI bores measure 60 to 70 cm in diameter. The ECHELON Synergy's 85 cm bore is the widest in the industry at this field strength, and it changes the patient experience in ways that are clinically meaningful. Bariatric patients who cannot fit in a standard bore can be imaged without referral to a specialty center. Claustrophobic patients have substantially more space around them, often allowing completion of the exam without sedation. Obese patients who technically fit in a 70 cm bore but experience significant anxiety have measurably more comfortable exams in 85 cm.
The table accommodates up to 680 pounds, and the bore geometry provides 60 cm of clear imaging space across the full diameter — the extra room translates to less shoulder constraint for shoulder and thoracic imaging and better arm positioning options for patients who cannot maintain abduction for extended periods.
Synergy DLR: Deep Learning Reconstruction
Synergy DLR is Fujifilm's deep learning reconstruction engine, trained on high-SNR MRI datasets to identify and suppress noise while preserving anatomical detail. It operates in the image domain — after raw data reconstruction — which means it can be applied to any pulse sequence without modifying acquisition parameters.
The practical result is noise reduction of up to 56 percent compared to standard reconstruction at equivalent scan time, or equivalent noise with significantly shorter scan time. In a community hospital radiology department where patient throughput directly affects revenue, shorter scan times without quality compromise have real operational value. A brain protocol that takes 25 minutes now runs in 18. That is one additional patient per three-hour block — meaningful when MRI scheduling is already at capacity.
IP-RAPID: Accelerated Imaging Without Compromise
IP-RAPID is Fujifilm's parallel imaging acceleration technology using variable density k-space undersampling. Rather than acquiring every line of k-space data sequentially, IP-RAPID strategically undersamples k-space and uses the known coil sensitivity profiles of the multi-channel receiver array to reconstruct the missing data. The result is scan time reduction of up to 60 percent compared to fully sampled acquisition.
The ECHELON Synergy combines IP-RAPID undersampling with Synergy DLR reconstruction, applying deep learning noise suppression to the accelerated datasets. This combination allows faster imaging without the noise penalty that typically accompanies acceleration — both technologies working together rather than trading one against the other.
SoftSound and Patient Comfort
MRI acoustic noise is a genuine patient comfort issue. Gradient coil switching during pulse sequences produces significant acoustic noise — levels that can reach 110 dB in standard bore systems during demanding sequences. The ECHELON Synergy's SoftSound technology reduces audible noise by up to 90 percent through optimized gradient waveform design that minimizes mechanical vibration without compromising imaging performance.
Combined with the wide bore and HOAST shimming (Higher Order Active Shimming Technology) for superior field homogeneity across a wide volume, the ECHELON Synergy is designed around the recognition that patient compliance is a clinical outcome. A patient who can complete the exam without sedation, repositioning, or early termination produces a complete diagnostic study at lower cost and lower risk.
Bottom Line: The ECHELON Synergy delivers 1.5T capability with an 85 cm bore, deep learning reconstruction, and accelerated imaging in a package designed for community hospital clinical and operational realities. The combination of patient comfort features and throughput-enhancing technology addresses the two biggest constraints in community MRI: patient compliance and scheduling capacity. For facilities doing a broad range of MRI applications without subspecialty research demands, it is a strong system to evaluate.
Want to learn more about the ECHELON Synergy? Check out the full details on ECHELON Synergy Product Page.
