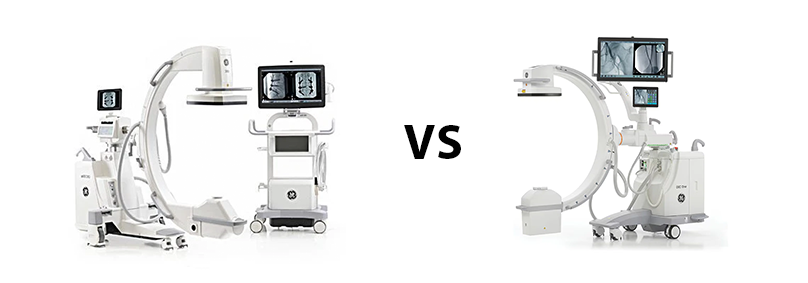

GE Healthcare's OEC C-arm lineup includes two systems with very different personalities. The OEC Elite CFD is the flagship — a hospital-grade, high-performance workhorse built for demanding surgical and interventional environments. The OEC One is the compact all-in-one that quietly challenges the assumption that smaller means worse. Understanding what each system actually delivers helps facilities make the right call for their specific environment.
OEC Elite CFD: The Hospital-Grade Flagship
The Elite CFD centers on GE's proprietary CMOS Flat Detector — the CFD in the name. Available in 21 cm and 31 cm panel sizes, the detector delivers 1,500 x 1,500 pixel resolution with the consistent sensitivity and geometric accuracy of solid-state digital imaging. There is no pincushion distortion from a vacuum tube, and the CMOS architecture provides high detective quantum efficiency that supports lower-dose imaging at equivalent image quality.
The TruView feature expands the effective field of view by 22 percent compared to the previous OEC generation, providing more anatomical context per acquisition — useful in complex spinal, vascular, and orthopedic cases where seeing a wider field reduces the number of repositioning moves required. The 32-inch 4K UHD display is one of the largest in its class and renders the high-resolution detector output with genuine fidelity.
The 15 kW battery-buffered generator enables up to 150 mA output and true continuous fluoroscopy at 30 frames per second without performance degradation. SmartConnect allows the X-ray system to be physically disconnected from the workstation and reconnected without rebooting the system — practical for facilities where the C-arm is moved between rooms or suites. The 55-degree overscan capability provides wide angulation options for complex cases.
OEC One: All-in-One, Designed for Efficiency
The OEC One takes a fundamentally different design approach: integrating the X-ray system, imaging workstation, and 27-inch articulating display into a single compact unit. Where a standard C-arm system requires a separate display column or boom, the OEC One's display moves with the system, reducing the footprint to one of the smallest in its class and simplifying room setup.
The OEC One uses an image intensifier with a 2.5 kW generator, providing five ranges of motion including 210 degrees of swivel and 40 cm of vertical travel. The 10.1-inch TechView touchscreen tablet controls the system wirelessly and can be handed to the sterile scrub tech at the table, allowing collimation and technique adjustments without breaking sterile field. The system can visualize a 0.014-inch guidewire — confirmation that despite its compact design, it delivers the image quality required for vascular guidance work. A five-minute standby mode enables rapid transition between rooms without a full power cycle.
Choosing Between the Two
The OEC Elite CFD is the right choice for high-volume hospital operating rooms performing complex orthopedic, spine, vascular, and cardiac procedures where maximum image quality, wide FOV, and high generator output are clinical requirements. Hybrid cath labs and hybrid ORs, high-volume spine surgery centers, and facilities where continuous long-duration fluoroscopy is routine should prioritize the Elite CFD.
The OEC One excels in environments where versatility, compact footprint, and cost-effectiveness are priorities. Smaller surgical suites with multiple ORs that share a C-arm, pain management clinics, urgent care and office-based surgical centers, and facilities where the mix leans toward standard orthopedic and general surgery cases will find the OEC One delivers strong clinical performance without the space requirements or capital cost of the flagship system.
Bottom Line: Both systems run GE's proven image processing suite and represent the current OEC platform generation. The decision comes down to procedure complexity, volume, and available room footprint. For high-acuity, high-volume environments: Elite CFD. For efficient multi-room deployment and moderate clinical complexity: OEC One.
Equipped MD offer both the GE OEC Elite CFD as well the OEC One refurbished with standard and extended service contracts. To learn more check out our GE OEC C-Arm Page
