Installing an X-ray room is not like installing a new piece of office equipment. It involves structural modifications to your building, regulatory approvals from your state radiation control program, and coordination between architects, physicists, contractors, and equipment vendors — all before the first patient is imaged. Starting this process early and understanding what is involved prevents the kind of delays that push opening dates back by months.
Radiation Shielding: The First and Longest Lead Time Item
The defining feature of an X-ray room that distinguishes it from every other clinical space is radiation shielding. Walls, floors, ceilings, and the room door must attenuate scattered and primary radiation to levels that protect occupants in adjacent spaces — staff, patients in neighboring rooms, and members of the public.
Shielding requirements are calculated by a qualified medical physicist based on the workload of the X-ray system (how many exposures per week, at what kVp and mAs), the occupancy factor of adjacent spaces (how often people are present), and the use factor (what fraction of exposures are directed toward each barrier). The standard reference is NCRP Report No. 147 (Structural Shielding Design for Medical X-Ray Imaging Facilities). Your medical physicist will produce a shielding design report specifying the lead equivalent thickness required for each surface.
Lead sheeting in drywall is the most common residential-scale shielding solution, though concrete thickness alone is used in larger facilities. A critical planning note: shielding work must be completed, inspected, and verified before the equipment is installed in most state programs. This work is the longest lead-time item in the project — plan for it accordingly.
Regulatory Requirements and State Oversight
Medical X-ray equipment is regulated at the state level by state radiation control programs, not directly by the FDA (which regulates equipment manufacture). Before operating a new X-ray room, you will need to register the equipment with your state radiation control program, submit shielding plans for review in many states, arrange for a state inspection of the completed installation, and designate a radiation safety officer (RSO) for the facility.
Some states also have certificate of need (CON) requirements for certain imaging equipment, though these vary significantly. Check with your state health department and radiation control program early in the planning process to understand the specific requirements in your jurisdiction. State review timelines for shielding plan approvals can range from a few weeks to several months.
Equipment, Electrical, and Room Layout
Most fixed X-ray systems require a dedicated 240V electrical circuit with appropriate amperage — confirm the exact requirements with the equipment vendor before the electrician is scheduled. Overhead tube crane systems require a reinforced ceiling or structural support beam, which may require structural engineering involvement if the existing ceiling structure is not rated for the load.

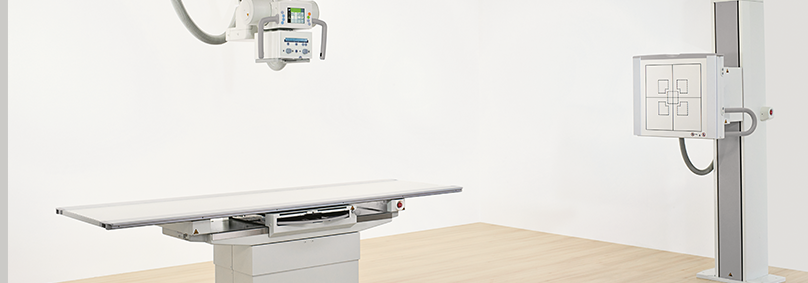

Room layout planning should consider the positioning of the X-ray tube stand, patient table, wall bucky (upright detector stand), and operator console in a configuration that supports efficient patient flow and minimizes technologist steps per exam. The control booth — the shielded area from which the technologist operates the equipment during an exposure — must provide a direct line of sight to the patient (typically through a lead-lined window) and be sized to accommodate the technologist comfortably.
Bottom Line: Start the planning process at least 6 to 12 months before your target opening date for a new X-ray installation. Engage a qualified medical physicist early for the shielding design, contact your state radiation control program to understand the approval timeline, and align the electrical and structural contractors with the equipment vendor's installation requirements. The shielding work is the critical path.
