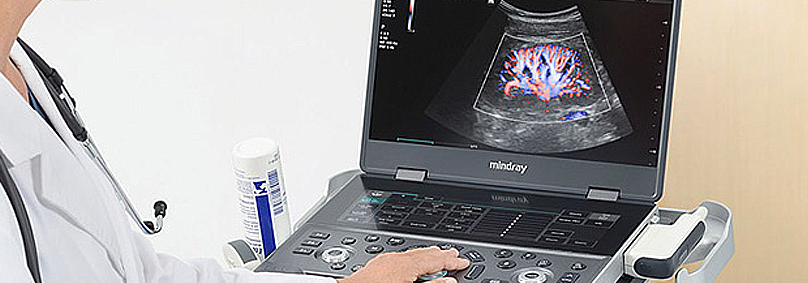

The Mindray MX7 established that a 6.6-pound laptop could deliver hospital-grade ultrasound imaging. The MX8 asks a different question: what happens when you take that same platform and engineer it specifically for a clinical specialty? The answer, depending on your practice, is either exactly what you need or a set of features you would rarely use. Here is how to tell the difference.
The Shared Foundation
Both the MX7 and MX8 are built on the same hardware platform: 6.6 pounds, 1.7 inches thick, Magnesium Alloy shell, and powered by ZONE Sonography Technology+ (ZST+). They share the same core imaging engine, the same iWorks protocol-based workflow software, and the same fundamental premise — a portable system with image quality that does not apologize for its form factor.
Think of the MX7 as the generalist and the MX8 as the specialist. The MX7 covers a broad range of clinical applications — general imaging, cardiac, vascular, abdominal, point-of-care — and does all of them well. The MX8 takes the same foundation and adds tools specifically engineered for either cardiovascular or musculoskeletal imaging, depending on which variant you choose. You are not trading capability for portability; you are adding focused depth on top of the shared baseline.
MX8 CV: Purpose-Built for Cardiac and Vascular Work
The MX8 Cardiovascular variant makes several meaningful hardware and software upgrades over the MX7. The display grows to 15.6 inches (compared to the MX7's smaller tilting screen), which matters when you are reviewing complex echocardiographic data at the bedside. A built-in 90-minute battery enables untethered scanning in the echo lab or on rounds, with an optional U-bank battery extending runtime to approximately four hours.
Auto EF automatically identifies end-diastolic and end-systolic frames, traces the endocardial border, and calculates left ventricular volumes and ejection fraction — a measurement that previously required significant manual tracing effort. RIMT (Real-time Intima-Media Thickness) uses raw RF data rather than processed B-mode images to measure carotid intima-media thickness automatically, providing a more reproducible result than manual 2D measurement. LVO (Left Ventricular Opacification) with Stress Echo protocols enables contrast-enhanced wall motion assessment during pharmacological or exercise stress testing, with customizable scoring and integrated reporting. HD Scope applies proprietary tissue characterization processing to a defined region of interest for enhanced spatial and contrast resolution in targeted areas of the image.
MX8 MSK: Hands-Free, High-Resolution, Intervention-Ready
The MX8 MSK variant is built for the realities of musculoskeletal and interventional ultrasound. Scanning in a sterile environment, managing a needle while holding a probe, or standardizing exams across a busy sports medicine practice all create workflow demands that the standard platform does not fully address. The MX8 MSK does.
iVocal second-generation AI voice control allows hands-free operation of key system functions — changing presets, freezing the image, capturing clips, navigating menus — without touching the touchscreen. In a sterile gloved environment, this is not a convenience feature; it is a workflow enabler. iWorks MSK protocols standardize exam sequences for shoulder, knee, hip, wrist, elbow, and ankle, reducing scan time by up to 50 percent across operators.
iNeedle+ (second generation) automatically detects needle insertion angle and enhances needle visualization on both linear and convex transducers. eSpacial Navi takes needle guidance further: a 4D magnetic navigation system that tracks needle position in real time, whether the needle is in-plane or out-of-plane relative to the ultrasound beam. This is paired with the L11-3VNs transducer, which has an integrated sensor for navigation tracking. The transducer range extends to 20-5 MHz for ultra-high-frequency superficial imaging.
Bottom Line: If your practice covers a broad range of clinical applications, the MX7 is the right platform. If your days are spent in the echo lab or MSK suite, the MX8 variant built for your specialty pays for itself in workflow efficiency and clinical capability. Both carry Mindray's Living Technology commitment to continual software upgrades and a 5-year standard warranty.
