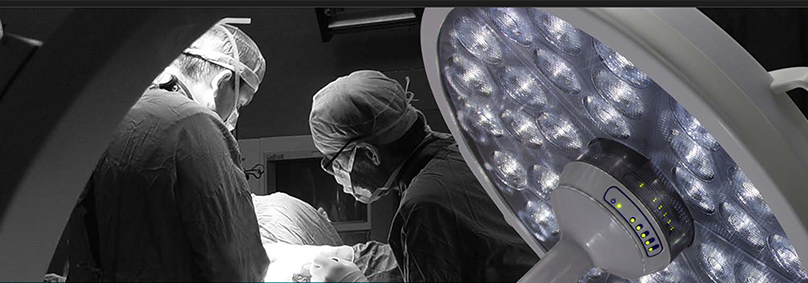

A surgeon operating on a deep body cavity needs to see fine anatomical structures — vessels, nerves, tissue planes — against a background of retracted soft tissue, surgical instruments, and gloved hands. Getting adequate, shadow-free, color-accurate illumination into that environment has driven over a century of surgical lighting development. Today's LED surgical lights are dramatically better than their predecessors, but the physics of what makes a good surgical light are worth understanding.
The Evolution from Incandescent to LED
Early surgical lights used standard incandescent bulbs, which generated significant heat and required frequent bulb replacement. Halogen technology improved brightness and color rendering but retained the heat output problem — infrared radiation from the light source could measurably warm tissue in the operative field during long cases, creating both patient safety concerns and surgeon discomfort.
LED surgical lights, now standard in modern ORs, fundamentally changed the heat equation. LEDs convert electricity to light far more efficiently than filament-based sources, producing dramatically less heat for equivalent light output. A modern surgical LED head produces 100,000 to 160,000 lux at the operative field with a heat output low enough that the surgeon can work directly under the light for hours without thermal concern. LED lifespans are measured in tens of thousands of hours rather than hundreds, eliminating mid-case bulb failures and reducing maintenance overhead significantly.
The Metrics That Define Surgical Light Performance
Lux measures illuminance — the light intensity at the target surface. Surgical lights are specified at the center of the illuminated field at a defined distance (typically 100 cm from the light source). More lux is not always better: very high illuminance can create glare, reduce the surgeon's ability to distinguish tissue colors, and cause eye fatigue during long procedures. The most useful surgical lights offer a wide range of intensity adjustment so the surgeon can match the illuminance to the depth and type of procedure.
Color Rendering Index (CRI) measures how accurately a light source renders the colors of illuminated objects compared to a reference source. A CRI of 100 is perfect; incandescent lights score around 95 to 100, while fluorescent lighting typically scores 75 to 85. For surgical lighting, a CRI of 90 or above is considered the minimum for accurate tissue differentiation — the ability to distinguish pink healthy tissue from pale ischemic tissue or identify the yellowish tint of fat versus the white sheen of fascial planes. Most premium surgical LED systems achieve CRI values of 93 to 98.
Shadow dilution coefficient measures the light's ability to fill shadows created by the surgical team's hands and instruments in the operative field. No single-source light eliminates shadows entirely. Multi-head surgical light systems — with two, three, or four independently positionable light heads — provide illumination from multiple angles simultaneously, dramatically reducing shadow depth and enabling the surgeon to maintain visibility when a hand or instrument temporarily blocks one light source.
Adjustable Color Temperature: A Clinical Tool
Color temperature (measured in Kelvin) describes the "warmth" or "coolness" of the light. Lower color temperatures (3,500 to 4,000K) produce warmer, more yellow-white light; higher temperatures (5,000K and above) produce cooler, bluer light. For surgical applications, different color temperatures serve different purposes.
Cooler, higher-K light enhances contrast between tissue types and improves the visibility of fine structures during complex dissection. Warmer, lower-K light reduces glare and eye fatigue during longer, less complex portions of a procedure. Modern surgical lights allow the operating surgeon to adjust color temperature during the case — shifting toward cooler light during a critical anastomosis and back to warmer light during wound closure. This is not a luxury feature; it is a clinically meaningful tool that helps maintain surgical precision through an eight-hour case.
Bottom Line: The best surgical light is not the one with the highest lux rating — it is the one that gives the surgeon consistent, shadow-free, color-accurate illumination with the control to adapt to the procedure. LED technology, multi-head configurations, and adjustable color temperature have made surgical lighting a genuinely clinical tool rather than just a fixture.
