Ziehm Vision FD C-Arm
Ziehm Vision FD C-Arm
A premium mobile fluoroscopic C-arm featuring state-of-the-art flat-panel detector technology (available in 21 cm CMOS or 31 cm options) that delivers fully digital, high-resolution, distortion-free imaging with enhanced dose management and intuitive workflows engineered for demanding applications in orthopedics, vascular, pain management, and general surgery with compact ergonomics, 160° orbital movement, and advanced active cooling for continuous OR performance.
Questions?
Collapsible content
Product Description

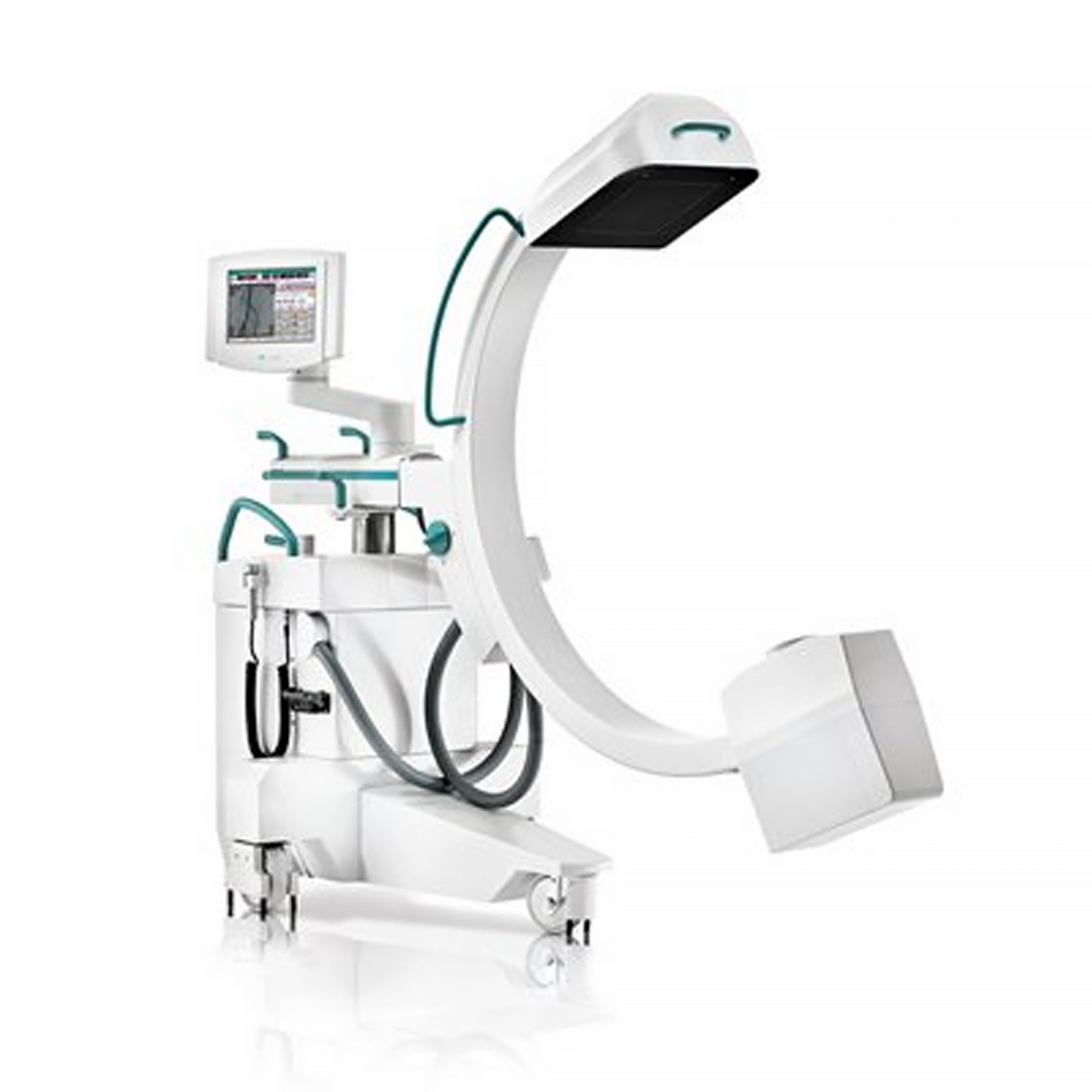

Ziehm Vision FD C-Arm System (Mobile Flat-Panel)
The Ziehm Vision FD is a proven mobile C-arm fluoroscopy system built to help hospitals and outpatient surgery centers expand their intraoperative imaging capabilities—especially for demanding cases—while maintaining efficient OR workflows. In its CMOSline configuration, Ziehm Vision FD leverages advanced CMOS flat-panel technology and the redesigned QuantumStream imaging system (true 2k × 2k image resolution in supported configurations) to deliver crisp visualization, reduced image noise, and clear magnification performance for confident decision-making at the table.
Designed for busy surgical schedules and longer procedures, the system pairs a pulsed monoblock generator (up to 2.4 kW) with Advanced Active Cooling to help keep performance stable even in demanding clinical use. Ergonomics and mobility are also central to the platform, with a compact footprint (as low as 0.8 m²) and up to 165° orbital movement to support flexible positioning around the patient.
For dose-aware imaging, the Ziehm Vision FD includes the next-generation SmartDose concept, using automatic optimization and advanced anatomical programs to balance image quality and exposure. It also offers dedicated functionality designed to help reduce dose in pediatric procedures, plus Beam Filtration designed to reduce patient entrance dose without sacrificing image quality (configuration-dependent).
Key Features:
- Mobile flat-panel C-arm imaging (available detector options include 21 cm × 21 cm and 31 cm × 31 cm configurations, depending on region/model)
- QuantumStream 2k imaging (in supported configurations) for premium mobile visualization
- SmartDose dose management + anatomical programs + pediatric-focused dose reduction tools
- Beam Filtration for reduced patient entrance dose (where available)
- Advanced Active Cooling + 2.4 kW pulsed monoblock generator for continuous-use workflows
- 165° orbital movement and compact footprint to support efficient OR positioning
- Optional workflow enhancers like Ziehm’s Wireless Freedom concept (availability/configuration varies)
Specifications
-20 cm x 20 cm CMOS Flat-Panel Detector: High-resolution, distortion-free imaging
-1k x 1k Resolution with 4,096 Grayscale Levels
-Dose Reduction Technology: Protects patients and staff without compromising image clarity
-Full-Size C-Arm Design: Ideal for orthopedic, vascular, and spine procedures
-Advanced Active Cooling: Supports long cases without overheating
-DICOM 3.0 Integration: Easily connects to hospital PACS and EMR systems
Additional Information
- Orthopedics
- Pain Management
- Urology
- Vascular
- Veterinary
- 20 cm
- Full Size
