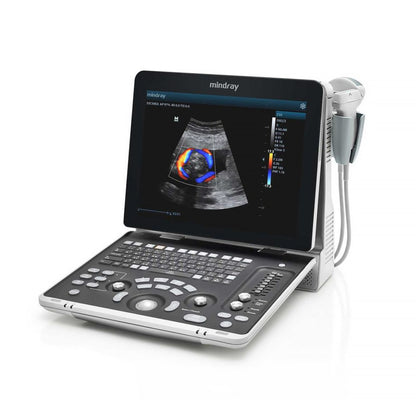

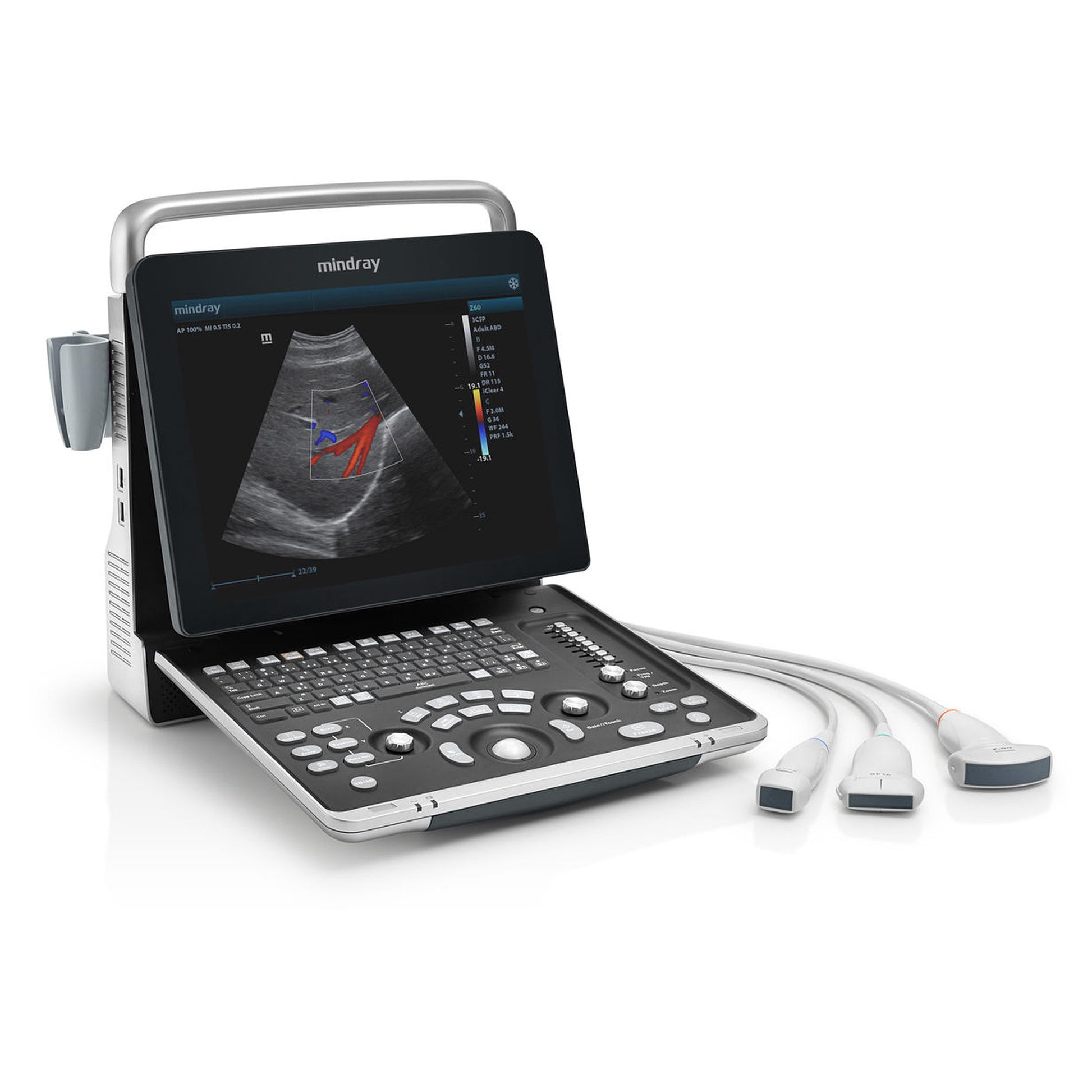

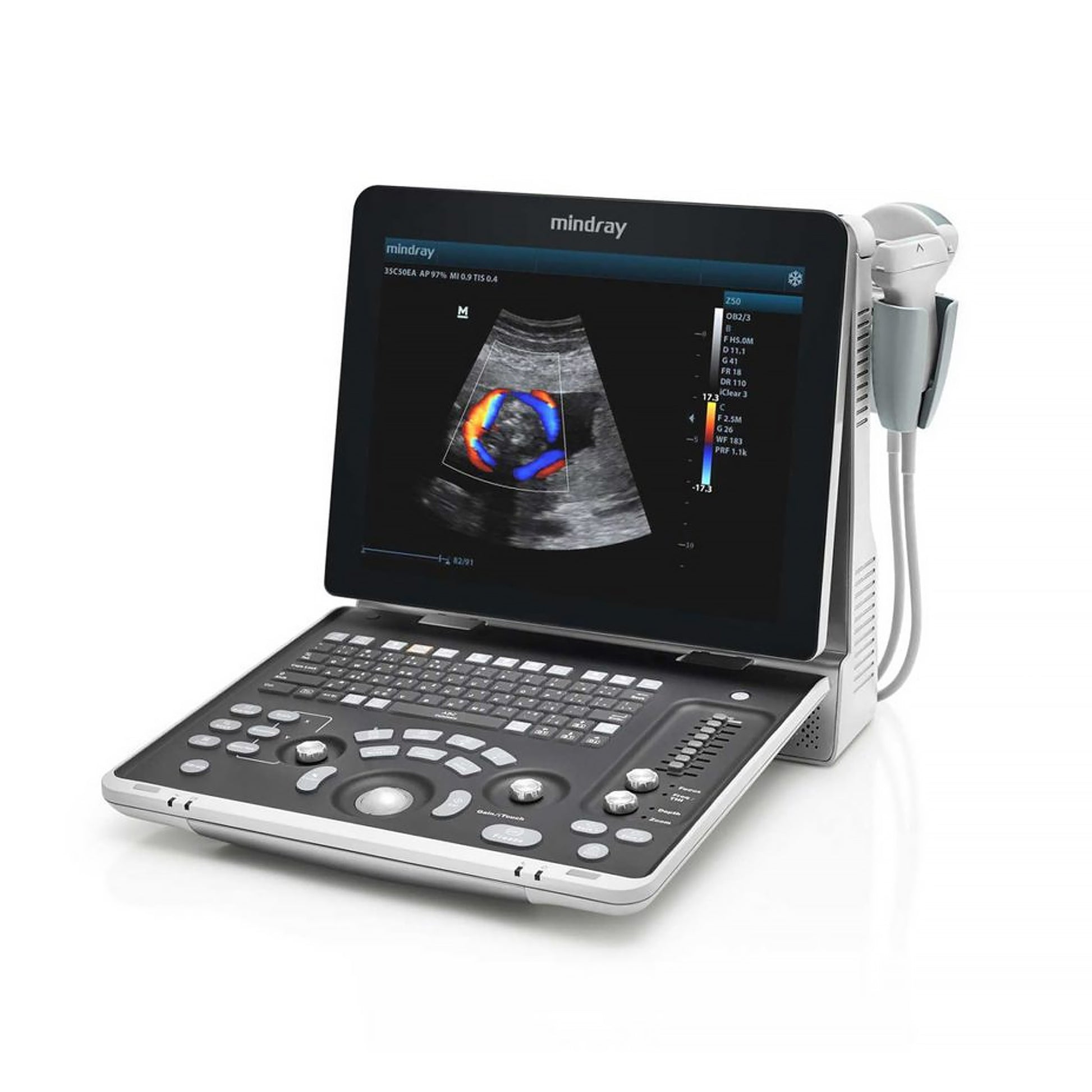

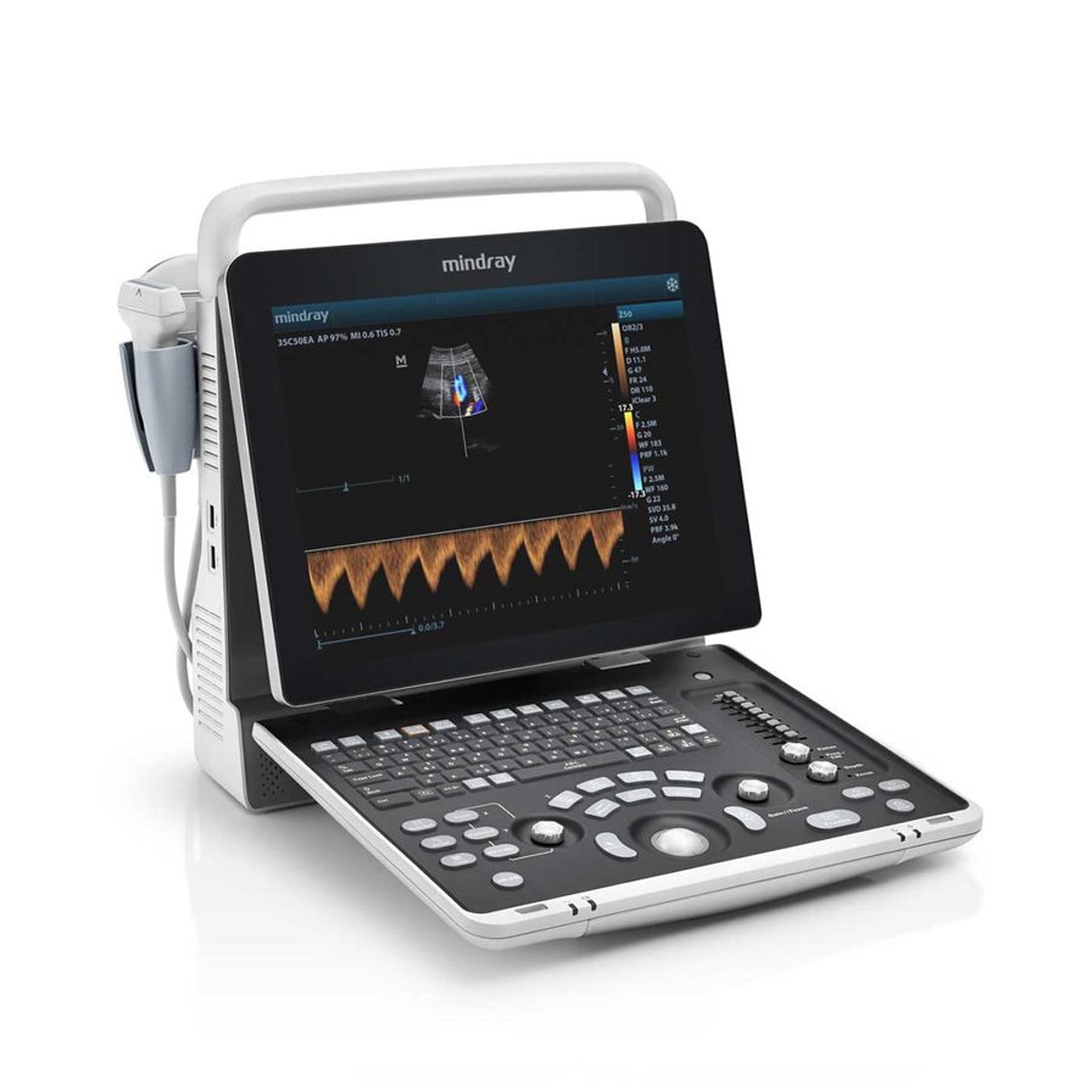

Mindray Z60 Ultrasound System
Mindray Z60 Ultrasound System
A versatile, portable color Doppler ultrasound system that delivers advanced imaging with technologies like iBeam™, iClear™, and Phase Shift Harmonic Imaging for clear, high-resolution diagnostic images across abdominal, OB/GYN, vascular, cardiac, and musculoskeletal applications, all in a compact, user-friendly design with a 15″ display and rechargeable battery.
Questions?
Ships in 7-14 Days
Add Ons 0 Select
Price Breakdown
Options Price
$0.00Product Price
$6,875.00
Collapsible content
Product Description
Mindray Z60 Ultrasound System – Versatile, Portable, and Powerful Imaging
The Mindray Z60 Ultrasound System delivers unmatched versatility and performance in a compact, hand-carried design. Combining advanced imaging technologies with user-friendly features, the Z60 is the ideal solution for healthcare professionals seeking a portable system without compromising diagnostic accuracy.
Powered by cutting-edge innovations like Dynamic Beam Forming, iBeam™ Spatial Compounding, and iClear™ Speckle Reduction Imaging, the Mindray Z60 enhances diagnostic confidence across a wide range of applications. From detailed 2D imaging to 3D/4D capabilities, this system is designed to meet your evolving professional needs.
Key Features:
- Advanced Imaging Technologies: Includes Tissue Harmonic Imaging (PSHI), Tissue Specific Imaging (TSI), and Panoramic View (iScape).
- Smart Workflow: iTouch™ Auto Optimization, iZoom™ for distant viewing, and iWorks protocol streamline exam efficiency.
- Compact and Portable: Lightweight design with a 15” tiltable full-screen LCD and a lithium-ion battery for up to 1.5 hours of untethered scanning.
- Connectivity and Reporting: Onboard DICOM 3.0 integration, reporting tools, and one-click image transfer to USB or server.
Designed for Flexibility and Confidence
The Mindray Z60 Ultrasound System adapts to various clinical scenarios, from the office to remote settings, providing high-quality imaging on demand. Its intuitive controls and ergonomic design ensure comfort and ease of use for clinicians.
Exceptional Diagnostic Capabilities
With features like B Steer, colorization, and optional 3D/4D imaging, the Z60 enhances precision and versatility for general imaging, OB/GYN, and vascular applications.
Experience the perfect combination of portability, performance, and reliability with the Mindray Z60 Ultrasound System, a trusted companion for accurate and efficient diagnostics.
Specifications
MINDRAY Z60 ULTRASOUND SYSTEM
Technical Specifications
DISPLAY
- Monitor: 15-inch high-resolution LCD.

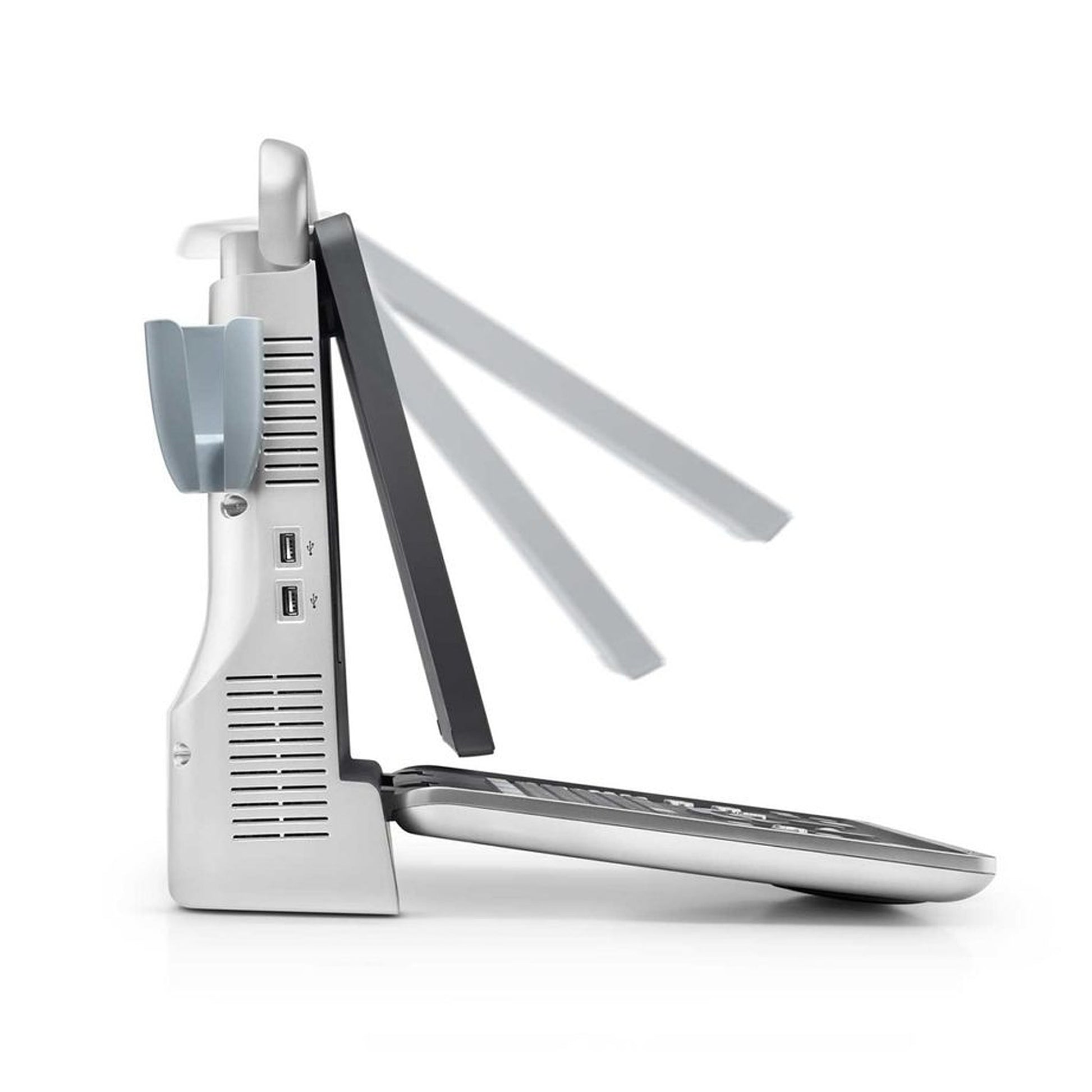

- Adjustable tilt (~60°).
- Resolution: ~1024 × 768.
PHYSICAL SPECIFICATIONS
- Dimensions (approx): 147 × 361 × 358 mm (Depth × Width × Height).
- Weight (without battery): ~8.2 kg.
POWER & BATTERY
- AC Power: 100–240 VAC, 50/60 Hz.
- Rechargeable lithium-ion battery.
- Battery run time: ~1.5 hours scanning time per full charge.
- Charge time: < ~3 hours.
IMAGE FORMATS & DISPLAY MODES
- B-Mode (2D).
- Color, Power Doppler.
- Pulse Wave (PW) Doppler.
- M-Mode.
- Free Xros™ M (anatomic M-mode).
- 3D/4D imaging options available.
IMAGE ENHANCEMENT TECHNOLOGIES
- Phase Shift Harmonic Imaging (PSH).
- iBeam™ spatial compounding imaging.
- iClear™ speckle reduction imaging.
- iTouch™ one-key auto image optimization.
- iZoom™ one-key full screen view.
- iScape™ panoramic imaging.
- Smart OB (auto fetal measurements).
- Smart Face (fetal face optimization in 3D/4D).
- Auto IMT (intima-media thickness).
- B-Steer for better needle/structure visualization.
HARDWARE & STORAGE
- 500 GB integrated hard disk drive.
- USB ports (x4).
- VGA Out, S-Video Out.
- Ethernet port.
- External peripherals supported (printers, etc.).
PROBE CONNECTIVITY

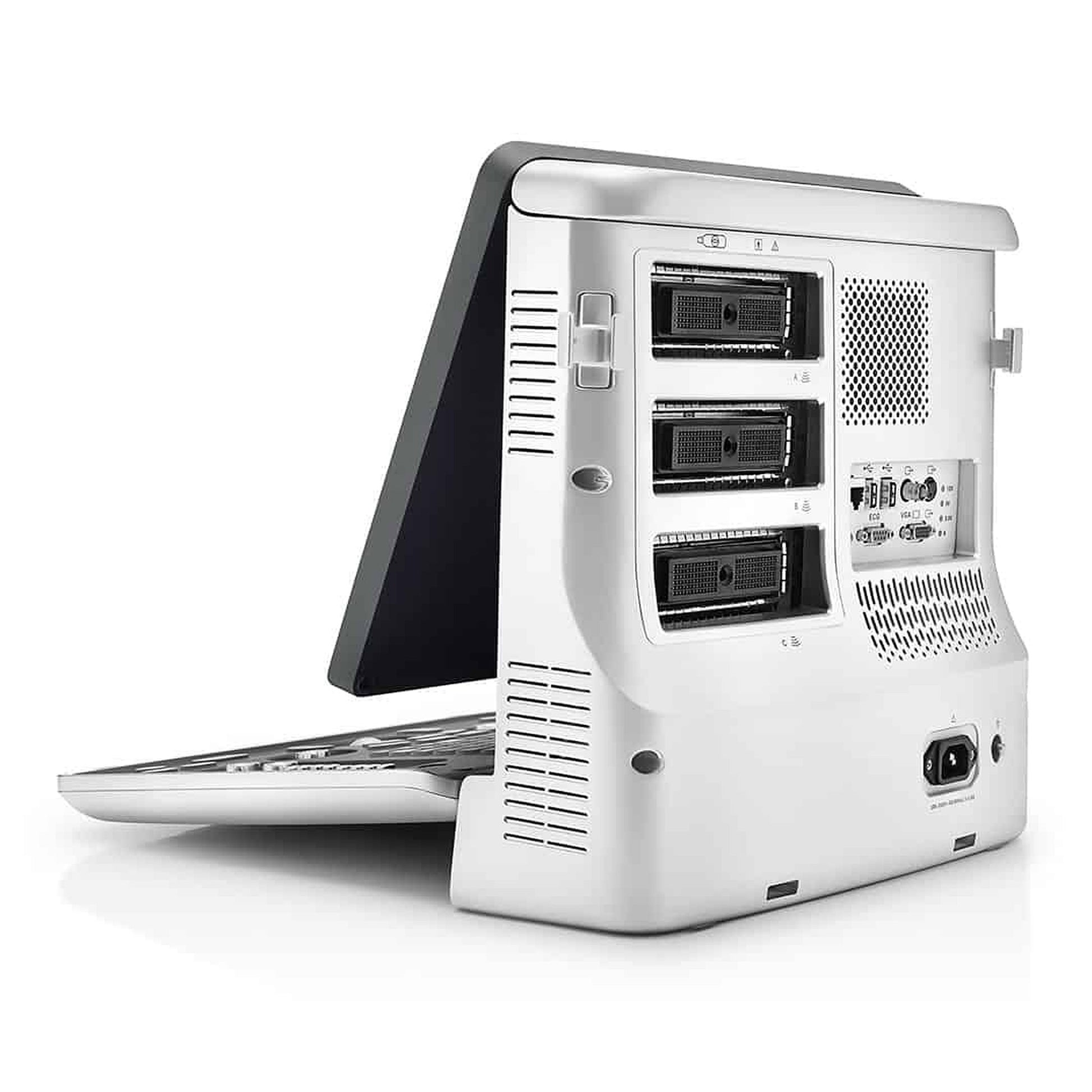

- 2 standard active transducer ports (optional 3rd port).
- Supports a wide array of transducers:
– Convex array (e.g., C6-2P, 6C2P).
– Linear array (e.g., 7L4BP, 7L5P, L14-6P).
– Endocavity/Endorectal (e.g., 6CV1P).
– Phased array (e.g., 2P2P, P7-3P).
– Bi-plane and volume/4D transducers.
IMAGING CALCULATIONS & MEASUREMENTS
- Distance, circumference, area, volume.
- Velocity, Time, Heart Rate, RI, PI.
- OB/GYN fetal measurements (BPD, HC, AC, FL, etc.).
- Vascular and small-parts calculation packages.
DATA MANAGEMENT & CONNECTIVITY
- DICOM 3.0 support (MPPS, Query/Retrieve, Store, Worklist, Structured Reports).
- iStorage image/report export to PC or USB.
- Export formats: BMP, JPG, TIFF, AVI.
STANDARD ACCESSORIES (MAY VARY)
- Power cord(s).
- Rechargeable battery pack.
- Control panel overlay.
- Operator’s manual.
- Probe holders.USB media and cables.
