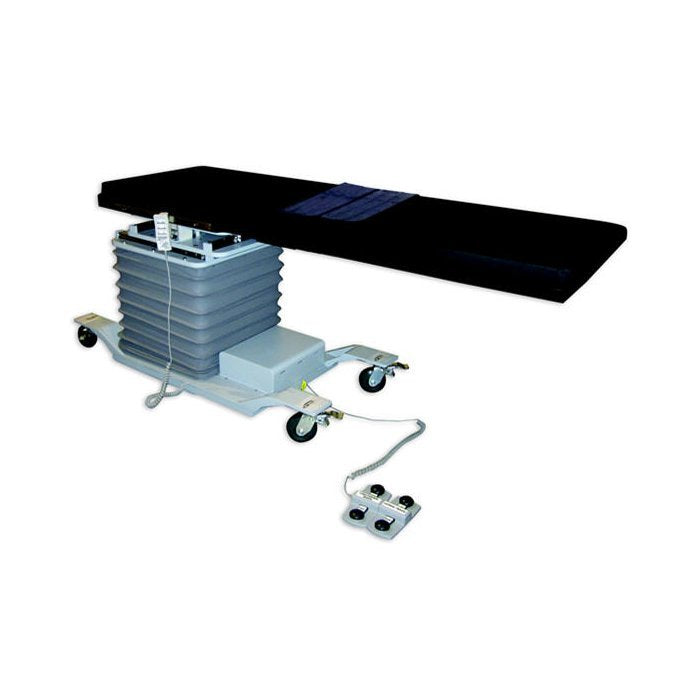

Surgical Tables Inc BT-4 C-Arm Table

STI BT 4 Bariatric C-Arm Table – Bariatric Imaging Table with Longitudinal Travel

The STI BT 4 Bariatric C-Arm Table is a mobile bariatric imaging table from Surgical Tables, Inc. built for facilities that need both high patient capacity and broader positioning flexibility. As the 4-motion model in the BT Series, it includes height adjustment, lateral tilt, Trendelenburg, and longitudinal travel.

The BT Series brochure highlights easy C-arm access, a 1,000 lb weight capacity, 2-inch patient comfort pad, 24-inch wide top, and lightweight, easy-to-move construction. The BT 4 is listed with a height range of 31" to 39". Standard accessories include hand control, patient straps, and standard side rails, while shared specifications list longitudinal travel of 16".

Key Features of the STI BT 4

Four-Motion Positioning

The BT 4 adds longitudinal travel to height adjustment, lateral tilt, and Trendelenburg, helping support more advanced positioning during bariatric fluoroscopy procedures.

1,000 lb Bariatric Capacity

With a listed 1,000 lb weight limit, the BT 4 is designed for higher-capacity patient support in demanding procedural settings.

Easy C-Arm Access

STI presents the BT Series as a bariatric C-arm table platform with easy C-arm access, helping support imaging-driven workflows.

Bariatric Tabletop and Comfort Pad

The specifications panel lists a 84" L x 27" W tabletop with a 2-inch thick mattress, providing a supportive surface for bariatric procedures.

Standard Side Rails and Accessories

The BT 4 includes standard side rails, patient straps, and hand control as standard equipment to support positioning and daily operation.

Mobile Construction

Despite its bariatric capacity, the brochure notes the BT Series is lightweight and easy to move, supporting efficient room setup and repositioning.

Ideal Clinical Applications

• Bariatric fluoroscopy procedures
• Pain management procedures
• Interventional procedure rooms
• Surgery centers
• Specialty clinics
• Cases requiring longitudinal travel and higher-capacity support

Why Choose the STI BT 4?

The STI BT 4 is a practical choice for facilities that need a bariatric C-arm table with added movement beyond basic positioning. Its 1,000 lb capacity, four-motion tabletop, and easy imaging access make it a good fit for higher-demand interventional and pain management settings.

Key Benefits

• 1,000 lb weight capacity
• Height adjustment, lateral tilt, Trendelenburg, and longitudinal travel
• Easy C-arm access
• 84" x 27" tabletop with 2-inch comfort pad
• Standard side rails, hand control, and patient straps
• Lightweight, easy-to-move design

How much weight can the STI Bariatric Series support?

The STI Bariatric Series BT tables are rated for a 1,000 lb weight limit, making them a strong option for facilities that need a bariatric C-arm table with significantly higher patient capacity than many standard imaging tables.

What are the positioning ranges for the STI Bariatric Series?

The brochure lists the following positioning ranges for the BT Series: Height range: BT 3: 29 to 37 inches BT 4: 31 to 39 inches BT 5: 35 to 43 inches Lateral tilt: 17° Trendelenburg: 12° Longitudinal travel: 16 inches Lateral travel: 10 inches These movement options help support patient positioning and fluoroscopic access during procedures.

What are the standard features of the STI Bariatric Series C-arm tables?

Standard features of the BT Series bariatric C-arm table include: Easy C-arm access 1,000 lb weight capacity 2-inch patient comfort pad Lightweight design for easier movement 24-inch wide top Made in the USA
