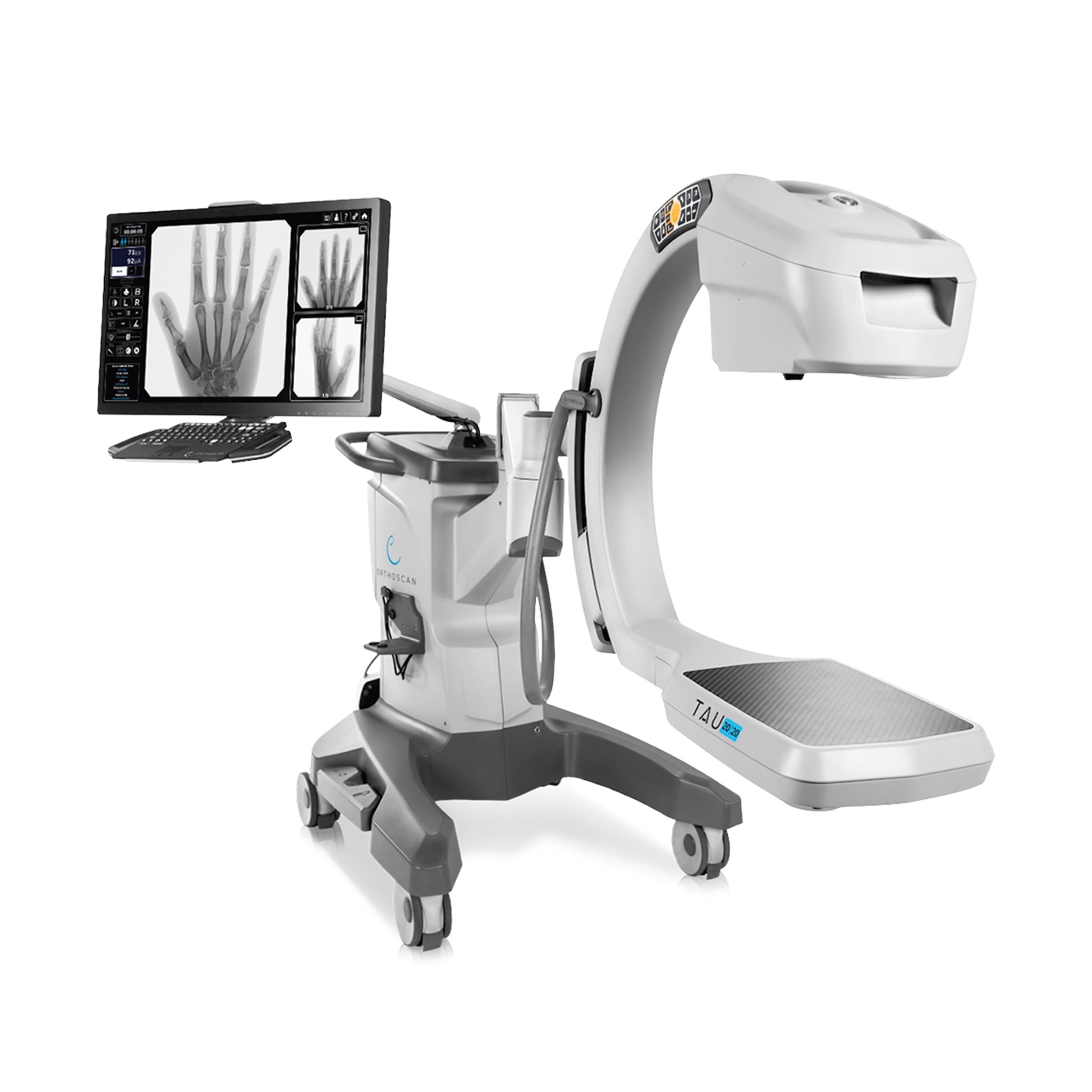

Orthoscan TAU 2020 C-Arm

Orthoscan Tau 2020 Mini C-arm – Superior Imaging with a Larger Detector

The Orthoscan Tau 2020 Mini C-arm redefines extremity imaging by bridging the gap between mini and full-size C-arms. Equipped with a 14” x 14” live image display and a next-generation 20cm x 20cm flat panel detector, this system offers more than double the detector size of conventional mini C-arms, enabling comprehensive visualization of joint spaces, fractures, and other critical anatomical details. Its 32-inch ultra-high-definition monitor delivers 4K resolution for detailed imagery, enhancing diagnostic accuracy while minimizing radiation exposure with advanced dose reduction technology.

With features like a stepless motorized collimator for precise radiation control and 160° orbital rotation, the Tau 2020 ensures superior image quality and flexible positioning in any clinical environment.

Key Features:

• Largest Live Image Display: 14” x 14” live image and 7” x 7” reference images for unmatched diagnostic clarity.
• 32” 4K UHD Monitor: Offers vivid detail and optimal eye comfort with 3840 x 2160 resolution.
• Next-Generation Flat Panel Detector: Provides improved brightness, reduced ramp-up time, and efficient dose reduction.
• Intelligent Dose Reduction: Minimizes radiation exposure by up to 86% without compromising image quality.
• Stepless Motorized Collimator: Adjusts field of view effortlessly to optimize contrast and minimize dose.

Designed for Precision and Usability:

• Pulsed Fluoroscopy: Selectable pulse rates (30, 15, 7.5, 2 pps) reduce dose while maintaining superior image quality.
• Flexible Positioning: Features 160° orbital rotation, 20” arc depth, and enhanced umbilical cable for easy maneuverability.
• Compact and Lightweight Design: Simplifies transportation and storage for use in tight surgical spaces.
• Surgical LED Lights: Illuminate the anatomy for enhanced visualization during procedures.

Versatile Applications:

The Tau 2020 Mini C-arm supports a wide range of procedures, including:

• Orthopedic Surgery
• Pain Management
• Hand, Foot, Elbow, and Shoulder Imaging
• Pediatric Imaging

Built for Modern Healthcare:

With backlit bilateral controls, DICOM 3.0 compliance, and wireless connectivity, the Tau 2020 integrates seamlessly into existing workflows. Its innovative design minimizes adjustments, improving efficiency and reducing distractions in the operating room.

Elevate your imaging capabilities with the Orthoscan Tau 2020 Mini C-arm, offering industry-leading performance, precision, and reliability in a compact design.
