Orthoscan Mobile DI C-Arm

Orthoscan Mobile DI – Portable Flat Detector Imaging System for Extremity Imaging

The Orthoscan Mobile DI is a portable digital imaging and fluoroscopy system built for extremity imaging in flexible clinical environments. Designed as a self-contained flat detector imaging device, it supports both still images and fluoroscopic imaging while offering a lightweight form factor that can be moved easily between patient rooms and satellite offices.

With an approximate weight of 35 pounds and a compact 25 inch height, the Orthoscan Mobile DI is designed for mobility without giving up core imaging functionality. It is capable of imaging from the shoulder to the fingertip and from below the hip to the toes, making it a practical option for orthopedic, podiatry, and extremity-focused diagnostic workflows.

Key Features of the Orthoscan Mobile DI

Portable Lightweight Design

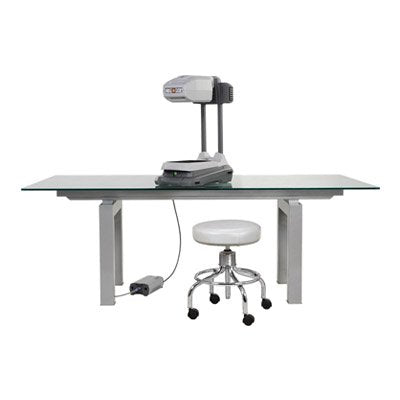

The Orthoscan Mobile DI is built for portability, with published dimensions of approximately 35 lbs, 25 inches high, 12 inches wide, and 19 inches deep. This compact design helps facilities move the system more easily between exam rooms, patient rooms, and off-site or satellite care environments.

Flat Detector Technology

This system uses flat detector technology in a self-contained imaging device capable of both still and fluoro images. Published detector specifications include 2k x 1.5k resolution, a 145 mm x 115 mm useful array, 75 micron pixel spacing, and field of view options of 6 inch x 5 inch and 4 inch x 3 inch.

Real-Time Imaging Performance

The Orthoscan Mobile DI supports 30 fps imaging and includes temporary image hold for up to 512 images. Additional imaging features include snapshot capability, automatic adaptive noise suppression, 4 mode manual noise suppression, edge enhancement, laser alignment, and field controls to support efficient acquisition during active clinical use.

Extremity Imaging Capability

The system is designed for extremity imaging applications, with coverage from the shoulder to the fingertip and from below the hip to the toes. It is also capable of weight-bearing foot and ankle views when used with an optional foot bench, adding flexibility for podiatry and orthopedic imaging needs.

Flexible Display Options

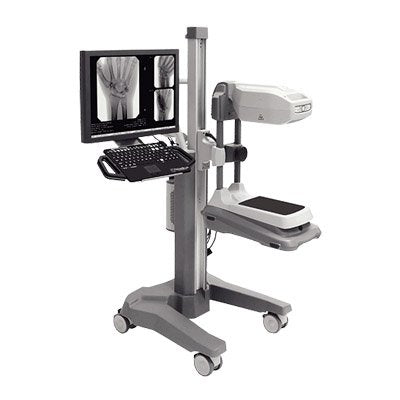

The Orthoscan Mobile DI supports display through a tablet, desktop monitor, or accessory cart monitor. Published specifications also list a 20.1 inch non-surgical monitor or non-diagnostic tablet with HDMI output, giving facilities multiple viewing and workflow options.

Connectivity and Documentation

For workflow integration, the system supports wireless communication, DICOM 3.0 compliance, EMR Image Link, USB 2.0 ports, Cine Loop Export, and image storage capacity up to 8,000 images. Optional video storage of up to 90 minutes is also listed.

X-Ray Output for Diagnostic Imaging

Published x-ray monoblock specifications include a 50 micron focal spot, 40 to 78 kVp range, and 0.04 to 0.160 mA range. These specs support the system’s use in portable digital diagnostic imaging and fluoroscopy applications.

Ideal Clinical Applications

The Orthoscan Mobile DI is well suited for:

• Orthopedic extremity imaging
• Podiatry imaging
• Weight-bearing foot and ankle views
• Patient room imaging
• Satellite office imaging
• Specialty practices needing portable fluoroscopy and diagnostic imaging

Why Choose the Orthoscan Mobile DI?

The Orthoscan Mobile DI is a strong choice for facilities that need a compact portable imaging system for extremity-focused diagnostic imaging and fluoroscopy. Its lightweight footprint, flat detector technology, real-time imaging features, and flexible connectivity make it a practical option for expanding imaging capability beyond traditional fixed-room setups.

No. The Orthoscan Moble DI is designed for in-office use only and is not drapeable. If you're looking for a portable mobile c-arm for surgery please check out the Turner Smart C on our c-arm page.
