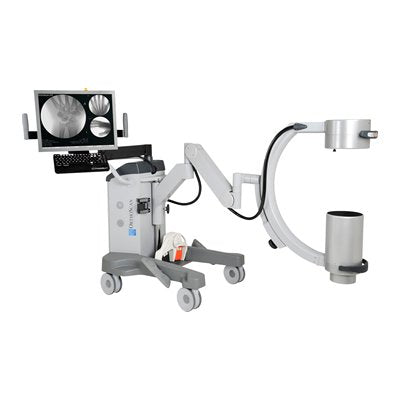

Orthoscan HD C-Arm
Orthoscan HD C-Arm
The OrthoScan HD Mini C-Arm System is an image intensifier-based mini c-arm designed for orthopedic and extremity imaging. With 1k x 1k CCD resolution, 6-inch and 4-inch field of view options, DICOM connectivity, and a compact mobile design, it supports efficient fluoroscopic imaging in surgery centers, hospitals, and specialty practices.
Questions?
Collapsible content
Product Description
OrthoScan HD Mini C-Arm System – Image Intensifier Mini C-Arm for Orthopedic Fluoroscopy
The OrthoScan HD Mini C-Arm System is a compact fluoroscopy system built for orthopedic, extremity, and outpatient imaging applications. This older image intensifier version uses a 1k x 1k CCD image intensifier with 6-inch and 4-inch field of view modes, making it a practical choice for facilities that want dependable mini c-arm imaging in a familiar format.
Designed for mobility and procedural efficiency, the OrthoScan HD Mini C-Arm combines compact footprint, intuitive controls, and workflow-oriented imaging features. With 30 fps imaging, 512-image temporary image hold, automatic adaptive noise suppression, and post-process brightness and contrast adjustment, it supports real-time visualization for a wide range of extremity procedures.
Key Features of the OrthoScan HD Mini C-Arm System
Image Intensifier-Based Imaging
This system features a CCD image intensifier with 1k x 1k resolution, delivering detailed fluoroscopic images for extremity and orthopedic applications. For buyers specifically seeking the legacy configuration, this is the older image intensifier model, not the newer flat panel Orthoscan systems.
Dual Field of View Options
The OrthoScan HD offers 6-inch and 4-inch field of view modes, helping clinicians adapt image size and magnification to the anatomy being treated. This flexibility makes it useful for hand, wrist, foot, ankle, and similar small bone and joint imaging applications.
Compact Mini C-Arm Mobility
The system is designed to be compact and maneuverable, with published specifications listing 13.8 inches of free space, 18.2 inches of arc depth, and 41 inches of vertical range. This mini c-arm format helps facilities position the unit more easily in tighter procedural environments.
Workflow-Focused Imaging Controls
The OrthoScan HD includes features such as snapshot capability, edge enhancement, laser alignment, manual and automatic noise suppression, and sterile field control buttons for key imaging functions. These features are designed to support smoother image acquisition during active cases.
DICOM Connectivity and Image Storage
For facilities integrating with broader imaging workflows, the system is listed as DICOM 3.0 compliant with Send, Store, Print, and Worklist services. Published storage specs also note capacity for up to 8,000 images, with optional video capability on some configurations.
Large Diagnostic Display
The OrthoScan HD includes a 20.1-inch monitor with a 2-megapixel monochrome TFT LCD display and built-in DICOM calibration. Published specs also describe a height-adjustable monitor with swivel and an extendable arm for improved viewing flexibility during procedures. X-Ray Output for Extremity Fluoroscopy Published monoblock specs list a 40–78 kVp range, 0.04–0.160 mA, and a 50-micron focal spot, supporting the unit’s use in targeted orthopedic and extremity fluoroscopy applications.
Ideal Clinical Applications
The OrthoScan HD Mini C-Arm System is commonly used for:
- Orthopedic extremity imaging
- Hand and wrist procedures
- Foot and ankle imaging
- Sports medicine applications
- Ambulatory surgery centers
- Specialty orthopedic and podiatry environments
These use cases align with how Orthoscan mini c-arms are positioned for orthopedic imaging and with reseller descriptions of the HD system’s extremity-focused design.
Why Choose the OrthoScan HD Mini C-Arm System?
The OrthoScan HD Mini C-Arm System remains a strong option for facilities looking for a proven image intensifier mini c-arm with compact mobility, straightforward controls, and established orthopedic imaging performance. For buyers who specifically want the legacy Orthoscan HD platform, it offers a practical combination of fluoroscopic capability, DICOM workflow support, and small-format maneuverability.
Specifications
IMAGING
- Temporary image hold: 512 images
- Snapshot capabilities
- Frame rate: 30fps
- Automatic adaptive noise suppression
- 4 mode manual noise suppression
- Post process brightness/contrast
- Edge enhancement
- Laser alignment device
- Sterile field controls buttons: fluoro; rotate; A/P and lateral image hold; kV/mA (bright/dark); and print and/or save
X-RAY MONOBLOCK
- Focal spot: 50 microns
- kV range: 40 – 78kVp
- mA range: 0.04 – 0.160mA
- Bias capable
IMAGE INTENSIFIER
- CCD resolution: 1k x 1k
- 6” and 4” field of view
- Nominal diameter: 6″
- Useful entrance field size: 145mm
- Magnified operating mode: 105mm
- DQE at 59.5 keV(IEC standard): 65%
- Conversion factor(normal/zoom): 17/9(cd.m-2/µGy.s-1)
- Limiting resolution – center (normal/zoom): 55/65 lp/cm
STORAGE
- Image capacity: 8000
- Video (optional): 90 minutes
FILE EXCHANGE
- DICOM 3.0 compliant with DICOM Send, Store, Print, and Worklist services
- DVD burner capable
- Two USB 2.0 ports
MONITOR
- View area: 20.1”
- Primary “live” image: 10” diameter
- Dual secondary images: 5.5” diameter each
- Resolution: 2 megapixel, monochrome TFT LCD
- Built-in DICOM calibration
- Height adjustable with left/right swivel
- Extendible monitor arm: 27” range of motion
- Monitor handles
FOOTSWITCH
- Wired: acquire
- Infrared (optional): acquire, print, save (customizable)
C‑ARM
- Free space: 13.8”
- Arc depth: 18.2”
- Pivot: 380°
- Lateral rotate (wig-wag): 320°
- Orbital rotate: 120°
- Vertical range: 41”
- Distance to cabinet: 60” maximum
- Distance to wheel base: 40” maximum
SIZE AND DIMENSIONS
- Weight: 400lbs
- Height: 44.5″
- Width: 29″
EMR IMAGE LINK
Enables EMR connectivity with the OrthoScan HD with Flat Detector – OR. OrthoScan is the only mini c‑arm capable of automatically transferring images to your EMR system. (US customers only)
DICOM 3.0 COMPLIANT
- DICOM Store: Sends images to a PACS server
- DICOM Modality Worklist: Imports patient information from a hospital/radiology information system
- DICOM Print: Sends images to a DICOM networked printer
- DICOM Video: Sends video to a PACS server
PRINTERS
The OrthoScan HD with Flat Detector – OR can be equipped with two types of printers:
- Small Format: 3.5″ x 3.5″ print on thermal paper
- Large Format: 5″ x 7″ print on thermal paper or blue film
WIRELESS COMMUNICATION
The OrthoScan HD with Flat Detector – OR can be equipped with an encrypted wireless 802.11 a/b/g communication system, enabling a secure communication with your HIPAA compliant records system.
INTERNAL IMAGE STORAGE
OrthoScan HD with Flat Detector – OR stores 8,000 images on the unit.
DIGITAL VIDEO RECORDER
The OrthoScan HD with Flat Detector – OR internal digital video recorder stores motion at an industry-leading 30 frames per second at full resolution. The system can store up to 90 minutes of video at full resolution. Video files can be exported to USB memory stick or CD/DVD.
VIDEO OUT
The OrthoScan HD with Flat Detector – OR has industry standard DVI/VGA outputs compatible with your projection equipment.
USB MEMORY STICK
The USB memory stick can hold up to 1,000 images per gigabyte. The images are stored in a convenient folder with the patient’s name in both a DICOM and JPEG format. JPEG images can be viewed on any standard computer.
INTERNAL IMAGE STORAGE
OrthoScan HD with Flat Detector – OR stores 8,000 images on the unit.
