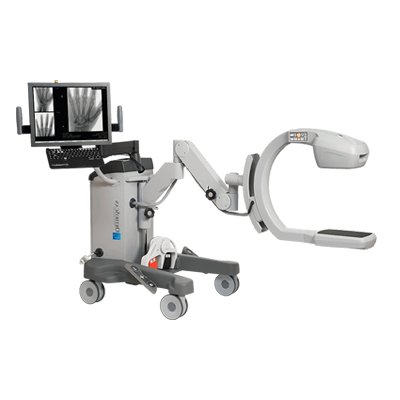

Orthoscan FD-OR C-Arm

Orthoscan FD-OR Mini C-Arm – Flat Detector Imaging for the OR

The Orthoscan FD-OR is a mini c-arm imaging system designed specifically for use in the operating room. As a flat detector mini c-arm, it is built to support surgical imaging with a small, thin form factor that improves maneuverability while helping clinicians obtain high-quality images with minimal effort. The system as surgeon-driven in design and highlights its ability to deliver exceptional image quality, enhanced reliability, and better dose utilization.

Designed for orthopedic and extremity imaging in surgical environments, the Orthoscan FD-OR combines a compact footprint with workflow-focused features that support positioning, image acquisition, and documentation. The system automatically adjusts to metal, motion, and varying anatomy, helping reduce the need for manual imaging adjustments during procedures.

Key Features of the Orthoscan FD-OR

Flat Detector Imaging

The Orthoscan FD-OR uses flat detector technology to support mini c-arm imaging in the OR. Increased gray-scale performance for improved diagnostic accuracy and positions the system as a newer standard in mini c-arm imaging.

Optimized Flat-Form Design

One of the key advantages of the Orthoscan FD-OR is its flat-form design. The unit as small and thin, helping provide maximum maneuverability in the surgical environment. It also notes that the unique design supports optimal anatomical positioning and increased arc workspace.

Adjustment-Free Imaging

The system is designed to automatically adjust to metal, motion, and varying anatomy. This adjustment-free imaging approach helps simplify operation during procedures and supports consistent image acquisition with less manual intervention.

Over-Rotation for Preferred Views

The Orthoscan FD-OR features a 60 degree over-rotation range, which provides rotational freedom to acquire preferred views without stressing the anatomy. This can be especially useful in surgical settings where positioning flexibility is important.

Bilateral Controls and Documentation Functions

The brochure highlights bilateral controls that make imaging and documentation functions easily accessible from either side of the system. This design supports intraoperative efficiency and can help improve usability in active surgical environments.

Surgical LED Lights

Integrated surgical LED lights help reduce shadows by providing primary light in the surgical field. This feature helps illuminate anatomical detail during procedures.

Boost Imaging Mode

The Orthoscan FD-OR includes a boost imaging mode designed to image larger anatomy such as large shoulders and knees. This adds flexibility for facilities that need a mini c-arm capable of supporting a broader range of extremity and orthopedic cases.

DICOM and Documentation Connectivity

The system is DICOM 3.0 compliant for send, store, print, and modality worklist. It also lists two printer options, wireless communication, USB memory stick support, EMR Image Link, and Cine Loop Export to support documentation and workflow integration.

Ideal Clinical Applications

The Orthoscan FD-OR is well suited for:

• Orthopedic and surgical imaging applications
• Extremity imaging
• Intraoperative orthopedic procedures
• Hand and wrist cases
• Foot and ankle procedures
• Other OR-based imaging workflows where compact maneuverability and image quality are important.

Why Choose the Orthoscan FD-OR?

The Orthoscan FD-OR is a strong choice for facilities looking for a flat detector mini c-arm built specifically for the operating room. Its compact design, automatic imaging adjustments, bilateral controls, and documentation features help support efficient surgical workflow, while its enhanced image quality and dose utilization make it a compelling option for orthopedic imaging environments.
