Oakworks DTPM 300 Table

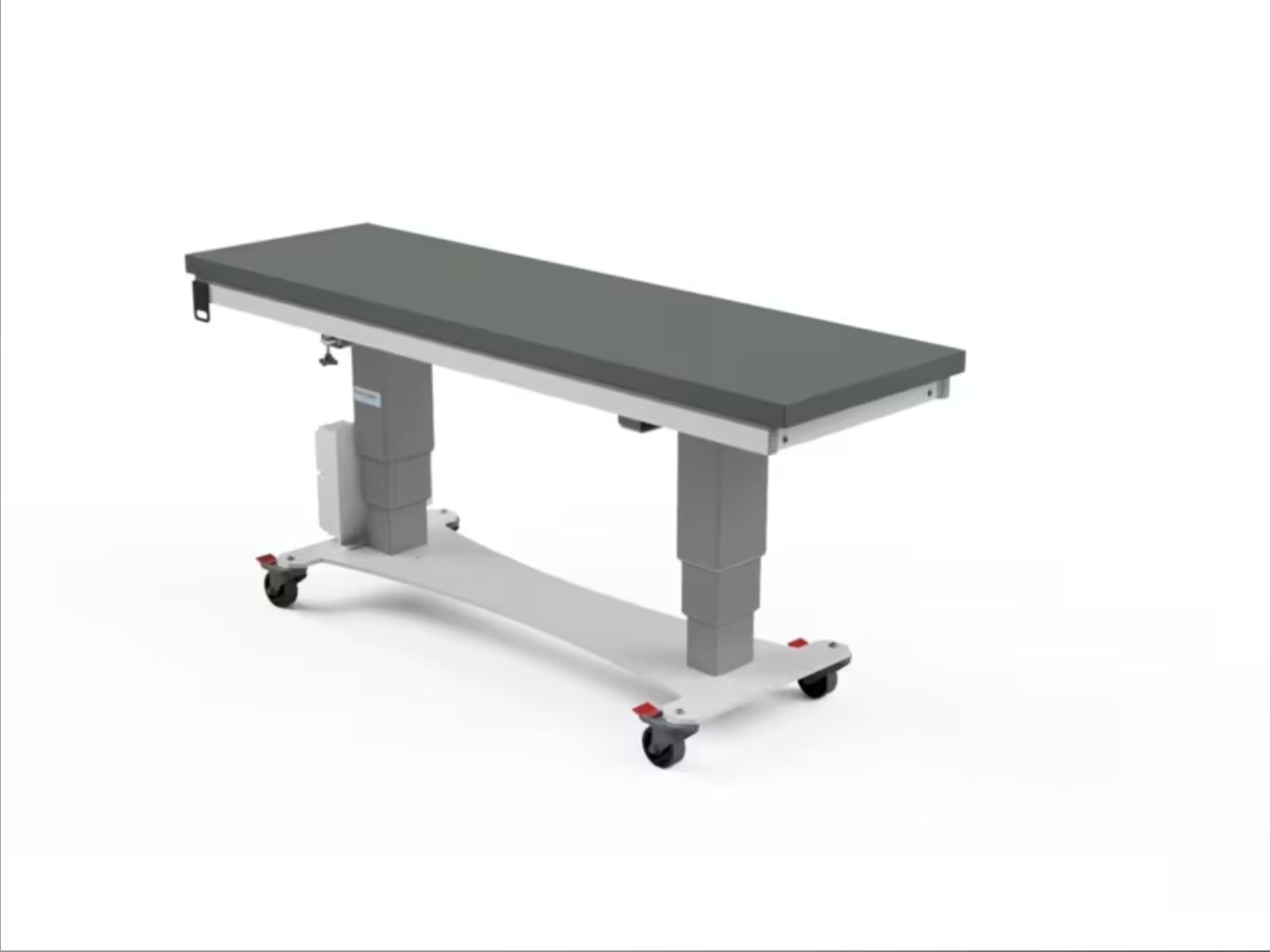

Oakworks DTPM300 C-Arm Table – 3-Motion Imaging Table

The Oakworks DTPM300 c-arm table is a cost-effective 3-motion imaging table designed for fluoroscopy-guided procedures. Its two-tower lift design provides stable support, while 23 inches of manual longitudinal travel helps clinicians image cervical, lumbar, and thoracic areas with improved positioning flexibility.

The DTPM300 features a large 24" x 78" radiolucent polycarbonate tabletop with a non-scattering aluminum frame and a 20" x 74" imaging area. With electric height adjustment, electric Trendelenburg tilt, locking casters, and patient restraint straps, it is built for dependable procedural use in pain management, imaging, and interventional settings.

Key Features of the Oakworks DTPM300

3-Motion Table Design
The DTPM300 includes electric height adjustment from 24" to 40", electric Trendelenburg tilt of +14°/-14°, and 23" of manual longitudinal travel for procedural positioning.

Stable Two-Tower Lift Design
The table’s two-tower construction provides stable lifting support and creates 40" of open space between the towers, helping support imaging access during procedures.

Radiolucent Polycarbonate Top
The DTPM300 uses a 24" wide x 78" long radiolucent polycarbonate top with an imaging area measuring 20" wide x 74" long. This design supports cervical, lumbar, and thoracic visualization.

450 lb Patient Weight Capacity
With a 450 lb patient capacity, the DTPM300 supports a wide range of patients in outpatient procedure rooms and imaging environments.

Practical Clinical Controls
The table includes foot control for height adjustment and hand control for height and Trendelenburg functions, giving clinicians convenient control options during setup and positioning.

Included Comfort and Safety Features
Standard features include a 2" Radiolucent Comfort Foam tabletop pad, 4" locking casters, and two patient restraint straps.

Optional Configurations and Accessories
Available options include a fixed T-rail configuration and non-USA electrical systems. Compatible accessories include a carbon fiber arm board, fluoro extender, interventional supine pillow system, and Spine Positioning System II.

Ideal Clinical Applications
The Oakworks DTPM300 is well suited for:

• Pain management procedures
• Fluoroscopy-guided injections
• Cervical, lumbar, and thoracic imaging
• Interventional spine procedures
• Outpatient surgery centers
• Procedure rooms needing a cost-effective 3-motion table

Why Choose the Oakworks DTPM300?
The DTPM300 is a practical choice for facilities that need a reliable imaging table with a stable two-tower design, generous longitudinal travel, and radiolucent tabletop construction. Its combination of 3-motion positioning, 40" open tower spacing, and 23" manual travel makes it a strong option for cervical, lumbar, and thoracic fluoroscopy workflows.

Key Benefits

• Cost-effective 3-motion table design
• Stable two-tower lift construction
• 40" open space between towers
• 23" manual longitudinal travel
• 24" x 78" radiolucent polycarbonate top
• 450 lb patient capacity
• Supports cervical, lumbar, and thoracic imaging

How many Oakworks CFPM models are available?

According to Oakworks, the broader imaging table line offers up to 18 model combinations based on five different motions and two top designs. Within the CFPM line, buyers can choose from models such as the CFPM100, 200, 201, 300, 301, 302, and 400, with either an integrated headrest or rectangular top depending on configuration.

What top styles are available in the Oakworks CFPM Series?

The Oakworks CFPM Series is available in two main top styles: an integrated headrest top and a rectangular top. Oakworks offers both styles across several CFPM models so facilities can choose the tabletop layout that best fits their procedure mix and physician preference.

What movement options are available in the Oakworks CFPM Series?

Movement options depend on the specific model. Oakworks describes lower-motion models such as the CFPM100 and CFPM200 as height- or height-plus-lateral-tilt tables, while models like the CFPM301 add Trendelenburg tilt and longitudinal travel. The CFPM400 is described as a 4-movement table with electric height adjustment, Trendelenburg tilt, and 10 inches of longitudinal travel, with additional motion depending on configuration.
