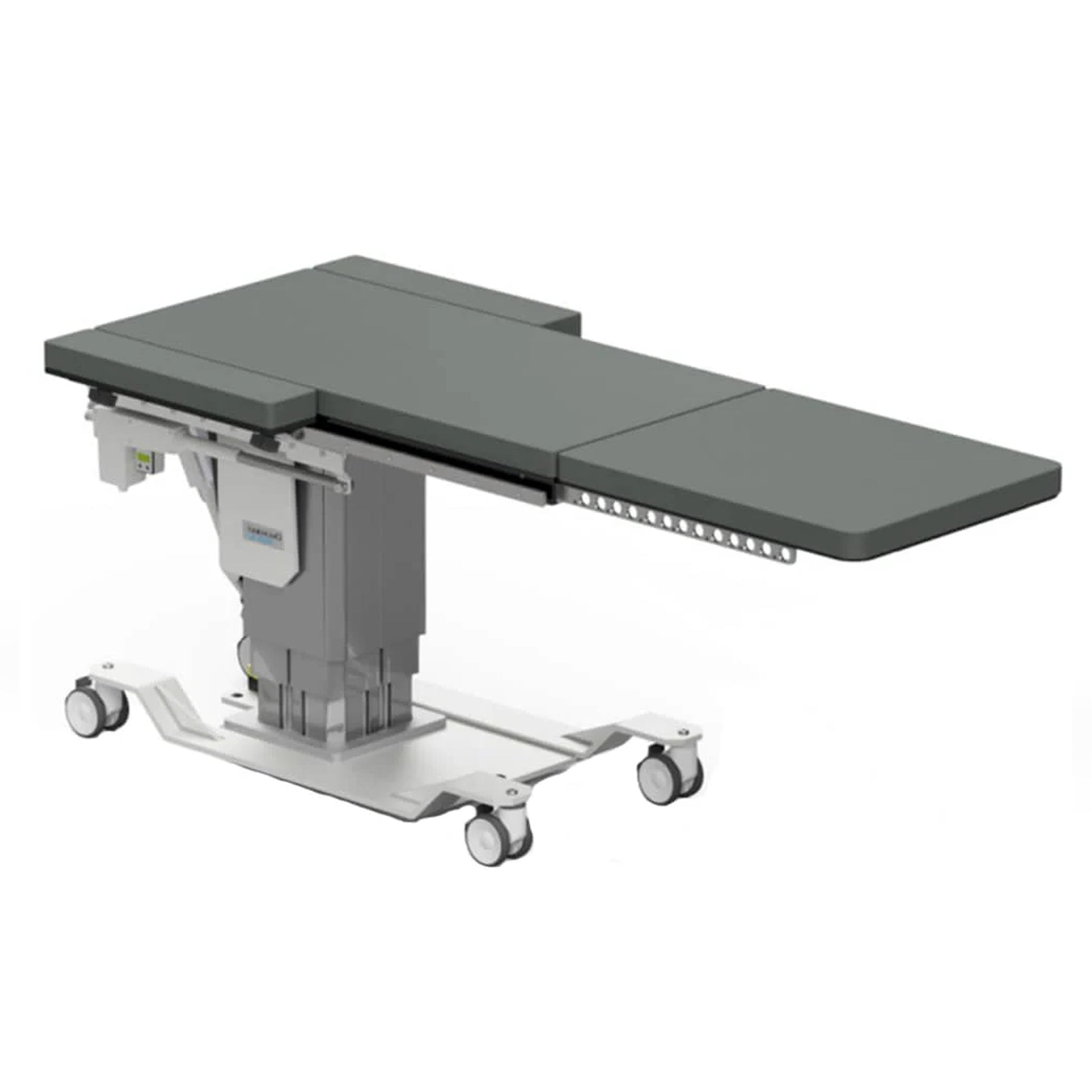

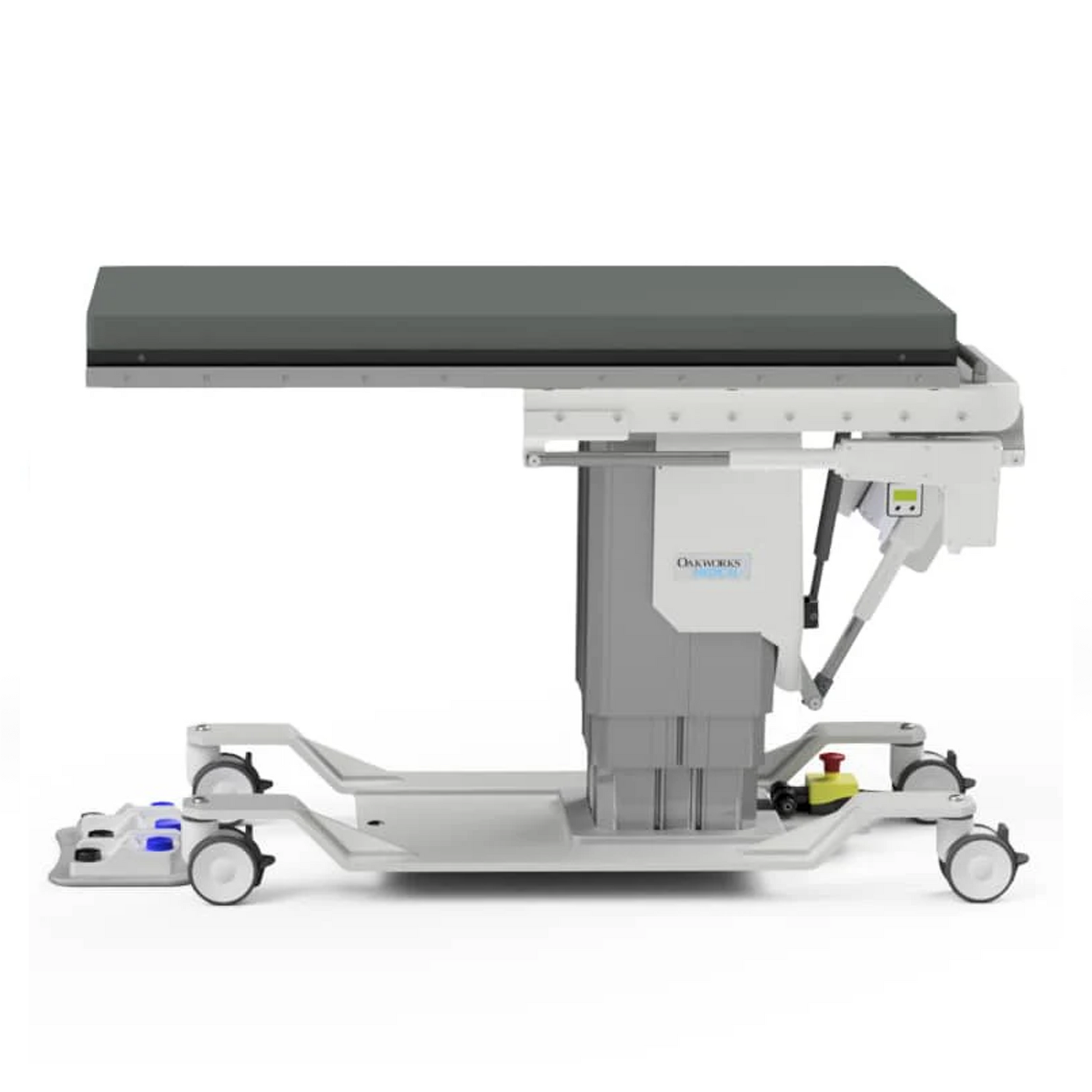

Oakworks CFUR401 Table

Oakworks CFUR401 Urology Imaging Table – 4-Motion Urology Table

The Oakworks CFUR401 urology imaging table is designed for advanced urology imaging and procedural workflows that require expanded tabletop movement. With electric height adjustment, Trendelenburg tilt, longitudinal travel, and lateral travel, the CFUR401 gives clinicians added positioning flexibility for urology, cystoscopy, hysteroscopy, oncologic, and fluoroscopy-guided procedures.

Built with a carbon fiber top and stable large lifting column, the CFUR401 provides a 19" x 25" metal-free imaging space and comes standard with a radiolucent patient transfer extension plus two adjustable lateral extensions. It is designed to support efficient setup, patient access, and precise positioning in dedicated urology environments.

Key Features of the Oakworks CFUR401

4-Motion Electric Positioning
The CFUR401 includes electric height adjustment from 26" to 44", electric Trendelenburg tilt of +15°/-11°, 10" of electric longitudinal travel, and 8" of electric lateral travel.

Carbon Fiber Imaging Surface
The table includes a 23" x 47" carbon fiber top with a 19" x 25" metal-free imaging area, supporting radiolucent access for urology imaging and procedural visualization.

Integrated Transfer and Lateral Extensions
The CFUR401 comes with one 23" x 28" radiolucent patient transfer extension and two 5" x 24" adjustable lateral extensions to support patient handling and procedural setup.

500 lb Patient Capacity
The table supports a 500 lb patient capacity, and each extension is rated for 200 lb.

Clinical Controls and Included Features
Standard features include multi-function hand control, foot control, a 2" Radiolucent Comfort Foam tabletop pad, 4" locking casters, digital angle gauge, patient restraint straps, and full-length T-rails on each side.

Accessory Package Compatibility
Available urology accessories include the Urology Accessory Package with SchureMed Platinum Stirrups, SpringLoc rail clamp, Trapper System, and stirrup transport and storage dolly. A clear PVC protective drape that attaches to the T-rail is also available.

Ideal Clinical Applications
The Oakworks CFUR401 is well suited for:

• Urology procedures
• Cystoscopy
• Hysteroscopy
• Oncologic surgical procedures
• Fluoroscopy-guided procedures
• Procedure rooms requiring lateral travel
• Advanced urology imaging workflows

Why Choose the Oakworks CFUR401?
The CFUR401 is ideal for facilities that need the added flexibility of lateral travel in a dedicated urology imaging table. Compared with the CFUR301, the CFUR401 adds a fourth powered motion, making it a strong option for procedure rooms that require more precise tabletop positioning and expanded imaging workflow control.

Key Benefits

• 4-motion urology imaging table
• 26" to 44" electric height range
• Trendelenburg tilt
• 10" longitudinal travel
• 8" lateral travel
• Carbon fiber top with metal-free imaging space
• Included patient transfer and lateral extensions
• 500 lb patient capacity

What is the patient weight capacity of Oakworks urology tables?

The Oakworks CFUR Series tables have a 500 lb patient weight capacity, with each extension supporting up to 200 lbs. This makes them suitable for a wide range of patients while maintaining stability during procedures

What movement and positioning capabilities do Oakworks CFUR tables offer?

The CFUR Series includes the following motorized movements: Height adjustment: 26” to 44”, Trendelenburg tilt: +15° / -11°, Longitudinal travel: 10 inches, Lateral travel: 8 inches (CFUR401 only). These movements allow clinicians to position patients precisely for imaging and procedural access.

What certifications and warranty come with Oakworks urology tables?

The CFUR Series tables are: FDA listed, CE marked, cETLus listed, CB certified. They also include a 3-year parts warranty and 2-year labor warranty, providing peace of mind for long-term use.
