Oakworks CFUR301 Table

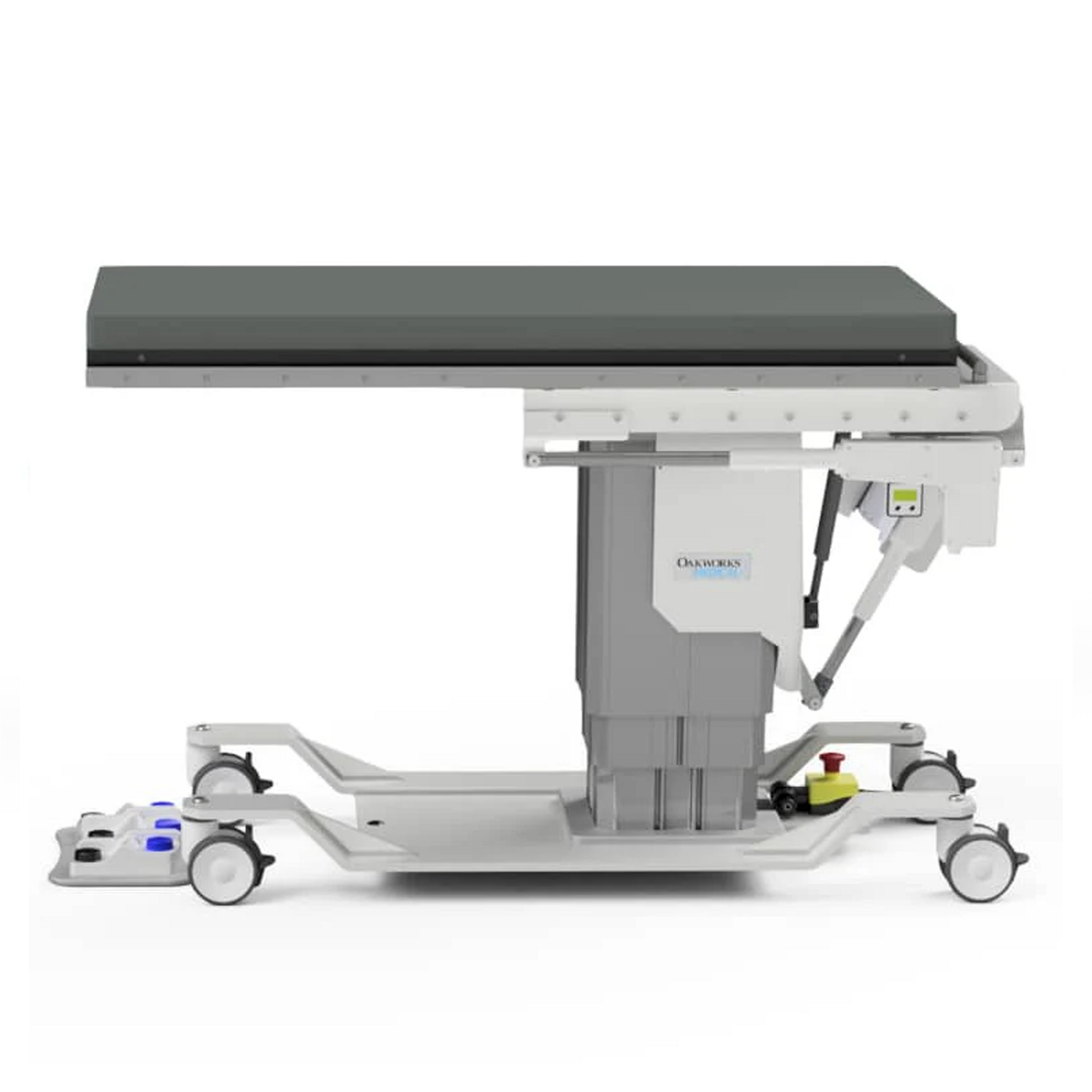

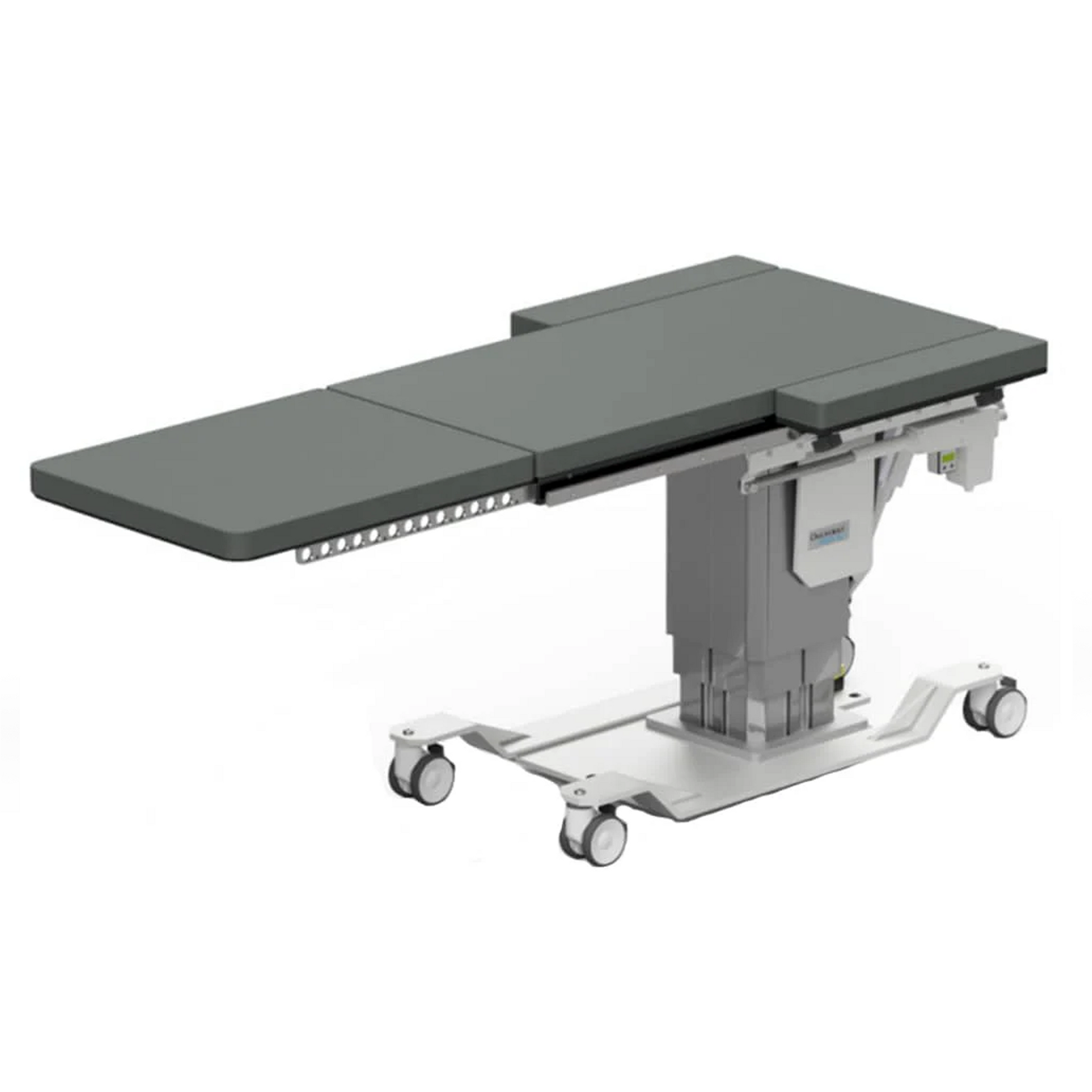

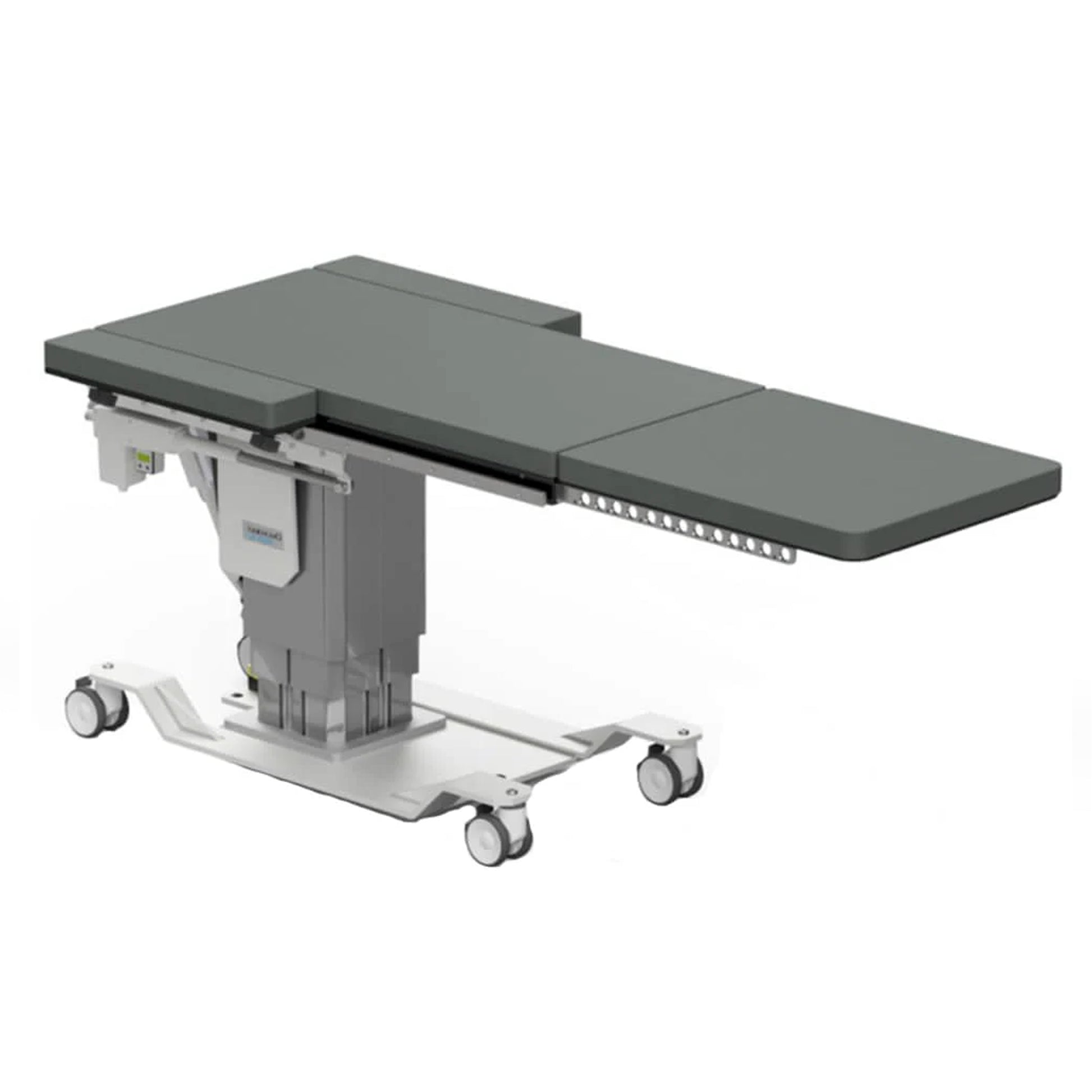

Oakworks CFUR301 Urology Imaging Table – 3-Motion Urology Table

The Oakworks CFUR301 urology imaging table is designed for urology, cystoscopy, hysteroscopy, oncologic, and fluoroscopy-guided procedures that require stable positioning and radiolucent imaging access. Built with a large lifting column and carbon fiber tabletop, the CFUR301 provides a stable procedural platform with the motion control needed for efficient patient positioning.

The CFUR301 includes electric height adjustment from 26" to 44", electric Trendelenburg tilt of +15°/-11°, and 10" of electric longitudinal travel. It also comes standard with a patient transfer extension and two adjustable lateral extensions, supporting flexible setup for urology imaging workflows.

Key Features of the Oakworks CFUR301

3-Motion Electric Positioning
The CFUR301 includes electric height adjustment, Trendelenburg tilt, and longitudinal travel to help clinicians position patients accurately for urology and imaging procedures.

Carbon Fiber Imaging Top
The table features a 23" x 47" carbon fiber top with a 19" x 25" metal-free imaging space for radiolucent access during procedures.

Included Extensions
Each CFUR301 includes two 5" x 24" lateral extensions and one 23" x 28" radiolucent patient transfer extension, helping support patient access, transfers, and procedural setup.

500 lb Patient Capacity
The CFUR301 supports a 500 lb patient weight capacity, with each extension rated for 200 lb.

Built for Clinical Workflow
Standard features include multi-function hand control, foot control, 2" Radiolucent Comfort Foam tabletop pad, 4" locking casters, digital angle gauge, patient restraint straps, and full-length U.S. standard T-rails on each side.

Ideal Clinical Applications
The Oakworks CFUR301 is well suited for:

• Urology procedures
• Cystoscopy
• Hysteroscopy
• Oncologic surgical procedures
• Fluoroscopy-guided imaging
• Procedure rooms requiring 3-motion positioning

Why Choose the Oakworks CFUR301?
The CFUR301 is a practical choice for facilities that need a dedicated urology imaging table with carbon fiber imaging access, included extensions, and stable 3-motion positioning. It offers the essential functionality required for urology procedures while maintaining a compact, procedure-focused design.

Key Benefits

• 3-motion urology imaging table
• 26" to 44" electric height range
• Trendelenburg tilt
• 10" longitudinal travel
• Carbon fiber top with metal-free imaging space
• Included patient transfer and lateral extensions
• 500 lb patient capacity



What are the Oakworks CFUR301 and CFUR401 urology tables?

The Oakworks CFUR301 and CFUR401 are urology imaging tables designed for fluoroscopy-guided procedures such as cystoscopy, hysteroscopy, and other urologic and oncologic procedures. They feature a carbon fiber imaging top, motorized positioning, and accessory compatibility to support efficient workflow in urology suites.

What is the difference between the CFUR301 and CFUR401 models?

The main difference between the two models is the number of movements: CFUR301: 3 motions (height, Trendelenburg, longitudinal travel), CFUR401: 4 motions (adds lateral travel). The additional lateral travel on the CFUR401 provides greater positioning flexibility during procedures.

What accessories are included with the Oakworks CFUR Series?

Standard features include: 2-inch radiolucent Comfort Foam™ pad, Patient restraint straps, Full-length T-rails on both sides, Multi-function hand control and foot control, Locking casters, Digital angle gauge. The table also includes a patient transfer extension and two adjustable lateral extensions to improve patient positioning and access.
