Oakworks CFPM 302 Table

Oakworks CFPM302 C-Arm Table – 3-Motion Fluoroscopy Imaging Table

The Oakworks CFPM302 c-arm table is designed for fluoroscopy-guided procedures that require precise patient positioning, reliable imaging access, and a durable radiolucent tabletop. This 3-motion imaging table combines electric height adjustment, longitudinal travel, and lateral tilt to help clinicians position patients efficiently during pain management, interventional, and imaging procedures.

Built with a carbon fiber top and 56 inches of metal-free imaging space, the CFPM302 supports clear c-arm access across a broad procedural area. The table is available with either an integrated headrest top or rectangular top and includes a 2 inch Radiolucent Comfort Foam table pad, locking casters, patient restraint straps, and a crescent face rest pad with integrated headrest models.

Key Features of the Oakworks CFPM302

3-Motion Electric Positioning
The CFPM302 includes electric height adjustment from 25 to 43 inches, 10 inches of electric longitudinal travel, and electric lateral tilt of ±15 degrees. This motion package helps support procedural flexibility and accurate patient positioning.

56 Inches of Metal-Free Imaging Space
The carbon fiber tabletop provides 56 inches of metal-free imaging space, helping maintain unobstructed fluoroscopic access during c-arm procedures.

Integrated Headrest or Rectangular Top Options

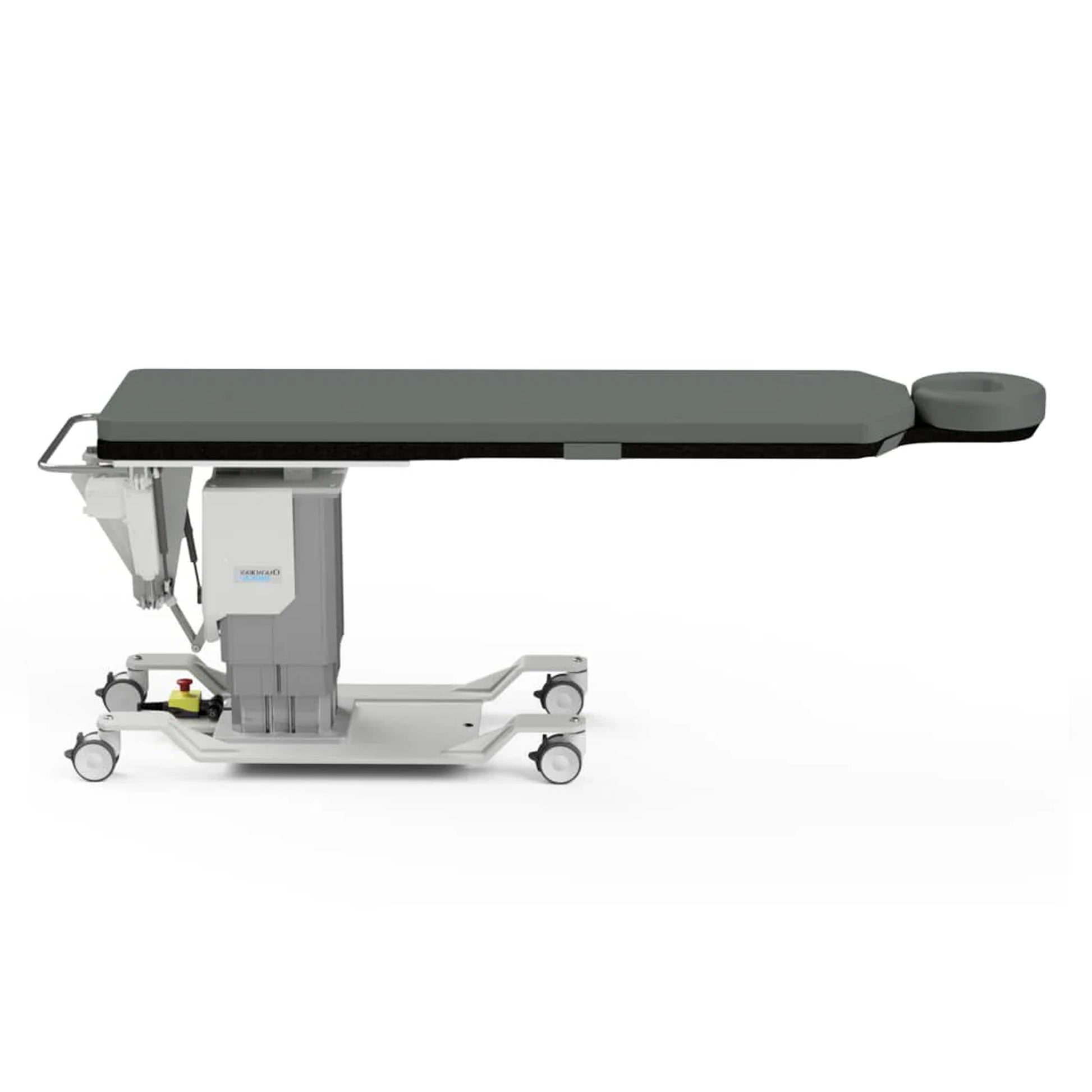

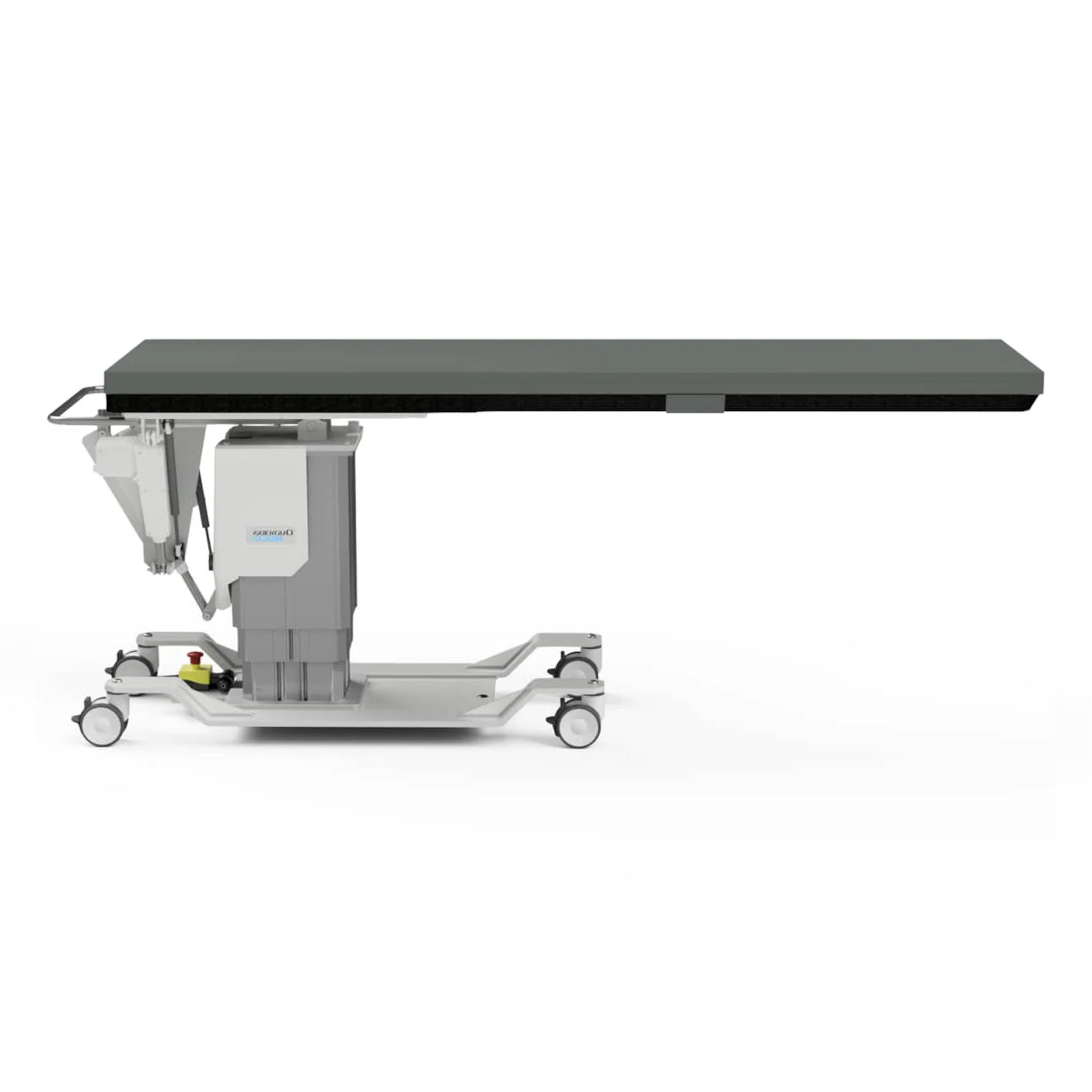

The CFPM302 is available with an integrated headrest top measuring 22" x 84" or a rectangular top measuring 24" x 80", allowing buyers to choose the configuration that best fits their workflow.

500 lb Patient Weight Capacity
With a 500 lb patient capacity, the CFPM302 is built to accommodate a wide range of patients in demanding clinical environments.

Clinical Comfort and Safety Features
Standard features include a 2 inch Radiolucent Comfort Foam tabletop pad, 4 inch locking casters, patient restraint straps, and a crescent face rest pad on integrated headrest versions.

Optional Accessories and Upgrades
Available options include 5 inch casters, all-functions foot control, and non-USA electrical configurations. Compatible accessories include an arm hammock, carbon fiber arm board, fluoro extender, interventional supine pillow system, Spine Positioning System II, and 6 inch T-rail clamp.

Ideal Clinical Applications
The Oakworks CFPM302 is well suited for:

• Pain management procedures
• Fluoroscopy-guided injections
• Interventional imaging
• Spine procedures
• Outpatient surgery centers
• Procedure rooms requiring longitudinal travel and lateral tilt

Why Choose the Oakworks CFPM302?
The CFPM302 is a strong option for facilities that need a cost-effective 3-motion c-arm table with both longitudinal travel and lateral tilt. Its carbon fiber imaging surface, 56 inch metal-free imaging area, and 500 lb patient capacity make it a practical fluoroscopy table for a wide range of procedural environments.

Key Benefits

• 3-motion electric table design
• 25" to 43" adjustable height range
• 10" longitudinal travel
• ±15° lateral tilt
• 56" metal-free imaging space
• 500 lb patient capacity
• Integrated headrest or rectangular top options

How many Oakworks CFPM models are available?

According to Oakworks, the broader imaging table line offers up to 18 model combinations based on five different motions and two top designs. Within the CFPM line, buyers can choose from models such as the CFPM100, 200, 201, 300, 301, 302, and 400, with either an integrated headrest or rectangular top depending on configuration.

What top styles are available in the Oakworks CFPM Series?

The Oakworks CFPM Series is available in two main top styles: an integrated headrest top and a rectangular top. Oakworks offers both styles across several CFPM models so facilities can choose the tabletop layout that best fits their procedure mix and physician preference.

What movement options are available in the Oakworks CFPM Series?

Movement options depend on the specific model. Oakworks describes lower-motion models such as the CFPM100 and CFPM200 as height- or height-plus-lateral-tilt tables, while models like the CFPM301 add Trendelenburg tilt and longitudinal travel. The CFPM400 is described as a 4-movement table with electric height adjustment, Trendelenburg tilt, and 10 inches of longitudinal travel, with additional motion depending on configuration.
