Oakworks CFPM100 C-Arm Table – Low Height Imaging Table

The Oakworks CFPM100 c-arm table is designed for facilities that need a reliable, cost-effective fluoroscopy table with a very low starting height. Built for imaging-guided procedures, it features a rigid lifting column, radiolucent carbon fiber top options, and 56 inches of metal-free imaging space to support smooth c-arm access during exams and interventions.

Available with either an integrated headrest top or a rectangular top, the CFPM100 supports flexible room setup and procedural preference. Its electric height adjustment range of 22 to 40 inches helps improve patient transfers while giving clinicians a practical working height during treatment.

Key Features of the Oakworks CFPM100

Low Height Range for Easier Patient Access
The CFPM100 offers Oakworks’ lowest height range in the series, adjusting from 22 to 40 inches without the pad. This makes it especially useful where safer transfers and lower table access are important.

56 Inches of Metal-Free Imaging Space
Its carbon fiber top provides 56 inches of metal-free imaging space to help maintain clear fluoroscopic access across a broad treatment area.

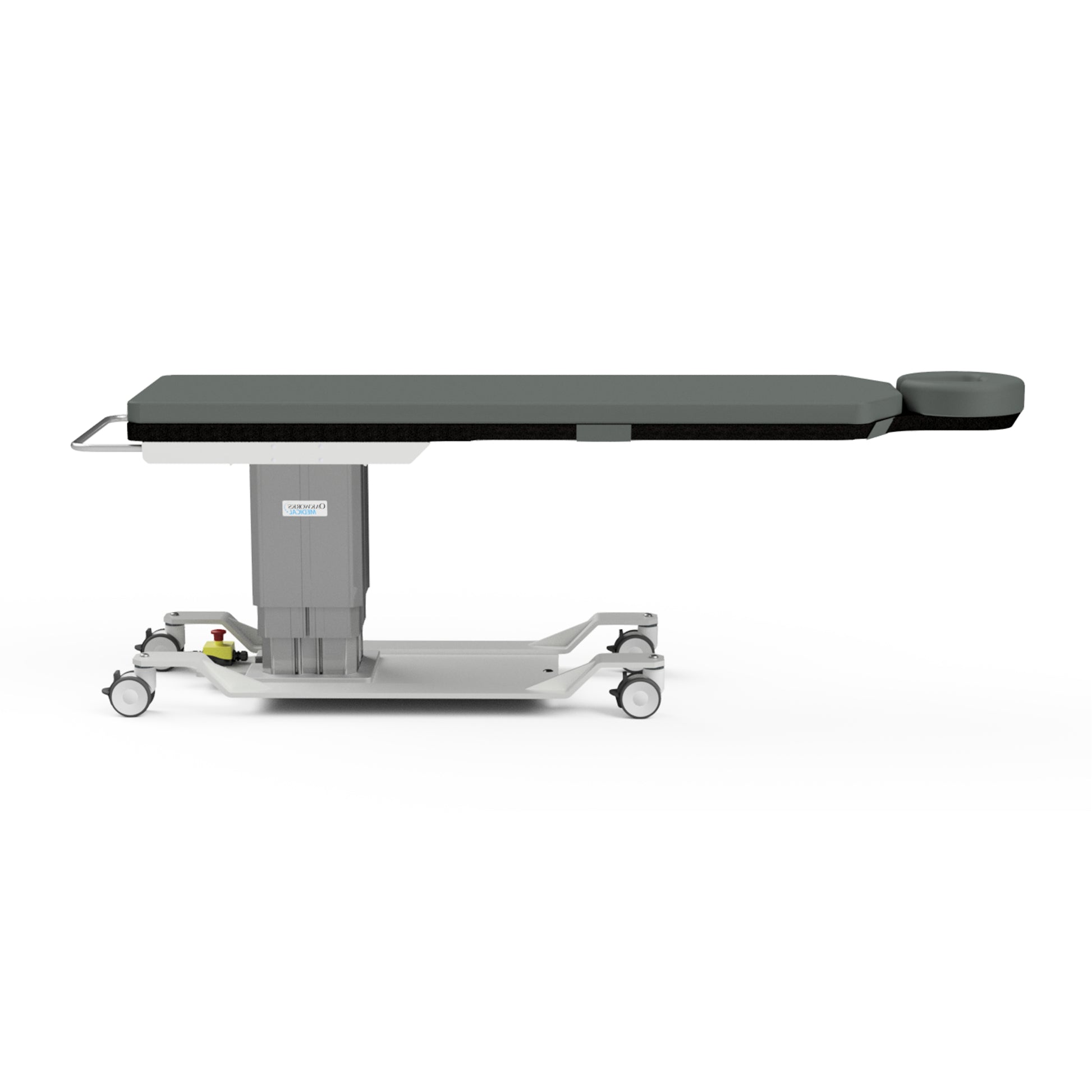

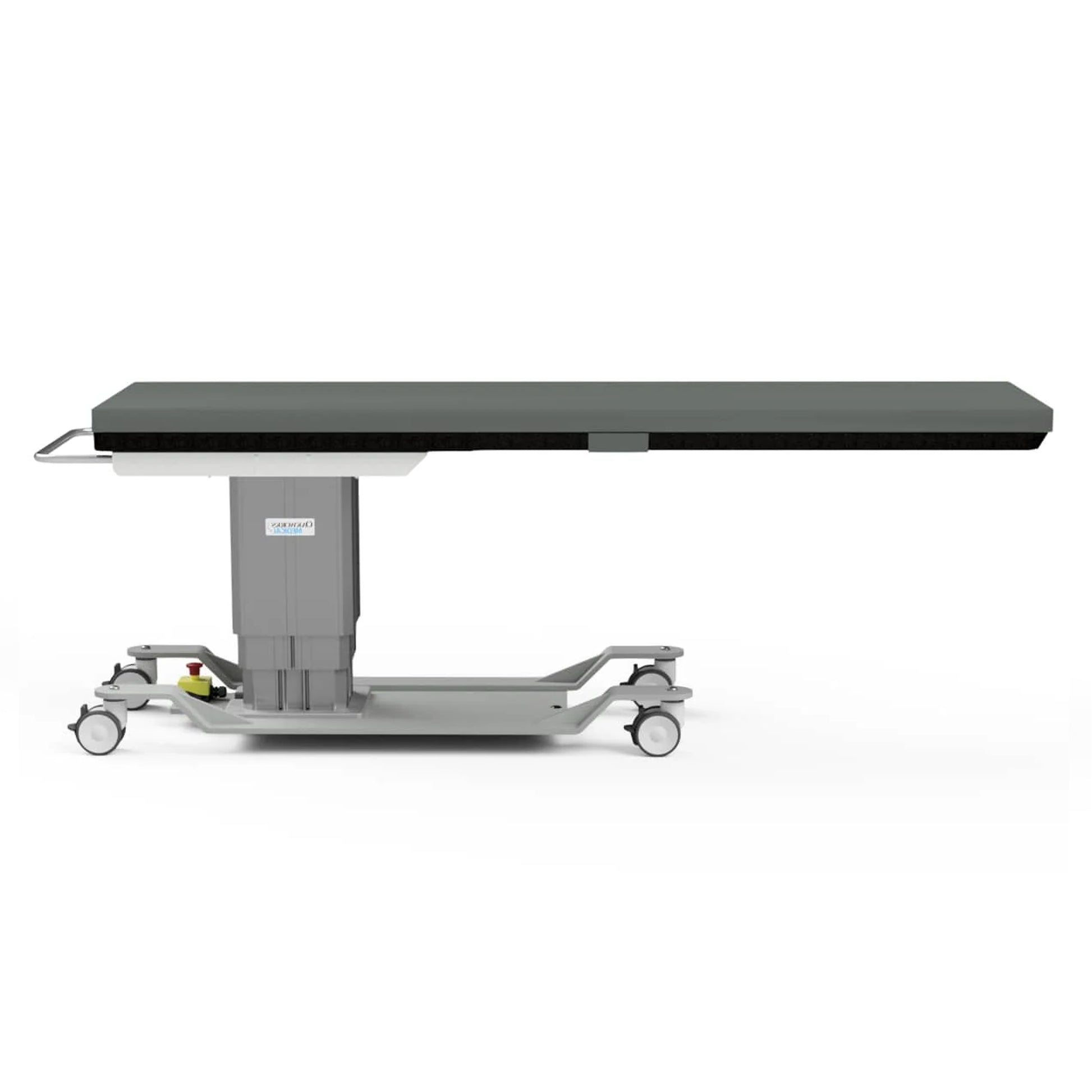

Integrated Headrest or Rectangular Top Options
Buyers can choose between a 22" x 84" integrated headrest top or a 24" x 80" rectangular top depending on procedural needs and clinician preference.

500 lb Patient Capacity
The CFPM100 is rated for a 500 lb patient weight capacity, supporting a wide range of patient populations in busy procedural settings.

Radiolucent Comfort Pad and Standard Clinical Features
Included features include a 2 inch radiolucent Comfort Foam pad, locking casters, patient restraint straps, and a crescent face rest pad on integrated headrest models.

Ideal Clinical Applications
The Oakworks CFPM100 is well suited for pain management, fluoroscopy-guided injections, outpatient imaging procedures, and facilities that prioritize a low table entry height.

Why Choose the Oakworks CFPM100?
The CFPM100 is a strong fit for practices that want a straightforward fluoroscopy table with radiolucent access, dependable electric height adjustment, and a lower starting height than other models in the series.

Key Benefits

• Low 22" starting height
• 56" metal-free imaging space
• Carbon fiber tabletop design
• 500 lb patient capacity
• Integrated headrest or rectangular top
• Built for fluoroscopy procedures

How many Oakworks CFPM models are available?

According to Oakworks, the broader imaging table line offers up to 18 model combinations based on five different motions and two top designs. Within the CFPM line, buyers can choose from models such as the CFPM100, 200, 201, 300, 301, 302, and 400, with either an integrated headrest or rectangular top depending on configuration.

What top styles are available in the Oakworks CFPM Series?

The Oakworks CFPM Series is available in two main top styles: an integrated headrest top and a rectangular top. Oakworks offers both styles across several CFPM models so facilities can choose the tabletop layout that best fits their procedure mix and physician preference

What movement options are available in the Oakworks CFPM Series?

Movement options depend on the specific model. Oakworks describes lower-motion models such as the CFPM100 and CFPM200 as height- or height-plus-lateral-tilt tables, while models like the CFPM301 add Trendelenburg tilt and longitudinal travel. The CFPM400 is described as a 4-movement table with electric height adjustment, Trendelenburg tilt, and 10 inches of longitudinal travel, with additional motion depending on configuration.
