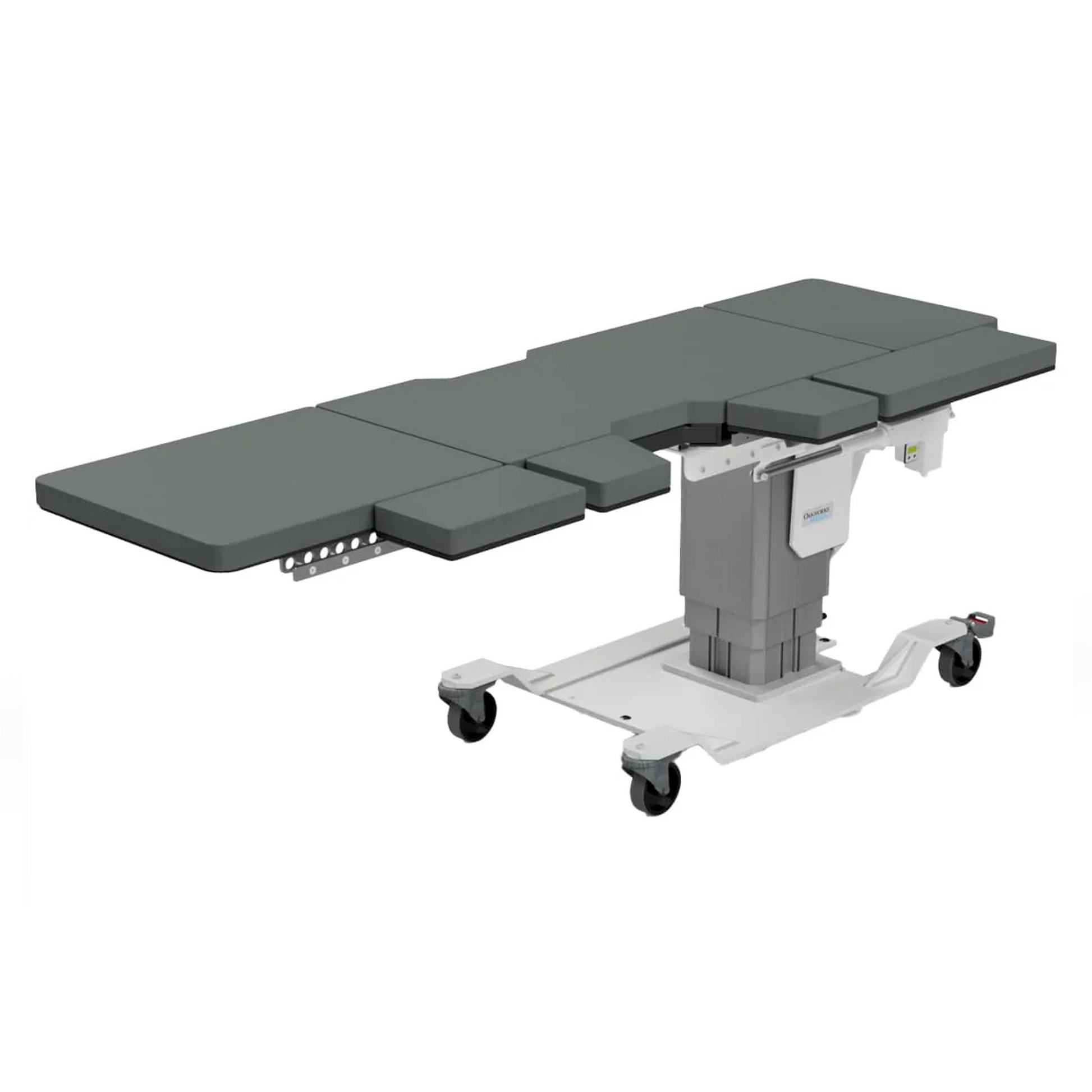

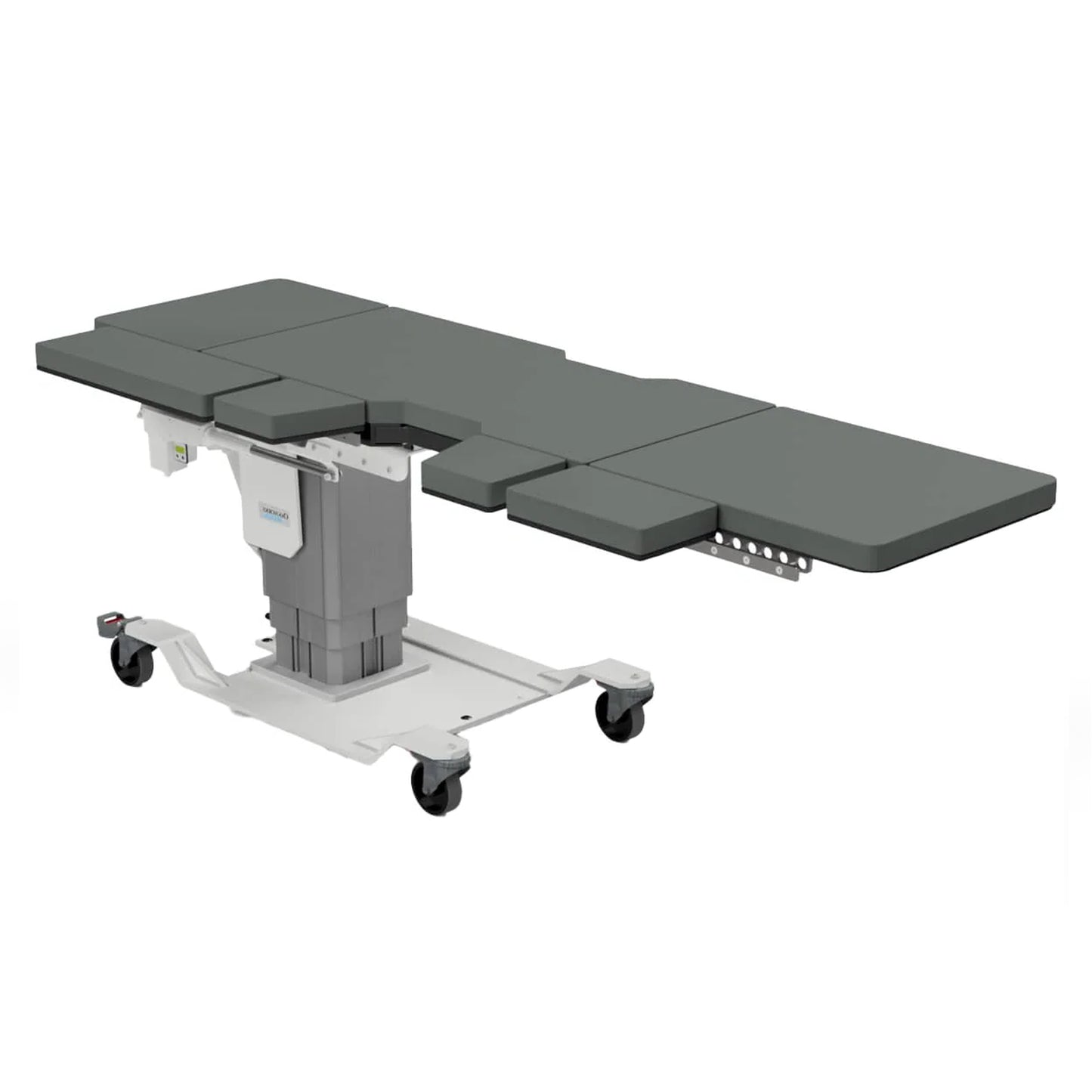

Oakworks CFLU401 Lithotripsy-Urology Table

Oakworks CFLU401 Lithotripsy/Urology Table – 4-Motion Imaging Table

The Oakworks CFLU401 lithotripsy/urology table is designed for lithotripsy, urology, and fluoroscopy-guided procedures that require precise targeting, flexible positioning, and reliable C-arm access. Its unique movable panel design supports left or right side lithotripsy procedures while providing support surfaces where needed.

Built for both mobile and stationary use, the CFLU401 is designed to work with most portable lithotripters and C-arms. The table includes slow-speed longitudinal and lateral movement for precise targeting, a carbon fiber top with metal-free imaging space, and multiple included extensions for urology and lithotripsy workflows.

Key Features of the Oakworks CFLU401

4-Motion Electric Positioning
The CFLU401 includes electric height adjustment from 27" to 45", electric Trendelenburg tilt of +15°/-11°, 10" of electric longitudinal travel, and 8" of electric lateral travel.

Slow-Speed Travel for Precise Targeting
Slow-speed longitudinal and lateral movement helps support accurate targeting during lithotripsy and imaging-guided procedures.

Carbon Fiber Imaging Top
The table features a 23" x 47" carbon fiber top with a 19" x 24" metal-free imaging space for radiolucent procedural access.

Left and Right Lithotripter Access
The CFLU401 is designed for left and right lithotripter access, helping facilities adapt the table to different room layouts, equipment positioning, and procedural needs.

Included Extensions and Urology Features
Included components include lateral extensions, angled lateral extensions, a radiolucent patient transfer extension, short end extension, U.S. standard full-length T-rails, and a urology bag hoop.

500 lb Weight Rating
The CFLU401 is rated for 500 lb patient weight capacity, with each extension rated for 200 lb.

Clinical Controls and Included Features
The table includes all-functions hand control and foot control, 5" locking casters, digital angle gauge, patient restraint straps, and a 2" Radiolucent Comfort Foam tabletop pad.

Ideal Clinical Applications
The Oakworks CFLU401 is well suited for:

• Lithotripsy procedures
• Urology procedures
• Fluoroscopy-guided imaging
• Procedures requiring left or right lithotripter access
• Mobile lithotripsy services
• Stationary urology and imaging rooms

Why Choose the Oakworks CFLU401?
The CFLU401 is a strong choice for facilities that need a dedicated lithotripsy/urology table with precise powered travel, broad C-arm compatibility, and flexible positioning options. Its movable panel design, left and right lithotripter access, and included urology features make it a versatile solution for procedural imaging environments.

Key Benefits

• 4-motion lithotripsy/urology table
• 27" to 45" electric height range
• Trendelenburg tilt
• 10" longitudinal travel
• 8" lateral travel
• Slow-speed movement for precise targeting
• Left and right lithotripter access
• Designed for most portable lithotripters and C-arms
• 500 lb weight rating

What is the Oakworks CFLU401?

The Oakworks CFLU401 is a lithotripsy and urology imaging table designed for procedures requiring C-arm access, lithotripter compatibility, and precise patient positioning. It features a carbon fiber top, motorized table movements, and moveable panels that support both left- and right-side lithotripsy procedures.

Why would a facility choose the Oakworks CFLU401?

A facility may choose the Oakworks CFLU401 when it needs a dedicated lithotripsy/urology table with left and right lithotripter access, C-arm compatibility, precise motorized targeting, and a rugged design for mobile or stationary use.

How much imaging space does the CFLU401 provide?

The table includes a carbon fiber top with a 23” x 47” total surface area and 19” x 24” metal-free imaging space. This supports fluoroscopic imaging while maintaining patient support during urology and lithotripsy procedures.
