Mindray Vetus EQ Ultrasound System

Mindray Vetus EQ Ultrasound System – Dedicated Equine Diagnostic Imaging

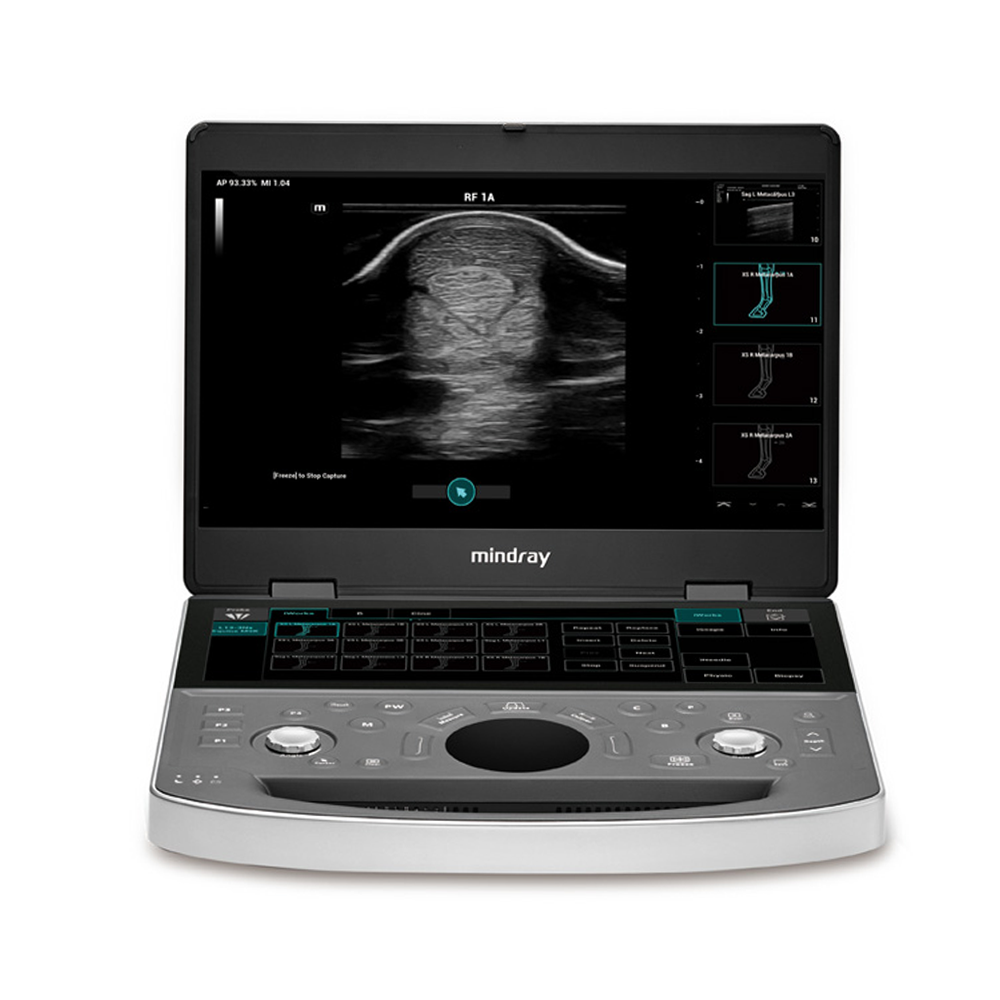

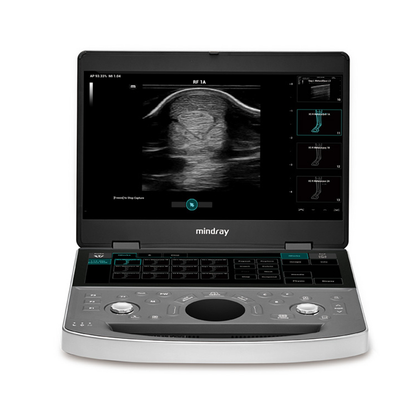

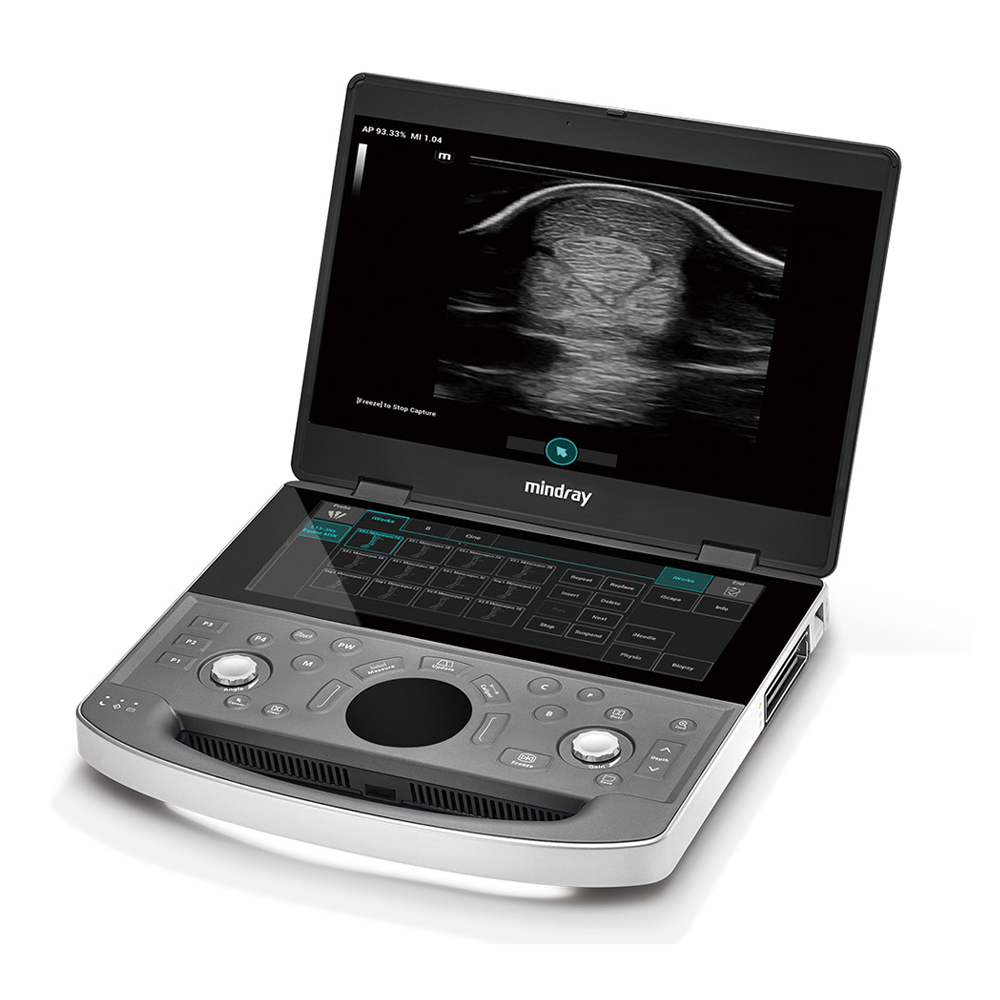

The Mindray Vetus EQ equine ultrasound system is a portable, professional ultrasound platform designed specifically for equine veterinarians. Built for horse imaging in the clinic, barn, or field, the Vetus EQ combines compact laptop mobility, advanced color Doppler imaging, and equine-focused workflow tools to support confident diagnosis across musculoskeletal, reproductive, abdominal, and cardiac applications.

Powered by Mindray ZONE Sonography Technology+, the Vetus EQ uses zone imaging, zone focusing, and zone processing to improve image quality while helping equine practitioners see more detail with fewer keystrokes. Its 6.6 lb main unit, 1.7" thickness, 15.6" high-resolution LED monitor, and 12.3" anti-glare touchscreen make it practical for mobile equine work.

Key Features of the Mindray Vetus EQ

Dedicated Equine Ultrasound Platform
The Vetus EQ is designed specifically for equine imaging, with professional presets and tools tailored for MSK, cardiac, abdominal, and reproduction exams.

ZONE Sonography Technology+
ZST+ helps improve image quality and scanning efficiency by using zone-based acquisition and processing instead of traditional line-by-line imaging.

Lightweight Laptop Design
The system weighs 6.6 lb and measures just 1.7" thick, supporting easy transport between exam rooms, barns, and field locations.

Equine iWorks Protocols
Dedicated equine iWorks protocols help standardize scanning, reduce exam time by up to 50%, and remove up to 80% of keystrokes.

Equine Transducer Support
The Vetus EQ supports equine-focused transducers, including the L13-3Ns linear probe for tendon/MSK imaging, 6LE5Vs intrarectal linear probe for reproduction, C5-1s convex probe for abdominal diagnosis, and P4-2s phased array probe for cardiology.

iScape Panoramic Imaging
iScape provides a panoramic view of anatomic structures for improved viewing and measurements, especially useful in tendon and MSK applications.

Optional iNeedle+ Needle Visualization
Optional iNeedle+ enhances needle visualization to help identify needle tip position during injections, aspiration, biopsy, and other interventional procedures.

Portable and Durable Accessories
Available accessories include an iCover protective cover set, U-Bank battery support for up to 8 hours of working time, and a travel backpack designed to hold the ultrasound system, transducers, power supply, and gel bottle.

Ideal Equine Applications
The Mindray Vetus EQ is well suited for:

• Equine tendon imaging
• MSK ultrasound
• Reproductive ultrasound
• Abdominal imaging
• Equine cardiology
• Tendon calcification assessment
• Equine proximal metacarpal region imaging
• Equine abdominal aorta flow
• Equine spine and spleen imaging
• Field and mobile equine practice

Why Choose the Mindray Vetus EQ?
The Vetus EQ is a strong choice for equine veterinarians who need a portable ultrasound system built around horse-specific imaging. Its equine presets, ZST+ imaging platform, dedicated transducer support, iWorks workflow, iScape panoramic imaging, optional iNeedle+, and rugged mobile accessories make it a practical solution for both clinic-based and field-based equine care.

Key Benefits

• Dedicated equine ultrasound system
• Portable 6.6 lb laptop design
• 1.7" thin profile
• ZONE Sonography Technology+
• 15.6" LED monitor
• 12.3" anti-glare touchscreen
• Equine iWorks protocols
• MSK, reproduction, abdomen, and cardiology presets
• iScape panoramic imaging
• Optional iNeedle+ guidance
• U-Bank battery support up to 8 hours
• Travel backpack and protective cover options

What is the Mindray Vetus EQ?

The Mindray Vetus EQ is a portable equine ultrasound imaging system designed specifically for horse veterinarians. It is built for equine MSK, reproductive, abdominal, and cardiac imaging.

How does the Vetus EQ compare to the Vetus E7?

The Vetus EQ is more specialized for equine imaging, with dedicated equine presets, equine workflow protocols, and transducers for tendon, reproduction, abdomen, and cardiology. The Vetus E7 is a broader hand-carried veterinary ultrasound system designed for companion animal and general veterinary imaging, with examples including hepatobiliary, renal blood flow, spleen, papillary muscle, and cardiac imaging. Both are portable ZST+ systems, but the Vetus EQ is the better fit for equine-focused practices

Does the Vetus EQ help speed up equine exams?

Yes. The Vetus EQ includes iWorks dedicated equine scanning protocols, which Mindray states can reduce exam time by up to 50% and remove 80% of keystrokes.
