Mindray TE Air e5M Ultrasound System

Mindray TE Air e5M Wireless Handheld Ultrasound System – Portable 2-in-1 Imaging

The Mindray TE Air e5M handheld ultrasound system is a wireless, app-connected ultrasound solution built for fast, accessible imaging at the point of care. Designed for hospitals, general practices, and medical education settings, the TE Air e5M helps clinicians overcome cord limitations and tight spaces while delivering versatile scanning functionality in a compact handheld format.

With its 2-in-1 convex and linear design, the TE Air e5M supports whole-body imaging across abdomen, MSK, small parts, vascular, adult cardiac, and OB/GYN applications. The system pairs with the TE Air Mobile app for one-hand operation, onboard patient data management, and seamless PACS connectivity.

Key Features of the Mindray TE Air e5M

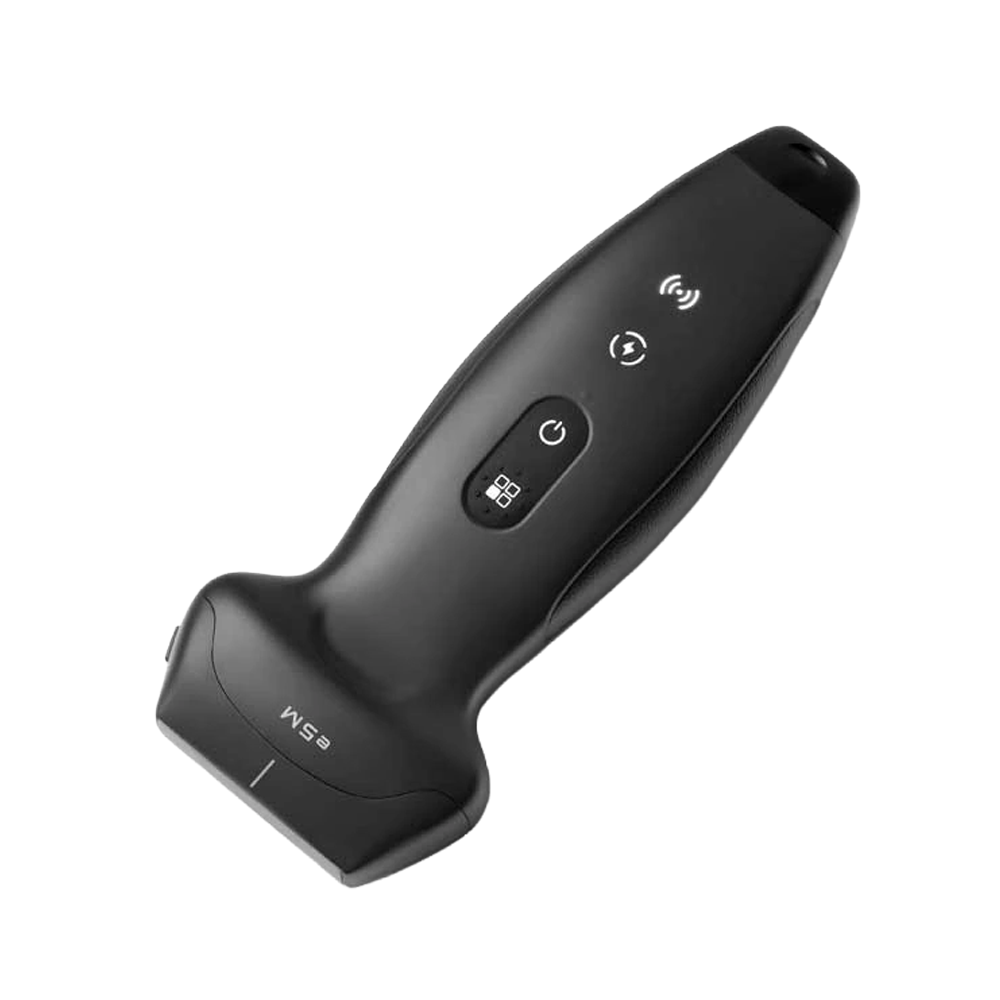

2-in-1 Handheld Ultrasound Design
The TE Air e5M combines convex and linear scanning in one wireless handheld device, reducing the need to switch probes across common point-of-care exams.

iTouch+ Intelligent Image Optimization
iTouch+ offers one-click optimization and automatic preset adjustment, helping reduce manual adjustments while improving scanning efficiency and image quality.

Automatic Measurement Tools
Auto measurement features include Smart Bladder for automatic bladder volume calculation, Smart Calc for lesion diameter and area measurement, and PW Auto Calc for automatic PW spectrum tracing and measurement.

Whole-Body Imaging Presets
The TE Air e5M includes more than 20 dedicated presets, including abdomen, musculoskeletal, small parts, vascular, adult cardiac, and OB/GYN. Frequently used presets can be configured to appear at the top of the list for faster access.

Multiple Imaging Modes

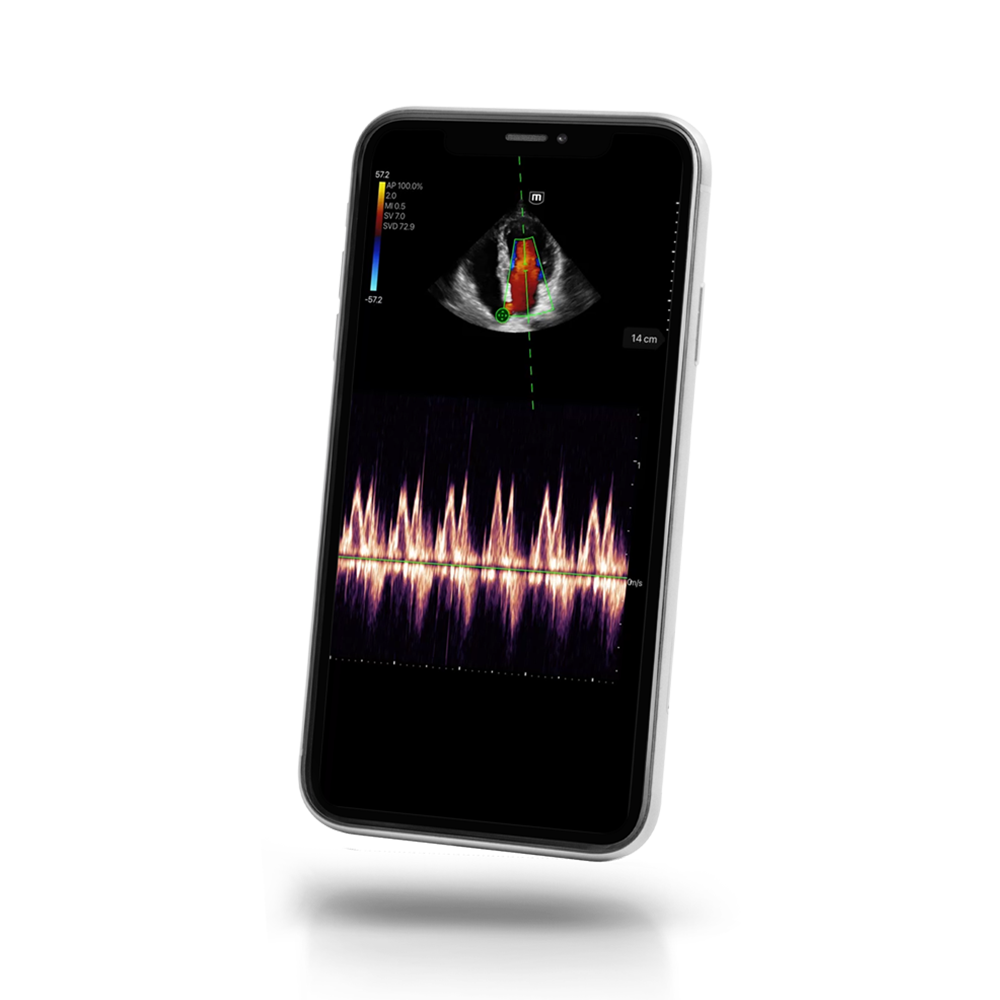

Supported scanning modes include B-mode, M-mode, Color Doppler, Power Doppler, and PW Doppler for versatile handheld imaging.

Workflow and Education Tools
iWorks helps standardize workflow with pre-labeled protocols, while iScanHelper provides built-in ultrasound guidance with anatomical illustrations, reference ultrasound images, and scanning tips.

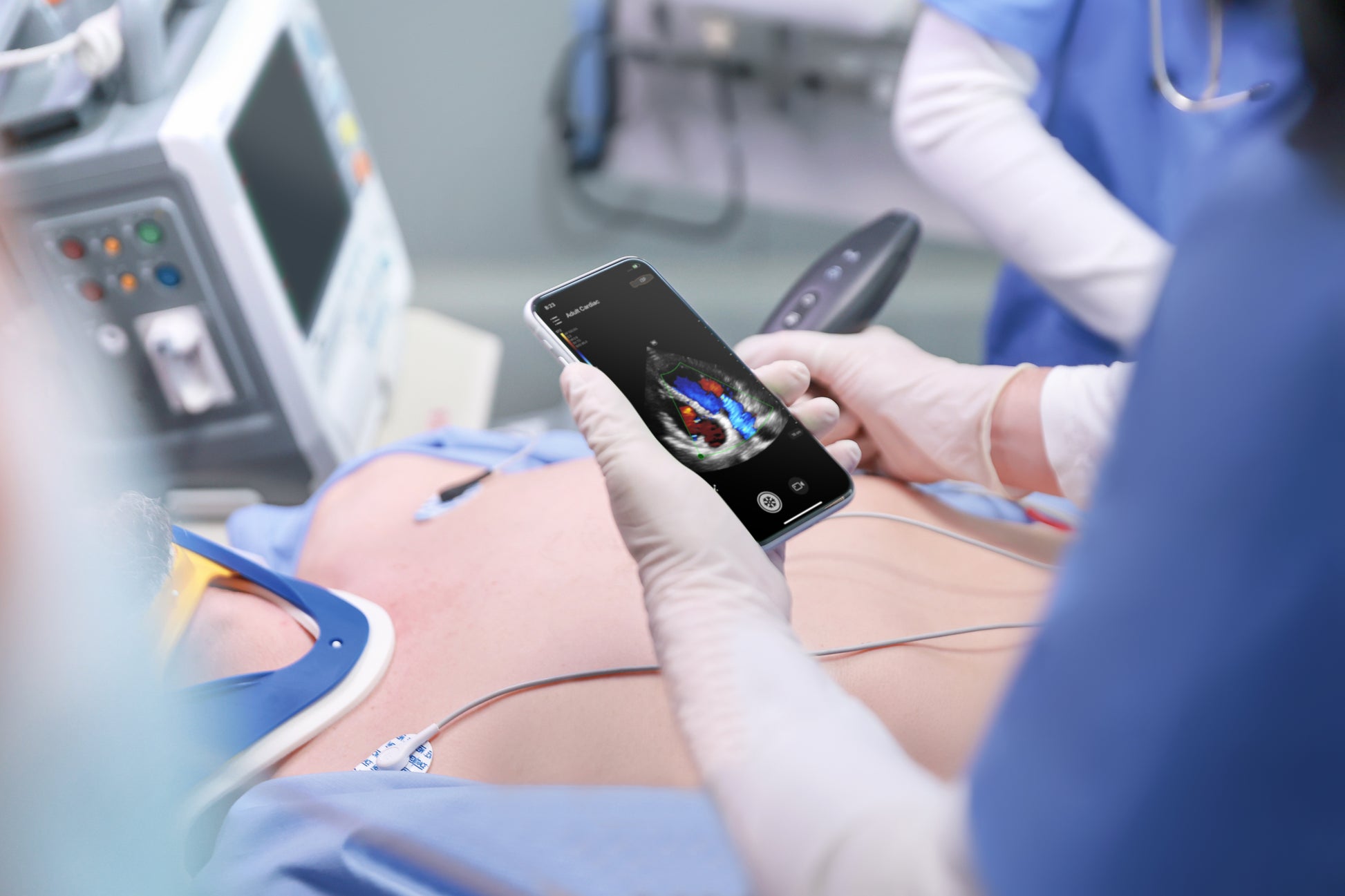

Wireless App Connectivity
Paired with the TE Air Mobile app, the TE Air e5M supports one-hand operation, onboard patient data management, and PACS connectivity without subscription costs.

All-Day Use and Infection Control

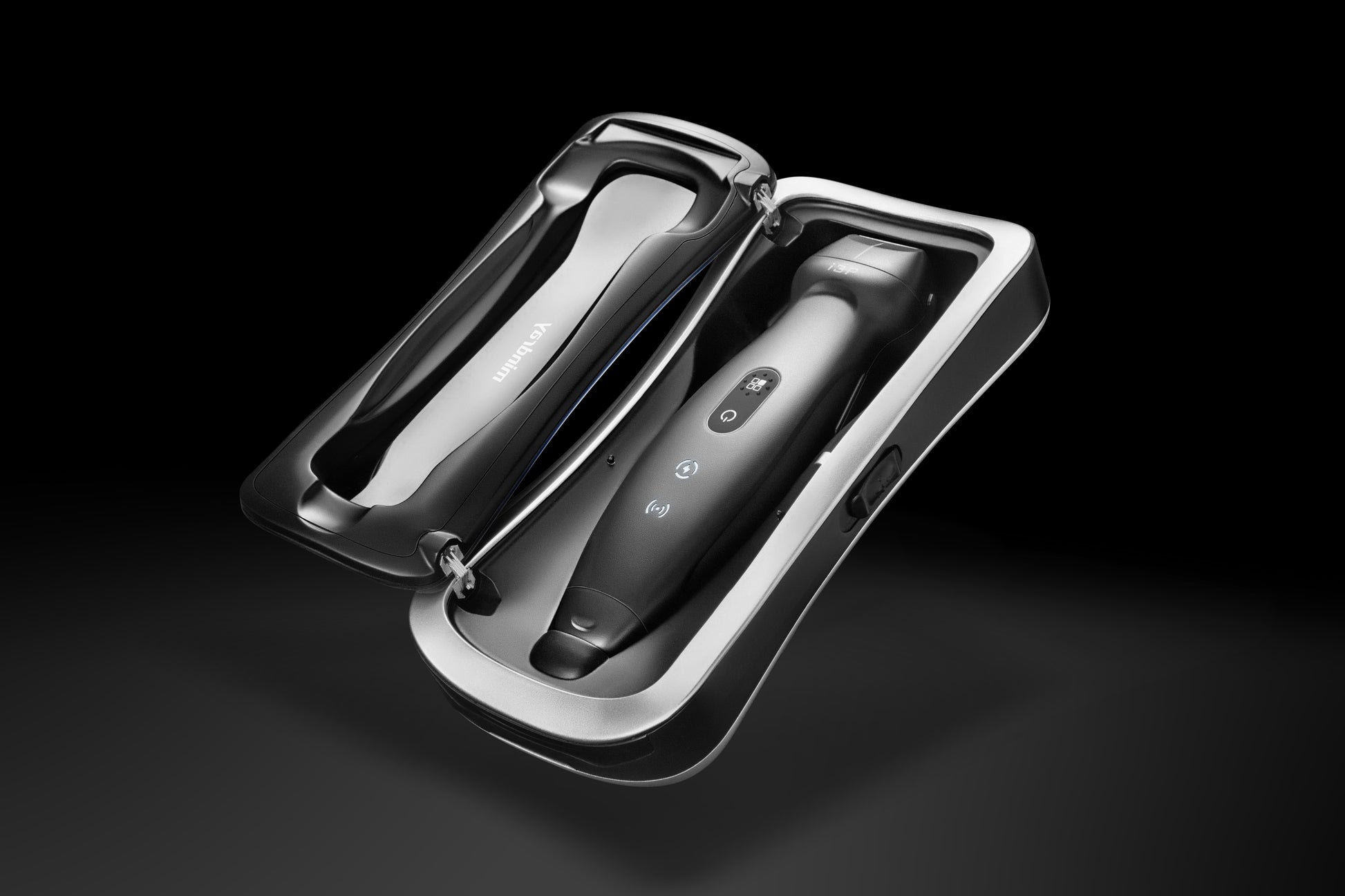

The Air Capsule works as a protective case and portable wireless charger. The TE Air e5M offers up to 120 minutes of mixed-use scanning, supports fast charging from 0% to 90% in 35 minutes, and is IP68 waterproof and dustproof for high-level disinfection.

Ideal Clinical Applications
The Mindray TE Air e5M is well suited for:

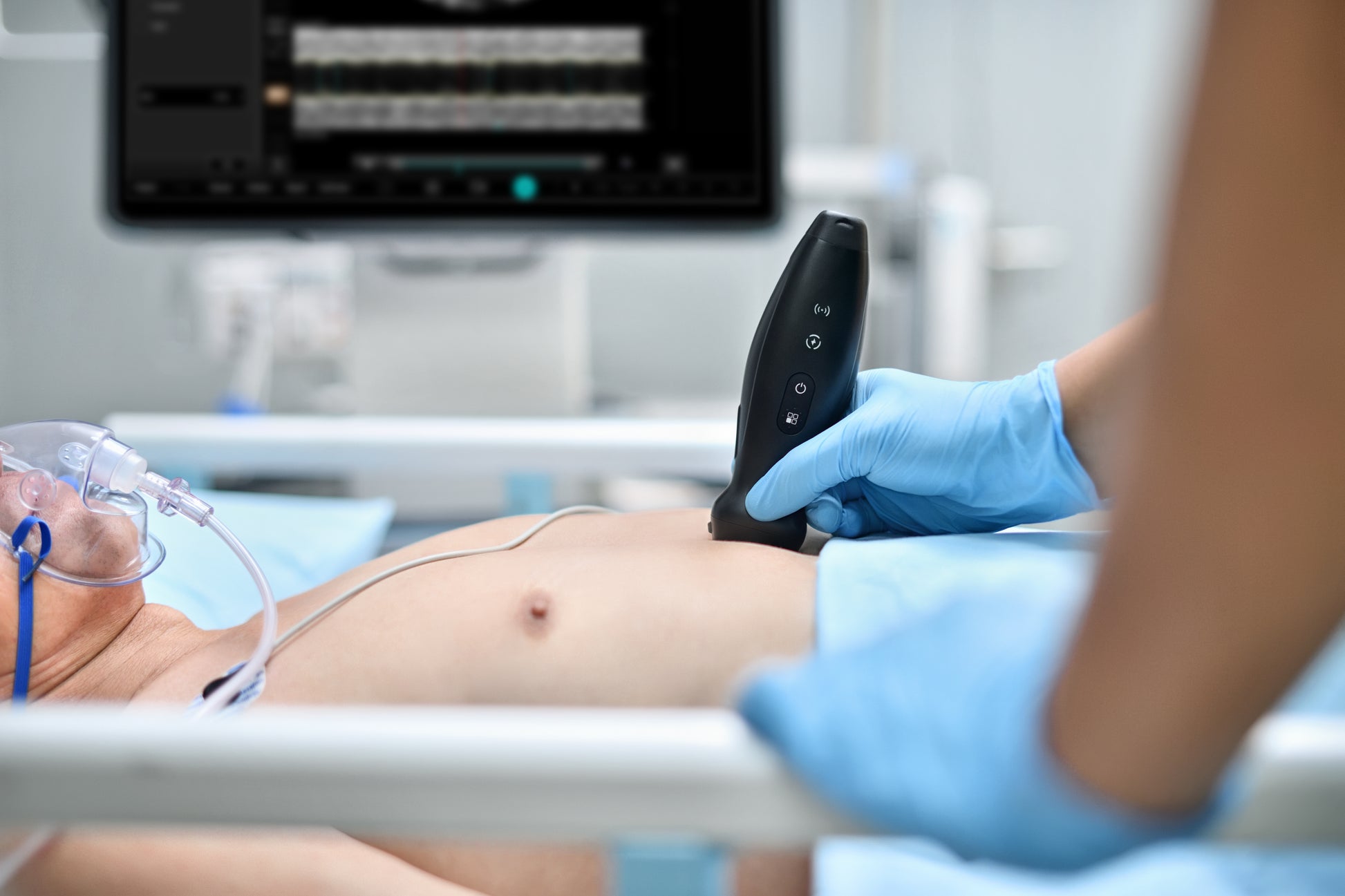

• Point-of-care ultrasound
• Primary care and general practice
• Emergency and bedside imaging
• Abdomen imaging
• MSK ultrasound
• Vascular access and vascular exams
• Small parts and thyroid imaging
• Adult cardiac screening
• OB/GYN imaging
• Medical education

Why Choose the Mindray TE Air e5M?
The TE Air e5M is a strong choice for clinicians who need wireless handheld ultrasound with whole-body versatility, smart optimization tools, automatic measurements, and connected workflow. Its 2-in-1 probe design, TE Air Mobile app, PACS support, Air Capsule charging case, and IP68-rated construction make it a practical solution for portable imaging across care settings.

Key Benefits

• Wireless handheld ultrasound system
• 2-in-1 convex and linear scanning
• iTouch+ one-click image optimization
• Auto preset adjustment
• Smart Bladder, Smart Calc, and PW Auto Calc
• 20+ dedicated presets
• B-mode, M-mode, Color Doppler, Power Doppler, and PW Doppler
• iWorks workflow protocols
• iScanHelper built-in education tool
• PACS connectivity through TE Air Mobile app
• Air Capsule charging case
• IP68 waterproof and dustproof design

What makes the TE Air e5M different from traditional ultrasound systems?

Unlike cart-based systems, the TE Air e5M is completely wireless and handheld, connecting to a mobile device via the TE Air app. This allows clinicians to scan in tight spaces, at the bedside, or in remote environments without being limited by cables or system size.

What is the 2-in-1 probe design on the TE Air e5M?

The TE Air e5M features a 2-in-1 probe design that combines convex and linear transducers in a single device. This allows users to switch between exam types without changing probes, improving efficiency and workflow.

What imaging modes are available on the TE Air e5M?

The system supports multiple imaging modes, including: B-mode, M-mode, Color Doppler, Power Doppler, Pulse Wave (PW) Doppler. These modes provide flexibility for both basic and advanced diagnostic imaging.
