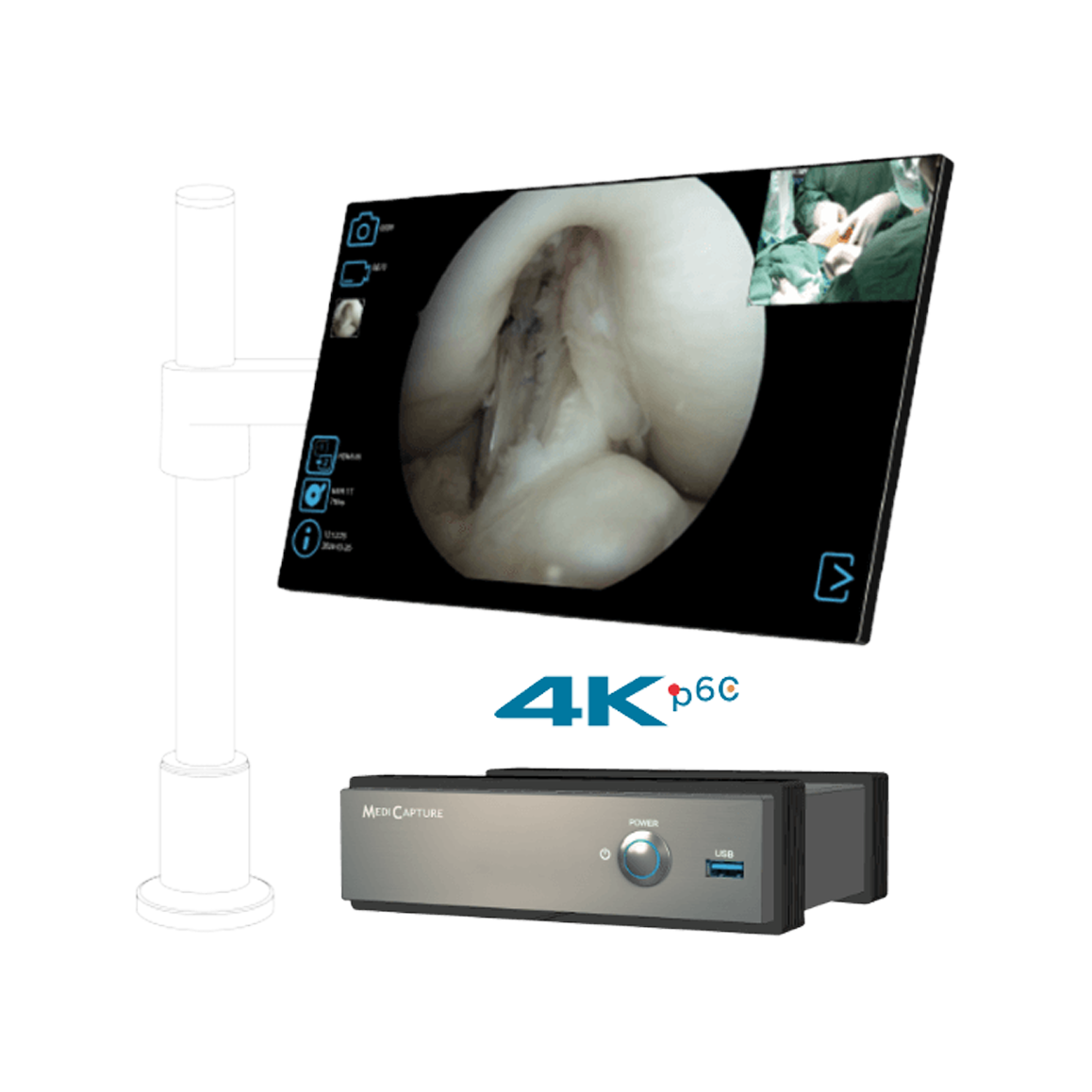

Medicapture MVR435 Digital Recorder
Medicapture MVR435 Digital Recorder
The MediCapture MVR435 is a compact 4K medical video recorder designed to capture video and still images from medical video sources to internal, USB, network, NAS, or PACS storage. It supports HDMI 2.0 and USB UVC inputs, 1TB SSD storage, DICOM upgrade capability, and external touchscreen control.
Questions?
Ships in Next Day
Couldn't load pickup availability
Collapsible content
Product Description
MediCapture MVR435 Medical Video/Image Recorder 4K – Compact Clinical Video Capture System
The MediCapture MVR435 is a 4K medical video recorder built for clinical imaging environments that need simple, reliable capture of surgical, endoscopic, microscopic, and procedural video. Designed to record video and still images from medical video sources, the MVR435 supports storage to internal SSD, USB media, network storage, and PACS with the optional DICOM upgrade.
With HDMI 2.0 and USB UVC input support, the MVR435 works with compatible 4K/UHD video sources, USB cameras, PTZ cameras, and USB endoscope workflows. Its compact stainless steel, fluid-resistant design makes it well suited for procedure rooms, operating rooms, endoscopy suites, and connected medical imaging environments.
Key Features of the MediCapture MVR435
4K Medical Video Recording
The MVR435 supports 4K/UHD video input resolutions up to 4096 x 2160 and 3840 x 2160 at up to 60p, helping capture high-resolution clinical video from compatible imaging systems.
HDMI and USB UVC Inputs
The recorder includes one HDMI 2.0 input and one USB input for UVC standard cameras, supporting flexible integration with medical cameras, compatible USB cameras, PTZ cameras, and USB endoscope workflows.
Multiple Storage Options
The MVR435 includes 1TB internal SSD storage and supports external USB flash or hard drives, network storage, NAS, and PACS export with the optional DICOM upgrade.
Device Manager Workflow
The built-in device manager allows users to browse and review patient files, zoom in, capture snapshots, cut video, add notes, generate PDF reports, print, and archive.
Security-Focused Design
Device security features include automatic video repair, user authentication, and log histories to help protect recorded data and support clinical documentation workflows.
Remote and Integration Control Options
The MVR435 can be controlled through camera head buttons, foot switch, API for integrators, and the MediCapture MVR Remote App. It is also designed for API-based device control and external overlay integration.
External Touchscreen Monitor Compatibility
The MVR435 uses an overlay interface on an external touchscreen monitor and can be paired with the MediCapture MTS156, a 15.6" medical-grade touch screen control monitor with USB power and VESA mounting.
Compact Medical-Grade Construction
The stainless steel, fluid-resistant recorder measures 160 x 153 x 40 mm and weighs 1.7 lb, making it easy to integrate into space-conscious clinical environments.
Ideal Clinical Applications
The MediCapture MVR435 is well suited for:
- Surgical video recording
- Endoscopy documentation
- Microscopy capture
- USB camera and PTZ camera workflows
- Procedure room video documentation
- PACS/EHR-connected imaging workflows
- Clinical environments needing compact 4K recording
Why Choose the MediCapture MVR435?
The MVR435 is a strong choice for facilities that need a compact 4K medical video recorder with flexible input support, multiple storage paths, touchscreen control, security features, and optional DICOM connectivity. Its combination of 4K input support, 1TB SSD storage, USB-C display/control connectivity, and API integration makes it a versatile recorder for modern clinical imaging workflows.
Key Benefits
- 4K p60 medical video recording support
- HDMI 2.0 and USB UVC camera input
- 1TB internal SSD storage
- USB, NAS, network, and optional PACS storage
- JPG and PNG still image capture
- Stainless steel, fluid-resistant case
- External touchscreen monitor interface
- API, foot switch, camera button, and app control options
- Optional DICOM upgrade package
Specifications
MEDICAPTURE MVR435
Medical Video Recorder (4K)
Technical Specifications
SYSTEM OVERVIEW
• Medical-grade video recorder for capturing video and still images
• Designed for use with endoscopy, microscopy, and surgical video sources
• Records to internal, USB, network, or PACS storage
• Supports DICOM workflow integration (optional activation)
• Compatible with external touchscreen monitor (MTS156)
DEVICE TYPE
• Medical video recorder
CONSTRUCTION
• Case: Stainless steel
• Fluid-resistant design
• Compact, durable housing
USER INTERFACE
• Overlay interface on external touchscreen monitor
• Compatible with MTS156 15.6" touchscreen control monitor
VIDEO INPUTS
• 1 × HDMI 2.0 (supports DisplayPort or DVI via adapter)
• 1 × USB input for UVC standard cameras
VIDEO INPUT RESOLUTIONS
• 4096 × 2160 (4K2K) @ 60/50/30/25 fps
• 3840 × 2160 (UHD) @ 60/50/30/25 fps
• 1920 × 1200 @ 60 fps
• 1920 × 1080 @ 60/59.94/50/30/25 fps
• 1280 × 720 @ 60/50 fps
• 1280 × 1024 @ 60/50 fps
VIDEO OUTPUTS
• 1 × HDMI output (DVI compatible via adapter)
• 1 × USB-C (DisplayPort output to monitor)
Output Resolutions:
• 3840 × 2160 @ 60/50/30/25 fps
• 1920 × 1080 @ 60/59.94/50/30/25 fps
• 1280 × 720 @ 60/59.94/50 fps
VIDEO RECORDING FORMAT
• MP4 video format (H.264 / H.265 depending on configuration)
IMAGE FORMAT
• JPG
• PNG
AUDIO RECORDING
Audio Inputs:
• Microphone (3.5 mm TS)
• Line input (3.5 mm TRS)
• USB microphone
• HDMI embedded audio
Audio Outputs:
• Line-out (3.5 mm TRS)
• Headset output (3.5 mm TRS)
STORAGE
Internal Storage:
• 1 TB SSD
External Storage:
• USB flash drives and external hard drives
• Supported formats: FAT32, NTFS, exFAT
Network Storage:
• NAS and PACS (DICOM)
• Network speed up to 2.5 Gbit/s
USB SUPPORT
• USB Type-A: 1 front, 2 rear ports
• USB Type-C / DisplayPort: 1 rear port
• USB camera support (Type-A connection)
REMOTE CONTROL & INTEGRATION
• Camera head buttons
• Footswitch control
• API for integration
• MVR Remote App support
PRINTING
• Network printer compatibility
MECHANICAL SPECIFICATIONS
• Dimensions (W × D × H):
– 160 × 153 × 40 mm
– 6.3" × 5.9" × 1.6"
• Weight:
– 0.77 kg (1.7 lbs)
POWER REQUIREMENTS
• Input: 12V DC, 3A (external power supply)
• Power Supply: 100–240V AC, 50–60 Hz
• Current: 0.4–0.2 A
• Connector: C14 inlet
CONNECTIVITY & WORKFLOW FEATURES
• Archive and send to PACS / EHR
• Access to patient worklist
• Streaming and sharing capabilities
• Universal printer compatibility
• USB camera and USB endoscope support
ADVANCED FEATURES
• Device Manager:
– Browse, review, annotate, and archive patient files
– Snapshot and video editing tools
• Device Security:
– Automatic video repair
– User authentication and audit logs
• Multiple Storage Options:
– Internal SSD, USB, NAS, PACS
• API Integration:
– Supports external overlays and system integration
CERTIFICATIONS & COMPLIANCE
• IEC / EN 60601-1 (Medical Electrical Safety)
• IEC / EN 60601-1-2 (EMC)
• MDR 2017/745/EU (CE)
• FCC Part 15 Class B
• UKCA
• RoHS / WEEE
• ISO 13485:2016
• CAN/CSA C22.2 No. 60601-1
• GDPR and HIPAA compliant
• Class I medical device
FAQs
The MediCapture MVR435 is a 4K medical video/image recorder designed to record video and still images from medical video sources to internal storage, USB media, network storage, or PACS with the optional DICOM upgrade
Does the MVR435 support DICOM and PACS integration?Yes. The MediCapture MVR435 can export to PACS in DICOM format with the optional AKDICOM DICOM Upgrade Package. It is also designed to support patient worklist access, archiving, and sending images to PACS/EHR workflows.
How is the MVR435 controlled?The MVR435 can be controlled through camera head buttons, a foot switch, API integration, or the MediCapture MVR Remote App. It also uses an overlay interface on an external touchscreen monitor, such as the optional MTS156 15.6-inch touchscreen control monitor.
