Genoray Oscar Prime C-Arm
Genoray Oscar Prime C-Arm
A cutting-edge full-size mobile C-arm with a high-resolution 26 x 26 cm or 23 x 23 cm flat panel CMOS detector, 5.3 kW high-frequency generator, 10.4" touchscreen, and 180° dynamic orbital rotation that delivers distortion-free fluoroscopic imaging with wide free space and advanced dose-management features for versatile surgical, orthopedic, vascular, and interventional procedures.
Questions?
Collapsible content
Product Description

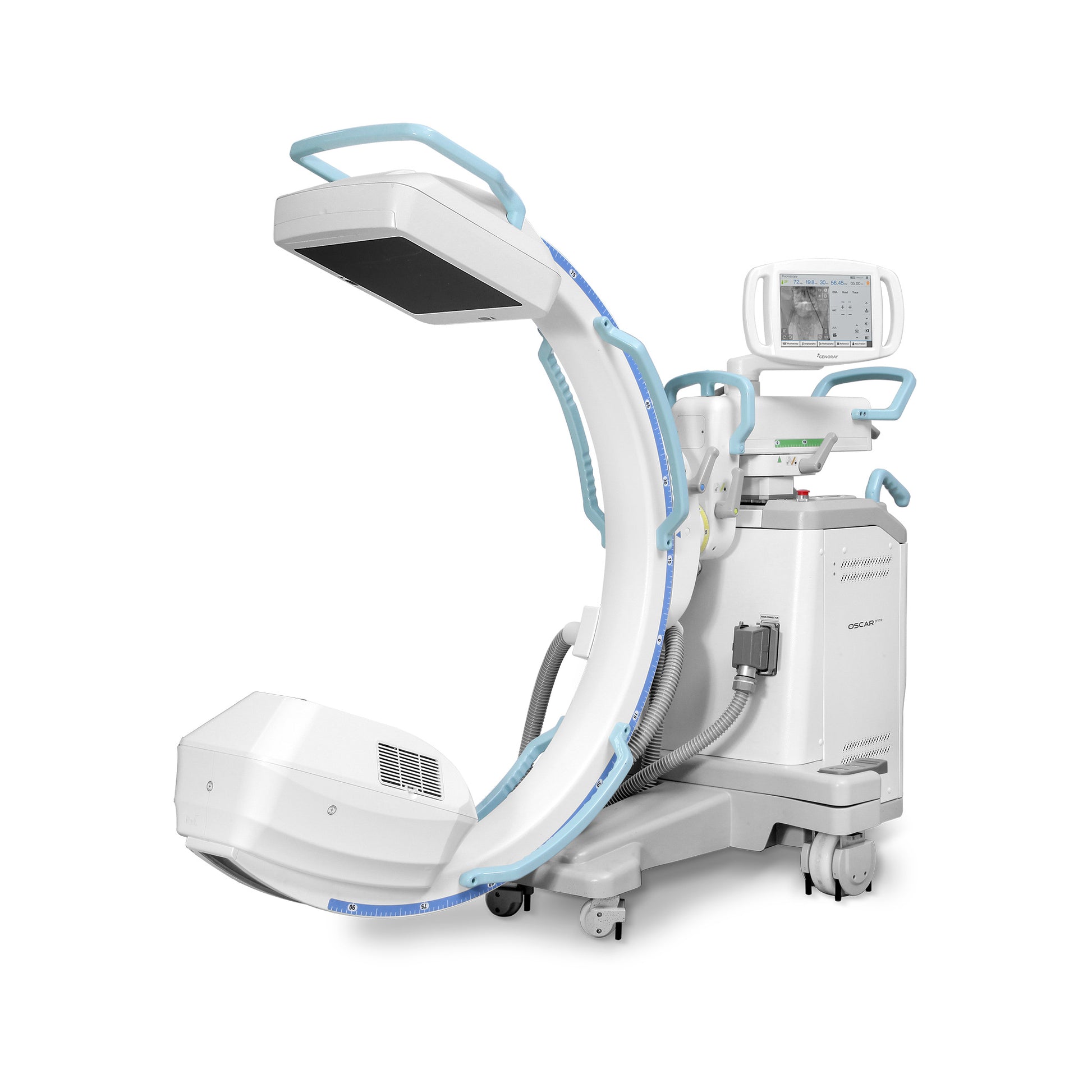

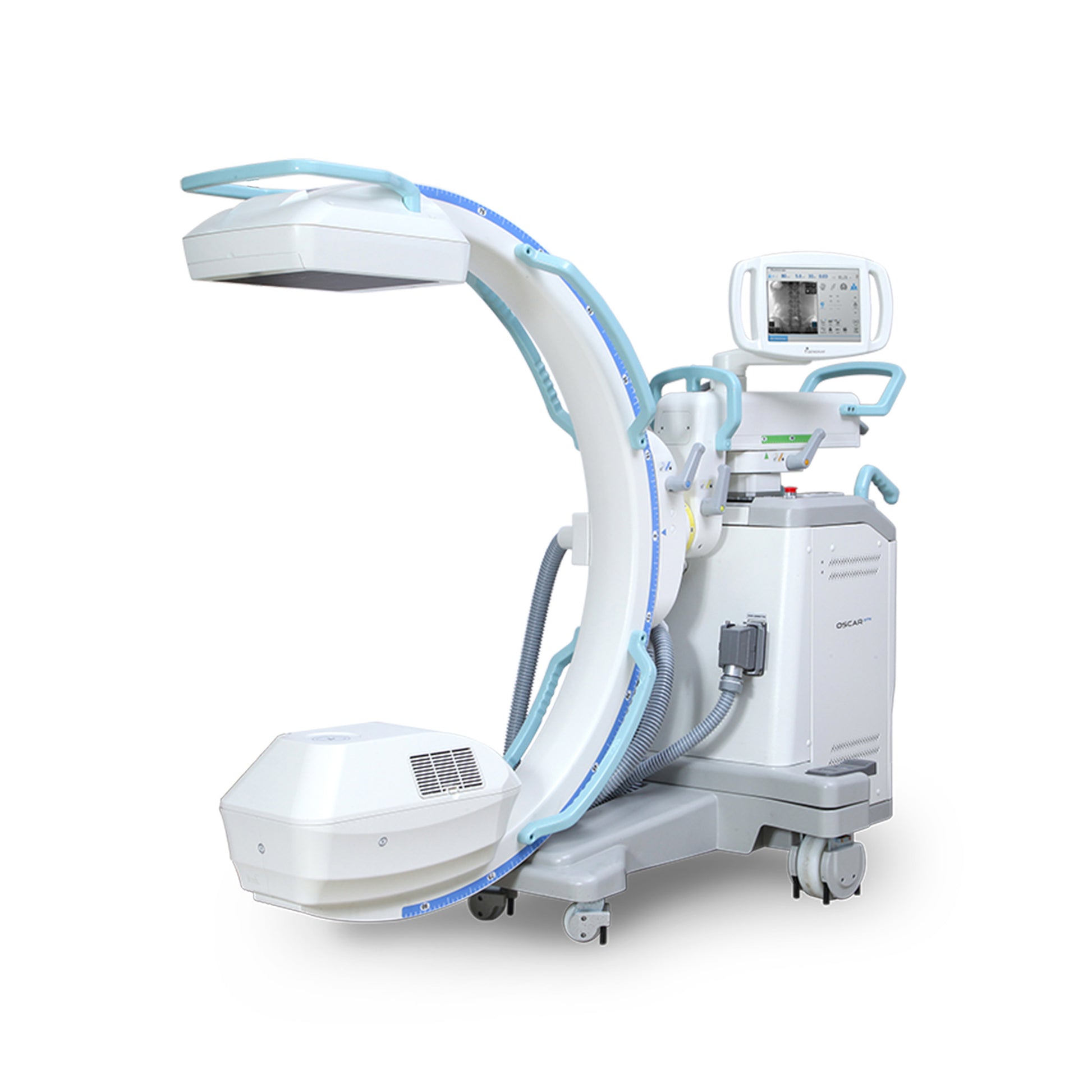

Genoray Oscar Prime C-arm System – Advanced Imaging for Precision Diagnostics
The Genoray Oscar Prime C-arm System redefines mobile imaging with state-of-the-art technology and superior functionality. Featuring a 26x26cm or 23x23cm CMOS flat panel detector, 5.3kW high-frequency generator, and 180° orbital rotation, this advanced system delivers high-resolution images with low noise, making it an ideal choice for demanding clinical applications, including orthopedic, vascular, and cardiac procedures.
With its compact hybrid design and active air cooling technology, the Oscar Prime ensures reliable, long-lasting performance even during extended procedures. Its intuitive 10.4-inch touchscreen monitor provides easy access to customizable settings, enabling seamless operation for healthcare professionals.
Key Features:
- CMOS Flat Panel Detector: Delivers sharp, high-quality images with a wide field of view for enhanced diagnostics.
- 180° Orbital Rotation: Offers maximum flexibility for precise imaging in complex surgical environments.
- Advanced Cooling System: Active air cooling prevents overheating, ensuring uninterrupted operation during long procedures.
- 10.4” Touchscreen Interface: Simplifies workflow with user-friendly navigation and quick adjustments.
- Compact and Mobile Design: Streamlined for easy transport and efficient use in diverse clinical settings.
Superior Imaging Technology:
The Oscar Prime is equipped with advanced features that enhance imaging quality and patient safety:
- Motion Correction: Reduces blur for sharper images during movement.
- Auto Collimation: Minimizes unnecessary radiation exposure by focusing on the area of interest.
- Metal Correction: Ensures clear, high-quality imaging even in the presence of metal objects.
Versatile Clinical Applications:
The Genoray Oscar Prime is designed for a variety of procedures, including:
- Orthopedics and Trauma Procedures
- Pain Management
- Neuro and Spine Surgery
- Urology
- Multi Specialty Veterinary
Built for Reliability and Efficiency:
Backed by Genoray’s expertise in X-ray technology, the Oscar Prime combines durability with precision. Its compact size, wide orbital rotation, and cutting-edge imaging technology make it an essential tool for modern surgical environments.
Optimize your imaging capabilities with the Genoray Oscar Prime C-arm System, offering unparalleled performance, precision, and reliability.
Specifications
Equipment Highlights:
-23cm x 23cm or 26cm x 26xcm Flat Detector
-5.2kW High Frequency Generator
-180 Degrees Of Orbital Rotation
-800 mm Of Free Space
-1000 mm SID
-Low Dose
-Virtual Collimation
-34" High Resolution Monitor
-10.4" Touch Screen Tech Monitor
-Active Air Cooling
-DICOM 3.0
Specifications:
X-Ray Generator:
-Radiography Rating
- Digital Snap Shot : 40–120kV, 2mA–40mA
- Film Mode : 40–120kV, ~53mA , 0.6mAs–200mAs
-Fluoroscopy Ratings
- Continuous Mode - Small Focus : 40kV–120kV, 0.2mA–6.0mA
- Large Focus : 40kV–120kV, 2mA–20.0mA
- Pulse Mode - Small Focus : 40kV–120kV, 0.2mA–10.0mA
- Large Focus : 40kV–120kV, 2.0mA–20.0mA
- Pulse Rate : 1,2,4,8,15 f/s
X-Ray Tube:
-Anode Heat Storage Capacity : 50,000HU (35.5kJ)
-Anode Heat Dissipation : 50,704HU/min
-Housing Heat Capacity : 2,217,600 HU
Flat Detector:
-Detector Type : CMOS Flat Panel Detector
-Active Image Area : 23cm x 23cm(Full Format) or 26cm x 26cm (Full Format)
-Maximum Resolution(Resolution on monitor with 23x23cm FPD) : 4.6 lp/mm
-Frame Rate : 30 frames/sec
-Number of Pixel : 2,600 x 2,560
-Pixel Sampling Resolution(Digitization Depth) : 14bits
-Pixel Pitch : 100μm
-Detective Quantum Efficiency(DQE) : 60% (@0.5 lp/mm)
-Modulation Transfer Function(MTF) : 70% (@0.0 lp/mm)
C-Arm:
-Source to Image-receptor Distance(SID) : 1000mm
-Free Space : 770mm (Remove cone : 800mm)
-C-Arm Depth : 725mm

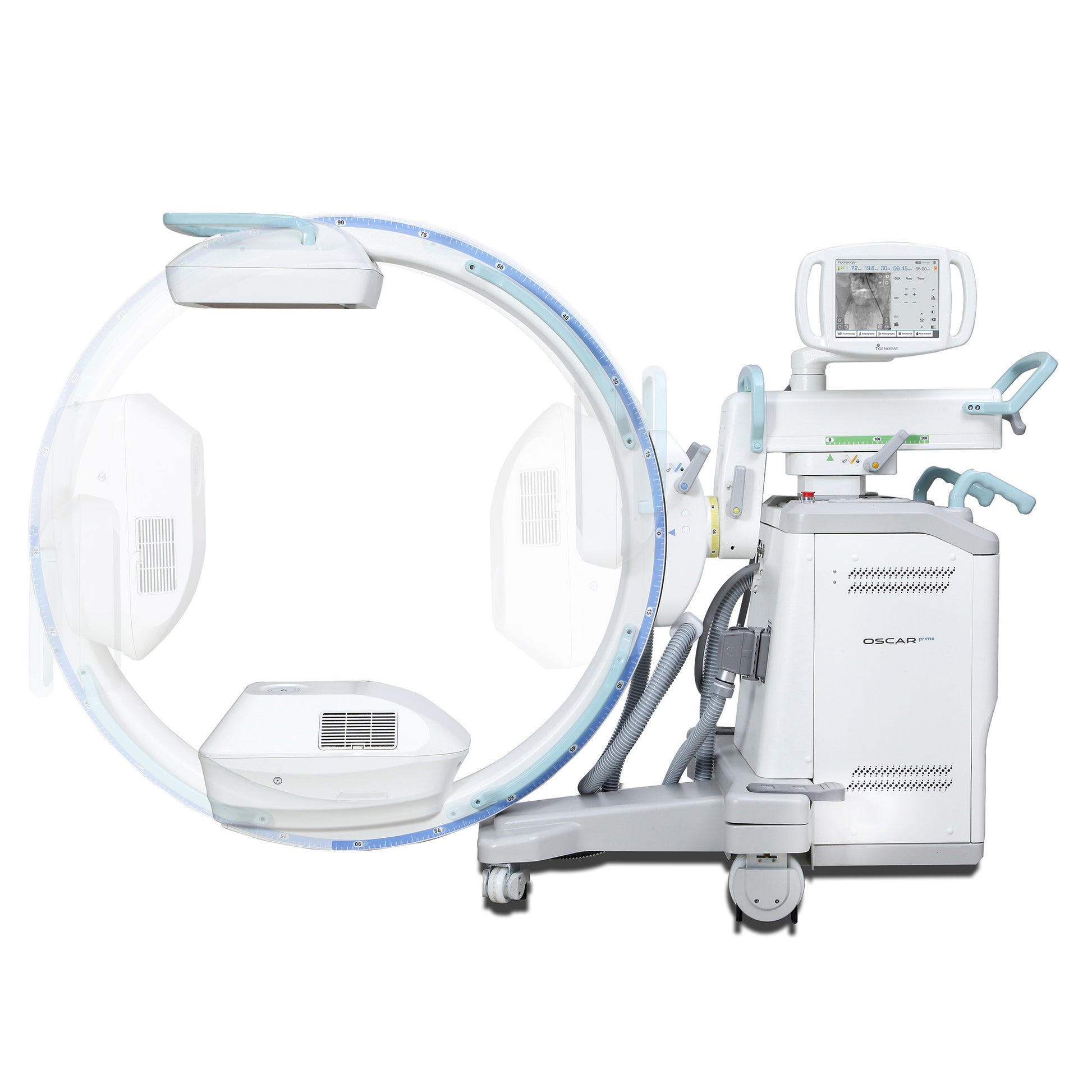

-Orbital Rotation: 180° (90,+90)°
-Horizontal Movement : 200mm
-Vertical Movement : 500mm
-Panning Motion(Wig/Wag) : ±12.5°
-Pivot Rotation(Lateral Rotation) : ±230° (limited)
-Lowest Lateral Height : 1,020mm
Collimator:
-Modes: Virtual & Automatic
Features:
-DSA - Digital Subtraction Angiography
-Live Image Display and Image Movement: Rotation, Reverse, Flip, Zoom
- Automatic Brightness Control / Manual Parameter Setting
- Exposure Mode Selection: Pulse Rate, Nose Reduction, Dose Level
- Collimator Modes and Area Selection: Iris / 4 Way Shutters
- Anatomic Preset Mode Selection
- Motion, Metal Detection On/Off
- Laser Point On/Off
- Save Image
-Smart review (Automatic image save)
-DNR (Digital Noise Reduction)
-Edge Enhancement
-Low Dose Mode (Low dose image processing, Structured dose reporting, AKR *, DAP *)
-Tools
- Image Layout Mode
- Select / Zoom/ Panning
- Pencil / Calibration /
- Invert / Rotation / Horizontal, Vertical change
Display:

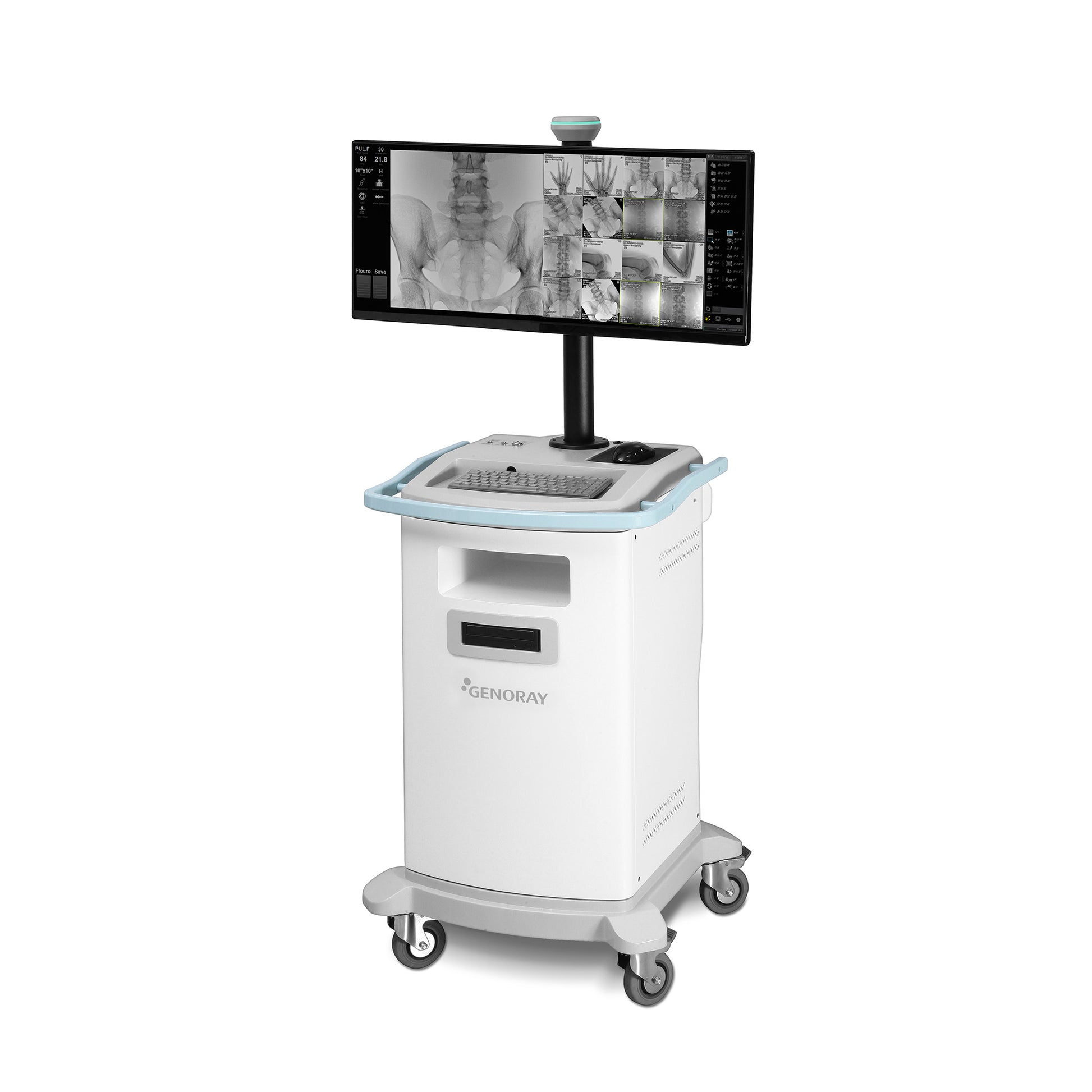

-Screen : 34”(83cm) LED Color Display
- Image Matrix : 2560 x 1080 Pixels
- Maximum Brightness : 250cd/m²
- Contrast Ratio : 1000:1
- Aspect Ratio : 16:9
DICOM:
- DICOM Modality Worklist
- DICOM Storage
- DICOM Query/Retrieve
- DICOM Import/Export (DVD/USB)
- DICOM Print
- DICOM Worklist MPPS
- DICOM Storage Commitment
- DICOM Radiation Dose SR
FAQs
Standard warranty is (2) years parts & labor, and there is an option to extend the warranty up to five years at the time of purchase.
In The Event Of Trouble How Quickly Can We Get Service?Genoray offers same day phone support and remote diagnostics and onsite support within 24-48 hours in most cases. With the remote diagnostics problems can be identified prior to the engineer being onsite and results in a quicker uptime and no need for multiple calls.
Is Digital Subtraction Standard?DSA aka Digital Subtraction is not standard on the Oscar Prime, but is offered as an option.
