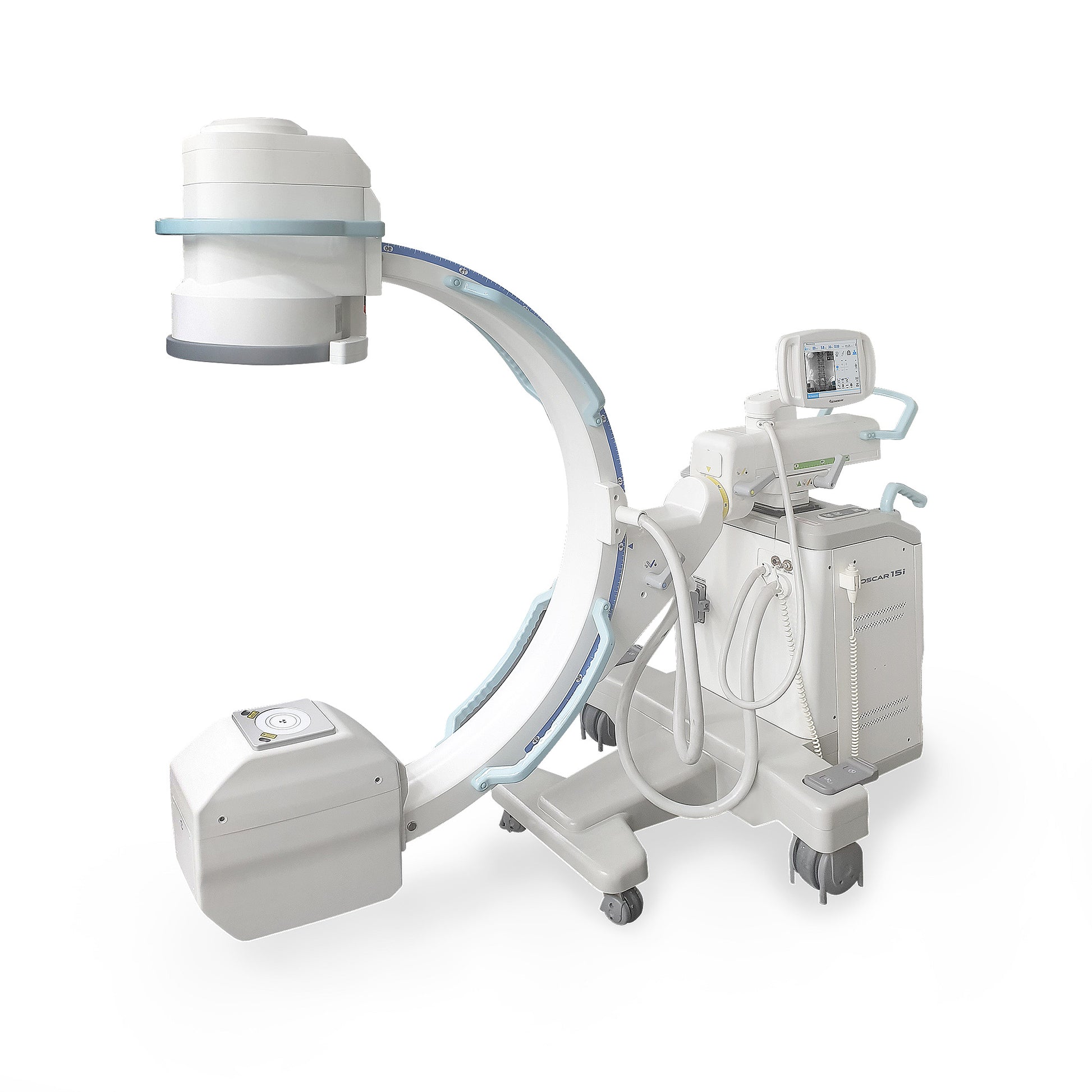

Genoray Oscar 15i C-Arm
Genoray Oscar 15i C-Arm
The Genoray OSCAR 15i is a high-performance mobile C-arm designed to deliver sharp, low-noise fluoroscopic imaging with a powerful 15 kW high-frequency generator and advanced image intensifier technology for reliable intraoperative visualization. Featuring a 9″ image intensifier, 780 mm free space, wide orbital rotation, and intuitive touchscreen controls, the OSCAR 15i provides flexible positioning and efficient workflow for orthopedic, pain management, and surgical imaging applications.
Questions?
Collapsible content
Product Description
GEGenoray Oscar 15i C-Arm System – Reliable Image Intensifier Mobile Fluoroscopy
The Genoray Oscar 15i C-Arm System is a powerful mobile fluoroscopy solution designed to deliver reliable real-time imaging, smooth system maneuverability, and cost-effective performance for surgical environments. Built around a high-quality image intensifier detector and a 15 kW high-frequency generator, the Oscar 15i provides dependable fluoroscopic imaging for orthopedic, pain management, and general surgical procedures.
Engineered for efficient workflow in modern operating rooms, the Oscar 15i mobile C-arm combines stable imaging performance, intuitive system controls, and ergonomic mobility. Its image intensifier technology provides excellent contrast and dynamic range, enabling clinicians to clearly visualize anatomical structures during fluoroscopic procedures.
Key Features of the Genoray Oscar 15i
High-Quality Image Intensifier Detector
The Oscar 15i utilizes a multi-field image intensifier detector designed to provide consistent fluoroscopic imaging with excellent contrast and real-time visualization during procedures.
Powerful 15 kW High-Frequency Generator
A 15 kW generator with rotating anode X-ray tube delivers strong exposure performance, supporting reliable imaging across a wide range of surgical applications.
Real-Time Fluoroscopic Imaging
The system supports continuous and pulsed fluoroscopy, allowing clinicians to optimize image quality while managing radiation dose.
Digital Radiography Capability
In addition to fluoroscopy, the Oscar 15i supports digital radiographic imaging, providing high-quality still images for documentation and review.
High-Resolution Medical Displays
Dual high-resolution monitors allow clear real-time visualization of fluoroscopic images, enabling confident intraoperative decision-making.
Ergonomic C-Arm Design
The balanced C-arm structure allows smooth positioning and stable articulation, helping technologists easily maneuver the system within crowded surgical suites.
User-Friendly Control Interface
An intuitive operator interface allows technologists to quickly adjust imaging parameters, improving workflow efficiency during procedures.
DICOM Network Connectivity
The Oscar 15i supports full DICOM integration, allowing seamless communication with PACS and hospital imaging systems.
Clinical Applications
The Genoray Oscar 15i Mobile C-Arm System is ideal for a variety of surgical and interventional procedures, including:
- Orthopedic surgery
- Spine procedures
- Pain management injections
- Trauma imaging
- Urology procedures
- General surgery
Its image intensifier technology provides dependable fluoroscopic imaging for facilities seeking a cost-effective and proven surgical imaging platform.
Why Choose the Genoray Oscar 15i
The Oscar 15i C-Arm System offers an excellent balance of performance and affordability, delivering:
- 15 kW generator output for reliable imaging power
- Image intensifier detector technology for consistent fluoroscopy
- Smooth ergonomic system maneuverability
- High-resolution surgical displays
- Full DICOM connectivity
These capabilities make the Oscar 15i a practical and dependable mobile fluoroscopy solution for hospitals, surgery centers, and specialty clinics.
Specifications
GENORAY OSCAR 15i
Technical Specifications
SYSTEM OVERVIEW
- Mobile surgical C-arm system with image intensifier technology
- Available with 9" image intensifier
- High-resolution imaging with wide field of view and low noise
- Integrated touch LCD control panel
- High-frequency generator design for stable imaging performance
X-RAY GENERATOR
- Generator Type: High-Frequency Inverter (57.2 kHz)
- Nominal Peak Output Power: 15 kW
- kVp Range: 40 – 120 kV
- mAs Range: 0.4 – 100 mAs
Fluoroscopy Modes:
Normal Fluoroscopy
- Continuous: 40 – 120 kV
- Tube Current: 0.2 – 6.0 mA
Pulsed Fluoroscopy
- Pulse Rates: 1, 2, 3, 8, 15, 30 pulses/sec
- Tube Current: 2 – 10 mA
High Fluoroscopy Mode
- Continuous: 1 – 20 mA
- Pulsed: 3 – 50 mA
- Snapshot Mode: 1 – 50 mA
Filtration
- Total Filtration:
– 3.6 mm Al (1.6 mm Al equivalent)
– 7.5 mm Al (3.0 mm Al + 0.1 mm Cu equivalent)
Housing Heat Capacity
- 1,209,600 HU
X-RAY TUBE
- Tube Model: RTM70
- Tube Type: Rotating Anode
- Focal Spot Sizes: 0.3 mm / 0.6 mm
- Target Angle: 10°
- Maximum Tube Voltage: 130 kV
- Anode Heat Capacity: 300 kHU (225 kJ)
- Typical Cooling Time: 10 minutes
IMAGE INTENSIFIER
Available Configurations:
- 9" Image Intensifier
Resolution:
– 9" mode: 52 lp/cm
– 6" mode: 58 lp/cm
– 4.5" mode: 68 lp/cm
Contrast Performance
- 30:1 (10% area contrast)
- 19:1 (10 mm diameter contrast)
DQE
- 65%
DIGITAL CAMERA
- Active Area: 1024 × 1024 pixels
- Scan System: Progressive
- Frame Rate: 30 frames/sec
- Frequency:
– Horizontal: 31 kHz
– Vertical: 30 kHz - Bit Depth: 12-bit
C-ARM GEOMETRY & MECHANICS
- Source-to-Image Distance (SID): 1000 mm
- Free Space: 780 mm
C-Arm Movement
- Orbital Rotation: 135° (+90° / −45°)
- Lateral Rotation: 190°
- Panning Movement: ±12.5°
- Vertical Travel (Up/Down): 500 mm
- Horizontal Travel (Forward/Backward): 200 mm
C-Arc Depth
- OSCAR 15i: 730 mm
Lowest Lateral Height
- OSCAR 15i: 1050 mm
X-RAY COLLIMATOR
- Operation: Manual or Remote Drive
- Shutter Type: Lead shutter
- Rotation: 180°
- Longitudinal & Cross Shutters: ~15 sec open/close
Optional Grid
- SID: 1000 mm
- Grid Ratio: 8:1
- Line Density: 120 lines/inch
OPERATION CONTROL PANEL
- Display: 10.4" Color TFT LCD
- Resolution: 1024 × 768
- Aspect Ratio: 4:3
- Maximum Brightness: 470 cd/m²
- Viewing Angle: 89° (L/R/U/D)
Features
- Live image display
- Image rotation, reverse, flip, zoom
- Automatic brightness control
- Manual parameter adjustment
- Exposure mode selection
- Collimator control (iris and 4-way shutters)
- Anatomic preset selection
- Motion detection
- Metal detection
- Laser positioning (optional)
ACQUISITION WORKSTATION
Computer Hardware
- CPU: Intel i5
- GPU: NVIDIA RTX 3060 (12 GB)
- RAM: 16 GB
- SSD: 250 GB
- HDD: 2 TB
- Operating System: Windows 10
Removable Storage
- CD/DVD drive
- USB 3.0
DISPLAY OPTIONS
Standard Monitor
- 34" monitor
- Resolution: 2560 × 1080
- Brightness: 250 cd/m²
- Contrast Ratio: 1000:1
DICOM CONNECTIVITY
- DICOM Modality Worklist
- DICOM Storage
- DICOM Query/Retrieve
- DICOM Import/Export (USB/DVD)
- DICOM Print
- DICOM MPPS Worklist
- DICOM Storage Commitment
- DICOM Radiation Dose Structured Report
IMAGE PROCESSING SOFTWARE
Software Platform: ZENIS
Features
- Smart Review (automatic image saving)
- Digital Noise Reduction (DNR)
- Edge Enhancement
- Low Dose Mode with structured dose reporting
- Measurement and annotation tools
- Image zoom and pan functions
- Image rotation and inversion
Optional Applications
- Digital Subtraction Angiography (DSA)
- Cine image acquisition for DSA
- Roadmapping tools
- Pixel shift and mask processing
SYSTEM DIMENSIONS & WEIGHT
Main C-Arm Unit (9" II)
- Width: 860 mm
- Height: 1790 – 2290 mm
- Depth: 1955 – 2155 mm
- Weight: 345 kg (±5%)
FAQs
The Genoray OSCAR 15i C-arm system is a mobile fluoroscopy imaging system designed for surgical and interventional procedures. It features a 15 kW high-frequency generator, high-resolution image intensifier technology, and real-time fluoroscopic imaging to help physicians visualize anatomy during procedures. The system is designed to provide high image quality, low noise, and efficient workflow for hospitals, outpatient surgery centers, and specialty clinics.
What imaging capabilities does the Genoray OSCAR 15i provide?The OSCAR 15i supports several imaging modes commonly used in surgical and interventional procedures, including: -Continuous fluoroscopy -Pulsed fluoroscopy -Snapshot radiographic imaging -Digital image acquisition and processing The system also supports advanced image processing tools such as digital noise reduction, edge enhancement, and optional digital subtraction angiography (DSA) to improve visualization during procedures.
What detector or image intensifier options are available with the OSCAR 15i?The Genoray OSCAR 15i mobile C-arm is available with 9-inch image intensifiers (If looking for a 12" please visit the Oscar 15iL product page), allowing facilities to choose the field of view that best fits their clinical applications. The image intensifier technology delivers high-resolution images while remaining cost effective, wide field of view, and low noise performance, helping clinicians clearly visualize anatomy and instruments during procedures.
