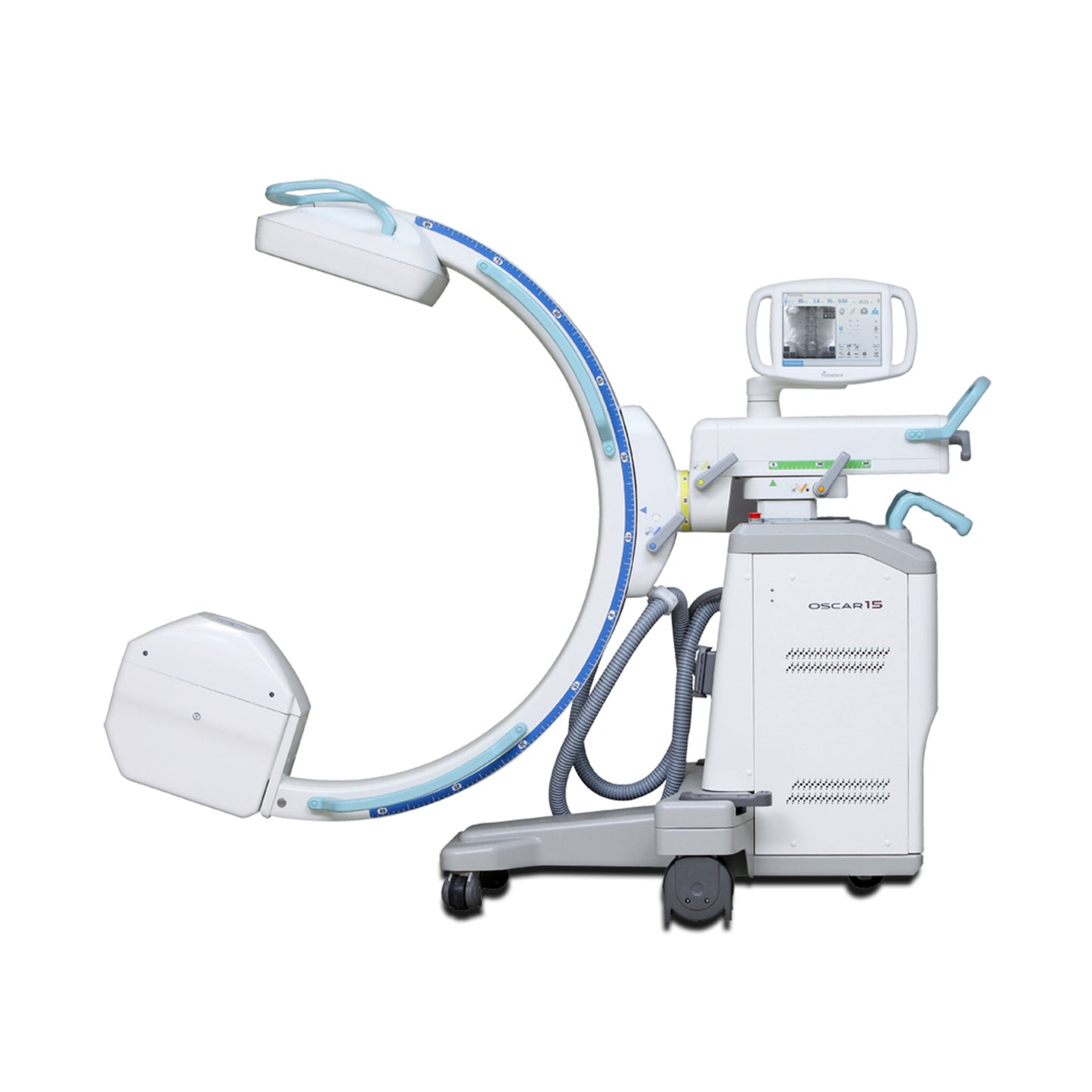

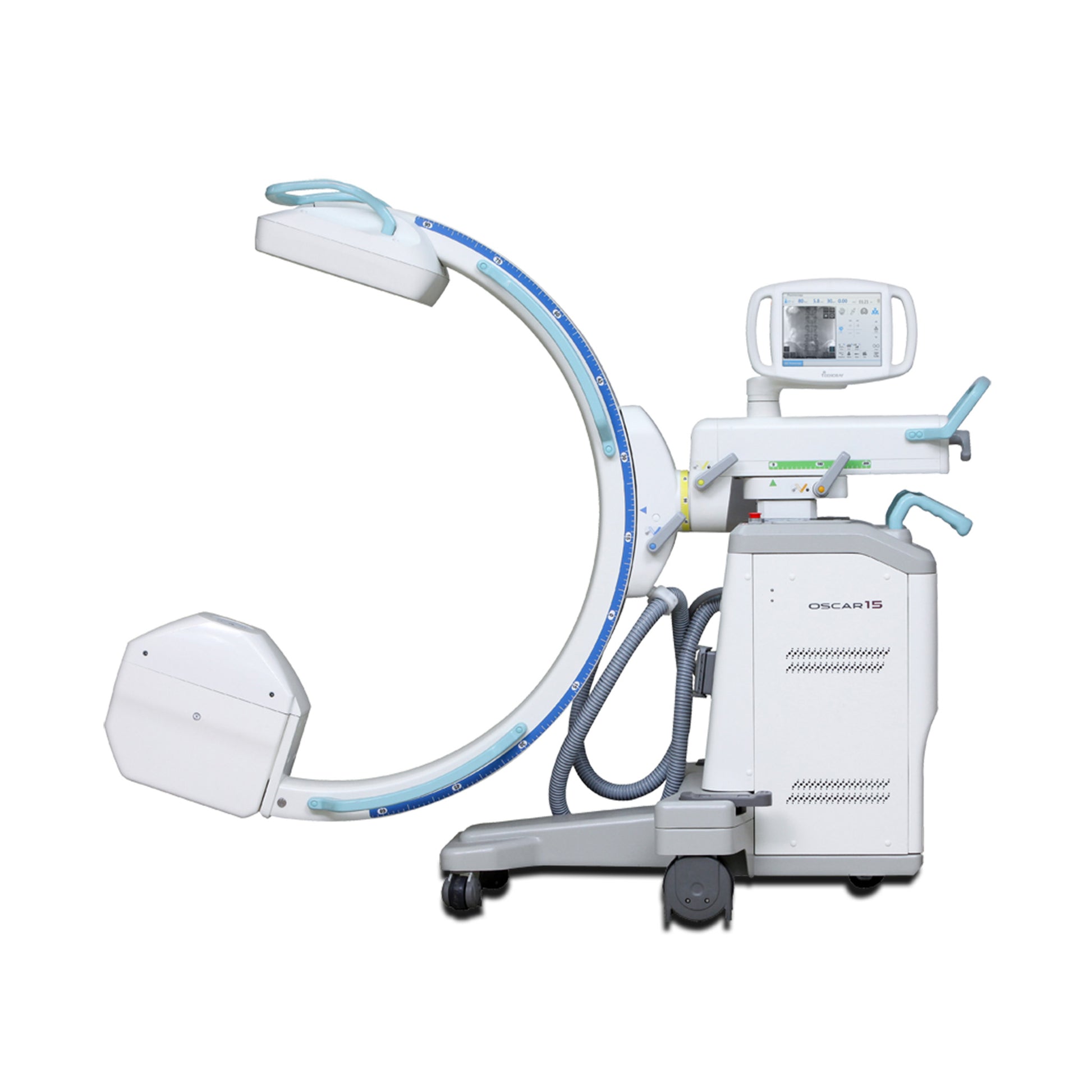

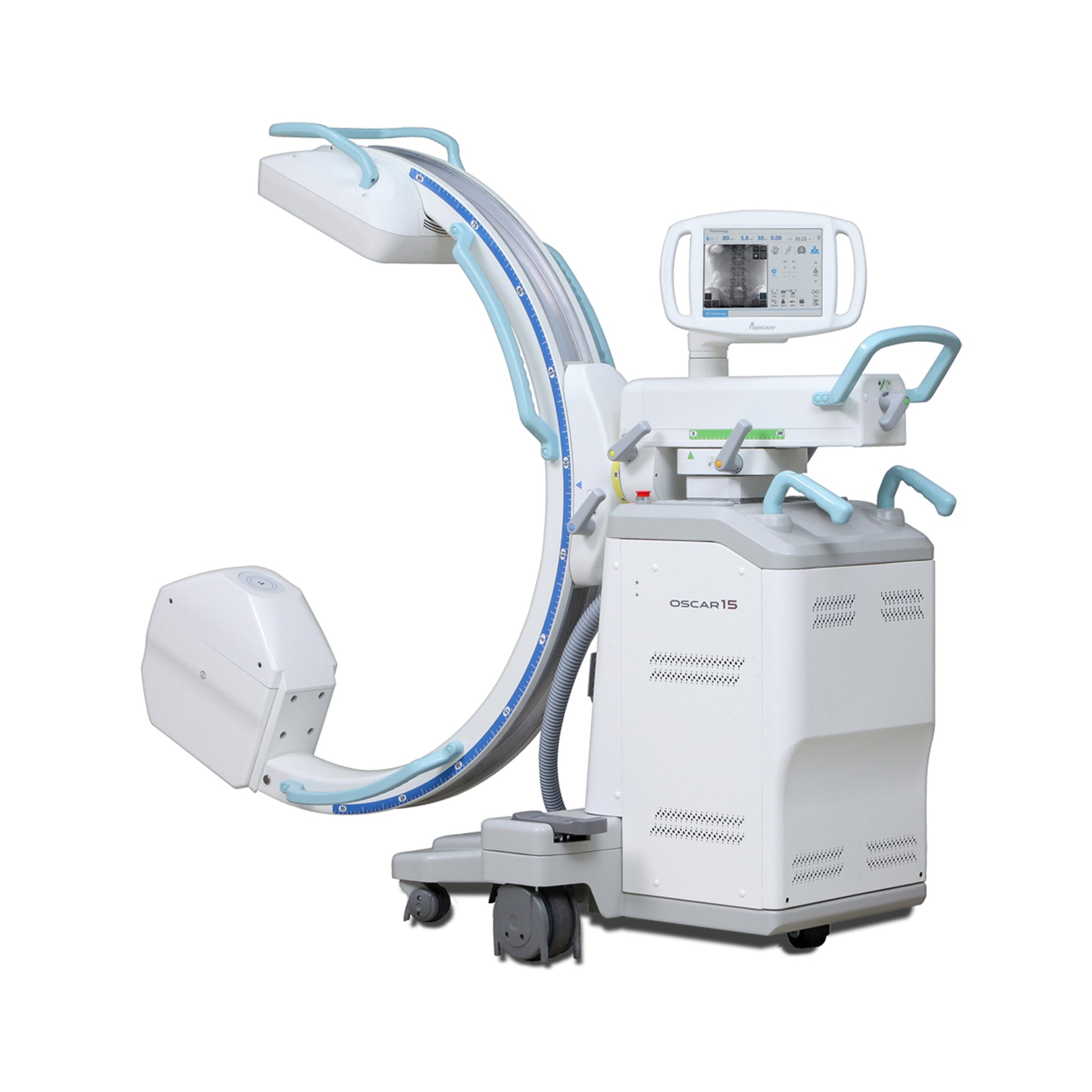

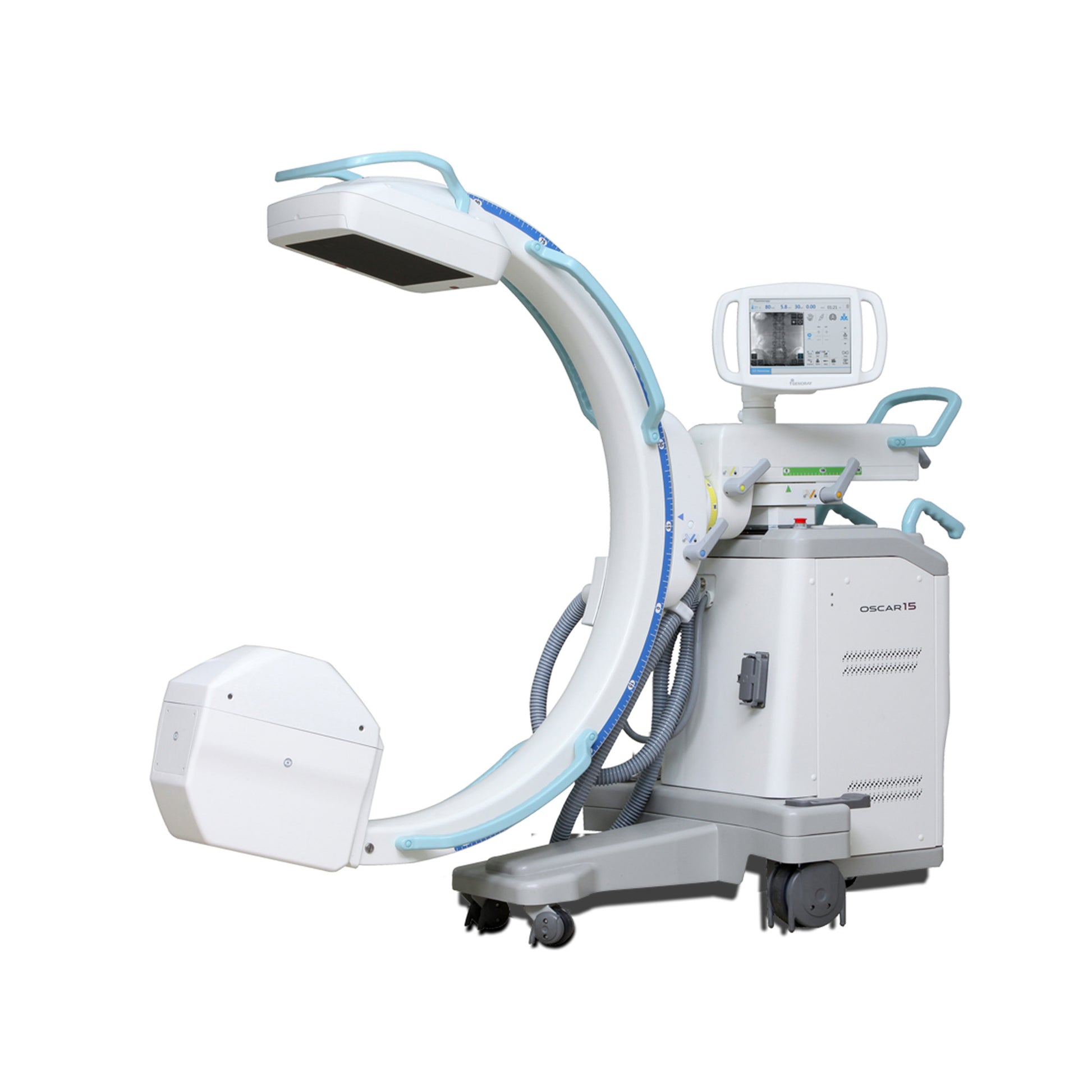

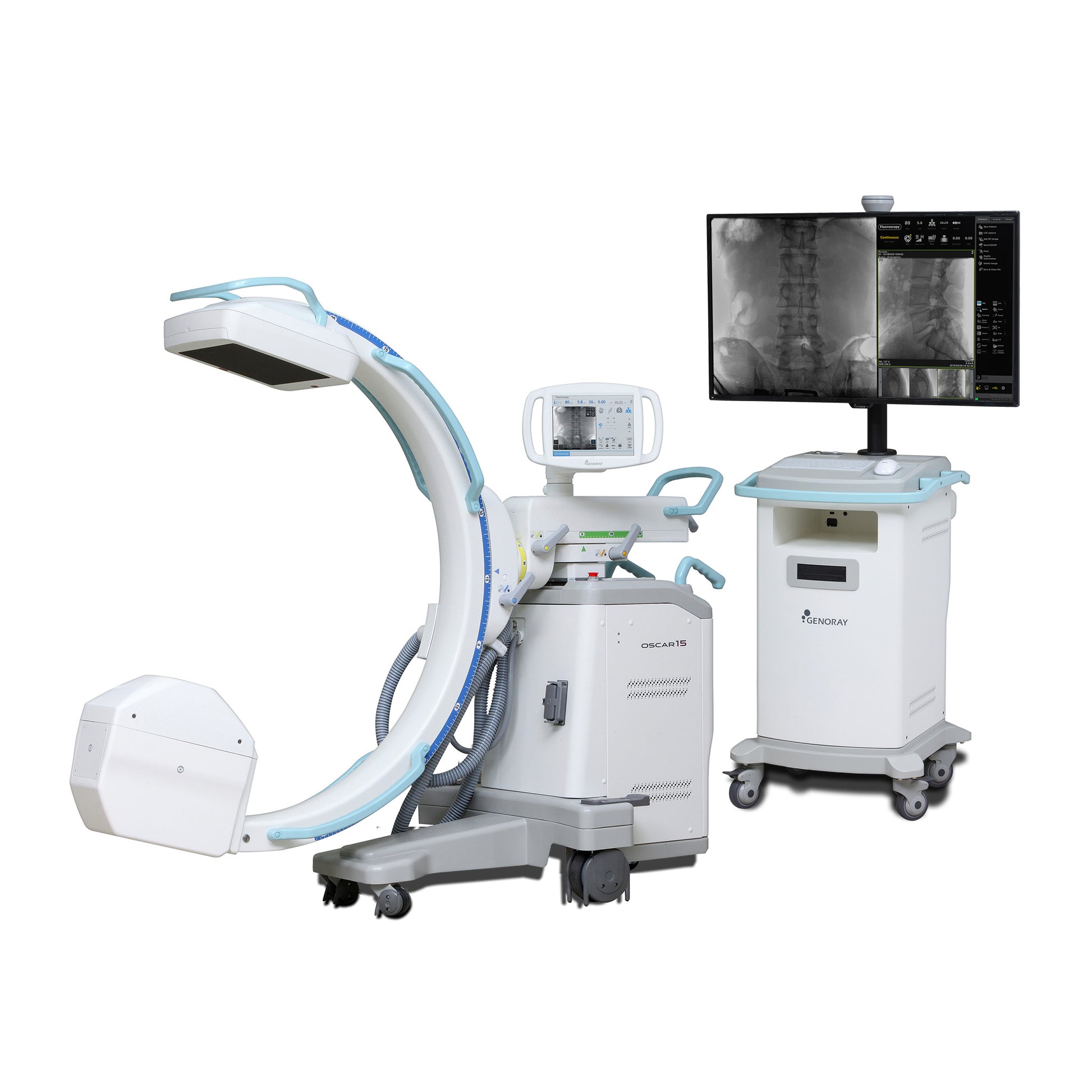

Genoray Oscar 15FD C-Arm
Genoray Oscar 15FD C-Arm
A high-performance mobile C-arm with a 30 x 30 cm advanced flat-panel detector and 15 kW high-frequency generator that delivers crisp, low-noise fluoroscopic imaging, intuitive touchscreen control, and 150° orbital rotation for precise, versatile use across surgical, vascular, orthopedic, neuro, and pain management procedures.
Questions?
Collapsible content
Product Description
Genoray Oscar 15FD C-arm System – Advanced Flat Panel Imaging for Precision and Versatility
The Genoray Oscar 15FD C-arm System combines cutting-edge imaging technology with unmatched flexibility, making it an ideal choice for high-performance surgical and interventional procedures. Featuring a 30x30cm flat panel detector (FPD) and 15kW high-frequency generator, this system delivers crystal-clear images with minimal noise, ensuring superior diagnostic accuracy in demanding clinical settings.
With 800mm free space, a 10.4-inch touchscreen interface, and 150° orbital rotation, the Oscar 15FD is designed for maximum efficiency and ease of use. Its compact, hybrid body design allows seamless integration into operating rooms and other medical environments.
Key Features:
- 30x30cm Flat Panel Detector: Provides exceptional image resolution and a wide field-of-view (FOV) for detailed diagnostics.
- 15kW High-Frequency Generator: Ensures consistent and powerful imaging performance for extended use.
- 150° Orbital Rotation: Offers flexibility for a variety of surgical and interventional applications.
- User-Friendly Interface: Intuitive 10.4” touchscreen simplifies operation and improves workflow efficiency.
- Compact and Durable Design: Ideal for diverse clinical settings, with mobility to adapt to changing needs.
Advanced Imaging Capabilities:
The Oscar 15FD C-arm System features innovative tools to enhance imaging quality and reduce radiation exposure:
- Motion Correction: Minimizes blur for precise imaging during patient movement.
- Auto Collimation: Focuses on the area of interest to reduce unnecessary radiation exposure.
- Metal Correction: Improves image clarity in the presence of metallic objects.
Clinical Applications:
The Oscar 15FD is suited for a wide range of procedures, including:
- Vascular Surgery
- Neuro and Spine Surgery
- Pain Management
- Orthopedics
- General Surgery
- Cardiac and Trauma Imaging
Long-Lasting Performance and Value:
With its advanced technology, ergonomic design, and durable construction, the Genoray Oscar 15FD C-arm System delivers consistent, high-quality performance, ensuring a strong return on investment for healthcare providers.
Elevate your imaging capabilities with the Genoray Oscar 15FD C-arm System, where precision meets innovation for exceptional patient care.
Specifications
Equipment Highlights:
-30cm x 30cm Flat Detector
-15kW High Frequency Generator
-150 Degrees Of Orbital Rotation
-800 mm Of Free Space
-1000 mm SID
-Low Dose
-Virtual Collimation
-43" High Resolution Monitor
-10.4" Touch Screen Tech Monitor
-Active Air Cooling
-DICOM 3.0
Specifications:
X-Ray Generator:
-Radiography Rating
- Digital Snap Shot : 40–120kV, 2mA–50mA
- Film Mode : 40–120kV, ~150mA, ~100mAs
-Fluoroscopy Ratings
- Continuous Mode (30f/s) - Small Focus : 40kV–120kV, 0.2mA–6.0mA
- Large Focus : 40kV–120kV, 2mA–20.0mA
- Pulse Mode - Small Focus : 40kV–120kV, 0.2mA–10.0mA
- Large Focus : 40kV–120kV, 2.0mA–50.0mA
- Pulse Rate : 1,2,4,8,15,30f/s
X-Ray Tube:
-Anode Heat Storage Capacity : 300,000HU (225kJ)
-Anode Heat Dissipation : 60,000HU / 750W
-Generator’s Heat Unit(Tank Heat Storage Capacity) : 1,209,000 HU
Flat Detector:
-Detector Type : CMOS Flat Panel Detector
-Active Image Area : 30cm x 30cm(Full Format)
-Maximum Resolution(Resolution on monitor with 30x30cm FPD) : 4.6lp/mm
-Frame Rate : 30 frames/sec
-Number of Pixel : 2,600 x 2,560
-Pixel Sampling Resolution(Digitization Depth) : 14bits
-Pixel Pitch: 100μm
-Detective Quantum Efficiency(DQE) : 60% (@0.5lp/mm)
-Modulation Transfer Function(MTF) : 70% (@0.0 lp/mm)
C-Arm:
-Source to Image-receptor Distance(SID) : 1000mm
-Free Space : 770mm (Remove cone : 800mm)
-C-Arm Depth : 730mm
-Orbital Rotation : 150° (90, +60)°
-Horizontal Movement : 200mm
-Vertical Movement : 500mm
-Panning Motion(Wig/Wag) : ±12.5°
-Pivot Rotation(Lateral Rotation) : ±230° (limited)
-Lowest Lateral Height : 1,010mm
Collimator:
-Virtual & Automatic
Features:
-DSA - Digital Subtraction Angiography
-Live Image Display and Image Movement: Rotation, Reverse, Flip, Zoom
- Automatic Brightness Control / Manual Parameter Setting
- Exposure Mode Selection: Pulse Rate, Nose Reduction, Dose Level
- Collimator Modes and Area Selection: Iris / 4 Way Shutters
- Anatomic Preset Mode Selection
- Motion, Metal Detection On/Off
- Laser Point On/Off
- Save Image
Smart review (Automatic image save)
-DNR(Digital Noise Reduction)
-Edge Enhancement
-Low Dose Mode (Low dose image processing, Structured dose reporting, AKR *, DAP *)
-Tools
- Image Layout Mode
- Select / Zoom/ Panning
- Pencil / Calibration /
- Invert / Rotation / Horizontal, Vertical change

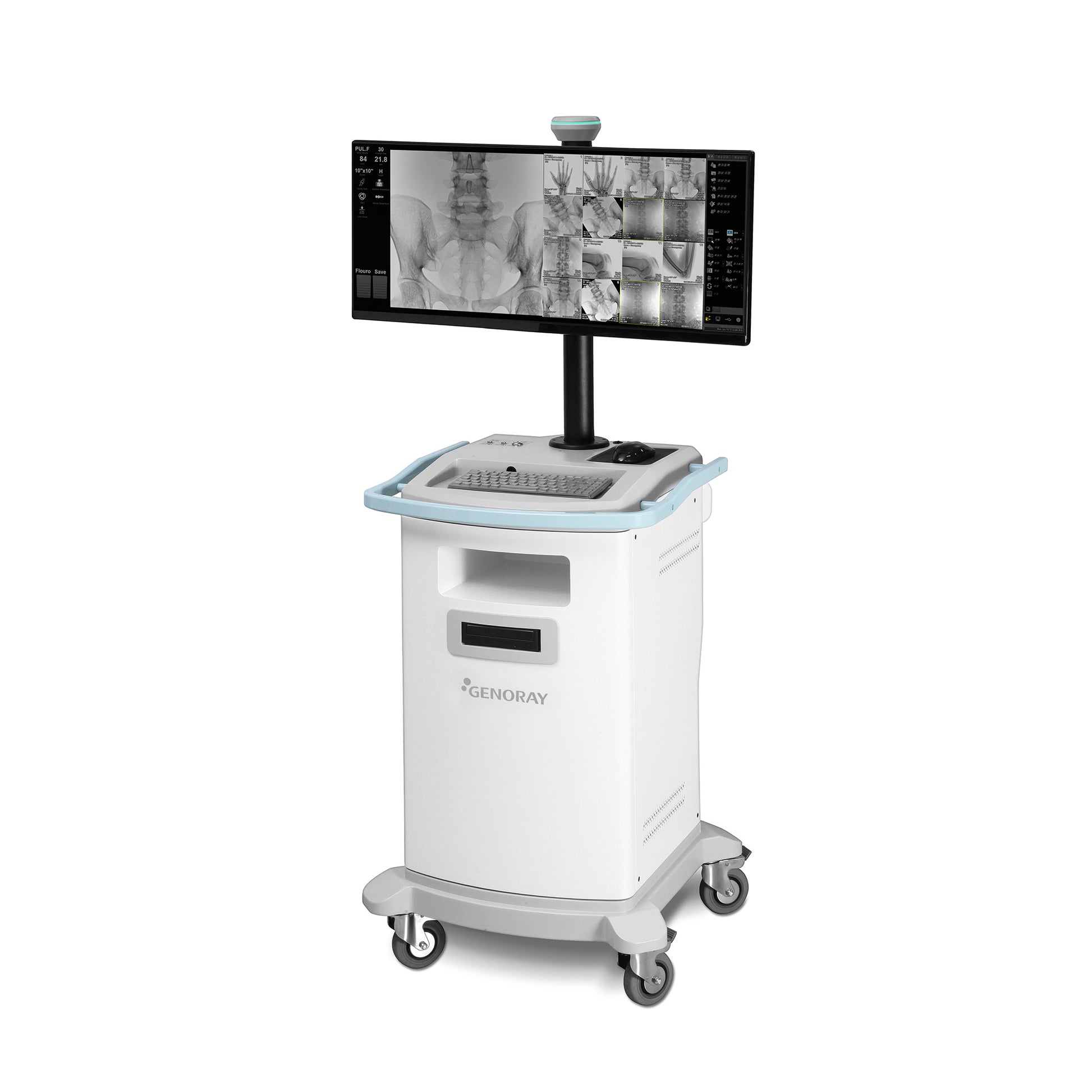

Display:
-Screen: 43”(107.9cm) LED Color Display
- Image Matrix : 2560 x 1440 Pixels
- Maximum Brightness : 350cd/m²
- Contrast Ratio : 1000:1
- Aspect Ratio : 16:9
DICOM:
- DICOM Modality Worklist
- DICOM Storage
- DICOM Query/Retrieve
- DICOM Import/Export (DVD/USB)
- DICOM Print
- DICOM Worklist MPPS
- DICOM Storage Commitment
- DICOM Radiation Dose SR
FAQs
The Oscar 15 comes with a 25x26cm Flat Detector and the Oscar 15FD comes with a 30x30cm Flat Detector. Other than that they are identical.
What Is The Warranty?Standard warranty is (2) years parts & labor when purchased through Equipped MD, with the option to purchase up to a (5) year warranty at time of purchase.
Is There Service Local To Me?Yes. All Genoray products are supported by OEM support team. They offer remote diagnostics that can trouble shoot problems prior to onsite service and can have a tech onsite within 24-48 hours.
