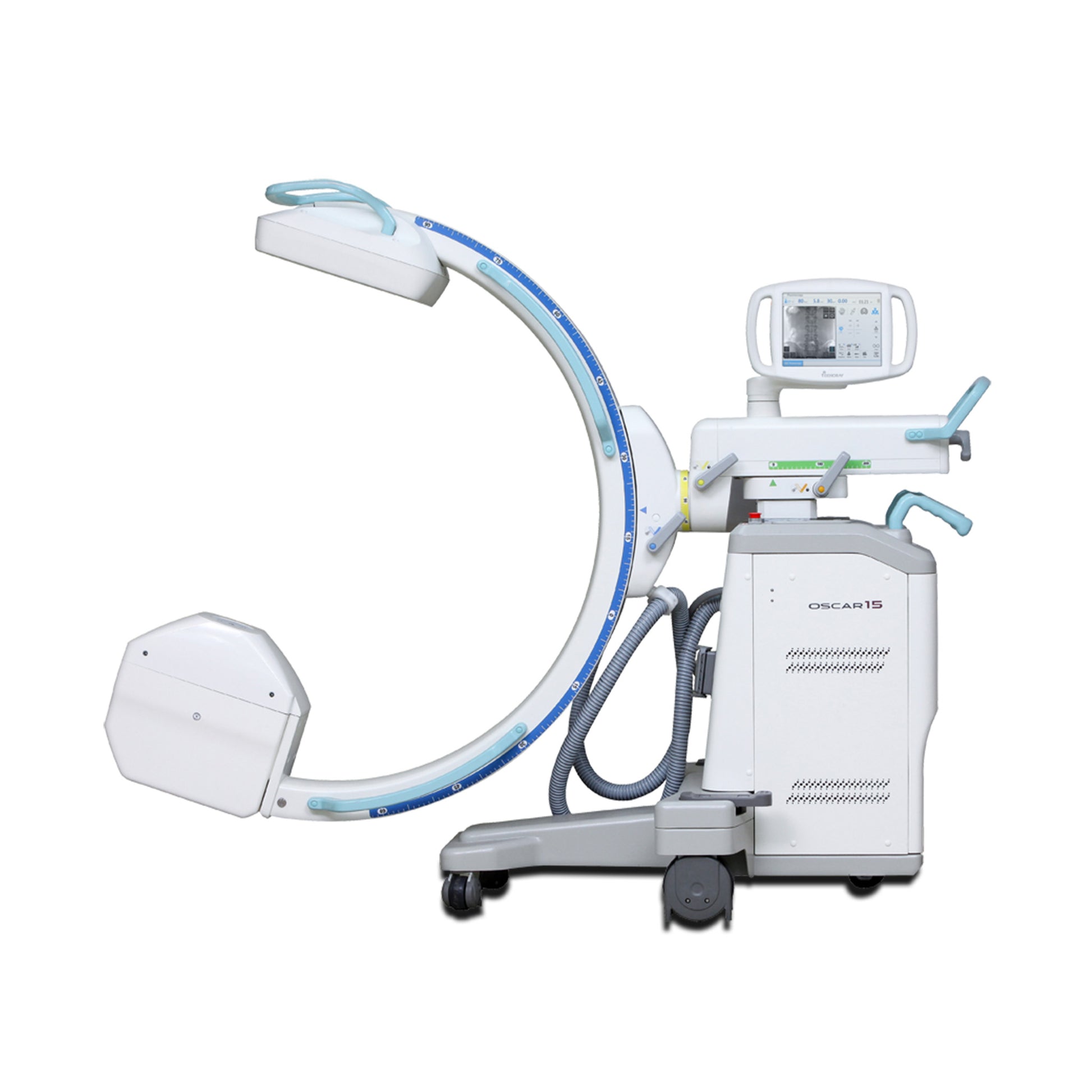

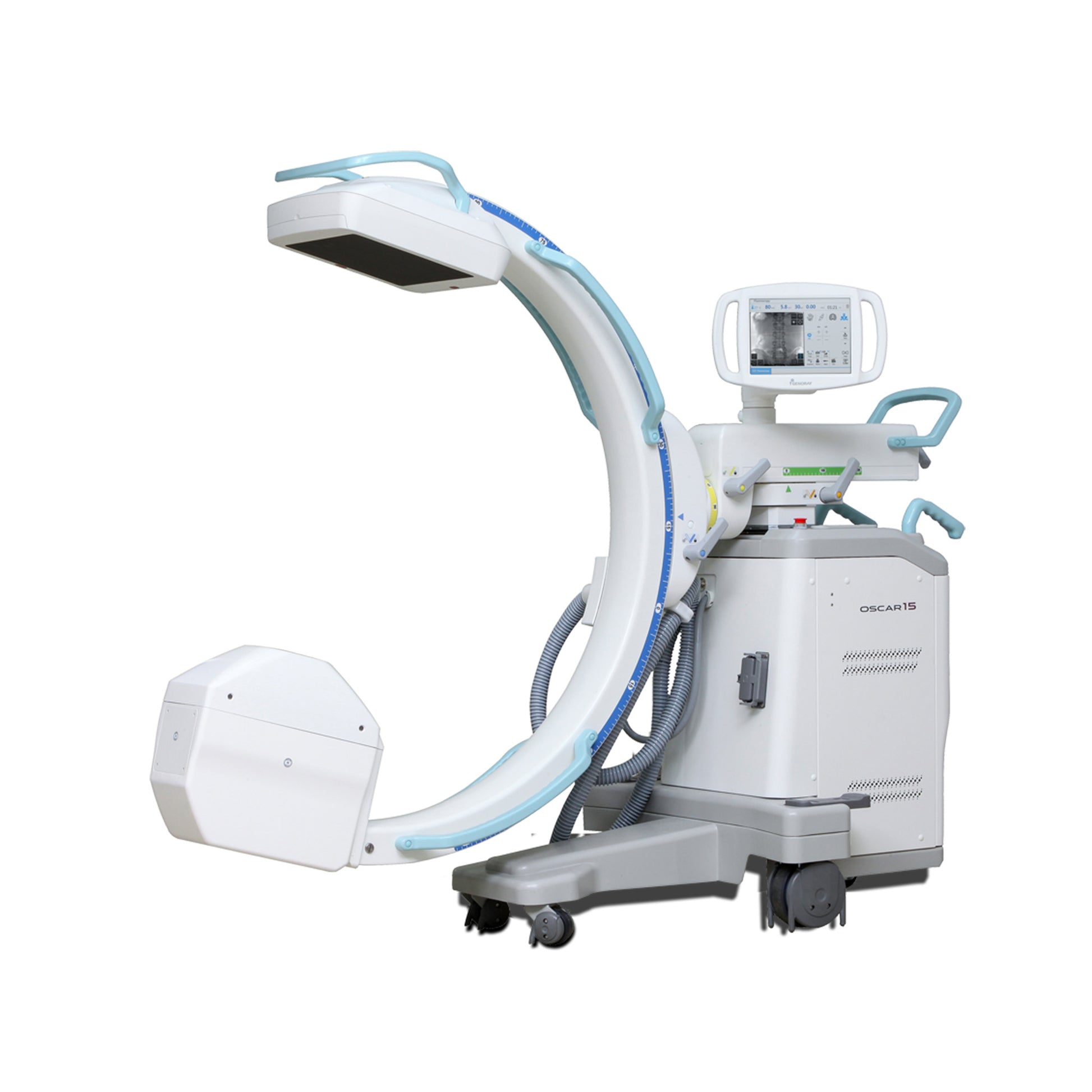

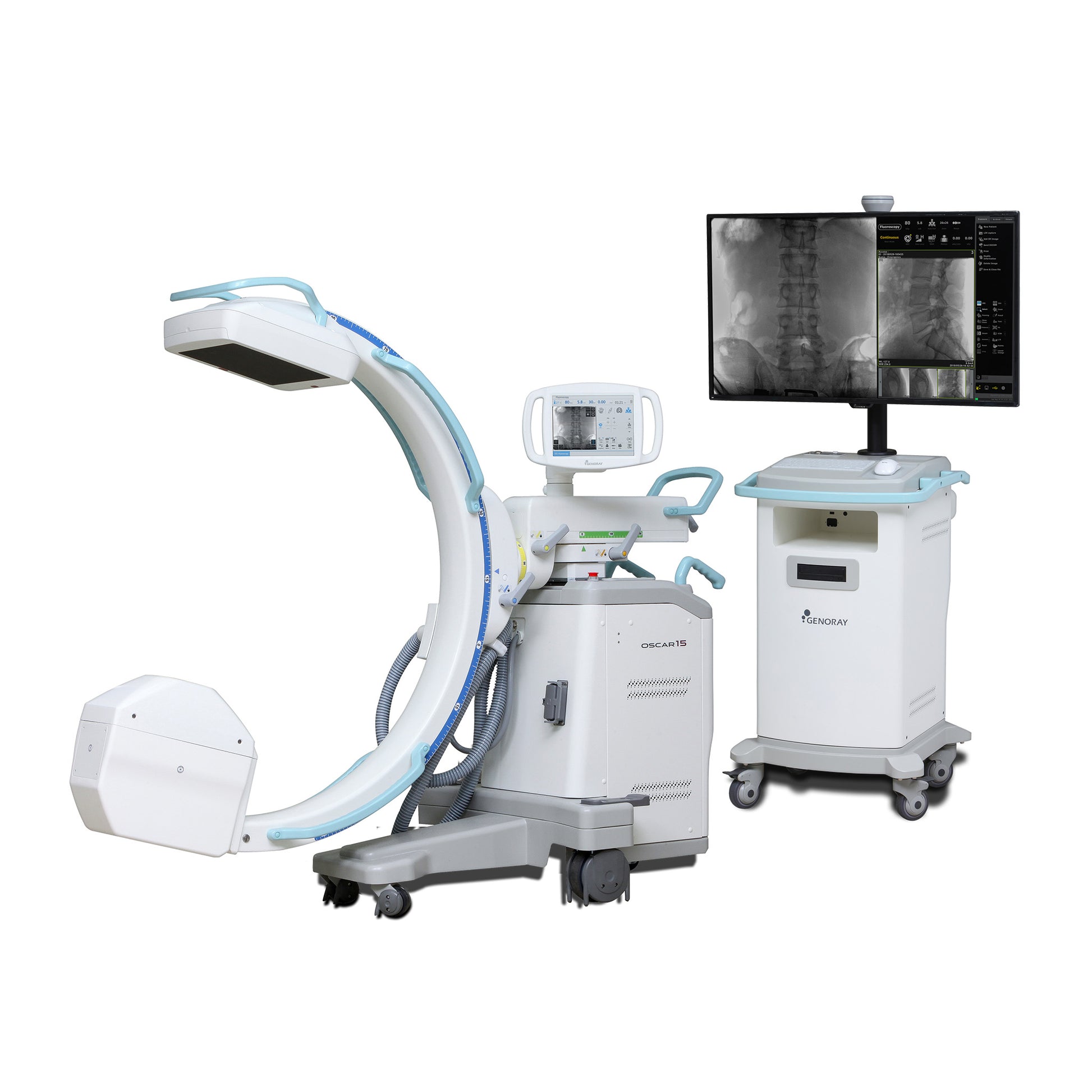

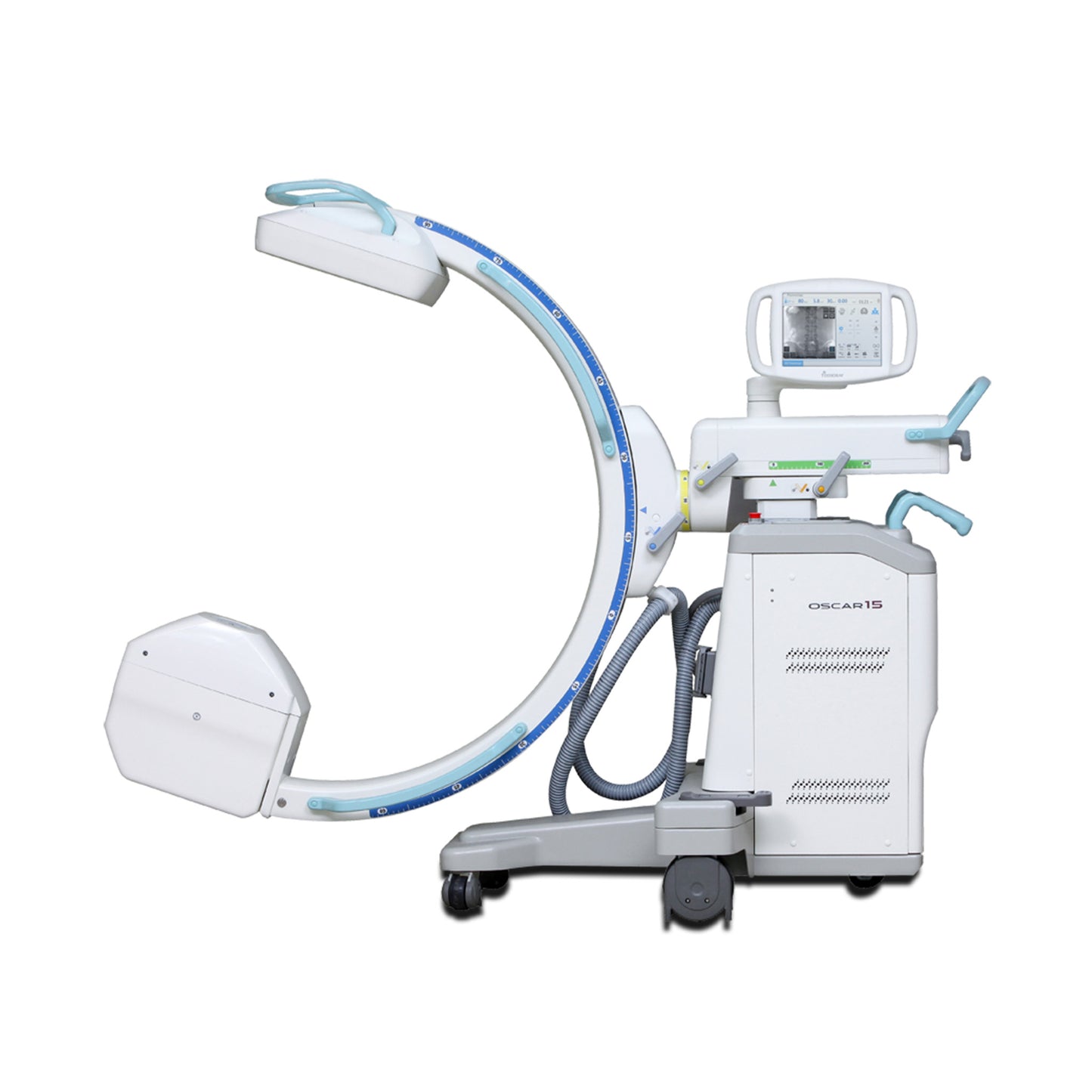

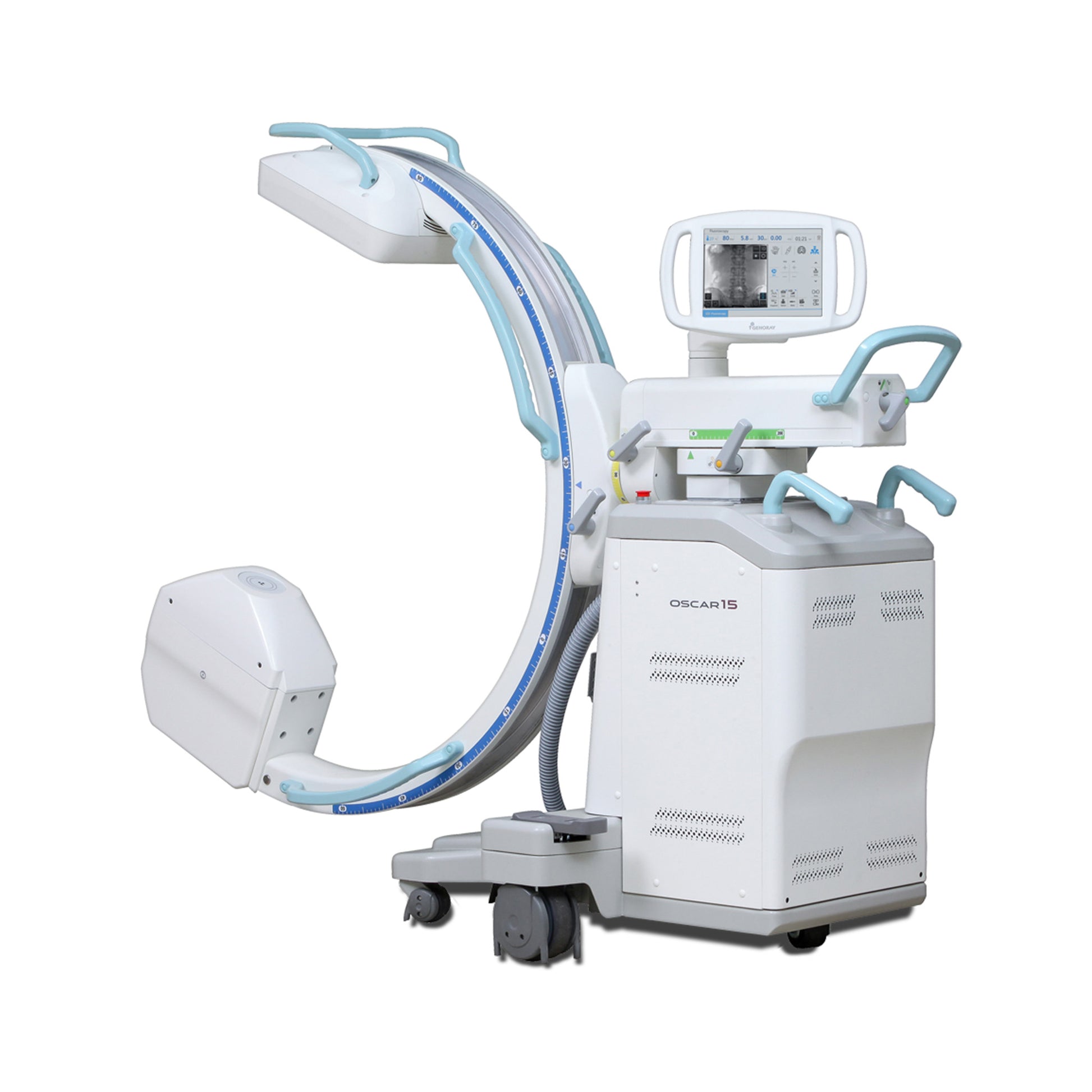

Genoray Oscar 15 C-Arm
Genoray Oscar 15 C-Arm
A high-performance mobile fluoroscopy C-arm featuring a 15 kW high-frequency generator and advanced 26x26cm flat-panel detector for crisp, low-noise imaging with wide 150° orbital rotation and intuitive touchscreen controls, ideal for versatile surgical, orthopedic, vascular, and pain management procedures.
Questions?
Collapsible content
Product Description
Genoray Oscar 15 C-arm System – High-Performance Imaging for Advanced Surgical Applications
The Genoray Oscar 15 C-arm System delivers exceptional imaging quality and versatility for a wide range of clinical procedures. With a 15kW high-frequency generator, 800mm free space, and advanced flat panel detector (FPD) technology, this system provides high-resolution images with low noise, ensuring diagnostic precision in critical applications. Its compact and hybrid body design, paired with a 150° orbital rotation, makes it an efficient solution for modern healthcare facilities.
Designed for reliability and ease of use, the Oscar 15 features a 10.4-inch touchscreen interface, customizable imaging profiles, and seamless integration into various clinical workflows. The flat panel detector options, including 26x26cm CMOS or 30x30cm a-Si, ensure optimal imaging for diverse patient needs.
Key Features:
- Advanced Flat Panel Detector: Provides sharp, high-quality images with wide field-of-view (FOV) and minimal noise.
- 15kW High-Frequency Generator: Supports powerful and consistent performance for demanding procedures.
- Wide Orbital Rotation: 150° (+90°, -60°) for flexible positioning and optimal imaging angles.
- User-Friendly Design: Intuitive 10.4” touchscreen monitor simplifies operation and enhances workflow.
- Compact Hybrid Body: Ensures mobility and efficiency in both surgical and interventional environments.
Enhanced Imaging Technology:
The Oscar 15 C-arm System incorporates features to optimize image quality and improve safety:
- Motion Correction: Reduces blur for precise imaging during movement.
- Auto Collimation: Minimizes unnecessary radiation exposure by focusing on the area of interest.
- Metal Correction: Enhances clarity in the presence of metal objects.
Clinical Applications:
The Genoray Oscar 15 supports a variety of procedures, including:
- Orthopedic Surgery
- Vascular Interventions
- Pain Management
- General Surgery
- Neuro and Spine Surgery
- Trauma Imaging
Reliable and Cost-Effective:
Backed by Genoray’s expertise and innovative design, the Oscar 15 C-arm System delivers long-lasting performance, making it an excellent investment for healthcare providers seeking superior imaging technology.
Experience precision, reliability, and versatility with the Genoray Oscar 15 C-arm System, designed to meet the demands of modern clinical care.
Specifications
Equipment Highlights:
-26cm x 26cm Flat Detector
-15kW High Frequency Generator
-150 Degrees Of Orbital Rotation
-800 mm Of Free Space
-1000 mm SID
-Low Dose
-Virtual Collimation
-43" High Resolution Monitor
-10.4" Touch Screen Tech Monitor
-Active Air Cooling
-DICOM 3.0
Specifications:
X-Ray Generator:
-Radiography Rating
- Digital Snap Shot : 40–120kV, 2mA–50mA
- Film Mode : 40–120kV, ~150mA, ~100mAs
-Fluoroscopy Ratings
- Continuous Mode (30f/s) - Small Focus : 40kV–120kV, 0.2mA–6.0mA
- Large Focus : 40kV–120kV, 2mA–20.0mA
- Pulse Mode - Small Focus : 40kV–120kV, 0.2mA–10.0mA
- Large Focus : 40kV–120kV, 2.0mA–50.0mA
- Pulse Rate : 1,2,4,8,15,30f/s
X-Ray Tube:
-Anode Heat Storage Capacity : 300,000HU (225kJ)
-Anode Heat Dissipation : 60,000HU / 750W
-Generator’s Heat Unit(Tank Heat Storage Capacity) : 1,209,000 HU
Flat Detector:
-Detector Type : CMOS Flat Panel Detector
-Active Image Area : 26cm x 26cm(Full Format)
-Maximum Resolution(Resolution on monitor with 26x26cm FPD) : 4.6lp/mm
-Frame Rate : 30 frames/sec
-Number of Pixel : 2,600 x 2,560
-Pixel Sampling Resolution(Digitization Depth) : 14bits
-Pixel Pitch: 100μm
-Detective Quantum Efficiency(DQE) : 60% (@0.5lp/mm)
-Modulation Transfer Function(MTF) : 70% (@0.0 lp/mm)
C-Arm:
-Source to Image-receptor Distance(SID) : 1000mm
-Free Space : 770mm (Remove cone : 800mm)
-C-Arm Depth : 730mm
-Orbital Rotation : 150° (90, +60)°
-Horizontal Movement : 200mm
-Vertical Movement : 500mm
-Panning Motion(Wig/Wag) : ±12.5°
-Pivot Rotation(Lateral Rotation) : ±230° (limited)
-Lowest Lateral Height : 1,010mm
Collimator:
-Virtual & Automatic
Features:
-DSA - Digital Subtraction Angiography
-Live Image Display and Image Movement: Rotation, Reverse, Flip, Zoom
- Automatic Brightness Control / Manual Parameter Setting
- Exposure Mode Selection: Pulse Rate, Nose Reduction, Dose Level
- Collimator Modes and Area Selection: Iris / 4 Way Shutters
- Anatomic Preset Mode Selection
- Motion, Metal Detection On/Off
- Laser Point On/Off
- Save Image
Smart review (Automatic image save)
-DNR(Digital Noise Reduction)
-Edge Enhancement
-Low Dose Mode (Low dose image processing, Structured dose reporting, AKR *, DAP *)
-Tools
- Image Layout Mode
- Select / Zoom/ Panning
- Pencil / Calibration /
- Invert / Rotation / Horizontal, Vertical change

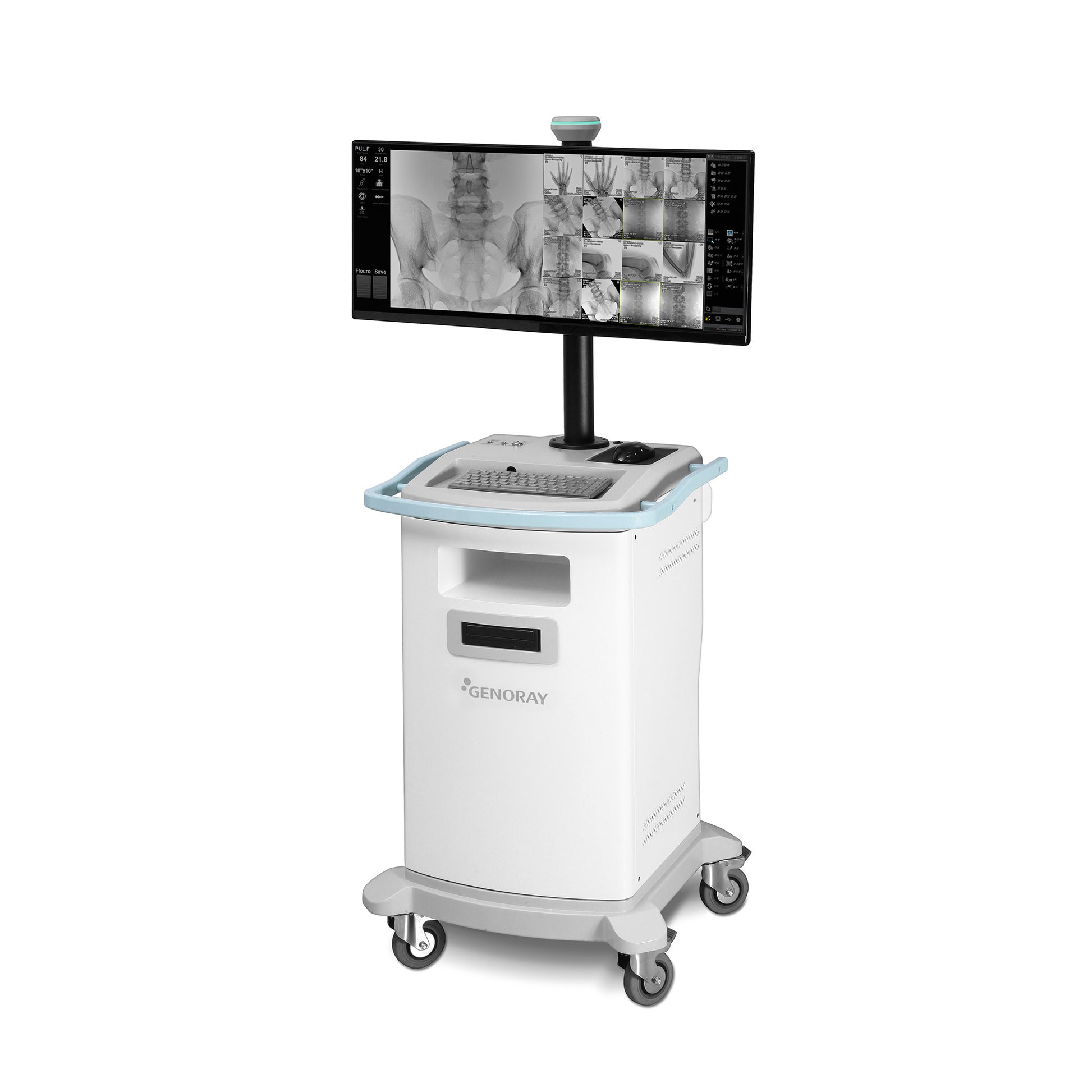

Display:
-Screen: 43”(107.9cm) LED Color Display
- Image Matrix : 2560 x 1440 Pixels
- Maximum Brightness : 350cd/m²
- Contrast Ratio : 1000:1
- Aspect Ratio : 16:9
DICOM:
- DICOM Modality Worklist
- DICOM Storage
- DICOM Query/Retrieve
- DICOM Import/Export (DVD/USB)
- DICOM Print
- DICOM Worklist MPPS
- DICOM Storage Commitment
- DICOM Radiation Dose SR
FAQs
Yes. All Genoray products are supported by OEM support team. They offer remote diagnostics that can trouble shoot problems prior to onsite service and can have a tech onsite within 24-48 hours.
What Is The Warranty?Standard warranty is (2) years parts & labor when purchased through Equipped MD, with the option to purchase up to a (5) year warranty at time of purchase.
Whats The Difference Between The Oscar 15 and Oscar 15FD?The Oscar 15 comes with a 25x26cm Flat Detector and the Oscar 15FD comes with a 30x30cm Flat Detector. Other than that they are identical.
