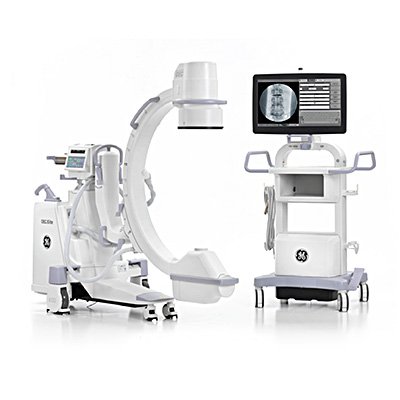

GE OEC Elite C-Arm
GE OEC Elite C-Arm
The GE OEC Elite C-Arm System is a premium mobile surgical imaging system designed for a wide range of procedures. With renowned OEC image quality, an image intensifier-based platform, a 32 inch UHD 4K monitor, SmartConnect workflow, Live Zoom, and multiple dose control modes, it supports efficient imaging across orthopedic, vascular, urologic, GI, neurologic, and general surgical applications.
Questions?
Collapsible content
Product Description
GE OEC Elite C-Arm System – Premium Mobile Surgical Imaging with Image Intensifier
The GE OEC Elite C-Arm System is a premium mobile c-arm built for surgical teams that need dependable image quality, efficient workflow, and flexible positioning in the operating room. As the standard Elite model with an image intensifier, it is designed to deliver the familiar OEC imaging experience while adding workflow and usability enhancements for demanding procedural environments.
Designed to support a broad range of surgical applications, the GE OEC Elite combines image intensifier-based imaging with a streamlined user interface, lightweight workstation, and large 4K display. It is positioned for use in orthopedics, gastrointestinal procedures, endoscopic cases, urologic procedures, neurologic applications, critical care, emergency settings, and vascular imaging.
Key Features of the GE OEC Elite C-Arm System
Image Intensifier-Based Surgical Imaging
The GE OEC Elite is the image intensifier version of the Elite platform, making it a strong option for facilities that prefer a traditional OEC image intensifier c-arm rather than a flat detector model. It is designed to deliver the image quality OEC systems are known for in a premium mobile surgical imaging format.
Large 32 Inch UHD 4K Display
The system includes a 32 inch UHD 4K monitor that extends up to 27 inches for easier surgeon viewing. This larger display helps support image visibility in the operating room and improves line-of-sight viewing during procedures.
TrueView Low-Profile X-Ray Tube Housing
The OEC Elite features GE’s TrueView low-profile x-ray tube housing, which allows the detector to be positioned closer to the anatomy. According to GE OEC Surgery, this design can create up to a 22 percent larger field of view compared with standard positioning geometry.
Live Zoom and Image Planning Tools
The system includes Live Zoom along with Digital Pen, measurements, and annotations to support planning and image review during procedures. These workflow tools are designed to help clinicians evaluate anatomy and document findings more efficiently at the point of care.
Automatic Imaging Profiles
The GE OEC Elite includes automatic imaging profiles, including General HD, to help accentuate critical anatomy based on the clinical application. These profiles support more efficient imaging setup and help tailor visualization to procedural needs.
Six Dose Control Options
The system offers six dose control options that can be used alone or in combination: Digital Spot, Digital Cine Pulse, High Level Fluoroscopy, Standard Fluoroscopy, Low Dose, and Pulse. These settings help facilities balance image quality and dose management across different procedure types and physician preferences.
Improved Maneuverability
GE OEC Surgery states that the Elite requires 30 percent less force to steer, helping improve c-arm maneuverability in active OR settings. This can make positioning easier during procedures that require frequent angle changes or tight room navigation.
Lightweight Workstation with SmartConnect
The GE OEC Elite includes a lightweight workstation with SmartConnect, supporting a more efficient mobile workflow. This design helps users manage imaging tasks more easily while keeping the system practical for busy surgical environments.
Simplified User Interface
The user interface is designed with fewer clicks and more active icons to simplify operation. This can help reduce workflow friction and make the system easier to use during fast-paced procedures.
Ideal Clinical Applications
The GE OEC Elite C-Arm System is well suited for:
- Orthopedic surgery
- Gastrointestinal procedures
- Endoscopic imaging
- Urologic procedures
- Neurologic applications
- Critical care and emergency imaging
- Vascular procedures
Why Choose the GE OEC Elite C-Arm System?
The GE OEC Elite is a strong choice for facilities looking for a premium image intensifier mobile c-arm with upgraded viewing, streamlined workflow, and broad procedural versatility. Its combination of renowned OEC image quality, automatic imaging profiles, SmartConnect workflow, enhanced maneuverability, and flexible dose control makes it a practical fit for surgery centers and hospitals that want a modernized image intensifier platform.
Specifications
X-Ray System:
Generator:
- 60kHz high frequency
- 15kW power
- Up to 120kVp
- Up to 75mA for radiographic film exposure
- Continuous high level fluoro (HLF) up to 20mA
- Digital spot up to 75mA
- Pulsed HLF up to 40mA
- Full power from standard wall outlet
- Patented battery buffered design
X-Ray Tube:
- Rotating anode X-ray tube
- 0.3mm and 0.6mm focal spots
- Anode heat capacity: 300,000 HU
- Anode cooling rate: 85,000 HU/min.
- Housing heat capacity: 1,600,000 HU
- Housing cooling: -9″ II = 22,500 HU/min, 12″ II = 22,500 HU/min
Digital Image Orientation:
- Digitally adjusts image display for live and last image hold
- Automatic image update preserves image orientation settings applied during live and last image hold subsequent images
– Image rotation
– Image reversal (side-to-side)
– Image invert (top-to-bottom) - On-screen orientation indicator
- Fully digital with precise 1 degree rotation increments
PreView™ Collimator:
- On-screen collimator position indication
- PreView™ iris collimator
- PreView™ Tungsten rotatable double leaf collimator
- Adjusts collimators without X-ray exposure
Fluoro Mode:
- kVp range: 40 -120
- mA range: 0.2 – 10 normal mode 0.2 – 20 HLF (high level fluoro)
- Auto and manual fluoro modes
Pulsed Fluoro Mode:
- kVp range: 40 – 120
- mA range: 0.2 – 10 normal mode, 0.2-40 HLF
- Pulse rate: 8 pps
- Pulse width: 25 ms
- Auto and manual pulsed fluoroscopy modes
- Reduces x-ray dose to patient and operator
Digital Spot Mode:
- kVp range: 40 – 120
- mA range: Up to 75
- Automatic exposure termination and automatic image save
Video Imaging System:
9″ Image Intensifier:
- Tri-mode 9”/6”/4.5” (23cm/15cm/11cm) image intensifier
- Minimum central resolution (at the monitor):
– 9” (23cm): 2.2 lp/mm
– 6” (15cm): 3.0 lp/mm
– 4.5” (11cm): 3.5 lp/mm - DQE: 65% (typical)
- Removable Grid
12″ Image Intensifier:
- Tri-mode 12”/9”/6” (31cm/23cm/15cm) image intensifier
- Minimum central resolution (at the monitor):
– 12” (31cm): 1.6 lp/mm
– 9” (23cm): 2.2 lp/mm
– 6” (15cm): 2.6 lp/mm - DQE: 65% (typical)
- Removable Grid
Precision imaging with Dynamic Range Management (DRM) enhances features of interest while attenuating background noise:
- Preset Imaging Profiles
– 9800
– General
– Orthopedic
– Spine
– Cardiac
– Vascular
– Bolus Chase
AutoTrak™ Automatic Brightness Stabilization (ABS)
- Automatically seeks the subject anatomy anywhere within the imaging field
- Selects the optimum imaging technique by varying mA, kVp, and gain
- Automatically adjusts to anatomical size and location
- Provides uniform image quality throughout the entire image
Image I.Q.:
- Smart Window
– Dynamically senses the collimator position and automatically adjusts brightness and contrast to produce high image quality. - Smart Metal
– Allows user to adjust automatic brightness and contrast sensitivity levels to metal
– Provides optimum image quality even when metal is introduced to the field - Tungsten Collimator
– Denser collimator limits X-ray exposure area
– Reduces scatter radiation
– Improves image detail
Image Processing:
- 1k x 1k x 16 bit image intensifier
Video Monitor:
- 27 in (69 cm) LCD TFT color display
- Anti-glare
- Monitor mounted on an articulating arm
– 45 in (114 cm) horizontal travel
– 17 in (43.2 cm) vertical travel
– 27 in (68.8 cm) forward travel
– 5° up/5° down tilt
– Display viewable from all four sides of workstation
– Horizontal and vertical viewing angle 170° - 450 cd/m2 maximum brightness
- Touch screen system control
- 2560 x 1440 high resolution display
- Integrated PIP window to display color DVI-D input
FAQs
The GE OEC Elite image intensifier C-arm system is a premium mobile fluoroscopy platform designed for surgical imaging across a wide range of specialties. It is offered with 9-inch and 12-inch image intensifier options and is positioned as a versatile OEC surgical imaging system for facilities that want strong image quality, efficient positioning, and broad procedural capability.
What are some key technical highlights of the OEC Elite image intensifier system?Published specifications from reputable dealer sources describe the GE OEC Elite 12-inch image intensifier model as offering 1k x 1k x 16-bit image processing at 30 fps, a 15 kW high-frequency generator, up to 120 kVp, and a tri-mode 12-inch/9-inch/6-inch image intensifier. Because exact specifications can vary by configuration and installed options, these details should be confirmed on the specific unit being quoted
What types of procedures is the GE OEC Elite image intensifier C-arm used for?The GE OEC Elite image intensifier C-arm is commonly positioned for a wide range of procedures, including orthopedic, gastrointestinal, endoscopic, urologic, neurologic, critical care, emergency, vascular, and cardiac imaging applications, depending on system configuration and imaging profiles. This makes it a strong fit for hospitals and surgery centers that need one mobile C-arm for multiple specialties.
