GE OEC 9800 C-Arm

GE OEC 9800 C-Arm System – Mobile Fluoroscopy for Surgery and Interventional Imaging

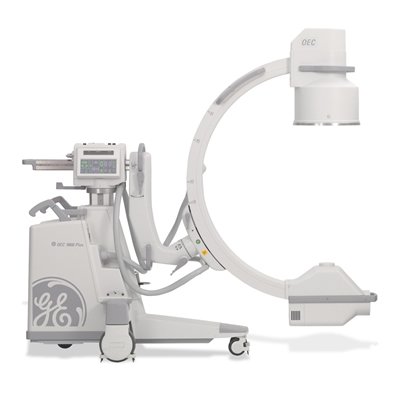

The GE OEC 9800 C-Arm System is a mobile c-arm built for facilities that need dependable fluoroscopic imaging across a wide range of surgical and interventional procedures. It is commonly used in orthopedic, pain management, vascular, neurovascular, and general surgery environments, where real-time imaging and flexible positioning are essential.

Designed for clinical versatility, the GE OEC 9800 combines strong generator output, image intensifier-based imaging, and workflow-oriented controls in a familiar mobile format. Published specifications describe a 15 kW high-frequency generator, up to 120 kVp output, 1K x 1K image resolution, and pulsed fluoroscopy modes that help support detailed imaging while managing dose during procedures.

Key Features of the GE OEC 9800 C-Arm System

High-Frequency Generator Performance

The GE OEC 9800 is built with a 15 kW high-frequency generator and offers up to 120 kVp output. Published specifications also list continuous high-level fluoroscopy up to 20 mA and higher output options for radiographic and digital spot imaging, supporting a broad range of procedural demands.

1K x 1K Imaging Resolution

This system is widely listed with 1K x 1K image resolution, helping provide clear fluoroscopic visualization for surgical and interventional procedures. Its imaging platform has made the OEC 9800 a well-known choice for facilities seeking proven image intensifier c-arm performance.

Tri-Mode Image Intensifier Options

Published configurations include 9 inch and 12 inch tri-mode image intensifier options, allowing facilities to choose field-of-view capability based on their clinical needs. This flexibility can be valuable for practices handling a mix of extremity, spine, pain management, and vascular procedures.

Pulsed Fluoroscopy and Dose Management

The OEC 9800 includes pulsed fluoroscopy modes, with published pulse rates of 1, 2, 3, and 8 pulses per second. Listings also describe automatic brightness stabilization and image processing features designed to support image quality while reducing unnecessary exposure.

Rotating Anode X-Ray Tube

The system uses a rotating anode x-ray tube with 0.3 mm and 0.6 mm focal spots. Published specifications also note substantial heat capacity and cooling performance, which help support longer imaging sessions and demanding procedural workflows.

Preview Collimation and Image Positioning Tools

Published feature sets include preview iris and double-leaf collimation, along with digital image rotation, reversal, and invert functions. These tools help clinicians optimize image positioning and collimation without requiring additional exposure.

Flexible C-Arm Movement

The GE OEC 9800 is designed for positioning flexibility in the procedure room. Published movement specifications include orbital movement, wig-wag motion, motorized vertical travel, horizontal travel, and lateral rotation, helping operators adapt the unit to different anatomy and procedural setups.

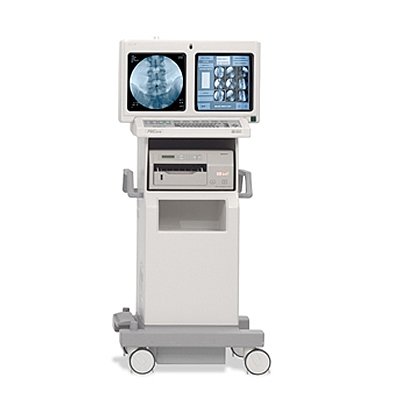

Dual Monitor Workstation

Published configurations commonly list a separate workstation with dual 16 inch high-resolution monitors. This setup supports image viewing during procedures and helps maintain a familiar workflow in surgical and interventional settings.

Ideal Clinical Applications

The GE OEC 9800 C-Arm System is well suited for:

• Orthopedic surgery
• Pain management procedures
• Spine interventions
• Vascular imaging
• Neurovascular applications
• General surgery and outpatient fluoroscopy cases

Why Choose the GE OEC 9800 C-Arm System?

The GE OEC 9800 remains a popular choice for facilities looking for a proven mobile fluoroscopy platform with strong generator output, flexible image intensifier configurations, and broad procedural versatility. Its established use across surgery centers, hospitals, and specialty practices has made it one of the most recognized legacy c-arm systems in the market.
