Fuji Persona CS C-Arm

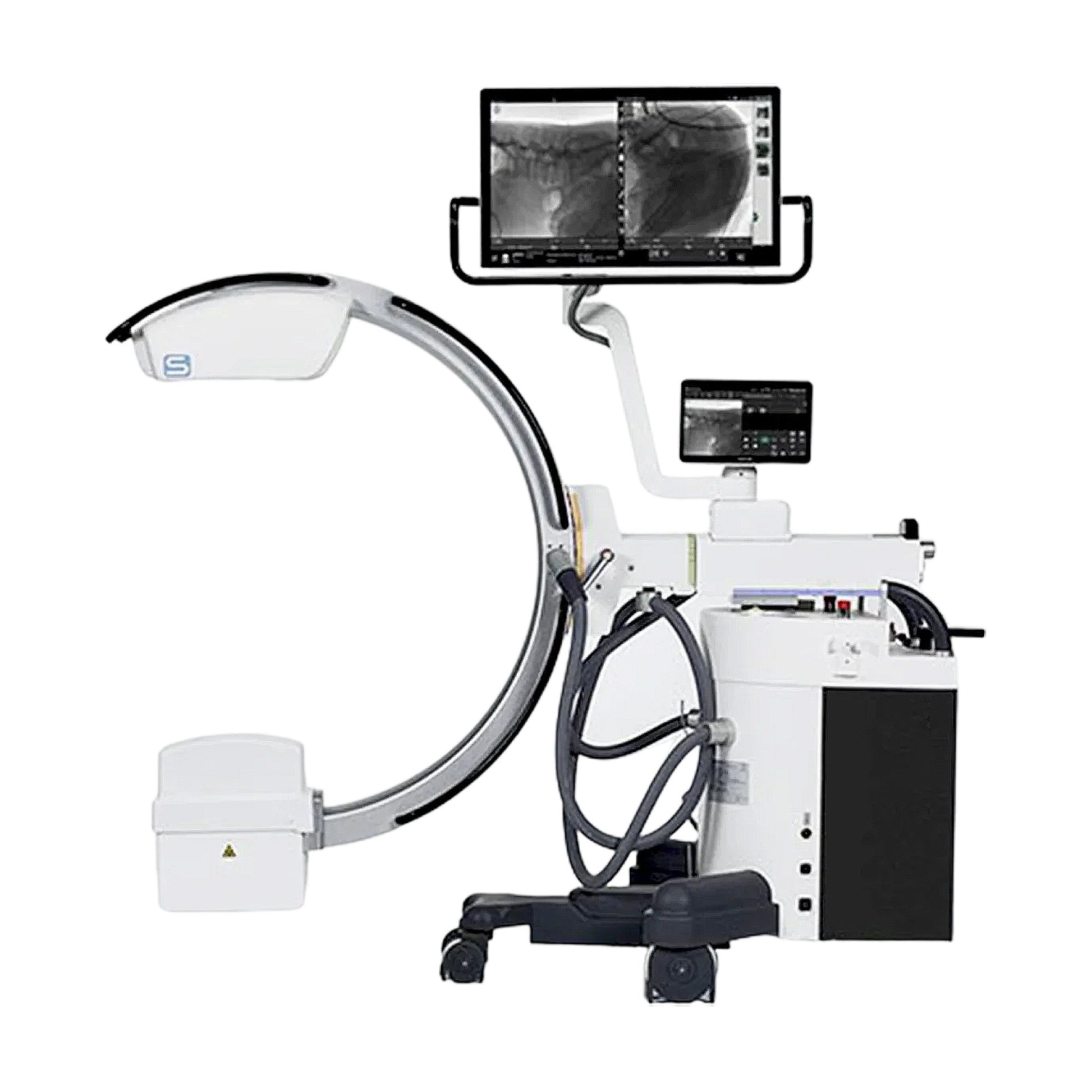

Fujifilm Persona CS C-Arm System – Compact Mobile Fluoroscopy with Flat Panel Imaging

The Fujifilm Persona CS C-arm system is a compact mobile fluoroscopy platform designed to deliver strong imaging performance, flexible positioning, and efficient operation in surgical and procedural environments. Its integrated 2-in-1 design combines the C-arm and viewing system on one mobile platform, reducing the need for a separate monitor cart while helping maintain a compact operating-room footprint.

Powered by a 5 kW onboard generator, the Persona CS provides more than twice the power of typical compact C-arms, supporting improved X-ray penetration and image quality across a range of patient sizes. Facilities can choose between 21 cm and 30 cm cesium iodide flat panel detector configurations to match their procedural and field-of-view requirements.

Key Features of the Fujifilm Persona CS

Powerful 5 kW Generator
The Persona CS uses a 5 kW onboard generator designed to provide greater penetration and imaging performance than conventional compact mobile C-arm systems.

Choice of Flat Panel Detector Sizes
Available 21 cm and 30 cm CsI flat panel detectors provide advanced digital imaging clarity and allow facilities to select the configuration that best fits their clinical needs.

Fluoroscopy and Radiography Imaging
The system supports fluoroscopic imaging at up to 30 frames per second and includes a dedicated radiography mode for expanded procedural imaging capability.

27" 4 MP Touchscreen Monitor
A medical-grade 27" ultra-wide touchscreen monitor supports simultaneous display of live and stored images. The articulated support arm allows height, angle, tilt, and side-to-side adjustment for flexible viewing.

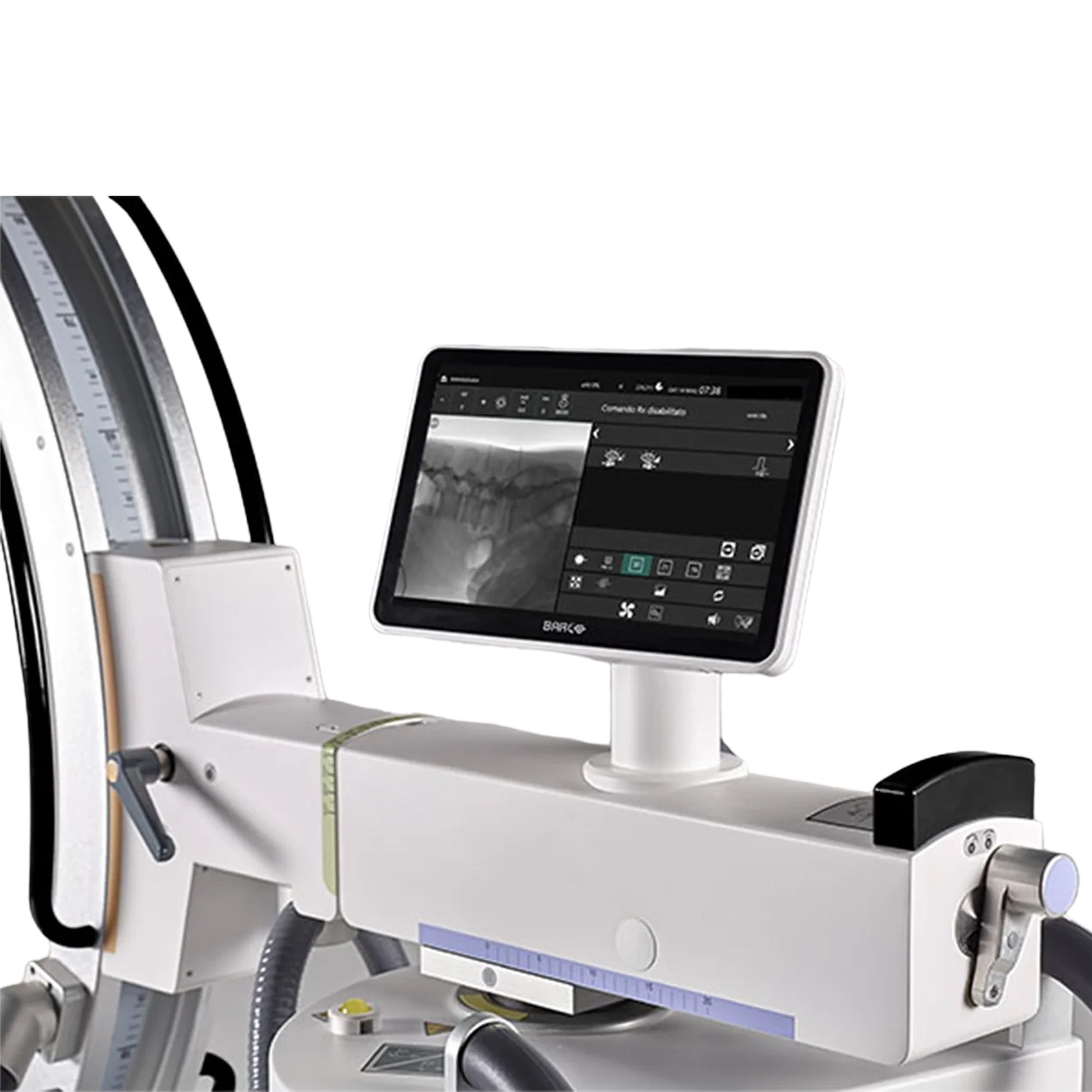

C-Arm-Mounted Operator Console
A multi-touch operator console mounted directly on the C-arm gives users access to exam parameters and live imaging from either side of the system.

Wide C-Arm Movement Range
The Persona CS includes:

• Orbital rotation from +65° to -95°
• Angular rotation greater than ±210°
• 450 mm of vertical travel

These movement ranges support fast positioning and a variety of oblique projections without repeatedly repositioning the entire system.

Compact 2-in-1 Mobile Design
The integrated platform is designed for easy access around the operating table, smooth gliding, simplified repositioning, and reduced equipment congestion.

Zero-Dose Laser Positioning
Laser localizers on the X-ray tube and flat panel detector help support centering without requiring fluoroscopic exposure.

Flexible X-Ray Controls
X-ray emission can be controlled with a foot switch or multifunction hand switch. An optional wireless foot switch is also available to improve cable management.

Connectivity and Output Options
Connectivity options include USB, Ethernet, HDMI, and Wi-Fi. Optional wireless video transmission can send high-resolution images to a remote display, ceiling-mounted monitor, or wall-mounted viewing station.

Removable Grid
The removable 8:1 grid supports low-dose pediatric imaging and gridless procedures when appropriate.

Ideal Clinical Applications
The Fujifilm Persona CS is well suited for:

• Orthopedic surgery
• Pain management
• Spine procedures
• General surgery
• Urology
• Vascular and interventional procedures
• Ambulatory surgery centers
• Hospital operating rooms

Why Choose the Fujifilm Persona CS?
The Persona CS is a strong choice for facilities that want the image quality and workflow benefits of flat panel technology in a compact mobile C-arm. Its combination of a 5 kW generator, two detector-size options, integrated 27" monitor, broad positioning range, onboard controls, and optional wireless viewing makes it adaptable to a wide range of surgical imaging needs.

Key Benefits

• Compact 2-in-1 mobile C-arm platform
• Powerful 5 kW onboard generator
• Choice of 21 cm or 30 cm CsI flat panel detector
• Fluoroscopy up to 30 frames per second
• Dedicated radiography mode
• 27" 4 MP touchscreen monitor
• Wide orbital and angular rotation
• 450 mm vertical movement
• Zero-dose laser centering
• USB, Ethernet, HDMI, and Wi-Fi connectivity
• Optional wireless display and wireless foot switch
• Removable 8:1 grid

The Persona CS can support a range of surgical and interventional fluoroscopy applications, including orthopedic, pain management, spine, general surgery, and other image-guided procedures. The exact clinical use depends on the detector size, software, accessories, and system configuration selected.

The Persona CS combines a compact footprint with a 5 kW generator, flat panel detector options, a 27-inch 4MP touchscreen, up to 30 fps fluoroscopy, and broad C-arm movement. These features make it a more advanced option than many traditional compact C-arms that use lower-powered generators or image intensifier technology.

Yes. A C-arm-mounted multi-touch operator console allows exam parameters to be controlled from either side of the system. The monitor arm also includes handles that support positioning from either side.
