Fuji Persona C HR C-Arm

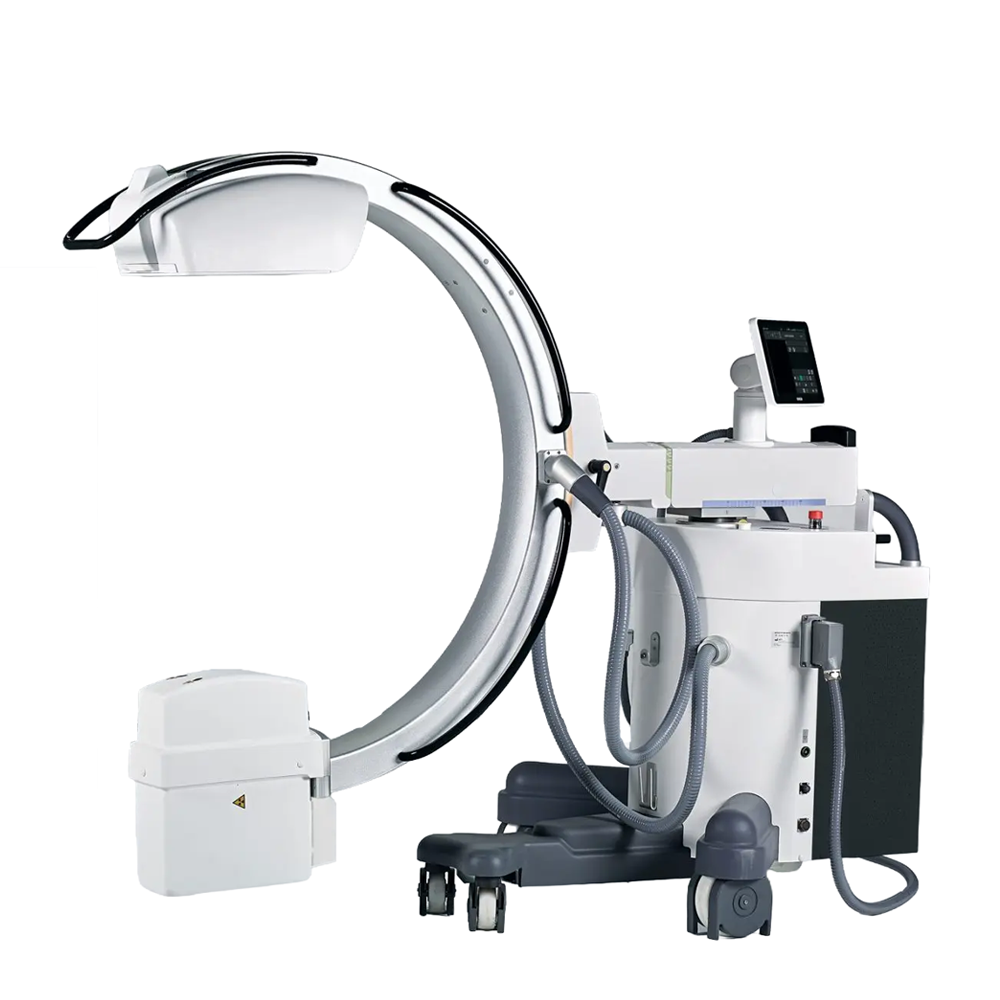

Fujifilm Persona C HR Mobile Fluoroscopy System – High-Resolution, High-Power Surgical C-Arm

The Fujifilm Persona C HR Mobile Fluoroscopy System is a powerful next-generation surgical C-arm engineered for procedures that require exceptional image clarity, high power output, and advanced visualization technology. Designed with a 25 kW generator, a 30 × 30 cm high-resolution IGZO flat panel detector, and a large 32-inch 4K surgical display, the Persona C HR delivers outstanding imaging performance for demanding surgical environments.

Built for precision and efficiency, the system combines high sensitivity detector technology, advanced fluoroscopic imaging modes, and intelligent cooling capabilities to support long procedures while maintaining excellent image quality and optimized radiation dose. Its ergonomic design and lightweight construction also make it one of the lightest systems in its class, allowing technologists to maneuver the C-arm easily in crowded operating rooms.

Key Features of the Fujifilm Persona C HR

High-Resolution IGZO Flat Panel Detector

The system features a 30 × 30 cm cesium iodide detector with advanced IGZO technology and a 146-micron pixel size, delivering excellent spatial resolution, high sensitivity, and low image noise. The detector supports 2048 × 2048 imaging with up to 30 frames per second, providing detailed visualization during fluoroscopic procedures.

Powerful 25 kW Generator

A high-performance 25 kW monoblock generator with rotating anode X-ray tube supports demanding imaging requirements with up to 120 kVp output and high mA levels for both fluoroscopy and radiography modes.

30 FPS Fluoroscopy with Advanced Imaging Modes

The Persona C HR supports pulsed fluoroscopy rates up to 30 frames per second and multiple imaging modes including:

• Low Dose fluoroscopy
• High Quality fluoroscopy
• High Quality Plus fluoroscopy
• Digital radiography
• Road mapping
• Digital Subtraction Angiography (DSA)

These modes allow clinicians to tailor imaging performance for each procedure.

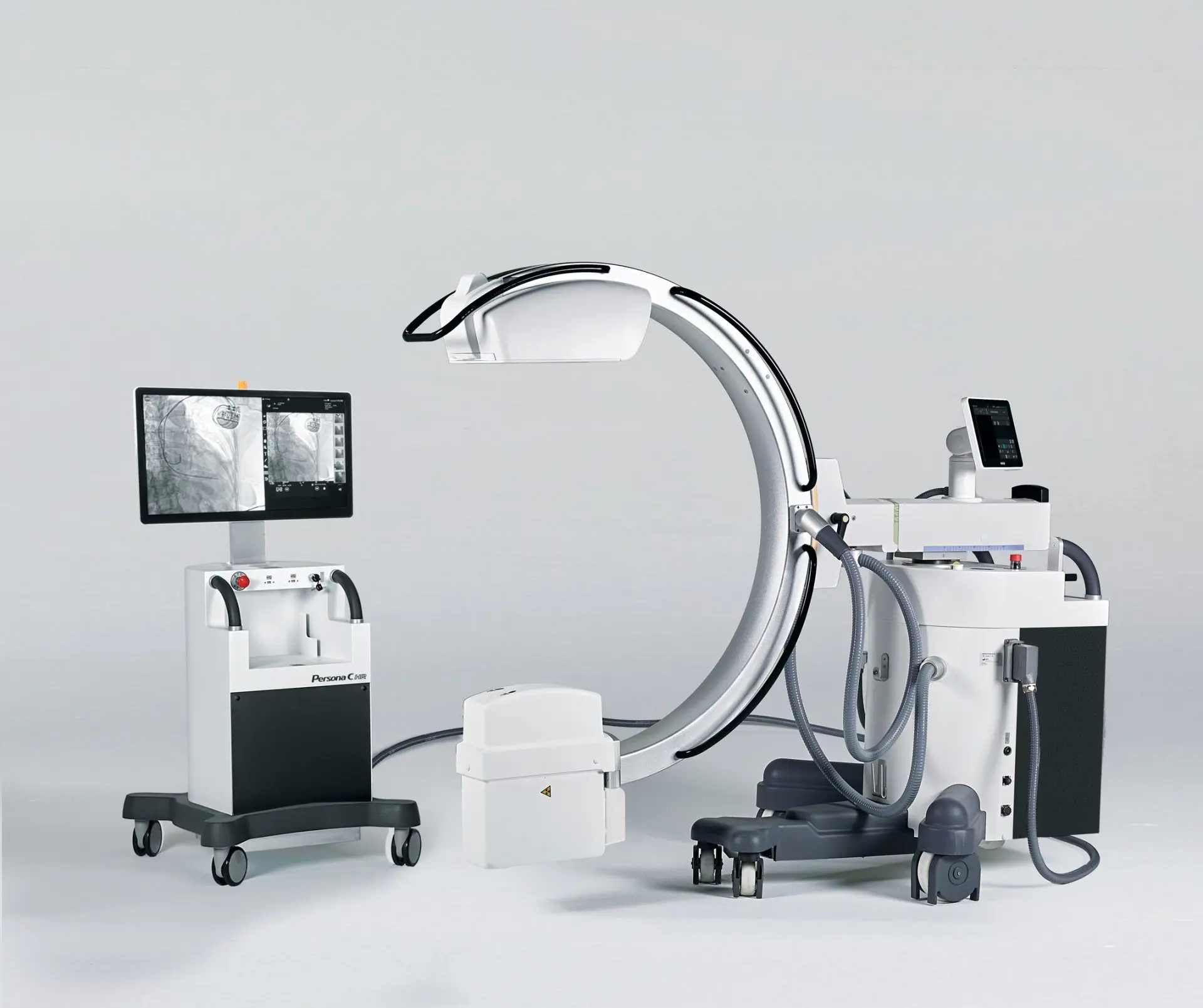

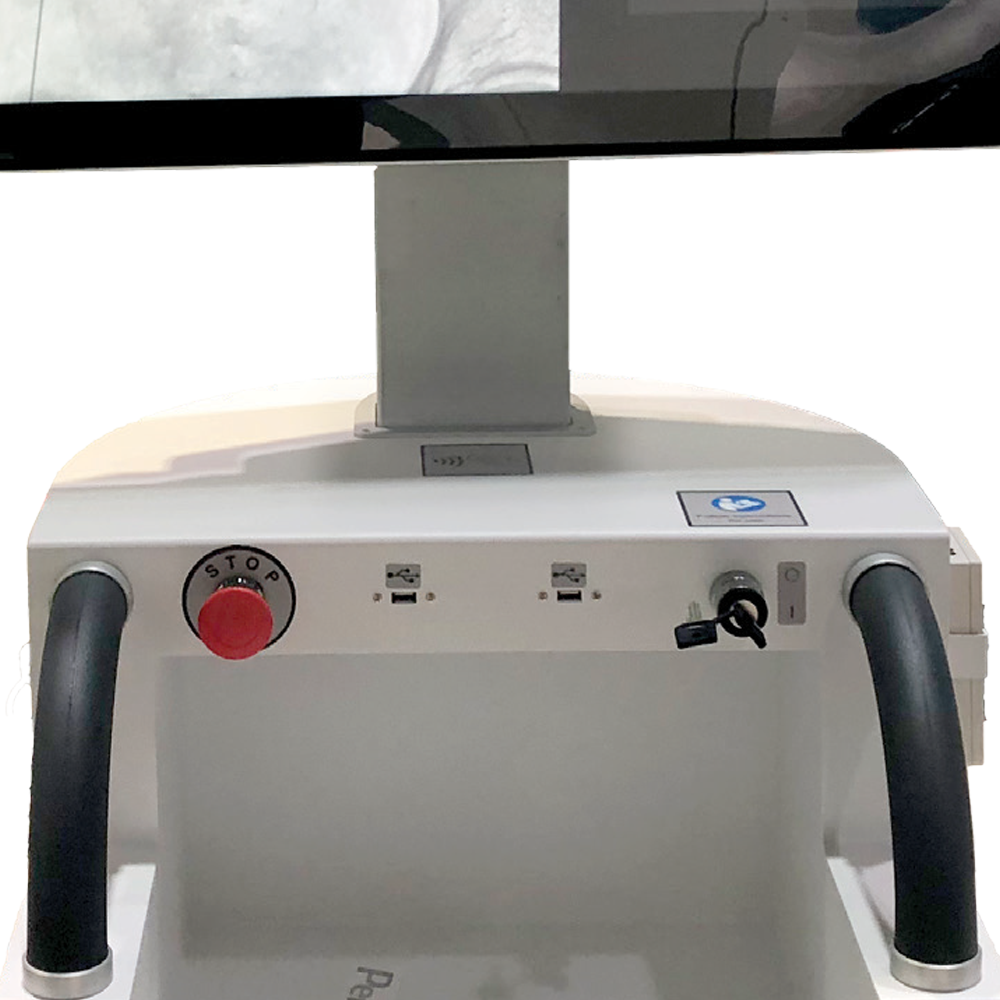

32-Inch 4K Surgical Display

The system includes a large 32-inch 4K multi-touch surgical display station that provides ultra-sharp visualization, fast rendering, and intuitive touchscreen image manipulation. The display offers 3840 × 2160 resolution and wide viewing angles for optimal image review in the operating room.

Active Cooling Technology

Three active cooling modes help reduce tube heat by up to 50%, improving system uptime and supporting longer procedures without overheating.

Large C-Arm Opening and Ergonomic Design

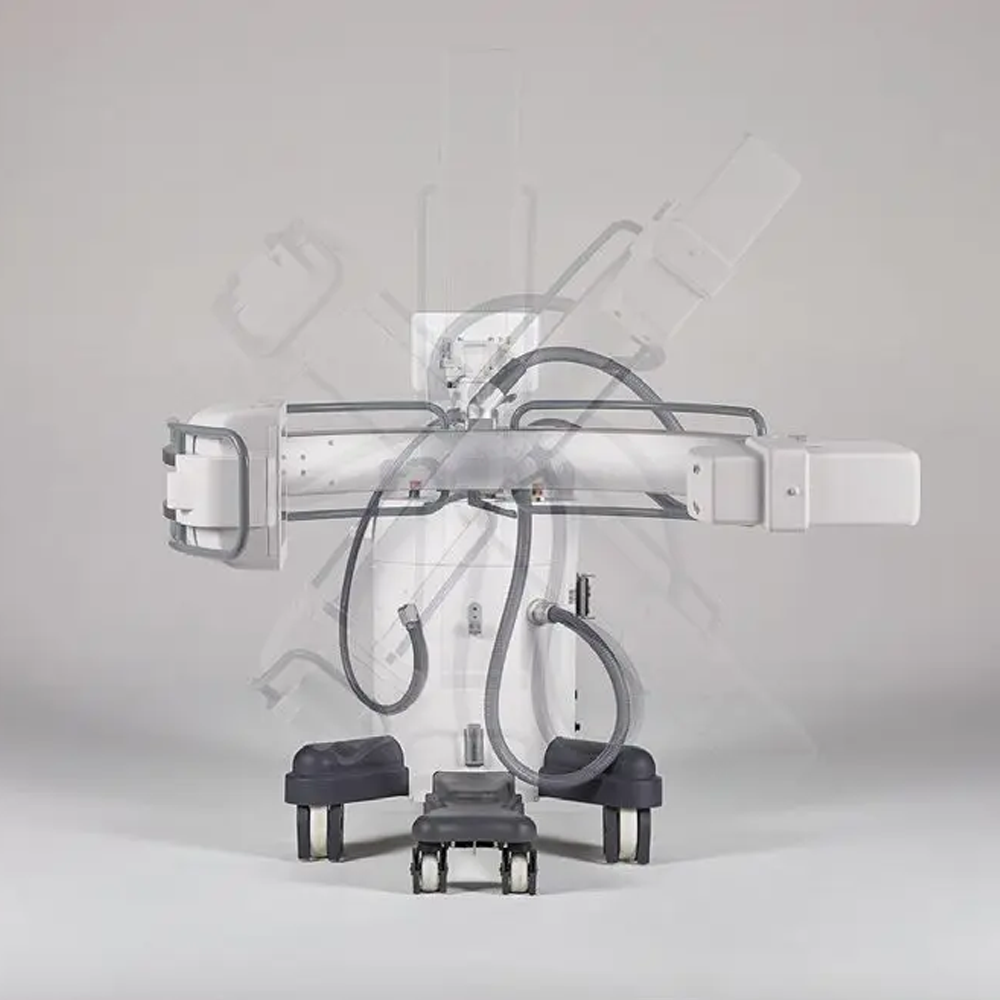

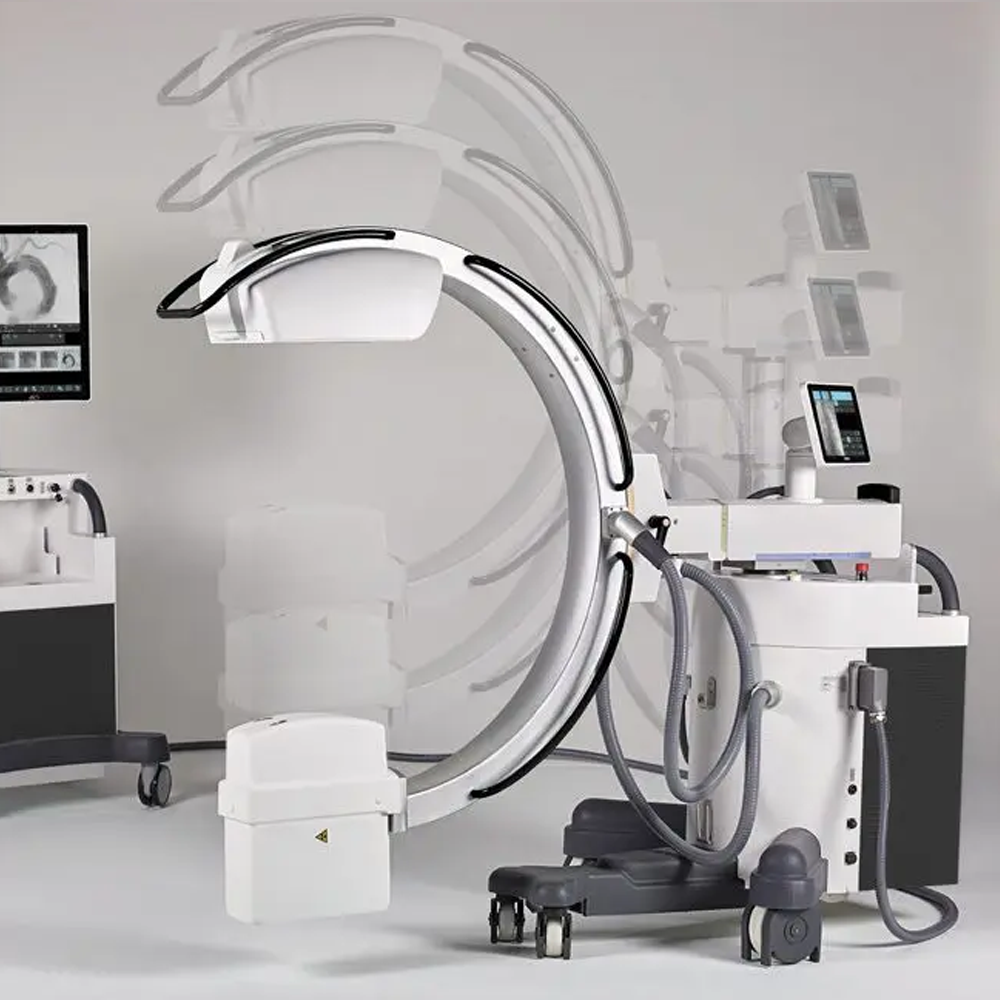

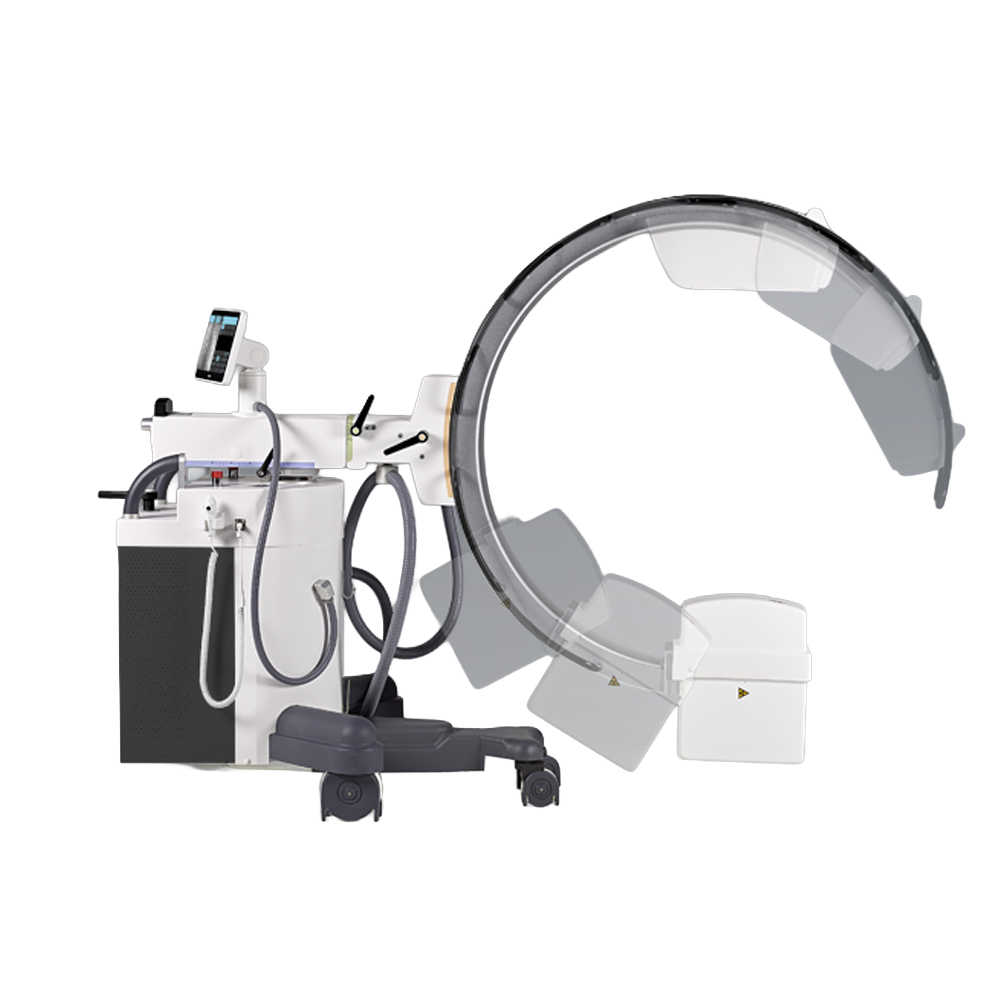

With an 82 cm opening, the Persona C HR provides one of the largest openings in its class, allowing improved access to the patient and surgical field. The balanced C-arm design and lightweight construction enable smooth positioning and stable articulation during procedures.

Intuitive Touchscreen Controls

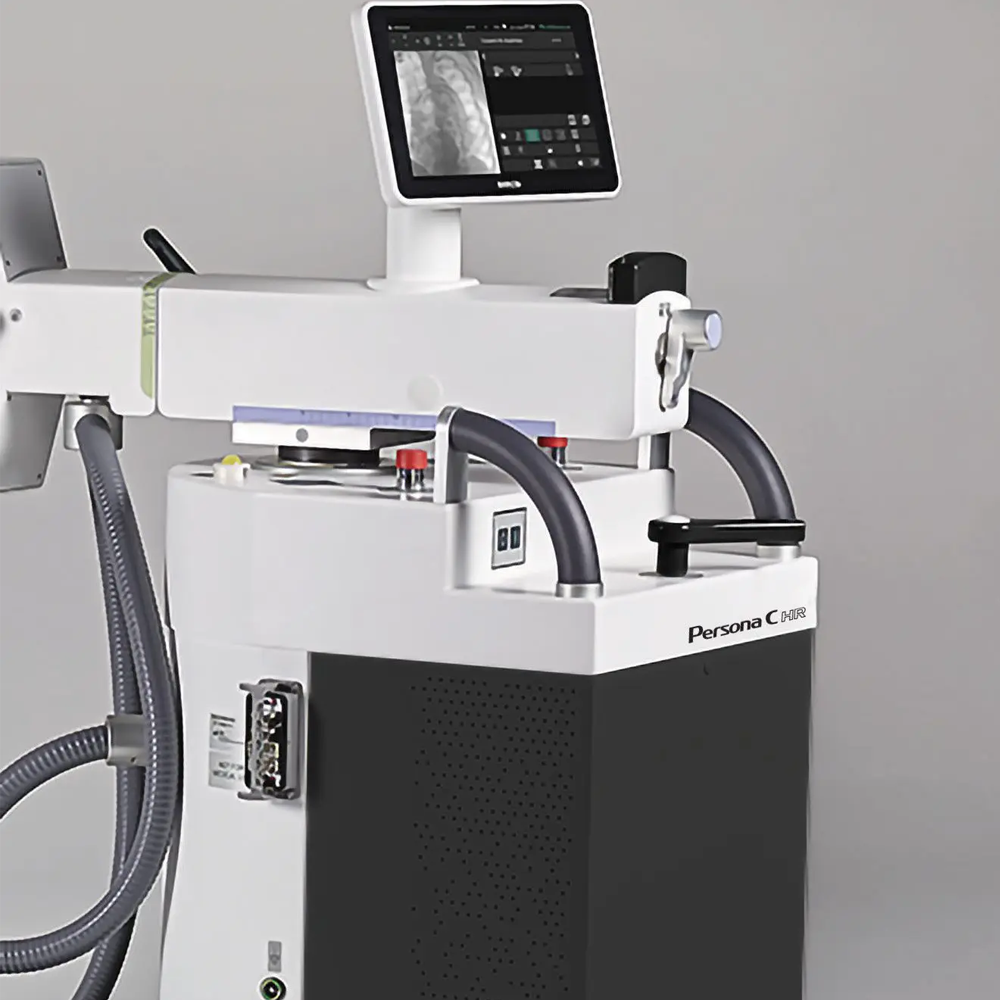

A 13-inch multi-touch operator control panel allows quick access to imaging parameters and system controls with flexible positioning and adjustable viewing angles.

Integrated Connectivity

The system supports full DICOM functionality, including:

• DICOM Worklist
• Query/Retrieve
• DICOM Store
• Media export
• Structured dose reporting

This enables seamless integration with hospital PACS and imaging workflows.

Clinical Applications

The Fujifilm Persona C HR Mobile Fluoroscopy System is designed for a broad range of surgical and interventional procedures, including:

• Orthopedic surgery
• Spine procedures
• Vascular imaging
• Pain management interventions
• Electrophysiology procedures
• Urology and ERCP
• Pacemaker placement
• Trauma and emergency imaging
• The system’s high resolution and high power output make it particularly well suited for procedures requiring detailed fluoroscopic visualization.
• Why Choose the Fujifilm Persona C HR

The Persona C HR C-Arm System delivers a powerful combination of performance and usability, including:

• 25 kW generator power for demanding procedures
• High-resolution 30 × 30 cm IGZO detector
• 30 FPS fluoroscopy for smooth real-time imaging
• Large 32-inch 4K surgical display
• Active cooling for extended procedures
• One of the largest C-arm openings in its class (82 cm)

Together, these features provide clinicians with a high-performance mobile fluoroscopy system designed for precision-driven surgical imaging.

The Fujifilm Persona C HR is a high-resolution mobile fluoroscopy system designed for surgical imaging in operating rooms and interventional suites. It features a powerful 25 kW generator, advanced flat panel detector technology, and 30 frames-per-second fluoroscopy imaging, allowing clinicians to capture detailed real-time images during procedures. The system is designed to deliver high image quality while supporting efficient workflow and precise positioning during surgery.

The Persona C HR C-arm uses a 30 × 30 cm Cesium Iodide (CsI) flat panel detector with advanced IGZO technology. This detector provides high sensitivity and high-resolution imaging while helping reduce noise and radiation dose. The system is engineered to deliver fast image rendering and exceptional clarity for surgical fluoroscopy applications.

The system incorporates three active cooling modes that can reduce tube heat by up to 50%, helping maintain consistent performance during lengthy surgical procedures. This cooling system helps improve procedural throughput and minimizes downtime due to tube heat limitations.
