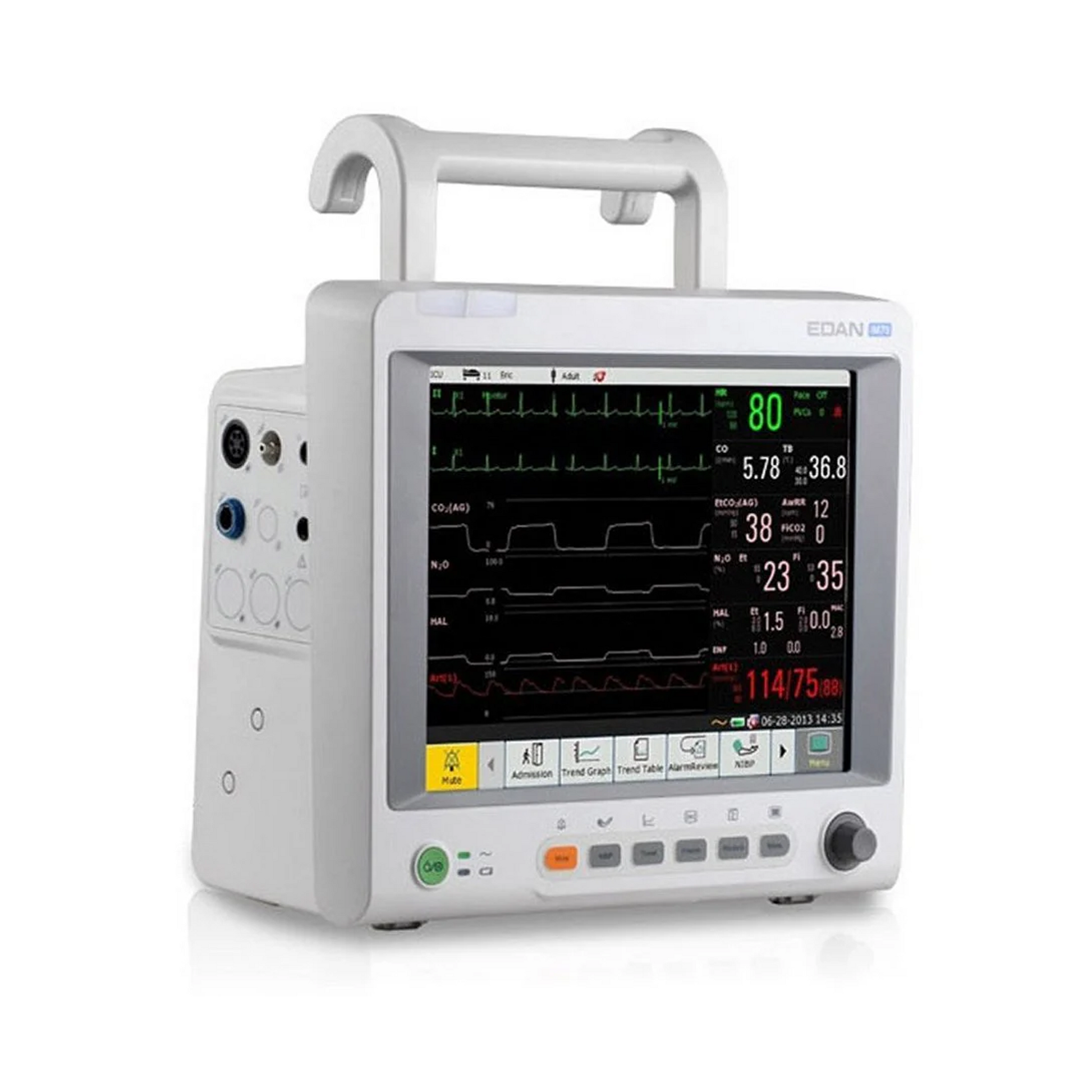

Edan iM70 Touch Patient Monitor
Edan iM70 Touch Patient Monitor
A versatile clinical patient monitor featuring a large 12.1" high-resolution color touchscreen with built-in Wi-Fi and intuitive menus, delivering continuous real-time ECG, SpO2, NIBP, respiration, temperature, and optional advanced parameters like capnography and cardiac output for comprehensive patient monitoring across diverse care settings.
Questions?
Ships in Same Day
Couldn't load pickup availability
Collapsible content
Product Description
The Edan iM70 patient monitor is a flexible multiparameter monitoring system designed for use across general care, cardiac units, intensive care, operating rooms, and other acute-care environments. With a large 12.1" color display, intuitive controls, multiple display modes, and expandable monitoring options, the iM70 helps clinicians manage a wide range of patient acuity levels from one platform.
The iM70 includes standard monitoring for ECG, respiration, non-invasive blood pressure, SpO₂, dual temperature, pulse rate, and heart rate. It can also be configured with optional CO₂, dual invasive blood pressure, multi-gas monitoring, cardiac output, and 12-lead ECG, allowing facilities to tailor the system to specific clinical needs.
Key Features of the Edan iM70

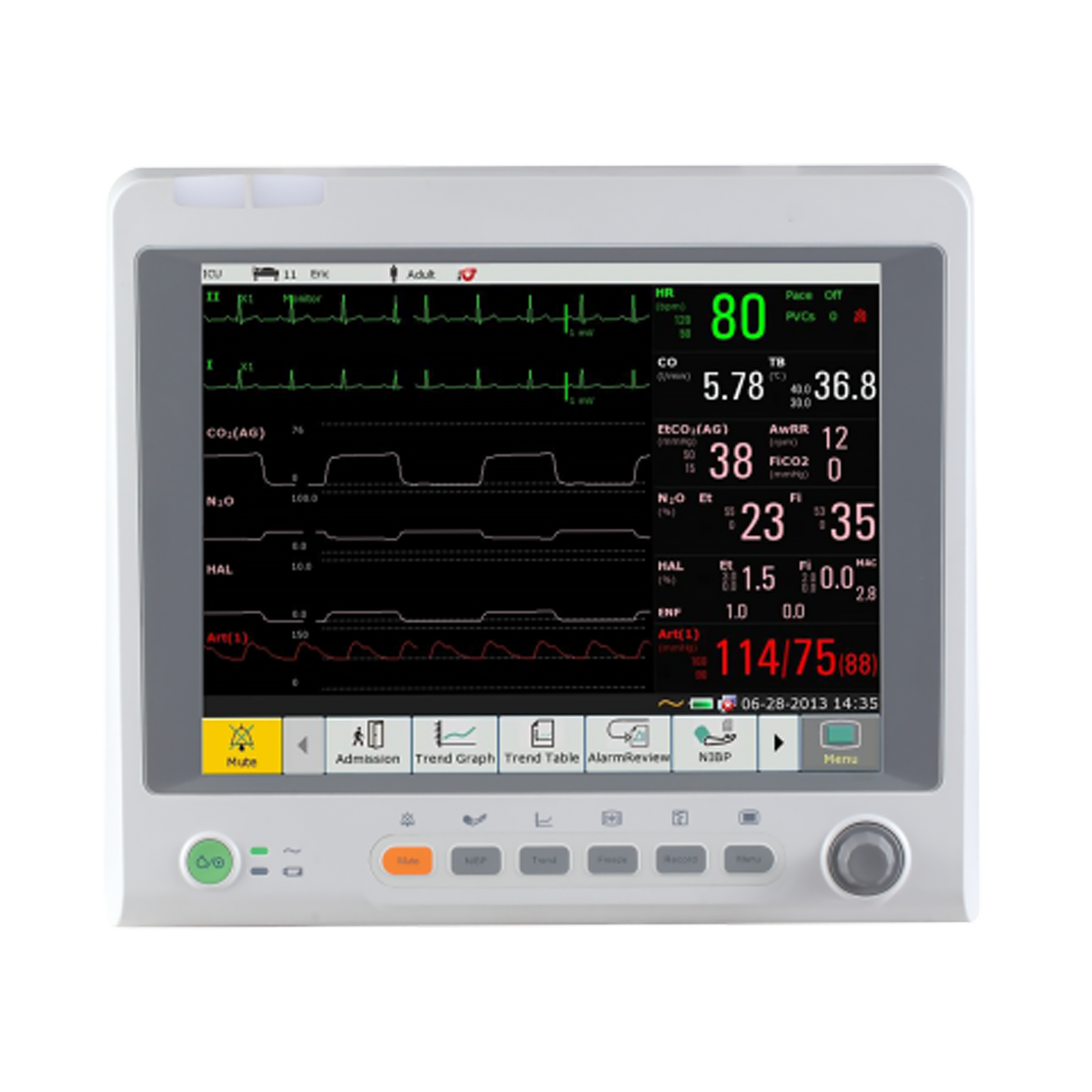

12.1" Color Display
The iM70 features a 12.1" color TFT display with 800 x 600 resolution and support for up to 11 waveforms. Touchscreen operation is available as an option.
Comprehensive Standard Parameters
Standard monitoring includes:
- 3/5-lead ECG
- Respiration
- Non-invasive blood pressure
- Edan SpO₂
- Dual temperature
- Pulse rate
- Heart rate
Expandable Monitoring Options
Available options include:
- CO₂ monitoring
- Dual IBP channels
- Multi-gas monitoring
- Cardiac output
- 12-lead ECG
- Thermal recorder
Advanced ECG Monitoring
The iM70 supports 3-lead and 5-lead ECG monitoring, heart-rate measurement from 15 to 300 bpm for adults and up to 350 bpm for pediatric and neonatal patients, arrhythmia analysis, ST-segment analysis, and pacemaker detection.
Clinical Monitoring Technologies
The iM series includes Edan technologies such as:
- iSEAP ECG for arrhythmia detection, pacemaker detection, and heart-rate measurement
- iMAT SpO₂ for motion and low-perfusion performance
- iCUFS NIBP for cardiac, hypertensive, and neonatal patients
Trend and Event Review
The system supports up to 120 hours of graphic and tabular trends, 120 seconds of full-disclosure waveform review, up to 1,200 NIBP measurements, and review of arrhythmia, alarm, and monitoring events.
CO₂ and Gas Monitoring Options
The iM70 can be configured with Edan G2 sidestream CO₂ or Respironics mainstream/sidestream CO₂ modules. Optional multi-gas capabilities support anesthesia gas monitoring, depending on the selected configuration.
Built-In Wi-Fi and Central Monitoring Support
Built-in Wi-Fi and central monitoring system compatibility help support networked patient surveillance and flexible deployment throughout the facility.
Portable Battery Operation
The iM70 supports rechargeable Li-ion battery operation. Depending on battery capacity and monitoring conditions, operating time is listed at 150 minutes or more with a 2.1 Ah battery and 300 minutes or more with a 4.2 Ah battery.
Flexible Mounting Options
The monitor can be configured with bedrail hooks, a wall mount, or rolling stand for convenient use in different care settings.
Ideal Clinical Applications
The Edan iM70 is well suited for:
- Intensive care units
- Operating rooms
- Post-anesthesia care units
- Emergency departments
- Cardiac care units
- General hospital wards
- Step-down units
- Ambulatory surgery centers
Why Choose the Edan iM70?
The iM70 is a strong choice for facilities that need a flexible patient monitor with a large display, broad standard parameter coverage, built-in Wi-Fi, and advanced expansion capability. Its combination of ECG, SpO₂, NIBP, temperature, IBP, CO₂, gas monitoring, cardiac output, trend review, and central monitoring support makes it adaptable to both routine and higher-acuity care environments.
Specifications
EDAN iM70 PATIENT MONITOR TECHNICAL SPECIFICATIONS
DISPLAY
Display: 12.1-inch color TFT touchscreen
Resolution: 800 x 600
Waveform display: Up to 11 waveforms
Indicators: One power indicator, two alarm indicators, and one charging indicator
PHYSICAL SPECIFICATIONS
Dimensions: 328 mm x 158 mm x 285 mm (12.9 x 6.2 x 11.2 inches)
Weight: Less than 5.5 kg (12.1 pounds) without battery
Ingress protection: IPX1
Operating mode: Continuous operation
PATIENT APPLICATIONS
Adult
Pediatric
Neonatal
SUPPORTED MONITORING PARAMETERS
3-lead, 5-lead, or 12-lead ECG
Respiration (RESP)
Non-invasive blood pressure (NIBP)
Oxygen saturation (SpO2)
Dual temperature (TEMP)
Quick temperature
Dual invasive blood pressure (IBP)
End-tidal carbon dioxide (EtCO2)
Cardiac output (C.O.)
Anesthetic gas (AG)
Available parameters depend on the selected system configuration and installed modules.
ECG
Lead configurations: 3-lead, 5-lead, or 12-lead
3-lead selections: I, II, III
5-lead selections: I, II, III, aVR, aVL, aVF, V
12-lead selections: I, II, III, aVR, aVL, aVF, V1-V6
Lead naming standards: AHA and IEC
Adult heart rate range: 15-300 bpm
Pediatric and neonatal heart rate range: 15-350 bpm
Heart rate accuracy: +/-1% or +/-1 bpm, whichever is greater
Heart rate resolution: 1 bpm
Waveform speeds: 6.25, 12.5, 25, or 50 mm/sec.
Display sensitivity: 1.25, 2.5, 5, 10, 20, or 40 mm/mV
Automatic gain: Available
Diagnostic bandwidth: 0.05-150 Hz
Monitor bandwidth: 0.5-40 Hz
Surgery bandwidth: 1-20 Hz
ST measurement range: -2.0 to +2.0 mV
Adult PVC measurement range: 0-300 PVCs/min.
Pediatric and neonatal PVC measurement range: 0-350 PVCs/min.
Pacemaker pulse detection: Supported
Defibrillation protection: Supported
Electrosurgical interference protection: Supported
Arrhythmia analysis: 16 adult and pediatric arrhythmia classifications
RESPIRATION
Measurement method: Trans-thoracic impedance
Measurement leads: Lead I or Lead II
Adult respiration rate range: 0-120 rpm
Pediatric and neonatal respiration rate range: 0-150 rpm
Accuracy: +/-2 rpm from 6 rpm through the maximum specified range
Resolution: 1 rpm
Waveform speeds: 6.25, 12.5, 25, or 50 mm/sec.
Selectable apnea alarm delay: 10, 15, 20, 25, 30, 35, or 40 seconds
NON-INVASIVE BLOOD PRESSURE
Measurement method: Oscillometric
Measurement modes: Manual, automatic, and continuous
Measurements: Systolic, diastolic, mean arterial pressure, and pulse rate
Automatic measurement intervals: 1-480 minutes
Continuous mode: Five-minute measurement cycle with five-second intervals
Pressure resolution: 1 mmHg
Maximum mean error: +/-5 mmHg
Maximum standard deviation: 8 mmHg
Adult systolic range: 40-270 mmHg
Adult diastolic range: 10-215 mmHg
Adult MAP range: 20-235 mmHg
Pediatric systolic range: 40-200 mmHg
Pediatric diastolic range: 10-150 mmHg
Pediatric MAP range: 20-165 mmHg
Neonatal systolic range: 40-135 mmHg
Neonatal diastolic range: 10-100 mmHg
Neonatal MAP range: 20-110 mmHg
Pulse rate range: 40-240 bpm
Pulse rate accuracy: +/-3 bpm or +/-3.5%, whichever is greater
OXYGEN SATURATION
SpO2 technology: EDAN or Nellcor
EDAN SpO2 measurement range: 0-100%
Resolution: 1%
Adult and pediatric accuracy: +/-2% from 70-100%
Neonatal accuracy: +/-3% from 70-100%
Pulse rate range: 25-300 bpm
Pulse rate accuracy: +/-2 bpm
Data update interval: One second
TEMPERATURE
Measurement method: Thermal resistance
Number of channels: Two
Compatible sensors: YSI-10K and YSI-2.252K
Measurement range: 0-50 degrees Celsius (32-122 degrees Fahrenheit)
Resolution: 0.1 degrees Celsius
Accuracy without sensor: +/-0.1 degrees Celsius
Refresh time: One to two seconds
Display units: Celsius or Fahrenheit
OPTIONAL QUICK TEMPERATURE
Monitoring range: 25-45 degrees Celsius
Predictive range: 35.5-42 degrees Celsius
Sensor options: Oral/axillary or rectal
Resolution: 0.1 degrees Celsius
Accuracy without sensor: +/-0.1 degrees Celsius
Predictive measurement time: Less than 30 seconds
OPTIONAL INVASIVE BLOOD PRESSURE
Measurement method: Direct invasive measurement
Number of channels: Two
Arterial pressure range: 0-300 mmHg
Pulmonary artery pressure range: -6 to +120 mmHg
CVP, RAP, LAP, and ICP range: -10 to +40 mmHg
P1 and P2 range: -50 to +300 mmHg
Resolution: 1 mmHg
Accuracy without sensor: +/-2% or +/-1 mmHg, whichever is greater
Display units: mmHg or kPa
OPTIONAL CARBON DIOXIDE
Patient applications: Adult, pediatric, and neonatal
Configurations: Sidestream or mainstream
Measurement method: Non-dispersive infrared gas analysis
EtCO2 range: 0-150 mmHg
Sidestream airway respiration rate range: 2-150 rpm
Mainstream airway respiration rate range: 0-150 rpm
Airway respiration rate accuracy: +/-1 rpm
Display units: mmHg, %, or kPa
Selectable apnea alarm delay: 10-40 seconds
O2 compensation: Supported
Anesthetic gas compensation: Supported
OPTIONAL CARDIAC OUTPUT
Patient application: Adult
Measurement method: Thermodilution
Cardiac output range: 0.1-20 L/min.
Resolution: 0.1 L/min.
Accuracy: +/-5% or +/-0.2 L/min., whichever is greater
Blood temperature range: 23-43 degrees Celsius
Injectate temperature range: -1 to 27 degrees Celsius
OPTIONAL ANESTHETIC GAS MONITORING
Sidestream and mainstream modules available
Supported measurements include CO2, N2O, O2 depending on the module, airway respiration rate, and minimum alveolar concentration
Supported anesthetic agents include halothane, isoflurane, enflurane, sevoflurane, and desflurane
Automatic anesthetic-agent identification: Supported
Mixed-agent monitoring: Supported
DATA STORAGE
Trend review: One hour at one-second resolution
Extended trend review: Up to 120 hours at one-minute resolution
Alarm and monitoring events: Up to 60 sets
NIBP measurements: Up to 1,200 sets
Arrhythmia events: Up to 60 sets
12-lead diagnostic reviews: Up to 50 sets
OPTIONAL RECORDER
Recording width: 48 mm
Paper speeds: 25 or 50 mm/sec.
Number of traces: Three
Recording capabilities: Real-time, timed, alarm, trend, NIBP, arrhythmia, 12-lead ECG, hemodynamic, and cardiac-output recording
BATTERY AND POWER
Power supply: 100-240 VAC, 50/60 Hz
Available battery capacities: 2.1 Ah or 4.2 Ah
2.1 Ah battery operating time: At least 150 minutes
4.2 Ah battery operating time: At least 300 minutes
2.1 Ah battery charging time: 200 minutes or less
4.2 Ah battery charging time: 360 minutes or less
ENVIRONMENTAL SPECIFICATIONS
Operating temperature: 5-40 degrees Celsius (41-104 degrees Fahrenheit)
Storage and transport temperature: -20 to 55 degrees Celsius (-4 to 131 degrees Fahrenheit)
Operating humidity: 25-80%, non-condensing
Storage and transport humidity: 25-93%, non-condensing
Operating atmospheric pressure: 860-1,060 hPa
Storage and transport atmospheric pressure: 700-1,060 hPa
Specifications and available monitoring parameters may vary according to the installed modules and system configuration.
