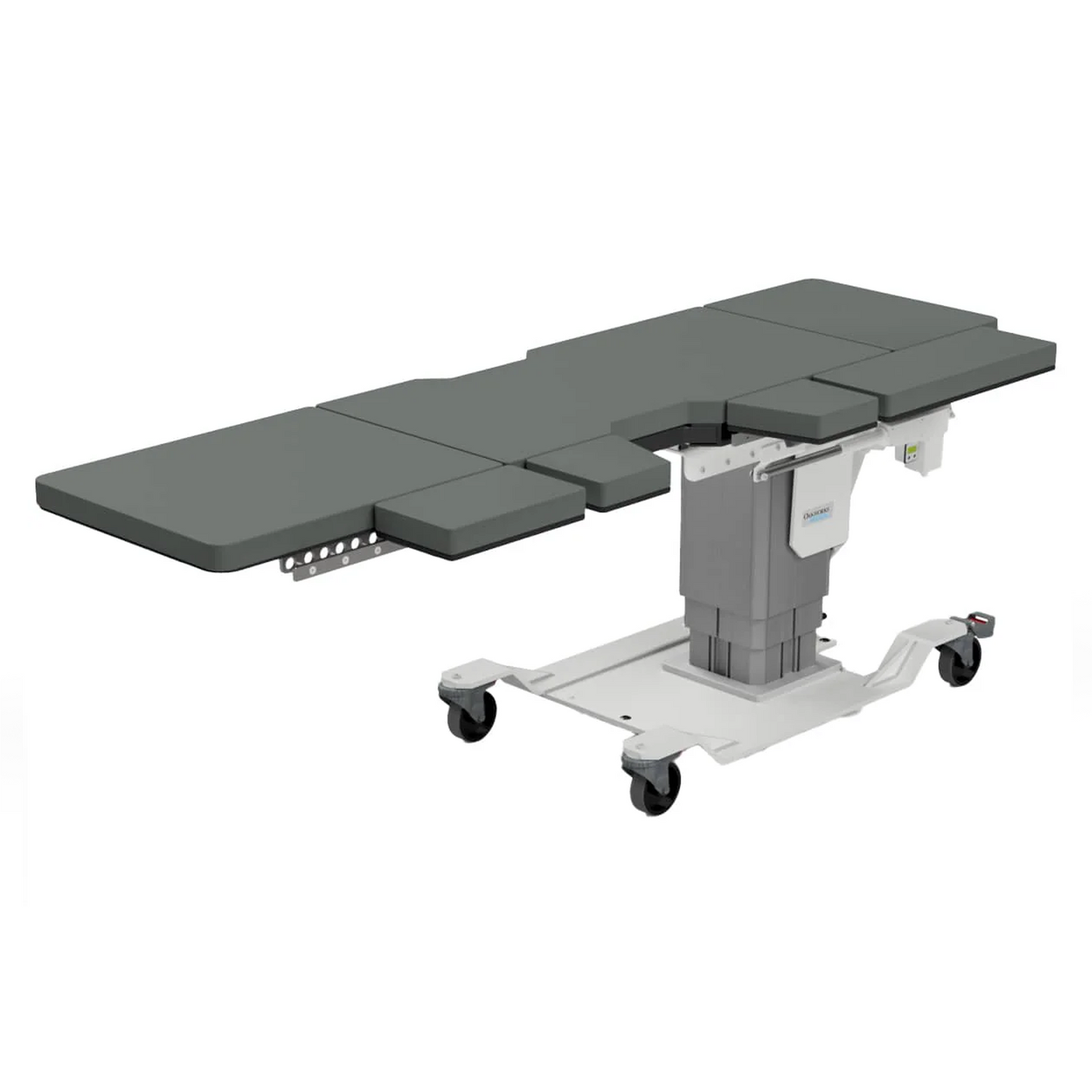

Oakworks CFLU401 Lithotripsy-Urology Table
Oakworks CFLU401 Lithotripsy-Urology Table
A versatile 4-motion powered lithotripsy and urology table with electric height, Trendelenburg tilt, longitudinal, and lateral adjustments, a large carbon fiber radiolucent top, and easy-to-use extension system that supports precise positioning for C-Arm and lithotripsy procedures while also converting quickly for urology use — engineered for dependable performance in mobile or stationary surgical and procedural settings.
Questions?
Collapsible content
Product Description
Oakworks CFLU401 Lithotripsy‑Urology Table – Full 4-Movement Motorized Imaging with Versatile Configuration
The Oakworks CFLU401 Lithotripsy‑Urology Table delivers unmatched precision, durability, and flexibility for both lithotripsy and urologic procedures. Engineered to support both stationary and mobile use, it features four motorized movements—height adjustment, Trendelenburg tilt, longitudinal travel, and lateral travel—all controlled via intuitive hand and foot controls for effortless positioning and workflow enhancement.
Built with a 23″ × 47″ carbon fiber tabletop providing a 53" metal-free imaging surface, the CFLU401 offers crystal-clear fluoroscopic performance while maximizing patient and device access. The table's electric height range of 27–45.5 inches, ±15° / –11° Trendelenburg tilt, 10-inch longitudinal travel, and ±4-inch lateral adjustments allow for precise targeting and patient alignment during procedures.
Key Features:
- Four Motorized Movements – Height, Trendelenburg tilt, longitudinal travel, and lateral travel for superior positioning control
- Radiolucent Carbon Fiber Top – 53" imaging area within 23" × 47" dimensions for seamless C-arm and lithotripter access
- Smart Control Options – Versatile hand and foot control interfaces for ergonomic operation
- High Weight Capacity – Supports up to 500 lb for the main table and 200 lb per extension
- Extension System Included – Radiolucent patient transfer and lateral extensions with full-length T-rails
- Enhanced Comfort & Mobility – Includes a 2″ Radiolucent Comfort Foam® pad, 5″ locking casters, and a digital angle gauge
- Safety & Reliability – Comes with patient restraint straps, a urology bag hoop, and mobile-ready construction
- Certified & Supported – CE marked, cETLus approved, CB certified, FDA listed, and backed by a 3-year parts / 2-year labor warranty
Ideal For:
- Outpatient lithotripsy suites
- Urology centers
- Interventional fluoroscopic and C-arm imaging procedures
- Over‑table positioning for enhanced procedural access
Specifications
- Carbon Fiber Top - 53 in. (135cm) Metal free imaging space with Patient Transfer Extension
- Top Dimensions - 23 in. (58cm) wide x 47 in. (119cm) long
- Motion 1 - Electric Height Range 27 in. - 45 in. (69-114cm)
- Motion 2 - Electric Trendelenburg tilt +15°/-11°
- Motion 3 - Electric Longitudinal travel 10 in. (25cm)
- Motion 4 - Electric Lateral travel ±4 in. (10cm)
- Controls - Multi-function hand control and foot control
- Weight Capacity - 500 lb (227kg) Each Extension: 200 lb (91kg)
- Product Weight - 618 lb (280kg)
- Radiolucent Lateral Extension - (1) Lateral Extension 8 in. x 24 in. (20cm x 60cm). (1) Lateral Extension 8 in. x 14 in. (20cm x 36cm). (2) Angled Lateral Extensions 8 in. x 11 in. (20cm x 28cm)
- Radiolucent Patient Transfer Extensions - (1) End Extension 23 in. x 28 in. (58cm x 71cm) (1) Short End Extension 23 in. x 16 in. (58cm x 40cm)
- Included Features - 2 in. (5cm) Radiolucent Comfort Foam® table top pad, 5 in. (13cm) locking casters, patient restraint straps (2), Digital angle gauge, Industry standard full length T-rails on each side, Urology bag hoop (bag not included)
- Warranty - 3 years parts, 2 years labor
- Safety Listings - CE marked, cETLus approved, CB Certificate, FDA listed
- Fabric - Premium, PVC free TerraTouch™ Medical Grade Fabric is ISO 10993 Certified
Additional Information
- Lithotripsy
- Urology
- Height
- Trendelenberg
- Longitudinal Travel
- Lateral Travel
