CT vendors have spent the last fifteen years using "iterative reconstruction" as a selling point. The term shows up in brochures with different brand names — Intelli IP, ASIR, ADMIRE, SAFIRE, iDose — which makes it harder than it should be to understand what these systems actually do and whether the differences between implementations matter clinically. Here is a plain-language explanation.
What Filtered Back Projection Does
The original CT reconstruction algorithm, filtered back projection (FBP), works by taking the raw projection data acquired as the X-ray tube rotates around the patient and mathematically back-projecting it across the image plane from every acquisition angle. A ramp filter sharpens the result by enhancing edges. The math is elegant, computationally efficient, and has been refined over 50 years of CT development.
FBP has one significant limitation: the noise it produces is proportional to the inverse square root of the dose. Halving the radiation dose quadruples the noise in the reconstructed image. At some point, the image becomes too noisy to read reliably. This noise floor set the practical lower limit of CT dose for decades.
What Iterative Reconstruction Does Differently
Iterative reconstruction starts from the same raw projection data but takes a fundamentally different approach. Instead of a single mathematical pass, IR algorithms start with an initial image estimate and iteratively refine it by comparing a simulated forward projection of the current estimate to the actual measured data. The difference between the simulated and measured data drives corrections to the estimate, which is refined over multiple iterations until the algorithm converges.
The key advantage is that IR can incorporate models of the acquisition process — the known statistical properties of X-ray photon noise, the physics of X-ray scatter, the geometry of the detector — and use these models to separate real signal from noise during reconstruction. FBP cannot do this; it treats noise as inseparable from signal and processes them together.
Projection Space vs. Image Space IR
Most practical iterative reconstruction systems operate in one of two domains or a combination of both. Image space IR works on the reconstructed image, applying noise suppression algorithms to the final pixel values. This is computationally efficient and can be applied as a post-processing step to any FBP reconstruction, which is why early commercial implementations used this approach.
Projection space IR operates on the raw sinogram data before reconstruction, using statistical models of the acquisition to suppress noise at the source before the image is ever formed. This is more computationally intensive but more effective, because it addresses noise at the origin rather than trying to separate it from signal in the final image.

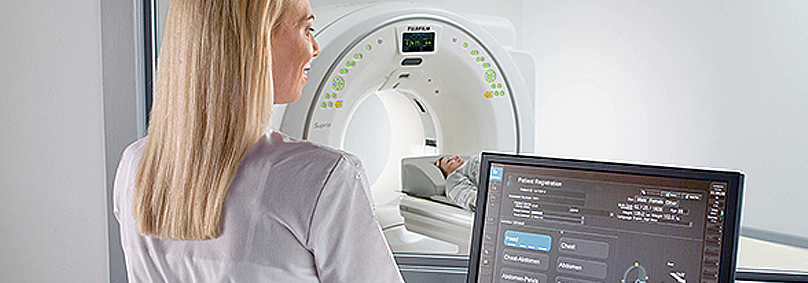

Systems like Fujifilm's Intelli IP, used in the Supria True64, combine both approaches — projection space statistical noise reduction followed by image space anatomical noise reduction — to achieve greater total noise suppression than either approach alone. The SCENARIA View's Intelli IPV takes this further with a model-based approach that can achieve dose reductions of up to 83 percent at equivalent image quality.
Deep Learning Reconstruction: The Next Step
The newest generation of CT noise reduction uses deep learning neural networks rather than iterative mathematical algorithms. Trained on large datasets of paired low-SNR and high-SNR CT images, these networks learn to predict what a low-noise image looks like from a noisy input. Fujifilm's Synergy DLR (originally developed for MRI) and CT-equivalent implementations apply this approach, with the advantage of faster computation and noise suppression characteristics that are difficult to achieve with iterative algorithms.
Bottom Line: Iterative reconstruction means the CT system uses multiple rounds of mathematical refinement to separate signal from noise, rather than a single-pass back-projection. The practical result is the ability to produce diagnostic quality images at lower radiation dose. Implementations vary in sophistication and achievable dose reduction — projection space plus image space combinations outperform image space alone, and model-based approaches outperform statistical-only implementations.
