Ultrasound transducers are simultaneously the most clinically essential and the most frequently mistreated components in an ultrasound system. A high-end system with degraded transducers delivers inferior image quality; a mid-range system with well-maintained transducers performs at its design potential. Transducer damage is also expensive, replacement costs range from several hundred to several thousand dollars per probe, and damage from improper handling or cleaning is generally not covered under warranty. The practices that preserve transducer performance are not complicated, but they are not universally followed.
Cleaning: Matching the Disinfection Level to the Application
Transducer disinfection requirements are classified by the Spaulding framework, which divides medical devices into three categories based on their infection risk. Low-level disinfection (LLD) applies to probes that contact only intact skin, the abdominal probe during a routine obstetric exam. Intermediate-level disinfection (ILD) applies to probes that contact non-intact skin or mucous membranes, the endovaginal probe after use. High-level disinfection (HLD) is required for probes used in sterile body cavities, a transesophageal probe, a probe used during an interventional procedure.
Applying a higher level of disinfection than required wastes time and increases probe wear. Applying a lower level than required creates infection control risk. The key practical point is that endovaginal and transrectal probes require HLD, not just the barrier (probe cover) plus wipe-down that some facilities use. HLD-compatible ultrasound probes must be verified with each disinfection product before use; not all disinfectants are compatible with all probe materials, and using an incompatible agent can damage the probe housing or transducer face.
Compatible Disinfectants and Probe Materials
Probe manufacturers specify approved disinfectants for each probe model. Using unapproved products, even products that are appropriate disinfectants in other clinical contexts, can cause progressive damage to the lens material, housing, cable jacket, and connector. Common problem agents include products containing glutaraldehyde (damages some probe materials), bleach at high concentrations (corrosive to metallic components), and alcohol at concentrations above 70 percent for extended contact times. Quaternary ammonium compounds and hydrogen peroxide-based wipes at manufacturer-approved concentrations are compatible with most modern probe materials.
The IP rating of a probe indicates its resistance to water and dust ingress. The Mindray TE Air, rated IP68, can withstand complete immersion in disinfectant solutions for the soak time required for high-level disinfection. Standard probes without an IP68 or equivalent rating should not be fully immersed, the connector end and cable-probe junction are typically not sealed for immersion and can be damaged by soaking.
Physical Handling: The Most Preventable Source of Damage
The most common causes of transducer damage are mechanical: probes dropped on hard surfaces, cables pulled against the probe-cable junction, probes stored improperly where the cable is kinked or compressed, and connectors inserted incorrectly. The piezoelectric element array and lens in the probe face are engineered to within microns of precision; a drop that produces no visible damage to the housing may still fracture elements or delaminate the lens, producing dead elements that show up as drop-outs in the image.

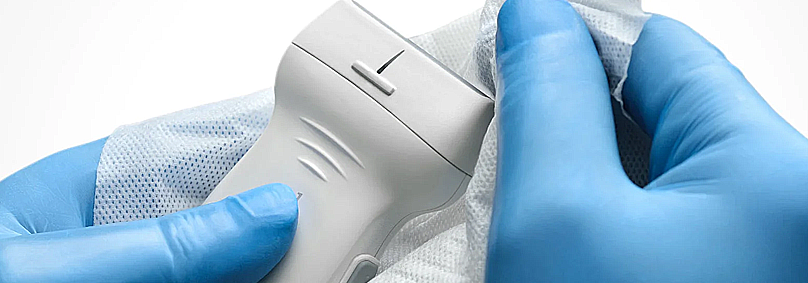

Probe storage between uses should keep cables coiled loosely without tight bends, with probes hanging or resting in a position that does not place mechanical stress on the cable-probe junction. Most ultrasound carts include probe holders for this purpose, using them consistently instead of laying probes on the keyboard or ultrasound cart surface is a habit that meaningfully extends probe life. Gel should be completely removed from the probe face and cable after each use; dried gel is more difficult to remove and can cause degradation of probe materials over time.
Quality Checks and Periodic Inspection
A quick quality check before each exam confirms that the probe is performing normally: the image should show a complete field with no element drop-outs (vertical lines of missing signal), uniform sensitivity across the face, and no image artifacts attributable to damaged elements. Any change in image appearance that cannot be explained by the patient's anatomy warrants a systematic check against a known phantom or tissue equivalent to confirm whether the issue is the probe, the system, or the patient.
Bottom Line: Transducer care is not a minor maintenance item — it directly affects image quality and clinical performance while controlling one of the most significant ongoing equipment costs in ultrasound practice. Matching disinfection level to application, using only manufacturer-approved products, handling probes as precision instruments, and storing them correctly are practices that protect your investment and keep your imaging at peak performance.
