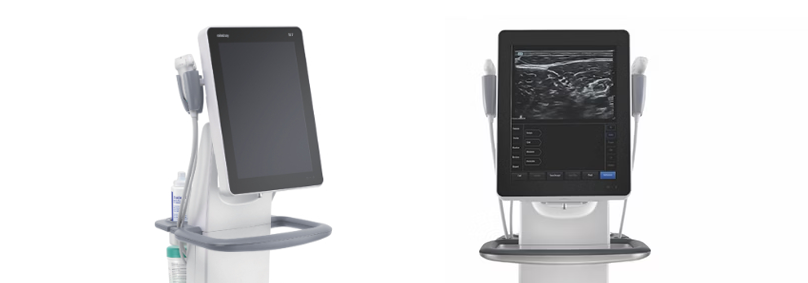

Mindray's Crystal Series sits in the mid-range ultrasound segment where most purchase decisions actually happen — systems capable enough for serious clinical work, priced for practices that are not running a tertiary care imaging department. The TE7 and TE5 share the same Crystal Architecture platform, which makes the comparison more nuanced than a simple specs table. What you are really choosing between is capability depth, workflow features, and which clinical applications you actually need covered.
The Shared Foundation: Crystal Architecture
Both the TE7 and TE5 run on Mindray's Crystal Architecture platform. At the hardware level, this means a unified beamforming engine, shared transducer port compatibility, and access to the same core imaging modes: B-mode, Color Doppler, Power Doppler, Spectral Doppler (PW and CW), and M-mode. The fundamental image quality engine is not dramatically different between the two systems — a well-configured TE5 images competently across the general clinical spectrum.
Both systems support iWorks, Mindray's automated protocol-based workflow system that stores complete exam sequences by body part and clinical indication. A technologist opens the knee protocol and the system automatically sequences through the correct preset, transducer selection, and annotation workflow. iWorks dramatically reduces scan time variability across operators and is a genuine differentiator for busy practices with staff of mixed experience levels.
Where the TE7 Pulls Ahead
The TE7 distinguishes itself with a 12-inch high-resolution touch display compared to the TE5's smaller screen — a difference that matters for detailed image assessment at the point of care. The TE7's advanced beamforming implementation produces higher spatial resolution in challenging patients, where beam steering precision translates to real diagnostic information.
The TE7 Crystal Series adds iVocal voice control, allowing hands-free system operation for preset selection, image capture, and workflow navigation. In sterile applications — needle guidance, point-of-care procedures where gloved hands should not contact the touchscreen — voice control is a practical clinical tool, not a novelty. iNeedle+ provides enhanced needle visualization with automatic angle detection, making the TE7 better suited to procedural guidance work.
Z-Tracking is the TE7's real-time needle tip tracking technology that maintains visualization of the needle tip regardless of angulation relative to the beam. For practitioners doing frequent injections, nerve blocks, or vascular access procedures under ultrasound guidance, Z-Tracking reduces procedural time and improves first-pass success rates. The TE5 does not include this capability.
Crystal Flow on the TE7 provides advanced microvascular imaging without the use of contrast agents — detecting slow blood flow in small vessels that standard Color Doppler misses. For thyroid, MSK, and hepatic applications, Crystal Flow opens diagnostic windows that the TE5's standard Doppler cannot match.
When the TE5 Is the Right Answer
The TE5 Crystal Edition covers general imaging, OB/GYN, abdominal, cardiac, and vascular applications with solid image quality and a complete Doppler implementation. For practices where the primary use cases are standard echocardiography, OB surveillance, abdominal surveys, and point-of-care assessments — without a heavy procedural guidance or advanced vascular component — the TE5 delivers genuine clinical value at a lower price point.
The TE5 is also a stronger fit for training environments or satellite clinic deployments where the TE7's advanced features would be underutilized. Both systems carry Mindray's 5-year standard warranty and Living Technology commitment, meaning software feature upgrades continue after purchase.
Bottom Line: If your practice includes procedural guidance, advanced vascular work, or high-volume scanning where voice control and needle tracking tools matter, the TE7 is worth the investment. If your clinical scope is general imaging without those specialty features, the TE5 Crystal Edition delivers Crystal Architecture performance at a more accessible price. Both are capable systems on a platform that grows with you.
