Fluoroscopy is one of the most useful tools in modern surgery. It is also one of the most misunderstood when it comes to radiation dose. Surgeons who use C-arms every day sometimes have a vague sense that less radiation is better without a clear mental model of where the dose actually comes from, how much is going where, or which technique adjustments make a meaningful difference. This post builds that mental model.
Where the Radiation Goes

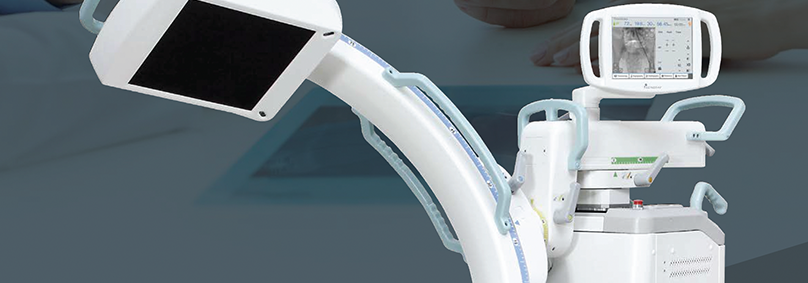

When a C-arm operates in fluoroscopy mode, the X-ray beam exits the tube, passes through the patient, and is captured by the detector. The patient absorbs some of that energy along the way. But the patient is also a source of scattered radiation — X-ray photons that interact with tissue and scatter in all directions, including back toward the surgical team.
Scatter dose to the surgical team is real but manageable. The inverse square law applies: doubling the distance from the X-ray tube reduces scatter dose by approximately 75 percent. The scrub tech and circulator standing several feet from the field receive substantially less scatter than the surgeon leaning directly over the beam. Lead aprons (a minimum of 0.5mm lead equivalent) attenuate most of the scattered energy reaching the team. Thyroid shields and leaded glasses address the anatomy not covered by the apron.
Technique Factors That Reduce Patient Dose
The most impactful dose reduction lever is reducing fluoroscopy time. This sounds obvious but is underappreciated in practice. Keeping the foot off the pedal between imaging moments — positioning, then imaging, rather than imaging continuously during positioning — can cut fluoroscopy time in half without changing a single technical setting. Cumulative dose is directly proportional to beam-on time.
Pulsed fluoroscopy substitutes brief X-ray pulses for a continuous beam, generating the appearance of motion on the display by playing back the most recent acquired frame between pulses. Standard fluoroscopy runs at 30 frames per second continuously; pulsed fluoroscopy at 7.5 pulses per second reduces beam-on time by 75 percent with acceptable image quality for most orthopedic and general surgical applications. Not every procedure requires 30 fps real-time imaging.
Collimation limits the beam to the anatomical region of interest, reducing both patient skin dose and scatter. A collimated beam covering half the field area reduces dose to that area by roughly half. Last Image Hold captures and displays the final image from a fluoroscopy run, allowing the surgeon to review positioning without additional radiation. Using last image hold rather than re-imaging for assessment is a simple habit that adds up over a full case.
What Modern C-Arms Do Automatically
Contemporary C-arms include automatic dose rate control systems that continuously adjust kVp and mAs based on patient thickness and positioning. Thicker anatomy requires higher output; thinner anatomy allows reduction. These systems prevent the common mistake of defaulting to a fixed high-output technique across all patients and body habitus.
Low-dose mode on modern systems can reduce dose rates by 50 percent or more compared to standard mode, with a modest reduction in image quality that is acceptable for many applications. High-dose mode exists for difficult-to-penetrate anatomy or situations requiring maximum image quality, but should be the exception rather than the default.
Dose tracking displays on current-generation C-arms show cumulative Air Kerma and Dose-Area Product in real time. These metrics give the surgical team objective feedback on cumulative exposure and trigger alerts at threshold values consistent with skin dose thresholds. If your C-arm has these displays, use them.
Bottom Line: C-arm dose management is mostly technique discipline. Minimize fluoroscopy time, use pulsed fluoroscopy, collimate aggressively, use last image hold, and maintain distance. The technology on modern systems supports all of this automatically — but the surgeon's foot still controls the most important variable.
