The hand-carried ultrasound category has a reputation for compromise: capable enough for quick assessments, but not the tool you reach for when the clinical question is complex. The Mindray Z60 was designed to challenge that assumption — it combines a hand-carried form factor with an imaging feature set that would have been considered premium console-system territory a decade ago. The result is a system that travels where you need it while delivering the diagnostic confidence you expect from a dedicated imaging platform.
The Imaging Foundation
The Z60's imaging capabilities include Dynamic Beam Forming, iBeam spatial compounding, and iClear speckle reduction — a full set of image quality technologies typically associated with mid-to-high-range cart-based systems. iBeam spatial compounding acquires multiple frames from slightly different beam angles and combines them to reduce speckle noise and improve tissue boundary definition. The result is a cleaner image with better delineation of interfaces between adjacent tissue types — particularly valuable in abdominal imaging, where the distinction between adjacent soft tissue structures drives diagnostic confidence.
Tissue Harmonic Imaging (PSHI) uses the harmonic frequencies generated by tissue interaction with the ultrasound beam rather than the fundamental frequency. Harmonic imaging reduces clutter and haze in the near field, improving image quality in patients with challenging acoustic windows — the obese patient where the fundamental frequency image is noisy and indistinct becomes much more readable with harmonics enabled. The Z60's Tissue Specific Imaging (TSI) extends this further by optimizing the imaging parameters for specific tissue types automatically.
Color Doppler, Panoramic View, and 3D/4D
Full Color Doppler capability — color flow, power Doppler, and spectral pulsed wave Doppler — makes the Z60 viable for vascular assessment, cardiac screening, and obstetric Doppler studies that cannot be performed with B-mode-only systems. iScape panoramic view extends the displayable field beyond the standard image width by stitching consecutive frames as the probe moves along the patient, enabling visualization of anatomical structures too large for the standard field — a carotid artery from common carotid to bulb in one image, a long segment of a superficial leg vein, or the full extent of a soft tissue mass.
Optional 3D/4D imaging capability adds volumetric acquisition to the feature set, enabling fetal 3D surface rendering, organ volume calculations, and multiplanar reconstruction from a single acquisition. For facilities that want a versatile platform capable of supporting obstetric 3D and gynecologic volume imaging in a hand-carried form factor, the Z60''s 3D option extends its clinical range significantly.
Design for Clinical Environments

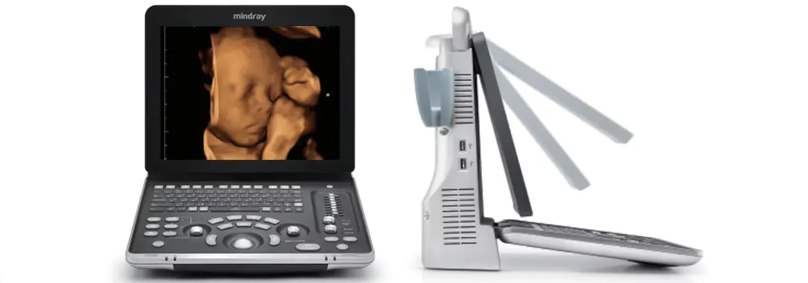

The 15-inch full-screen LCD with tilt allows the display to be positioned for visibility in different scanning environments — bedside, procedure room, emergency bay — without repositioning the system. The backlit control panel remains functional in low-light clinical environments. The lithium-ion battery provides 1.5 hours of untethered scan time, covering most acute care scanning scenarios without requiring a power outlet.
iTouch auto-optimization applies a single-button optimization to the current image, adjusting gain, depth, and processing parameters automatically based on the detected anatomy and echo characteristics. iZoom enables accurate viewing of displayed images from a distance — useful in rooms where the clinician is not immediately adjacent to the display. iStation provides clipboard and onboard reporting functionality, keeping the documentation workflow within the system rather than requiring a separate workstation for report generation. DICOM 3.0 connectivity enables automatic image routing to PACS.
Bottom Line: The
Mindray Z60 delivers full-featured Color Doppler imaging, spatial compound and harmonic image processing, panoramic view, and optional 3D/4D capability in a hand-carried package with 1.5-hour battery life. For facilities needing serious diagnostic capability in a portable form — acute care departments, ICUs, bedside consultations, satellite clinics — it bridges the gap between POCUS devices and full console systems effectively.
