Handheld ultrasound has been a category that promised more than it delivered for several years: compact probes with limited scanning modes, narrow clinical application coverage, and image quality that fell short of cart-based systems. The Mindray TE Air changes the terms of the conversation in two ways: it is built on eWave architecture with single crystal transducer technology, and it is the first wireless transducer in the industry that connects as a full transducer input to a complete ultrasound system — the Mindray TE X — rather than functioning only as a standalone device with a companion app.
Dual Operating Mode: Standalone and System-Connected

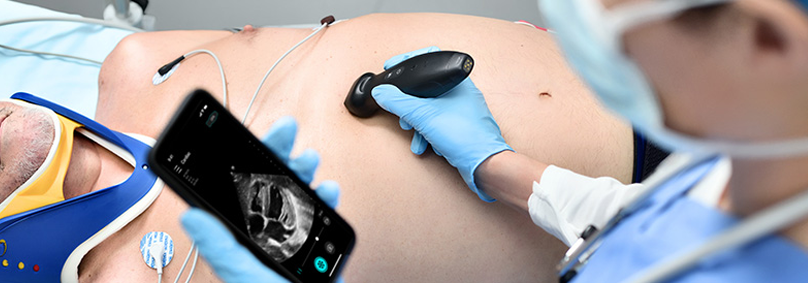

The TE Air operates in two modes. In standalone mode, it pairs via wireless connection to a smartphone or tablet running the TE Air Mobile App, providing a fully functional point-of-care ultrasound tool without any additional hardware. The app interface supports one-hand operation and includes on-board patient data management and PACS connectivity for image routing.
In system-connected mode, the TE Air pairs wirelessly with the TE X ultrasound system, functioning as a full transducer port input. The TE X provides its full-featured ultrasound processing, display, and workflow capabilities — the wireless transducer simply eliminates the cable between the probe and the system. This dual-mode architecture means the TE Air is not limited to the processing capability of a smartphone; when connected to the TE X, it delivers the full image quality of a dedicated ultrasound system with the positioning freedom of a wireless tool.
Single Crystal Technology and eWave
Single crystal transducer elements — used in the TE Air's i3P transducer — provide better electromechanical coupling efficiency than conventional piezoelectric ceramic elements. The practical result is deeper penetration at equivalent transmit power, or equivalent penetration at lower power, which matters both for battery life in a wireless device and for image quality in patients where adequate penetration requires the transducer to work harder. eWave processing optimizes the transmitted and received waveforms to maximize image quality from the available transducer bandwidth.
The clinical imaging gallery in the TE Air brochure shows mitral and tricuspid regurgitation with color Doppler, tissue Doppler imaging, Smart Bladder automated measurement, B-lines for lung ultrasound, pleural effusion, and ascites — a range that covers the critical care and emergency medicine applications where wireless POCUS delivers the most clinical value. The preset library includes Cardiac, Abdomen, Lung, Transcranial Imaging, Emergency Medicine, FAST, AAA, Bladder, OB/GYN, and Vascular — the full POCUS application range, not a limited subset.
Battery, Charging, and the Air Capsule
The TE Air supports over 60 minutes of scanning time per charge, with fast charge capability to minimize downtime between uses. The Innovative Air Capsule is a combined protective case and portable charging dock — it stores the TE Air, protects it during transport, and wirelessly recharges the device up to three times before the capsule itself needs charging. In practice this means an emergency medicine provider can carry the Air Capsule on rounds and have the TE Air fully charged and protected between patient encounters without needing to find a power outlet during the shift.
The magnetic charging cable is designed to prevent cable fatigue and accidental damage — a detail that matters in a device that is charged frequently and handled in clinical environments where cable connections are subject to repetitive stress. The IP68 waterproof and dustproof rating means the TE Air can be immersed for cleaning with compatible disinfectants, meeting infection control requirements for patient-contact devices in clinical environments.
Where It Fits Clinically
The TE Air 's primary clinical positioning is in high-acuity environments where wireless operation changes what is possible: emergency medicine, critical care, perioperative care, and resuscitation scenarios where cable management is a genuine constraint. In the ICU, a wireless probe can be used by a single operator scanning a patient on a ventilator without navigating around ventilator tubing and monitoring cables. In the OR, it can be used in sterile-draped situations where cable routing is a practical challenge. Outside the hospital — prehospital EMS, austere environment medicine, transport medicine — the combination of wireless operation and IP68 durability positions it for environments where conventional ultrasound is impractical.
Bottom Line: The Mindray TE Air is not a compromise device for situations where real ultrasound is unavailable. It delivers single crystal image quality, full POCUS application coverage, dual operating mode (standalone app and TE X system-connected), IP68 durability, and an intelligent charging ecosystem in a format that eliminates the cable constraints that limit conventional ultrasound in acute care and high-acuity environments.
