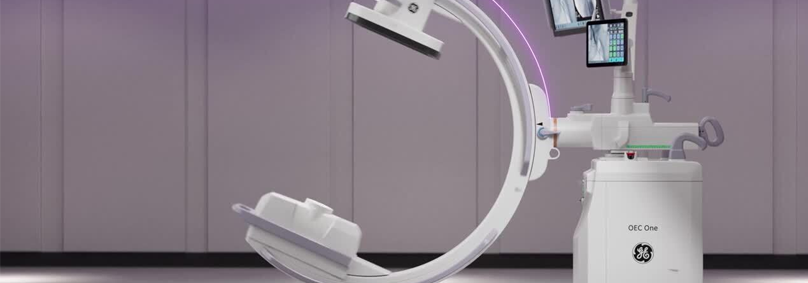

The GE OEC One CFD does not look like a traditional C-arm setup. The display is attached directly to the C-arm rather than sitting on a separate column, the footprint is significantly smaller than a conventional system, and the control tablet travels with the surgical team rather than being fixed at a console. These are not design quirks — they are deliberate solutions to real problems in surgical suite workflow. Here is what the OEC One CFD actually delivers.
The CFD: CMOS Flat Panel Detector
The CFD in the name stands for CMOS Flat Panel Detector — a distinction worth understanding. Most older compact C-arms use image intensifiers, which are vacuum tubes that convert X-ray energy to visible light through a series of phosphor and electron multiplication stages. CMOS flat panel detectors convert X-ray energy directly to digital signals at each detector element, with no vacuum tube, no pincushion distortion, and no degradation in sensitivity over the tube life.
The OEC One CFD's 21 cm CMOS detector delivers 1.5k x 1.5k image processing — a resolution step up from the 1k x 1k processing on the prior OEC One generation. The practical result is 1:1 image display: what the detector captures, the display renders, without upscaling or interpolation that introduces artifacts. Images are displayed on a 4K 27-inch UHD monitor showing 30 cm (11.8-inch) Squircle images — a rounded-square format that uses more of the display surface than a conventional circular image. Resolution at the display is 3.4 line pairs per millimeter, sufficient for guidewire visualization down to 0.014 inches.
Clear View Image Chain and Live Zoom
GE describes the full image pipeline from detector through processing to display as the Clear View image chain. The 1.5k processor transfers more data from the detector to the display, delivering a 1:1 relationship between what the detector captures and what the surgeon sees. The field of view is 15 percent larger than a conventional 9-inch image intensifier system, providing more anatomical context per acquisition.
Live Zoom applies a 4x digital magnification to the imaged anatomy during active fluoroscopy without changing the X-ray technique. The surgeon can zoom in on the critical area — a pedicle screw tip, a wire reduction detail, a vessel lumen — without repositioning the C-arm or acquiring additional radiation. Fluorostore retains the most recent fluoroscopy sequence for review, allowing the team to re-examine the last acquisition without re-exposing the patient.
All-in-One Design and OEC Touch
The integrated design of the OEC One CFD places the 27-inch display directly on the C-arm, on a five-position articulating arm that adjusts to the surgeon's line of sight without a separate display column or boom. In a crowded OR where every square foot of floor space is allocated, eliminating the display column is a practical advantage that also simplifies room setup and breakdown between cases.
The OEC Touch control panel is a tablet-style device that mirrors the surgeon's display and provides direct access to image adjustments, zoom, laser aimers (optional), Live Zoom, Digital Pen annotation, and Fluorostore. The tablet can be swapped between team members — a scrub tech can make adjustments from the sterile side without the surgeon having to call out instructions. Swipe between four screens featuring OEC's icon-based interface makes the control system accessible to surgical staff who are not dedicated imaging technologists.
Configurations and Clinical Applications
The GE OEC One CFD is available in three configurations. Standard covers general to orthopedic procedures with the full advanced imaging feature set. PM Care is configured for pain management procedures, including fluoro replay through Fluorostore, designed for the spine clinic and interventional pain environment. Vas 25 enables visualization of 0.014-inch guidewires for peripheral vascular procedures, with dedicated vascular imaging modes.
The 55-degree Overscan and 95-degree Underscan ranges enable deep angle imaging without repositioning the entire system, and the five-minute standby mode maintains data protection and transport power for rapid room-to-room moves without a full shutdown and restart cycle.
Bottom Line: The
GE OEC One CFD is a high-performance compact C-arm that delivers CMOS flat panel image quality in an all-in-one design sized for tight surgical environments. The Clear View image chain, Live Zoom, OEC Touch workflow integration, and three procedure-specific configurations make it a strong choice for multi-specialty ORs, pain management facilities, and any environment where image quality and room efficiency both matter.
