If you are evaluating C-arms and encounter both image intensifier systems and flat panel detector systems in the same price range, you are looking at a meaningful technology difference — not just a spec sheet variation. The image intensifier has been the dominant C-arm detector technology for decades. Flat panel detectors began replacing it in fixed fluoroscopy systems in the late 1990s and have been progressively moving into mobile C-arms over the past fifteen years. Understanding why that transition happened explains what you actually get when you pay more for a flat panel system.
How Image Intensifiers Work — and Why They Have Limitations
An image intensifier is a vacuum tube that converts X-ray energy into a visible image through a sequence of steps: X-rays hit an input phosphor screen, which emits light; that light is converted to electrons by a photocathode; the electrons are accelerated and focused by a series of electron lenses; they strike an output phosphor, which emits visible light; that light is then captured by a camera. Each step in this chain introduces some degradation of the original signal.
The most clinically significant limitation is pincushion distortion — a geometric warping of the image that is most pronounced at the edges of the field. Straight lines near the periphery of an image intensifier image appear curved, complicating measurements and spatial relationships. The second limitation is vignetting: the center of the image is brighter than the edges, meaning the detector is not uniformly sensitive across its surface. Both distortions are inherent to the geometry of the vacuum tube and cannot be fully corrected by software without introducing image processing artifacts.
Image intensifiers also degrade over time. The vacuum tube ages, the phosphors dim, and the sensitivity and resolution of the system decline gradually over the system's operating life — often without the clinical team noticing because the decline is slow. By the time the degradation is clinically apparent, the system may have been performing suboptimally for years.
How Flat Panel Detectors Work — and What They Fix

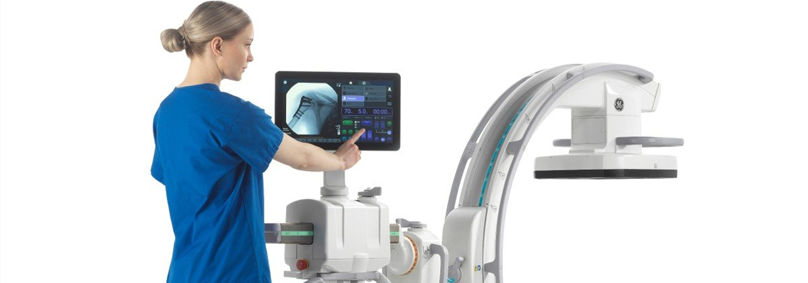

A flat panel detector converts X-ray energy to a digital signal at each individual detector element in a two-dimensional matrix. The most common technology uses amorphous silicon photodiodes with a cesium iodide scintillator — the CsI converts X-rays to visible light, and the amorphous silicon layer converts that light to electrical charge, which is then digitized. More recently, CMOS flat panel detectors (used in the GE OEC One CFD) convert X-ray energy to charge more directly, with lower electronic noise and faster readout.
Flat panel detectors eliminate pincushion distortion entirely — the geometry is a flat Cartesian grid, and there is no lens system to introduce warping. Sensitivity is uniform across the detector surface. The digital output is consistent across the system's operating life, without the performance degradation that accumulates in a vacuum tube. The absence of moving parts and high-voltage electron optics also means reduced maintenance requirements.
Image Quality and Dose: The Clinical Difference
Flat panel detectors deliver better image quality at lower dose in the clinical conditions that matter most: high-contrast detail (wire tips, implant edges), low-contrast soft tissue differentiation, and imaging through dense anatomy (large patients, pelvis, shoulder). The higher detective quantum efficiency (DQE) of flat panel detectors means more of the X-ray dose reaching the detector is converted to useful image information, rather than being lost to noise in the conversion process. That efficiency gain directly translates to either better image quality at the same dose, or equivalent image quality at lower dose.
For clinical teams performing significant fluoroscopic procedure volumes, the dose difference accumulates over time. ALARA (As Low As Reasonably Achievable) is not just regulatory language — it is a practical goal for protecting patients and OR staff from cumulative radiation exposure. Flat panel systems help achieve it without sacrificing diagnostic quality.
Who Still Uses Image Intensifiers?
Image intensifier C-arms remain in use and continue to be sold, primarily in cost-sensitive markets and for applications where the limitations are less clinically significant. For low-volume, straightforward orthopedic applications — fracture reduction, simple hardware placement in patients with standard body habitus — a well-maintained image intensifier system delivers adequate clinical performance at a lower capital cost. The question is not whether flat panel is categorically better (it is), but whether the clinical improvement justifies the price difference for a given facility's specific case mix and volume.
Bottom Line: Flat panel detectors eliminate the geometric distortion, non-uniform sensitivity, and performance degradation of image intensifiers while delivering better image quality at lower dose. For facilities performing complex orthopedic, vascular, or high-volume fluoroscopic work, the technology difference is clinically and operationally meaningful. For low-volume, straightforward applications, image intensifier systems remain a viable cost-sensitive option.
