If you are shopping for a C-arm — or just trying to understand why one unit costs three times as much as another — the detector technology is often the defining difference. C-arms use one of two fundamentally different approaches to capturing X-ray images: the classic image intensifier or the modern flat panel detector. Each has real clinical implications.
The Image Intensifier: The Classic Workhorse
The image intensifier (II) has been the standard C-arm detector for decades. Inside a vacuum tube, incoming X-ray photons strike an input phosphor layer, converting them to light. A photocathode converts that light to electrons, which are accelerated and focused by an electrostatic lens onto an output phosphor screen. A camera captures the resulting image.
The result is a reliable, proven imaging chain that works well for routine fluoroscopy. However, the curved input screen of an image intensifier introduces a type of geometric distortion known as pincushion distortion — the image bows slightly outward at the edges. The vacuum tube is also relatively bulky, limits the available field of view, and degrades over time as the tube ages. Image intensifiers remain common on older and lower-cost C-arm systems, and they still deliver clinically useful images for many standard orthopedic and general surgery applications.
Flat Panel Detectors: Going Digital

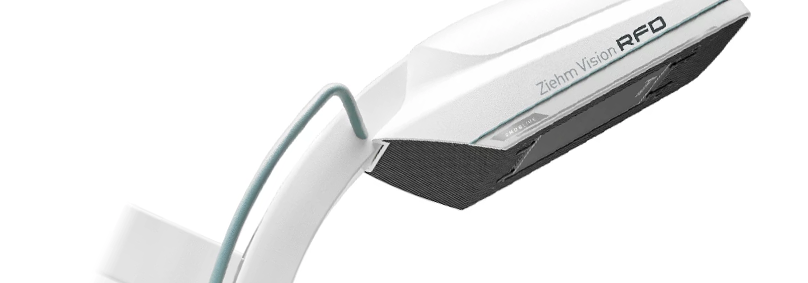

Flat panel detectors (FPDs) replaced the vacuum tube with a solid-state digital panel — essentially a large array of detector elements that convert X-ray photons directly (or via a scintillator layer) into a digital signal. The result is a flat, uniform detector with no geometric distortion, consistent sensitivity across the entire field of view, and a more compact design.
FPDs come in two main semiconductor varieties. Amorphous silicon (a-Si) panels use a cesium iodide scintillator to convert X-rays to light, which the a-Si photodiodes then convert to an electrical signal. They offer excellent image uniformity and are widely used across mid-range and high-end C-arm systems. CMOS panels are a newer generation using complementary metal-oxide semiconductor technology — the same underlying technology found in smartphone cameras, though the medical version is significantly more sophisticated. CMOS detectors offer higher detective quantum efficiency (DQE), which means they extract more diagnostic information per X-ray photon, enabling lower-dose imaging at equivalent image quality.
CMOS: The Latest Generation in Clinical Imaging
For example GE Healthcare's OEC Elite CFD uses a proprietary CMOS flat detector, and the clinical advantages are measurable. The CMOS panel supports true continuous fluoroscopy at 30 frames per second without the image degradation that older technologies experience at high frame rates. Higher DQE means the system can achieve equivalent diagnostic image quality at lower mAs settings, reducing patient dose. The absence of pincushion distortion makes geometric measurements — critical in orthopedic and vascular procedures — more accurate.
For facilities where image quality and dose management are priorities, the flat panel detector represents a meaningful clinical upgrade over the image intensifier. That said, for many routine orthopedic or pain management cases in lower-volume settings, a well-maintained image intensifier C-arm still delivers clinically adequate results at a lower acquisition cost.
Bottom Line: The shift from image intensifier to flat panel detector mirrors the broader shift from film to digital in radiology. FPD systems offer better geometry, lower dose potential, and improved performance over time. For high-volume or image-critical applications, the upgrade is worth the investment.
