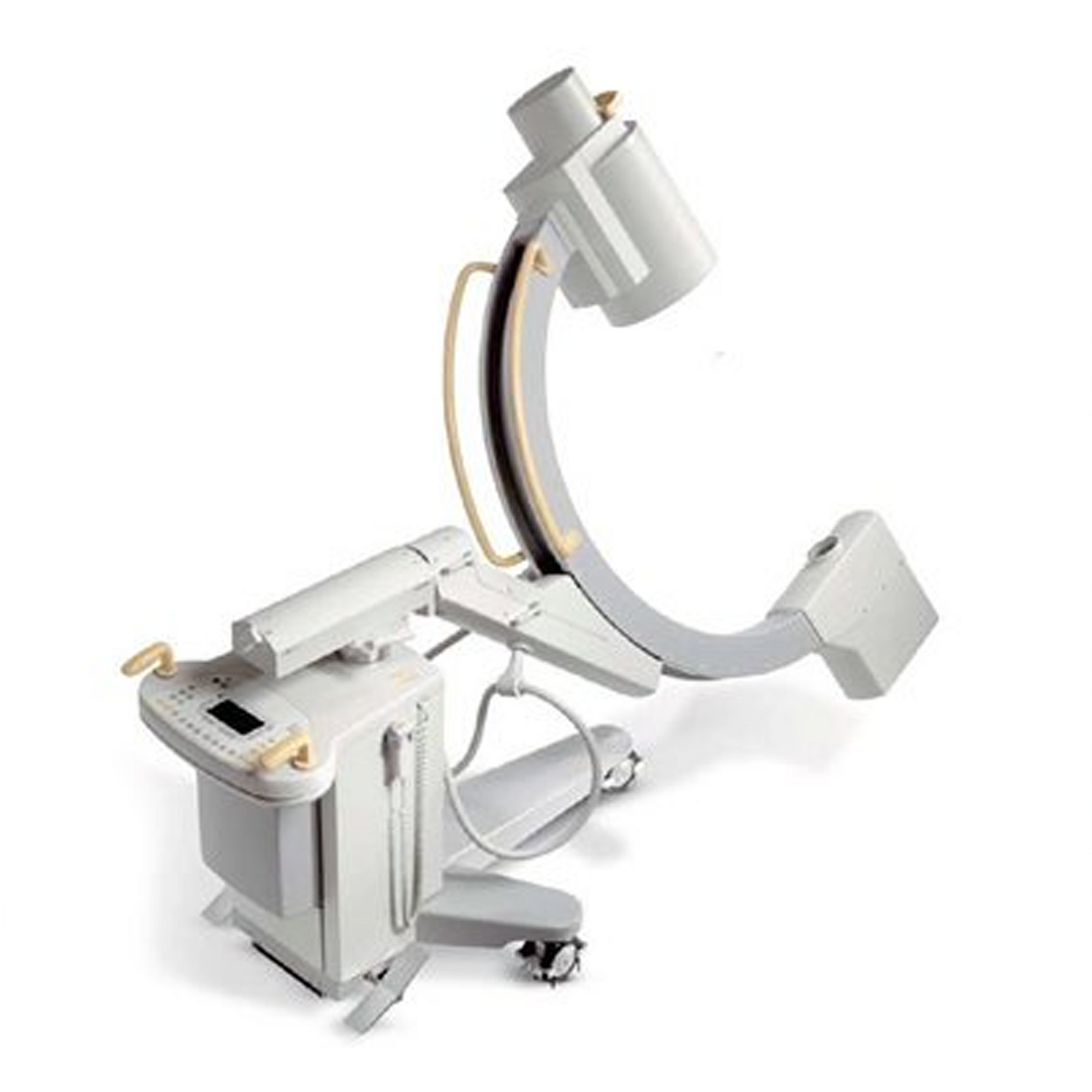

Philips BV Libra C‑Arm System – Compact Fluoroscopy with Ergonomic Performance

The Philips BV Libra C‑Arm is a lightweight, highly maneuverable mobile fluoroscopy system designed to deliver high-quality real-time imaging across a wide range of surgical and interventional procedures. Ideal for orthopedics, vascular, abdominal, neurosurgical, and general surgery applications, the BV Libra blends portability with performance.

This system features a dual-mode image intensifier (6″ single-mode or 9″ triple-mode) paired with a high-resolution interline transfer CCD camera, ensuring sharp, detailed images with up to 1k × 1k resolution and a wide-format field of view. The 3.15 kW constant-potential generator (110 kV, 20 mA) offers effective imaging while keeping the unit compact and easy to maneuver.

Key Features:

• Image Intensifier + CCD Camera: Offers 6″ HC or 9″ HRC formats with high-resolution CCD imaging
• 3.15 kW Constant-Potential Generator: Ensures consistent, high-quality fluoroscopic output (110 kV, 20 mA)
• Compact & Lightweight Design: Easy to position in tight ORs and mobile environments
• Geometry for Versatility:
  • Free C-arm space: ~77 cm (30.3")
  • Orbital angulation: +90° to –25°
  • Rotation: ±180° with safety stop at ±135°
  • C-arm depth: ~61 cm (24")
• Dose Management: Features Philips DoseWise technology for optimized radiation safety
• User-Friendly Workflow Enhancements: Includes BodySmart imaging algorithms, laser aiming, pulsed fluoro modes, and single-button control for streamlined operation
• Flexible Monitoring & Connectivity: Supports dual high-resolution LCD monitors, DICOM compatibility, DVD recording, and interfacing with Philips ViewForum workstations
