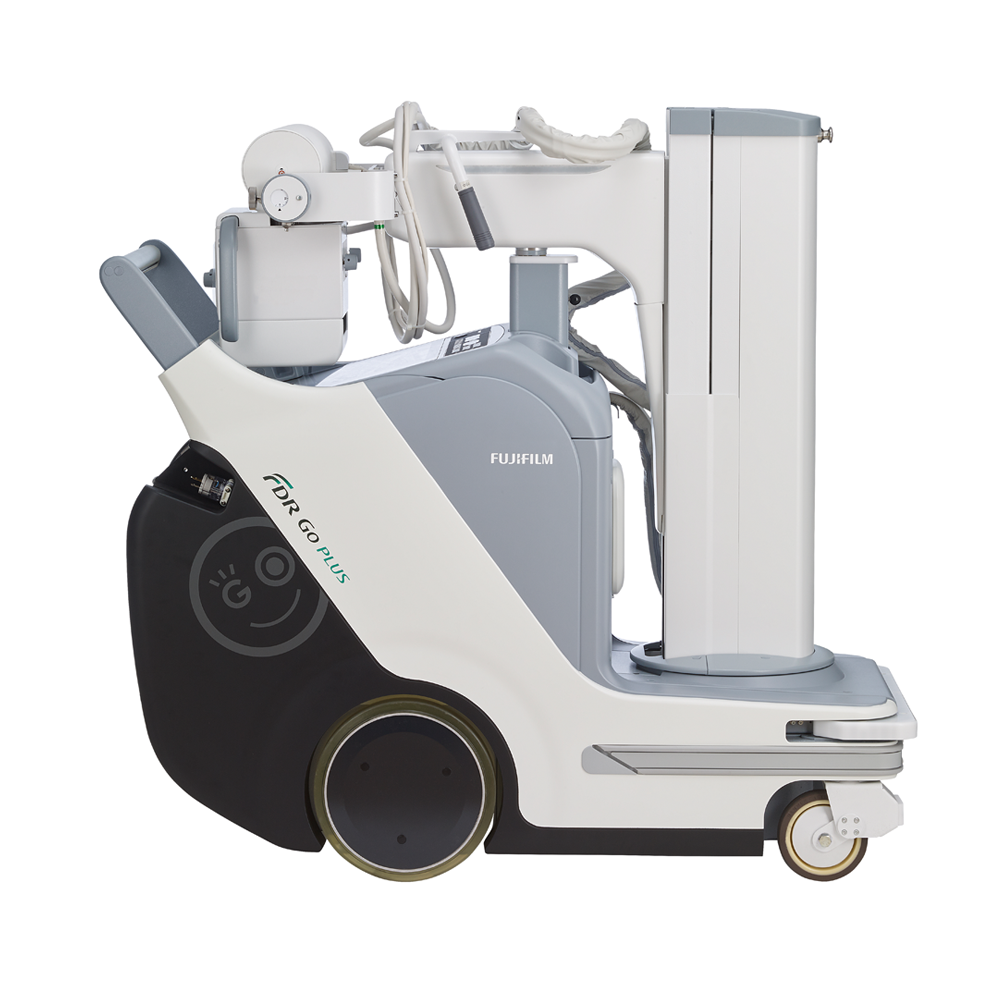

Fuji FDR Go PLUS Portable X-Ray
Fuji FDR Go PLUS Portable X-Ray
A powerful, motorized portable digital X-ray system designed for high-volume hospital environments, delivering sharp, low-dose DR imaging with advanced image processing and rapid exam workflow. Its collapsible column, long battery life, and intuitive touchscreen controls enhance maneuverability and efficiency for bedside, ICU, ER, and surgical imaging applications.
Questions?

Collapsible content
Product Description
Fujifilm FDR Go Plus Portable X-Ray System – Powerful, Flexible, and Built for High-Volume Mobility
The Fujifilm FDR Go Plus Portable X-Ray System is a premium mobile digital radiography solution designed for hospitals, trauma centers, ICUs, and high-demand clinical environments. Combining a high-output generator, advanced wireless flat panel detector technology, and Fujifilm’s proprietary image processing, the FDR Go Plus delivers exceptional image quality with enhanced workflow efficiency at the point of care.
Built for power and performance, the FDR Go Plus features a 32 kW high-frequency generator, allowing technologists to perform complex exams with consistent exposure control — even in challenging bedside and trauma situations. Its smooth motor-assisted drive and compact footprint ensure effortless maneuverability in crowded hallways, patient rooms, and emergency departments.
Key Features of the Fujifilm FDR Go Plus
-
32 kW High-Frequency Generator
Delivers powerful, consistent output for a wide range of clinical applications, including larger anatomy imaging. -
Wireless Flat Panel Detector (FPD)
Provides high-resolution digital images with rapid preview and minimal cabling for improved workflow. -
Advanced Fujifilm Image Processing
Enhances contrast, sharpness, and noise reduction for superior diagnostic confidence. -
Motor-Assisted Drive System
Smooth navigation with ergonomic controls for easy transport throughout the facility. -
Long-Lasting Battery Performance
Supports extended clinical operation with multiple exposures per charge. -
Large Touchscreen Acquisition Console
Intuitive interface simplifies exam setup, image review, and patient data management. -
Optimized Dose Management
Intelligent exposure control helps reduce radiation dose while maintaining excellent image quality. -
Full DICOM Compatibility
Seamless integration with PACS, RIS, and hospital networks.
Ideal Clinical Applications
The FDR Go Plus Portable X-Ray System is ideal for:
- Emergency & Trauma Imaging
- ICU & Bedside Imaging
- Operating Room Radiography
- Neonatal & Pediatric Imaging
- General Hospital Radiography
- Orthopedic & Post-Surgical Exams
Its power output makes it especially suitable for facilities that need full diagnostic capability in a mobile system.
Why Choose the Fujifilm FDR Go Plus?
The FDR Go Plus offers the perfect combination of:
- High generator power
- Superior image quality
- Wireless flexibility
- Smooth mobility
- Reliable battery operation
- Efficient workflow design
Backed by Fujifilm’s global reputation in digital radiography, this system provides dependable performance in demanding healthcare environments.
Upgrade to the Fujifilm FDR Go Plus Portable X-Ray System
If you’re looking for a high-powered mobile digital X-ray system that delivers consistent performance, exceptional image clarity, and smooth mobility, the Fujifilm FDR Go Plus is a trusted, future-ready solution.
Specifications
FUJIFILM FDR GO PLUS
Mobile Digital X-Ray System
Technical Specifications
SYSTEM OVERVIEW
- Fully motorized mobile DR system
- Slim 22" wide chassis
- System weight: 970 lb
- Retractable column design
- Extra-large 19" touchscreen monitor
- Designed for smooth, quiet travel and bedside imaging
POWER SUPPLY
- Input Power: 100 / 110 / 120 / 200 / 220 / 230 / 240 VAC
- Single Phase: 50–60 Hz
- Charger Power Consumption: 1.0 kVA
X-RAY GENERATOR
- Maximum Output: 32 kW
- Tube Voltage: 40 – 133 kV (1 kV steps)
- Tube Current: 50 – 400 mA
X-RAY TUBE
- Focal Spot Sizes: 0.7 mm / 1.3 mm
- Target Angle: 16°
- Anode Heat Capacity: 300 kHU (210 kJ)
BATTERY PERFORMANCE
- Approx. 3–4 hours typical use
- Charge Time:
– 5 hours to 90%
– 8 hours to 100% - Emergency Reserve Mode: Up to 10 additional exposures
GEOMETRY & MOVEMENT
- SID to Floor:
– Maximum: 79.7"
– Minimum: 26.7" - Column Retractable Height (Tube): 50" – 79.7"
- Arm Reach: 25.1" – 47.4"Column Rotation Range: ±270°
- X-ray Tube Unit Rotation Angle: ±180°
- X-ray Tube Axial Rotation: +90° / -30°
- Travel Speed: Approx. 3.1 mph (conditions dependent)
SYSTEM DIMENSIONS
- Total Size (W x L): 22" x 50.6"
- System Weight: 970 lb
DISPLAY & CONTROLS
- 19" primary touchscreen display
- LED system status indicators
- Compact tube with forward/back inching controls
- Front and rear collimation knobs
- Easy-reach tube positioning releases
DETECTOR COMPATIBILITY
Compatible with FDR D-EVO II detectors:
Available Sizes:
- 24 x 30 cm (3.3 lb)
- 14" x 17" (5.7 lb) – CsI or GOS
- 17" x 17" (7.1 lb) – CsI or GOS
Detector Features:
- Irradiation Side Sampling (ISS) Technology
- Hydro AG antibacterial coating
– 99.99% effective against common bacteria - IPX6 fluid protection rating
- Magnesium alloy frameLoad capacity up to 683 lb
- Approx. 5.7 lb weight (14x17 model)
IMAGE PROCESSING
- Dynamic Visualization II (optional)
– Intelligent 3D feature recognition
– Automatic contrast and density adjustment - Virtual Grid (optional)
– Grid-free imaging
– Up to 50% dose reduction compared to grid exams - ISS High-sensitivity reading technology
- Intelligent dose optimization menus
DOSE MANAGEMENT
- Dose Area Product (DAP) display (calculated)
- IEC Exposure/Deviation Index
- Dose Structured Reporting (DICOM compatible)
- Optional area dosimeter
CONNECTIVITY
- Detector to Console:
– 2.4 or 5 GHz 802.11n short range - Hospital Network (RIS/PACS):
– Wired Ethernet or built-in wireless - WAN: IEEE 802.11 a/b/g/n (2.4–5 GHz)
- LAN: 10/100/1000 Base-T (DHCP or Static)
STANDARD UPGRADES INCLUDED
- Dose Area Product display (calculated) & DICOM
- Keyless entry (mobile drive)
- Luminous handswitch
- Wireless LAN to RIS/PACS
Additional Information
- Emergency
- Radiology
- Pediatrics
- 14 x 30 cm
- 14" x 17"
- 17" x 17"
