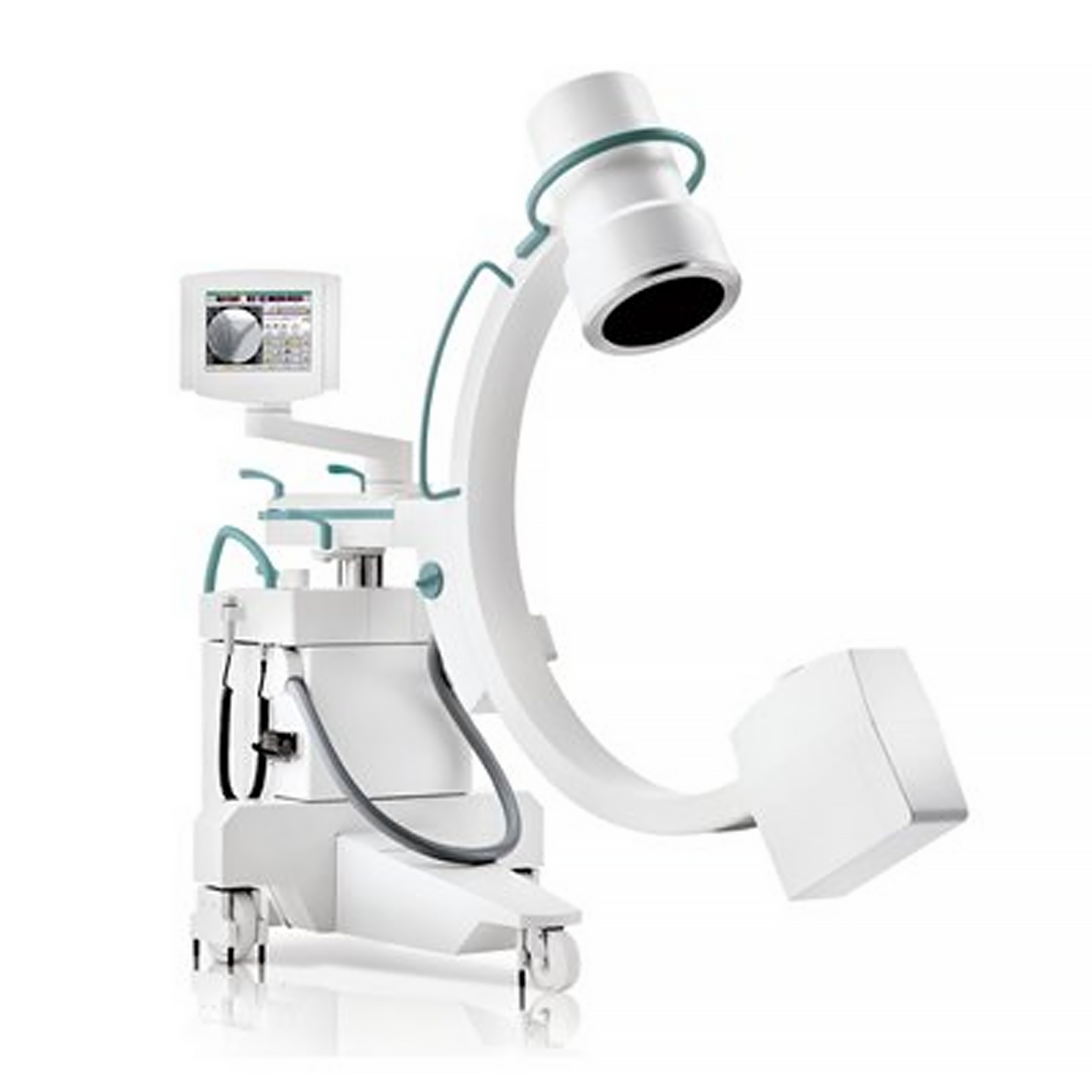

Ziehm Vision C-Arm

  • Fully Refurbished
  • Exceptional Image Quality
  • Stationary Anode X-Ray Tube
  • 1K x 1K Image Resolution
  • Digital CCD Camera
  • LED Lit Flat Panel Monitors
  • 9″ and 12″ Image Intensifier Options

Brochures:

Ziehm Vision C-Arm Brochure

Description

With Ziehm Vision, Ziehm Imaging creates a new standard in mobile C-arm functionality including highly demanding minimally invasive and interventional procedures performed in areas such as cardiology, urology, neurology and orthopedics.

Ziehm Vision delivers high-quality imaging with low dose exposure on a footprint of just 0.8 m². It features a compact C-arm and monitor cart with an intuitive touchscreen user interface as well as two monochrome 18” flatscreen monitors. It has a high-resolution CCD camera that detects over 4,000 shades of gray. The monoblock generator’s unique liquid cooling system (Advanced Active Cooling) is specially designed for extended use in operating theaters, making the Ziehm Vision ideal for a wide range of clinical applications such as general surgery, orthopedics, and traumatology.

Ziehm Vision Highlights:
  • Advanced Active Cooling for unlimited fluoroscopy time
  • ODDC (Object Detected Dose Control) for optimized image quality, even if an object is moving or the region of interest is not centered
  • Small footprint of just 0.8 m²
Ziehm Vision Ease of Use:
  • Synchronized Vision Center touchscreen user interfaces on C-arm and monitor cart
  • Steer and brake functions activated via a single lever (EasyDrive system)
  • Color levers allow staff to quickly identify desired movement functions (optional)
  • Remote Vision Center for sterile bedside control (optional)
Ziehm Vision Image quality:
  • 1k x 1k image matrix for high resolution
  • Over 4,000 shades of gray
The Equipped MD Difference.

Equipped MD offers all configurations of the Ziehm Vision and refurbishes everything in-house using our 25+ years of c-arm refurbishing experience. All Ziehm systems go through our in-depth process which includes:

  • 300 Point Inspection Of Internal Parts
  • Replacement Of Wear Items
  • New Board Level Batteries
  • New Brake Pads
  • New Paint – Complete
  • Factory Calibration
  • Includes FDA Report Of Assembly (Form 2579)
  • Standard 30 Day Warranty, Optional 6 Months & 1 Year Options
  • Shipping Available To All 50 States

On top of our in-depth refurbishing process, Equipped MD offers a unique pricing program with our “Wholesale Direct” pricing structure. For years we have been building c-arms for other equipment distributors and dealers, and are now offering the same pricing direct to healthcare professionals. This allows us to offer you exceptional value, and custom tailor the pricing to your needs & budget. To learn the details and get in-depth pricing simply hit the request a quote button above or simply give us a call.

Product Specifications

C-ARM

X-Ray Generator

  • X-ray tube: stationary anode
  • Single focus: 0.6 (IEC 336)
  • Max. anode heat content: 45 kHU / 34 kJ
  • Max. anode heat dissipation: 600 W
  • Generator type:
    -Monoblock
    -40 kHz high frequency
    -Microprocessor-controlled
Operating Values:
  • Nominal output (100 kV): 2,000 W
  • Maximum output: 2,020 W
  • Pulsed Fluoroscopy:
    -kV range: 40-110 kV
    -mA range: 0.2.-20 mA
    -pulse width: 10-30 ms
    -pulse rate: 1, 2, 4, 8, 12.5, 25 pulses/s (50 Hz), 1, 2, 5, 10, 15, 30 pulses/s (60 Hz)
  • Digital radiography (snap shot):
    -kV range: 40-100 kV
    -mA: up to 20 mA
  • Radiography:
    -kV range: 40-110 kV
    -mA: up to 20 mA
Filtering:
  • Total filtering: > 4 mm Al equivalent
  • Additional filtering: 0.1 mm Cu
Output:
  • Pulsed fluoroscopy: 2,000 W
  • Digital radiography (snap shot): 2,000 W
  • Tube housing heat capacity:
    -powered by integrated Advanced Active Cooling and heat management system
    -5 million HU system heat capacity
    -400 W continuous dissipation and clinical performance
Collimator System:
  • Collimator rotation: +/- 90 Degrees
  • Iris collimator:
    -9″ II – 50-230 mm diameter
    -12″ II – 50-310 mm diameter
  • Slot collimator:
    -9″ II – 50-230 mm diameter
    -12″ II – 50-310 mm diameter
  • Virtual collimation without radiation
  • Type: cesium iodide
  • DQE (IEC): 65%
  • Conversion factor: 240 Cd
  • Anti-scatter grid: Pb 8/40

Digital Video Chain

Digital Video Camera:
  • Active pixels: 1,048,576
  • Camera matrix: 1024 x 1024 pixels
  • Bandwidth of video signal: 20 MHz
  • Bandwidth of video amplifier: 50 MHz
  • Video (monitor): 1,125 lines
  • Signal-to-noise ratio: 56 dB
  • Control: ADR / AVR

Image Intensifer

9″ Image Intensifier:
  • Central resolution 9″/6″/4.5″
  • Contrast Ratio: 30:1
12″ Image Intensifier:
  • Central resolution: 12″/9″ /6″
  • Contrast Ratio: 22:1

Dimensions & Mechanics:

  • Motor-driven vertical travel: 43cm
  • Horizontal travel: 22 cm
  • Orbital rotation:
    -90 Degrees / +45 Degrees (9″ II) +25 Degrees (12″ II)
  • Angulation: +/- 225 Degrees
  • Swiveling (panning): +/- 10 Degrees
  • Source/image receptor distance: 97 cm
  • C-Arm vertical free space: 76 cm
  • C-Arm depth: 68 cm
  • Width: 80 cm
  • Length: 160 cm (9″ II) / 182 cm (12″ II)
  • Height: 170 cm (9″ II) / 214 cm (12″ II)
Brakes:
  • Patented steering & braking lever, with parallel movement of the mobile stand in all directions

MONITOR CART

Digital Image Processing

Real-Time Processing Functions:
  • Recursive filter: 4 levels
  • Stack filter (Last Image Hold): 5 levels
  • Edge enhancement filer: 5 levels
  • Windowing and step windowing
  • Digital image rotation and reversal without radiation
  • Grayscale inversion
  • Digital shutters
Application-Oriented Anatomical Programs:
  • Bone, Heart, Abdomen, Endo
  • Soft, Large Patient
  • Automatic motion detection, automatic metal correction
Image Acquisition:
  • Autosave
  • Cine loop with auto-playback (option)
    -sequential image storage and display:
    1-8/1-10 frames/s (50/60 Hz)
    1-12.5/1-15 frames/s (50/60 Hz)
    1-25/1-30 frames/s (50/60 Hz)
    -start, stop and replay rate controls
DSA Package (option):
  • DSA real-time subtraction with re-masking capability
  • MSA max. opacification sequence
  • RSA roadmapping
  • Pixel shift / landmarking
  • Digtial measurement functions (distance/angle)
Cine Loop:
  • Sequential image storage and display
    -1-8 frames/s (standard)
    -12.5 and 25 frames/s (optional)
  • Cine loops start, stop and replay rate controls
CO2 Package (option):
  • Automatic image optimization when using negative contrast medium in DSA modes
Postprocessing Functions:
  • Edge enhancement: 5 levels
  • Zoom: 7 levels
  • Image rotation
  • Windowing
  • Grayscale inversion
  • Image cropping (digital shutters)
Digital Memory:
  • Storage capacity: up to 55,000 images
  • Memory matrix: 1024 x 1024 pixels
  • Image matrix: 1024 x 1024 pixels
  • Digital image processing: up to 32 bit
  • Grayscale: 1024 shades of gray (10 bit)
Data Organization:
  • Patient-based data management with 16-image mosaic display
  • pre-registration via DICOM worklist
  • Manual input or emergency registration

Monitors

  • Super-high-resolution and high-brightness twin flat-screen monitors
    -screen size: 18.1″ (46 cm)
    -native resolution: 1280 x 1024 pixels
    -viewing angle (horizontal & vertical): 170 Degrees
    -contrast ratio: 600:1
    -Dimensions: 41 x 34 x 7 cm

User Interface

  • TFT touchscreens on c-arm stand and monitor cart:
    -synchronized
    -intuitive icons for easy use
    -multi-lingual user interface

Archiving

  • Video printer (optional): paper and film
  • USB port:
    -storage capacity depends on storage medium
    -formats: DICOM, TIFF
    -downsized formats: DICOM, JPG
  • DVD-RW drive:
    -4.7 GB storage capacity
    -formats: DICOM, TIFF, Multimedia (AVI)
    downsized formats: DICOM, JPG
  • DICOM viewer software DVD and USB device
Networking:
  • Ziehm NetPro (optional):
    DICOM 3.0 interface (RJ45 or WLAN connection) for digital network integration
  • “Primary Capture” mode
  • Available DICOM Classes:
    -Storage class incl. multiframe capability and storage commitment
    -Print class
    -Media class
    -Worklist class incl. modality performed procedure step (MPPS)
    -Query/retrieve class
    -Verification class

Options

  • Laser positioning device mounted on image intensifier and/or generator
  • Dose area product with digital display
  • Emergency stop button
  • Video output for external documentation
  • 4-pedal foot switch

Weight

  • C-Arm mobile stand: 260 kg
  • Monitor cart: 160 kg

Additional information

Brand

Ziehm

Model

Vision

C-Arm Size

Full Size – 2pc C-Arm & Monitor Cart
