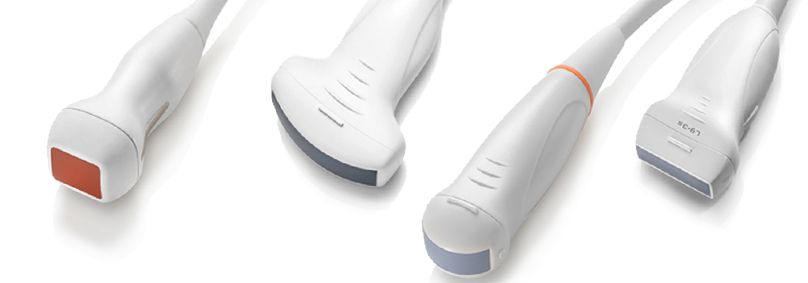

Choosing the wrong ultrasound transducer is like using a wide-angle camera lens to photograph a postage stamp. You will get an image, but you will miss the detail that matters. Transducer selection is one of the most consequential decisions in ultrasound imaging, yet it is often treated as an afterthought. Here is what you need to know.
The Core Tradeoff: Frequency vs. Depth
Every transducer selection starts with one fundamental tradeoff: higher frequency gives better spatial resolution but less depth penetration; lower frequency penetrates deeper but with coarser resolution. This is not a flaw in the technology — it is basic wave physics. A 15 MHz transducer can resolve structures as small as a fraction of a millimeter but will only reach 2 to 3 cm of depth. A 2 MHz transducer can image structures 20 cm deep but with proportionally lower detail.
The clinical implication: match the transducer frequency to the depth of the target anatomy. Superficial structures (tendons, nerves, thyroid, small vessel) need high-frequency linear probes. Deep structures (liver, kidneys, aorta, obstetrics) need lower-frequency curved probes. Getting this wrong means either missing the structure entirely due to poor penetration or seeing it with inadequate resolution to make a diagnosis.
Linear Transducers: High Detail, Shallow Reach
Linear transducers have a flat footprint and operate in the 5 to 18 MHz range. They produce a rectangular image that displays anatomy in true geometric proportion — ideal for structures where accurate measurement matters. Primary applications include vascular access and assessment (internal jugular, subclavian, peripheral IVs, carotid intima-media thickness), musculoskeletal imaging (tendons, muscles, ligaments, nerves, joint effusions), thyroid and parathyroid imaging, breast imaging, and superficial soft tissue masses.
For MSK applications specifically, high-frequency linear probes with very high-frequency options (up to 20-5 MHz on systems like the Mindray MX8 MSK) enable visualization of fine anatomical detail that was previously only visible on MRI. The combination of real-time imaging and high resolution has made ultrasound a first-line tool for many MSK evaluations.
Curved and Phased Array: Deeper and Smaller
Curved (convex) transducers operate in the 2 to 6 MHz range and produce a fan-shaped image that widens with depth — well suited to abdominal organs (liver, kidneys, gallbladder, spleen, pancreas), obstetric and pelvic imaging, and deep vascular structures. The curved footprint provides a large field of view at depth, making it the standard probe for abdominal and OB scanning.
Phased array transducers are compact — roughly the size of a thumb — and operate in the 1 to 5 MHz range. The small footprint allows them to fit between the ribs to image the heart (echocardiography) and in emergency settings to perform rapid cardiac assessment. The tight array of elements uses electronic beam steering rather than physical transducer geometry to sweep the image field, enabling cardiac imaging from a single intercostal space. Phased array probes are the primary tool for echocardiography at the bedside.
Specialty Transducers: When Standard Will Not Do
Transesophageal echocardiography (TEE) probes are miniaturized phased array transducers on a flexible endoscope. By positioning the probe in the esophagus immediately posterior to the heart, TEE achieves exceptional image quality for cardiac structure assessment without chest wall interference — critical during cardiac surgery or when transthoracic windows are inadequate.
Endocavitary transducers (intravaginal, transrectal) provide high-resolution pelvic imaging at close range. Intraoperative probes are specially designed for sterile field use during surgery. These specialty probes extend the reach of ultrasound into environments where standard transducers cannot go.
Bottom Line: No single transducer does everything well. Understanding the frequency-depth tradeoff and matching probe type to anatomy is what separates a diagnostic ultrasound exam from a frustrating one. Invest in the right probe portfolio for your clinical application, and every exam gets faster and more reliable.
