Musculoskeletal ultrasound is one of the fastest-growing ultrasound applications and one of the most demanding from a hardware standpoint. The structures being imaged — tendons, ligaments, nerves, muscle fascicles, joint capsules — are small, superficial, and require the highest spatial resolution the transducer can deliver. Understanding which ultrasound features actually matter for MSK work saves time and money when evaluating systems.
Frequency: Higher Is Better, With Caveats
Ultrasound image resolution improves with higher frequency — more cycles per second means shorter wavelength, which means finer spatial detail. For superficial MSK structures, the rotator cuff, carpal tunnel, finger pulleys, and plantar fascia are best visualized with frequencies in the 12 to 18 MHz range. Some ultra-high-frequency linear transducers now reach 20 to 24 MHz, providing exceptional resolution for the most superficial structures.
The caveat is penetration: higher frequency attenuates more quickly in tissue, limiting useful imaging depth. For deep hip structures, large joint assessment in obese patients, or deeper nerve visualization, a mixed-frequency approach — switching between a high-frequency linear for superficial work and a lower-frequency linear or curvilinear probe for deeper access — covers the clinical range.
Linear Array Transducer Quality
MSK ultrasound is almost exclusively performed with linear array transducers, which emit parallel beams that maintain good lateral resolution across the image field without the divergence of phased array or curvilinear designs. Transducer quality differences show up in spatial resolution (how fine a detail can be resolved), contrast resolution (how well adjacent tissues with similar acoustic impedance are differentiated), and near-field performance (how well the transducer images structures within the first 5 to 10 mm of the probe face).
Near-field performance is particularly important in MSK. Many of the structures of clinical interest — subcutaneous bursae, skin-adjacent tendons, small joint capsules — sit within 5 mm of the probe. Systems with poor near-field performance produce a black or artifact-ridden zone at the top of the image that obscures exactly what needs to be seen.
Needle Visualization for Guided Procedures

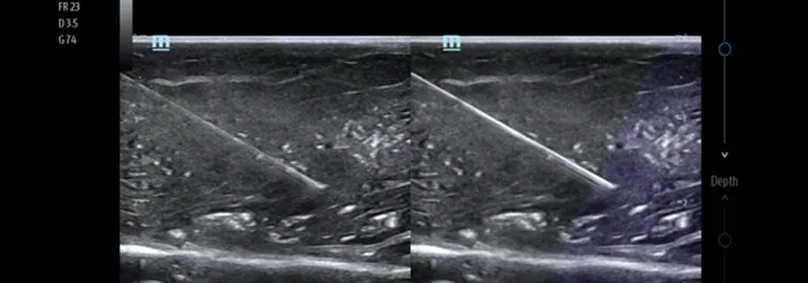

MSK ultrasound is frequently used to guide injections, aspirations, and biopsies. Needle visualization — the ability to clearly see the needle shaft and tip during real-time imaging — depends on both transducer frequency and specialized needle enhancement algorithms. At shallow angles, the needle is nearly parallel to the sound beam and reflects energy directly back to the transducer, making it easy to see. At steeper angles of approach, the reflection is directed away from the transducer, reducing visibility.
Needle enhancement technologies use beam steering and compound imaging to maintain needle visualization across a range of insertion angles. Systems like Mindray's iNeedle+ detect the insertion angle and enhance the signal from the needle shaft automatically. Z-Tracking (available on the TE7) provides continuous needle tip tracking regardless of angle. For practitioners doing significant volumes of US-guided procedures, these are not optional features.
Compound Imaging, Elastography, and Other Features
Spatial compound imaging — acquiring multiple frames from slightly different beam angles and averaging them — reduces speckle noise and improves tissue definition. It is now standard on virtually all MSK-capable systems and provides a meaningful image quality improvement over single-angle B-mode. Extended field of view allows the display of longer structures — the full length of the Achilles tendon, a complete muscle belly — that would not fit in a standard field in one acquisition.
Elastography quantifies tissue stiffness, which correlates with specific pathologies. Tendon pathology (tendinopathy versus normal tendon), muscle injuries, and nerve fibrosis all produce measurable stiffness changes. Shear wave elastography provides quantitative stiffness maps; strain elastography provides relative stiffness comparison. For MSK research and subspecialty practice, elastography adds diagnostic information not available from B-mode alone.
Bottom Line: For MSK ultrasound, prioritize a high-frequency linear transducer (12 MHz minimum, 15 to 20 MHz for superficial work), excellent near-field performance, needle enhancement for guided procedures, and compound imaging. Systems with voice control or hands-free features are genuinely useful in sterile procedural environments. Image quality in the near field and at oblique interfaces is where MSK systems differentiate themselves most clearly.
