The challenge that most ultrasound manufacturers face when building a console system for shared-service departmental use is designing a single platform that performs credibly across applications with fundamentally different imaging requirements: OB/GYN needs high-quality fetal anatomy and Doppler; cardiology needs ECG-gated M-mode and tissue tracking; general imaging needs deep penetration for abdominal work and fine detail for superficial structures. The Mindray Consona N9 is built on the ZST+ platform, a channel-data-based processing architecture that approaches this challenge at a fundamental level, not just through preset selection.
ZST+: Channel Data Processing vs. Conventional Beam Forming
Conventional ultrasound systems form a focused beam at each depth, transmit it, receive the returned echo, and process the data from that beam line into the image. ZST+ (Zone Sonography Technology Plus) processes the full channel data received from all elements simultaneously rather than organizing it into pre-formed beam lines. This approach, analogous to what has been described as synthetic aperture processing in radar, extracts more information from each transmit event and applies processing optimization retrospectively, yielding better spatial resolution, better contrast resolution, and improved sensitivity for low-amplitude signals without increasing the number of transmit events (and therefore without increasing acoustic output).
The clinical implication is that the Consona N9 can deliver high-resolution images in challenging imaging conditions, deep abdominal imaging, low-perfusion vascular studies, cardiac imaging with poor acoustic windows — where conventional beam-forming systems are limited by the fundamental tradeoffs between penetration, frame rate, and resolution built into their architecture.
Single-Crystal and ComboWave Transducers
The Consona N9 transducer family includes both single-crystal and ComboWave options. Single-crystal transducers provide deeper penetration with finer detail, the piezoelectric material in a single-crystal element has higher electromechanical coupling efficiency than conventional ceramic, producing stronger transmitted pulses and more sensitive received signals at equivalent power levels. For challenging abdominal imaging and deep structural assessment, single-crystal transducers extend the clinical range of the system into patients where conventional transducers fall short.
ComboWave transducers are designed to enhance imaging sensitivity across a broader bandwidth, providing versatility for mixed-application use. The transducer family covers the clinical range from shallow structures (high-frequency linear probes for MSK, vascular, and superficial imaging) through general abdominal and OB applications (curvilinear) to cardiac (phased array), with dedicated endocavity and TEE options for specialized applications.
Smart AI Tools Across All Major Applications
The Consona N9's AI toolkit is organized by clinical application. In general imaging: Smart HRI automatically recognizes liver and renal cortex and calculates brightness ratios for parenchymal assessment; Smart Bladder measures three diameters and calculates volume automatically; Smart B-line performs automatic B-line recognition and counting for lung ultrasound. In OB/GYN: Smart OB provides automated fetal biometric measurements; Smart Planes CNS delivers an extremely capable fetal brain assessment tool; Smart FLC 2D/3D automatically detects follicles and calculates volumes; Smart Face removes fetal face occlusions with one button; Smart Fetal HR automates fetal heart rate measurement.
In cardiology: Auto EF provides automated left ventricular ejection fraction measurement; TTQA (angle-independent tissue tracking) provides precise myocardial motion assessment; RIMT delivers automatic intima-media thickness measurement for vascular risk assessment. The breadth of AI automation across every major application means the Consona N9 reduces the manual measurement burden throughout the scanning day, not just in one subspecialty.
Learning Tools and Ergonomics
iScanHelper provides step-by-step guided scanning protocols that walk less experienced operators through standard imaging planes, a feature with real value in departments where not all operators are subspecialty-trained sonographers. Smart Vue automatically recognizes standard imaging planes and restores the correct plane if the operator drifts off-axis. iWorks implements standardized scanning protocols that ensure no required plane is omitted. Together these tools make the Consona N9 accessible to a range of operator experience levels without compromising the system's performance ceiling for expert users.

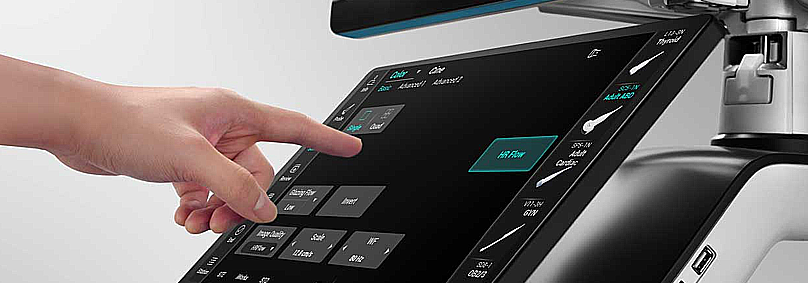

The physical design features a 23.8-inch FHD primary monitor, an optional secondary touch screen up to 15.6 inches, a rotatable control panel, adjustable height, water and dust proof panel, built-in battery, and a dual-wing floating arm for monitor positioning. The low-noise design and ease of transportation complete the package for a system that needs to work in a range of departmental environments.
Bottom Line: The Mindray Consona N9 is a high-capability shared-service ultrasound platform built on channel-data processing, single-crystal transducer technology, and a comprehensive AI tool suite that covers OB/GYN, cardiology, general imaging, and vascular applications. For departments looking for a single platform that performs credibly across the full clinical range without a separate specialized system for each application, the N9 makes a strong case.
