No needles, no radiation, no room preparation, and you can do it at the bedside at two in the morning. Ultrasound has become the Swiss Army knife of medical imaging — versatile, portable, safe, and fast. But beneath that convenience is a surprisingly sophisticated chain of physics and signal processing. Here is how it works.
Sound You Cannot Hear: The Physics Foundation

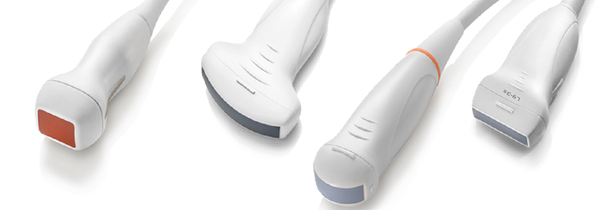

Medical ultrasound uses sound waves at frequencies far above the range of human hearing — typically between 2 MHz and 18 MHz, compared to the 20 kHz upper limit of the human ear. These high-frequency sound waves are generated by piezoelectric crystals inside the transducer (the probe). When an alternating electrical current is applied to these crystals, they vibrate at the driving frequency and produce mechanical sound waves that travel into tissue.
The pulse-echo principle drives everything that follows. The transducer sends a very brief pulse of sound — typically a few microseconds — and then switches to receive mode, listening for echoes that return as the sound bounces off tissue interfaces. Different tissues reflect sound differently depending on their acoustic impedance. The time it takes for an echo to return tells the system exactly how deep the reflecting structure is. Thousands of these pulse-echo cycles happen every second, building up a real-time cross-sectional image of the anatomy.
Beamforming: Turning Echoes Into Images
A single sound pulse returning from tissue carries depth information in one direction. To build a two-dimensional image, the system must steer the beam across a field of view and assemble thousands of individual scan lines into a coherent picture. This process — beamforming — is where modern ultrasound systems differ most significantly from each other.
Traditional hardware beamforming uses physical delays and analog circuits to focus the beam at a specific depth in one direction. The system then repeats this process across hundreds of scan lines to build one image frame. The limitation is that focus is optimal only at one depth per scan line.
Software-based beamforming, like the Zone Sonography Technology+ (ZST+) used in Mindray's MX-series platforms, works differently. Instead of firing hundreds of narrow, focused beams one at a time, ZST+ illuminates broad zones of tissue simultaneously and uses software algorithms to reconstruct a perfectly focused image at every depth, simultaneously. The result is an image that is optimally sharp from the skin surface to the deepest structure — something hardware beamforming cannot achieve — while also enabling faster frame rates.
Imaging Modes: More Than Just B-Mode
B-mode (brightness mode) is the standard grayscale image most people associate with ultrasound. But the modality encompasses several additional imaging modes that dramatically expand its clinical utility.
M-mode (motion mode) traces the motion of a single scan line over time — essential for measuring cardiac wall motion and valve timing. Doppler modes use the frequency shift of returning echoes to measure blood flow velocity and direction, enabling assessment of stenosis, regurgitation, and vascular disease without any contrast agents. Color Doppler overlays flow data onto the B-mode image for spatial context. Spectral Doppler displays quantitative velocity waveforms. And elastography modes measure tissue stiffness — relevant for liver fibrosis assessment, thyroid nodule characterization, and musculoskeletal evaluation.
Bottom Line: Ultrasound converts sound pulses into real-time images using physics that has been refined over 60 years of development. Modern beamforming software has transformed the platform's image quality without adding radiation, contrast agents, or complexity. Understanding the basics helps clinicians and facilities get the most out of the technology they already own.
