A still X-ray is like a photograph. Fluoroscopy is like live video. Where a conventional radiograph captures a single snapshot, fluoroscopy produces a continuous stream of real-time images that lets physicians see anatomy and instruments moving — in the body, during a procedure, with no time delay. Understanding how it works explains why it has become indispensable in surgical and interventional medicine.
From Still Photo to Live X-Ray Video
Fluoroscopy works on the same basic physics as conventional X-ray: a beam of X-ray photons passes through the body, is attenuated differently by different tissue densities (bone absorbs more than soft tissue), and the remaining photons strike a detector that converts them into a visible image. The key difference is speed and continuity.

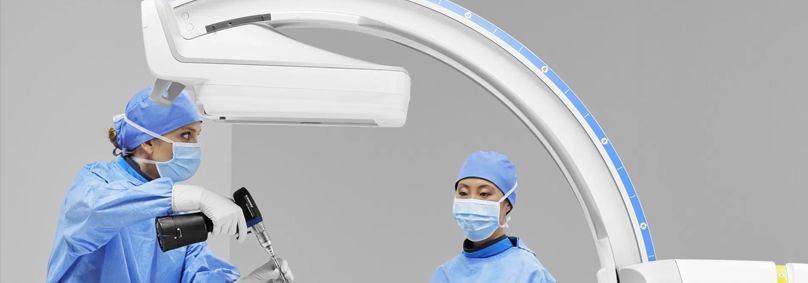

In fluoroscopic mode, the X-ray system produces either a continuous beam or rapid pulses — typically between 7.5 and 30 frames per second — and the detector captures each frame in sequence. The result is a live feed that updates fast enough to track the movement of a guidewire through a blood vessel or a screw being driven into bone. Modern C-arm systems display this feed on high-resolution monitors mounted in the OR, giving the surgical team an unobstructed view throughout the procedure.
Pulse Mode vs. Continuous Fluoroscopy
Early fluoroscopic systems ran in continuous mode: the X-ray beam was on as long as the foot pedal was pressed. This produced smooth, film-like imaging but came with a meaningful radiation cost to both the patient and the OR team.
Modern C-arms default to pulsed fluoroscopy, where the beam is switched on and off rapidly — typically 7.5, 15, or 30 pulses per second. At 7.5 pulses per second, the system is only irradiating for a fraction of the time it would in continuous mode, yet the image on the monitor updates quickly enough to guide most procedures. For slow, deliberate procedures like needle placement, 7.5 fps is plenty. For faster-moving procedures like cardiac catheterization, 15 or 30 fps may be needed to track motion clearly.
The dose reduction from pulsed fluoro can be substantial — often 50 to 75 percent compared to continuous fluoroscopy at equivalent frame rates. This is one of the reasons the FDA and interventional societies strongly recommend using the lowest frame rate clinically appropriate for the procedure.
ALARA: Keeping Dose as Low as Reasonably Achievable
Every modern fluoroscopic system is built around the ALARA principle — As Low As Reasonably Achievable. This is not just a regulatory concept; it is a practical operating philosophy built directly into C-arm hardware and software.
Key dose-reduction features include last image hold (LIH), which freezes the most recent fluoroscopic frame on the monitor so the operator can study it without continuing to irradiate. Beam collimation restricts the X-ray field to only the area of clinical interest. Dose rate modes allow technologists and physicians to select lower-dose presets for less demanding anatomy. And most modern C-arms track and display cumulative dose in real time so the team can monitor exposure throughout the case.
Bottom Line: Fluoroscopy transforms a static diagnostic tool into a live surgical guide. The combination of pulsed imaging, dose rate modes, and ALARA practices makes it possible to perform complex, image-guided procedures with a responsible radiation footprint. Knowing how it works is the first step toward using it well.
